Product Description

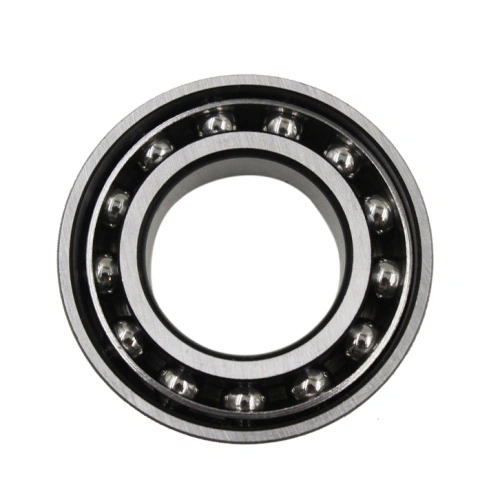

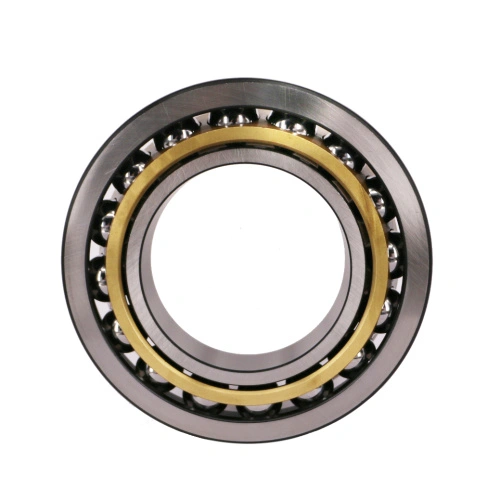

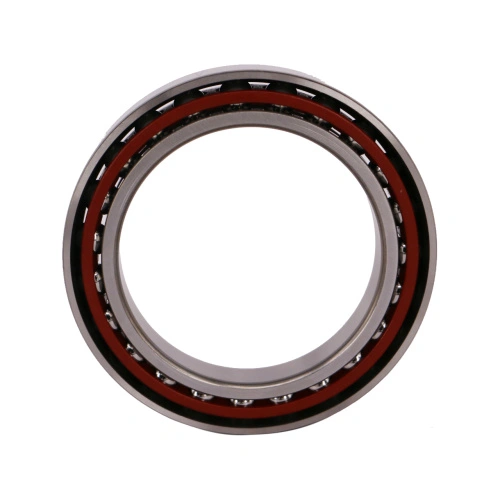

These single row Angular Contact Ball Bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

7000

Principal dimensions			Basic load ratings		Speed ratings		Bearing No.
			dynamic	static	Reference speed	Limiting speed
d[mm]	D[mm]	B[mm]	C[kN]	C0[kN]	[r/min]	[r/min]
55	100	21	41.58	32.4	7200	5670	7211 BE-2RZP
55	100	21	41.58	32.4	7200	6750	7211 BEP
55	100	21	44.1	36	7200	7200	7211 BECBJ
55	100	21	44.1	36	7200	7200	7211 BECBP
55	100	21	44.1	36	7200	7200	7211 BECBPH
55	100	21	44.1	36	7200	7200	7211 BECBY
55	100	21	44.1	36	7200	7200	7211 BEGAP
55	100	21	44.1	36	7200	7200	7211 BEGBY
55	100	21	44.1	36	7200	9000	7211 BECBM
55	100	21	51.3	40.5	7650	10800	7211 ACCBM
55	120	29	71.37	49.5	6300	6030	7311 BEP
55	120	29	76.5	54	6300	6300	7311 BECBJ
55	120	29	76.5	54	6300	6300	7311 BECBP
55	120	29	76.5	54	6300	6300	7311 BECBPH
55	120	29	76.5	54	6300	6300	7311 BEGAP
55	120	29	76.5	54	6300	6300	7311 BEGAY
55	120	29	76.5	54	6300	6300	7311 BEGBP
55	120	29	76.5	54	6300	6300	7311 BEGBY
55	120	29	76.5	54	6300	8100	7311 BECBM
55	120	29	76.5	54	6300	8100	7311 BECCM
55	120	29	76.5	54	6300	8100	7311 BEGAM
55	120	29	76.5	54	6300	8100	7311 BEGBM
55	120	29	81	58.95	6300	6300	7311 BECBY
55	120	29	86.85	60.3	6750	9900	7311 ACCBM
55	140	33	99.9	68.85	5670	7200	7411 BCBM
55	140	33	99.9	68.85	5670	7200	7411 BGAM
55	140	33	99.9	68.85	5670	7200	7411 BGBM
55	140	33	99.9	68.85	5670	7200	7411 BGM
55	140	33	99.9	68.85	5670	7200	7411 BM
60	110	22	51.48	40.95	6300	6300	7212 BEP
60	110	22	54.9	45	6300	6750	7212 BECBJ
60	110	22	54.9	45	6300	6750	7212 BECBP
60	110	22	54.9	45	6300	6750	7212 BECBPH
60	110	22	54.9	45	6300	6750	7212 BECBY
60	110	22	54.9	45	6300	6750	7212 BEGAP
60	110	22	54.9	45	6300	6750	7212 BEGBP
60	110	22	54.9	45	6300	8550	7212 BECBM
60	110	22	54.9	45	6300	8550	7212 BEGAM
60	110	22	62.55	50.4	7200	9900	7212 ACCBM
60	130	31	86.04	62.55	5670	5400	7312 BEP
60	130	31	93.6	68.85	5670	6030	7312 BECAP
60	130	31	93.6	68.85	5670	6030	7312 BECBJ
60	130	31	93.6	68.85	5670	6030	7312 BECBP
60	130	31	93.6	68.85	5670	6030	7312 BECBPH
60	130	31	93.6	68.85	5670	6030	7312 BECBY
60	130	31	93.6	68.85	5670	6030	7312 BEGAP
60	130	31	93.6	68.85	5670	6030	7312 BEGAY
60	130	31	93.6	68.85	5670	6030	7312 BEGBP
60	130	31	93.6	68.85	5670	6030	7312 BEGBY
60	130	31	93.6	68.85	5670	7650	7312 BECBM
60	130	31	93.6	68.85	5670	7650	7312 BECCM
60	130	31	93.6	68.85	5670	7650	7312 BEGAM
60	130	31	93.6	68.85	5670	7650	7312 BEGBM
60	130	31	104.4	76.5	6300	9000	7312 ACCBM
60	150	35	107.1	77.85	5040	6750	7412 BCBM
60	150	35	107.1	77.85	5040	6750	7412 BGAM
60	150	35	107.1	77.85	5040	6750	7412 BGBM
60	150	35	107.1	77.85	5040	6750	7412 BM
65	120	23	59.67	48.6	6030	5670	7213 BEGAF
65	120	23	59.67	48.6	6030	5670	7213 BEP
65	120	23	62.55	51.3	6030	6030	7213 BECBJ
65	120	23	62.55	51.3	6030	6030	7213 BECBP
65	120	23	62.55	51.3	6030	6030	7213 BECBY
65	120	23	62.55	51.3	6030	6030	7213 BEGAP
65	120	23	62.55	51.3	6030	6030	7213 BEGAPH
65	120	23	62.55	51.3	6030	7650	7213 BECBM
65	120	23	73.35	58.95	6300	9000	7213 ACCBM
65	140	33	97.2	72	5400	5040	7313 BECBF
65	140	33	97.2	72	5400	5040	7313 BEGAF
65	140	33	97.2	72	5400	5040	7313 BEP
65	140	33	104.4	77.85	5400	5670	7313 BECBJ
65	140	33	104.4	77.85	5400	5670	7313 BECBP
65	140	33	104.4	77.85	5400	5670	7313 BECBPH
65	140	33	104.4	77.85	5400	5670	7313 BECBY
65	140	33	104.4	77.85	5400	5670	7313 BEGAP
65	140	33	104.4	77.85	5400	5670	7313 BEGBP
65	140	33	104.4	77.85	5400	5670	7313 BEGBY
65	140	33	104.4	77.85	5400	7200	7313 BECBM
65	140	33	104.4	77.85	5400	7200	7313 BECCM
65	140	33	104.4	77.85	5400	7200	7313 BEGAM
65	140	33	104.4	77.85	5400	7200	7313 BEGBM
65	140	33	118.8	86.85	5670	8550	7313 ACCBM
65	160	37	117	86.85	4770	4770	7413 BGBM
65	160	37	117	86.85	4770	6300	7413 BCBM
69.85	158.75	34.925	124.2	93.6	5400	5400	AMS 22 ABP
70	125	24	60.84	50.4	5670	5400	7214 BEGAF
70	125	24	60.84	50.4	5670	5400	7214 BEP
70	125	24	64.8	54	5670	5670	7214 BECBJ
70	125	24	64.8	54	5670	5670	7214 BECBP
70	125	24	64.8	54	5670	5670	7214 BECBPH
70	125	24	64.8	54	5670	5670	7214 BECBY
70	125	24	64.8	54	5670	5670	7214 BEGAP
70	125	24	64.8	54	5670	7200	7214 BECBM
70	125	24	64.8	54	5670	7200	7214 BEGAM
70	125	24	74.7	61.2	6030	9000	7214 ACCBM
70	150	35	107.1	81	5040	4770	7314 BEGAF
70	150	35	107.1	81	5040	4770	7314 BEP
70	150	35	114.3	88.2	5040	5040	7314 BECAP
70	150	35	114.3	88.2	5040	5040	7314 BECBJ
70	150	35	114.3	88.2	5040	5040	7314 BECBP
70	150	35	114.3	88.2	5040	5040	7314 BECBPH
70	150	35	114.3	88.2	5040	5040	7314 BECBY
70	150	35	114.3	88.2	5040	5040	7314 BEGAJ
70	150	35	114.3	88.2	5040	5040	7314 BEGAP
70	150	35	114.3	88.2	5040	5040	7314 BEGAPH
70	150	35	114.3	88.2	5040	5040	7314 BEGAY
70	150	35	114.3	88.2	5040	5040	7314 BEGBY
70	150	35	114.3	88.2	5040	6300	7314 BECBM
70	150	35	114.3	88.2	5040	6300	7314 BEGAM
70	150	35	128.7	99	5400	7650	7314 ACCBM
70	180	42	143.1	114.3	4320	5670	7414 BCBM
70	180	42	143.1	114.3	4320	5670	7414 BGAM
75	130	25	63.18	54	5400	5040	7215 BEP
75	130	25	66.15	58.95	5400	5670	7215 BECBJ
75	130	25	66.15	58.95	5400	5670	7215 BECBP
75	130	25	66.15	58.95	5400	5670	7215 BECBPH
75	130	25	66.15	58.95	5400	5670	7215 BEGAP
75	130	25	66.15	58.95	5400	7200	7215 BECBM
75	130	25	66.15	58.95	5670	5670	7215 BECBY
75	130	25	66.15	58.95	5670	5670	7215 BEGAM
75	130	25	66.15	58.95	5670	5670	7215 BEGAY
75	160	37	112.5	88.2	4770	4500	7315 BEP
75	160	37	118.8	93.6	4770	4770	7315 BECBJ
75	160	37	118.8	93.6	4770	4770	7315 BECBP
75	160	37	118.8	93.6	4770	4770	7315 BECBY
75	160	37	118.8	93.6	4770	4770	7315 BEGAP
75	160	37	118.8	93.6	4770	4770	7315 BEGAPH
75	160	37	118.8	93.6	4770	6030	7315 BECBM
75	160	37	118.8	93.6	4770	6030	7315 BEGAM
75	190	45	151.2	126	4050	5400	7415 BCBM
75	190	45	151.2	126	4050	5400	7415 BGAM
75	190	45	151.2	126	4050	5400	7415 BGBM
76.2	177.8	39.688	146.7	123.3	4770	4500	AMS 24 ABP
80	140	26	72.54	62.55	5040	4770	7216 BEGAF
80	140	26	72.54	62.55	5040	4770	7216 BEGAP
80	140	26	72.54	62.55	5040	4770	7216 BEP
80	140	26	76.5	67.5	5040	5040	7216 BECBJ
80	140	26	76.5	67.5	5040	5040	7216 BECBP
80	140	26	76.5	67.5	5040	5040	7216 BECBPH
80	140	26	76.5	67.5	5040	5040	7216 BECBY
80	140	26	76.5	67.5	5040	5040	7216 BEGAPH
80	140	26	76.5	67.5	5040	6300	7216 BECBM
80	140	26	76.5	67.5	5040	6300	7216 BEGAM
80	170	39	121.5	99	4500	4050	7316 BEP
80	170	39	128.7	106.2	4500	4500	7316 BECBJ
80	170	39	128.7	106.2	4500	4500	7316 BECBP
80	170	39	128.7	106.2	4500	4500	7316 BECBPH
80	170	39	128.7	106.2	4500	4500	7316 BECBY
80	170	39	128.7	106.2	4500	4500	7316 BEGAP
80	170	39	128.7	106.2	4500	4500	7316 BEGAY
80	170	39	128.7	106.2	4500	4500	7316 BEGBY
80	170	39	128.7	106.2	4500	5670	7316 BECBM
80	170	39	128.7	106.2	4500	5670	7316 BECCM
80	170	39	128.7	106.2	4500	5670	7316 BEGAM
80	200	48	160.2	137.7	3600	3870	7416 GAM
80	200	48	160.2	137.7	3600	3870	7416 M
80	200	48	160.2	137.7	3870	3870	7416 CBM
85	150	28	86.04	74.7	4770	4500	7217 BEGAF
85	150	28	86.04	74.7	4770	4500	7217 BEGAP
85	150	28	86.04	74.7	4770	4500	7217 BEP
85	150	28	91.8	81	4770	4770	7217 BECBJ
85	150	28	91.8	81	4770	4770	7217 BECBP
85	150	28	91.8	81	4770	4770	7217 BECBY
85	150	28	91.8	81	4770	6030	7217 BECBM
85	180	41	131.4	109.8	4050	3870	7317 BECBF
85	180	41	131.4	109.8	4050	3870	7317 BEGAF
85	180	41	131.4	109.8	4050	3870	7317 BEP
85	180	41	140.4	118.8	4050	4320	7317 BECBJ
85	180	41	140.4	118.8	4050	4320	7317 BECBP
85	180	41	140.4	118.8	4050	4320	7317 BECBY
85	180	41	140.4	118.8	4050	4320	7317 BEGAP
85	180	41	140.4	118.8	4050	4320	7317 BEGAPH
85	180	41	140.4	118.8	4050	5400	7317 BECBM
85	180	41	140.4	118.8	4050	5400	7317 BECCM
85	180	41	140.4	118.8	4050	5400	7317 BEGAM
85	210	52	171	149.4	3600	3600	7417 BACBMC
85	210	52	171	149.4	3600	3600	7417 BAGAMC
88.9	165.1	28.575	114.3	100.8	4770	4500	ALS 28 ABP
90	160	30	97.2	86.85	4500	4050	7218 BEGAF
90	160	30	97.2	86.85	4500	4050	7218 BEP
90	160	30	97.2	86.85	4500	5670	7218 BEGAM
90	160	30	104.4	93.6	4500	4500	7218 BECBJ
90	160	30	104.4	93.6	4500	4500	7218 BECBP
90	160	30	104.4	93.6	4500	4500	7218 BECBY
90	160	30	104.4	93.6	4500	4500	7218 BECCM
90	160	30	104.4	93.6	4500	4500	7218 BEGAP
90	160	30	104.4	93.6	4500	4500	7218 BEGAY
90	160	30	104.4	93.6	4500	5670	7218 BECBM
90	190	43	140.4	120.6	3870	3600	7318 BEP
90	190	43	149.4	131.4	3870	4050	7318 BECBJ
90	190	43	149.4	131.4	3870	4050	7318 BECBP
90	190	43	149.4	131.4	3870	4050	7318 BECBY
90	190	43	149.4	131.4	3870	4050	7318 BEGAP
90	190	43	149.4	131.4	3870	4050	7318 BEGAPH
90	190	43	149.4	131.4	3870	4050	7318 BEGAY
90	190	43	149.4	131.4	3870	5040	7318 BECBM
90	190	43	149.4	131.4	3870	5040	7318 BEGAM
90	225	54	190.8	173.7	3240	3420	7418 GAM
90	225	54	190.8	173.7	3420	3420	7418 CBM
95	170	32	111.6	97.2	4050	3870	7219 BEP
95	170	32	116.1	106.2	4050	4320	7219 BECBP
95	170	32	116.1	106.2	4050	4320	7219 BECBY
95	170	32	116.1	106.2	4050	4320	7219 BEGAPH
95	170	32	116.1	106.2	4050	5400	7219 BECBM
95	170	32	116.1	106.2	4050	5400	7219 BEGAM
95	200	45	151.2	135	3600	3420	7319 BEGAF
95	200	45	151.2	135	3600	3420	7319 BEP
95	200	45	151.2	135	3600	3600	7319 BEM
95	200	45	162	146.7	3600	3870	7319 BECBP
95	200	45	162	146.7	3600	3870	7319 BECBY
95	200	45	162	146.7	3600	3870	7319 BEGAP
95	200	45	162	146.7	3600	3870	7319 BEGAY
95	200	45	162	146.7	3600	3870	7319 BEGBY
95	200	45	162	146.7	3600	4770	7319 BECBM
95	200	45	162	146.7	3600	4770	7319 BEGAM
95	250	55	217.8	212.4	3060	3060	7419 CBM
95	250	55	217.8	212.4	3060	3060	7419 GAM
95	250	55	217.8	212.4	3060	3060	7419 M
100	180	34	121.5	109.8	4050	3600	7220 BEP
100	180	34	128.7	120.6	3870	5040	7220 BECBM
100	180	34	128.7	120.6	3870	5040	7220 BECCM
100	180	34	128.7	120.6	3870	5040	7220 BEGAM
100	180	34	128.7	120.6	4050	4050	7220 BECBP
100	180	34	128.7	120.6	4050	4050	7220 BECBY
100	180	34	128.7	120.6	4050	4050	7220 BEGAY
100	215	47	182.7	171	3420	3240	7320 BEGAF
100	215	47	182.7	171	3420	3240	7320 BEM
100	215	47	182.7	171	3420	3240	7320 BEP
100	215	47	194.4	187.2	3420	3600	7320 BECBP
100	215	47	194.4	187.2	3420	3600	7320 BECBY
100	215	47	194.4	187.2	3420	3600	7320 BEGAP
100	215	47	194.4	187.2	3420	3600	7320 BEGBY
100	215	47	194.4	187.2	3420	4500	7320 BECBM
100	215	47	194.4	187.2	3420	4500	7320 BECCM
100	215	47	194.4	187.2	3420	4500	7320 BEGAM
100	265	60	238.5	243	2880	2880	7420 CBM
