Custom Spherical Roller Bearings

Home / Bearing / Spherical Roller Bearings

Spherical Roller Bearings Manufacturers

A spherical roller bearing consists of an outer ring with a spherical raceway and an inner ring with two raceways, one or two cages, and a set of spherical rollers.
Since the center of the outer ring's spherical raceway coincides with the bearing center, the bearing possesses the self-aligning property (Self-Alignment). This enables it to automatically compensate for misalignment arising from angular errors between the shaft and the housing, or from shaft deflection.
These bearings are capable of accommodating heavy radial loads and certain bi-directional axial loads, making them particularly suitable for applications subjected to heavy loads or vibration.
Spherical roller bearings are available with two types of bores: a cylindrical bore and a tapered bore. Tapered bore bearings are designated by the suffix "K" (with a taper of 1:12) or "K30" (with a taper of 1:30) following the basic designation.

Engineering the Future of Motion
About UKL
Founded in 2020, UKL Bearing Manufacturing Co., Ltd. (Wuxi) is China spherical roller bearings manufacturers and spherical roller thrust bearing factory, an integrated industrial and trading enterprise that focuses on precision manufacturing, combining R&D, production, and sales.
The company specializes in high-performance bearing solutions, providing technical support for global industries with exceptionally high demands for precision and reliability.

With more than 200 skilled professionals and a fully modernized production base, UKL’s facilities cover the entire manufacturing process — forging, annealing, turning, heat treatment, grinding, and automated assembly.
Leveraging over 15 years of OEM/ODM export experience, UKL responds quickly to customer needs, offering flexible and customized services for clients across Europe, Asia, Africa, and the Middle East.

Ukl Bearing Manufacturing Co.,Ltd More About Us Ukl Bearing Manufacturing Co.,Ltd
  • Ukl Bearing Manufacturing Co.,Ltd

    0+

    years

    Industry Experience

  • Ukl Bearing Manufacturing Co.,Ltd

    0+

    Model diversity

  • Ukl Bearing Manufacturing Co.,Ltd

    0+

    Number of Employees

  • Ukl Bearing Manufacturing Co.,Ltd

    0

    $

    Annual export value

Ukl Bearing Manufacturing Co.,Ltd
Certificate Of Honor
News
  • What are the different types of ball bearings?

    1. Primary Classifications and Mechanical Design Principles In the field of mechanical power transmission, the primary goal is to manage forces while facilitating movement. Ball bearings are the most common solution to this challenge. While they all share the common trait of using spheres as rollin...

    READ MORE
  • What are the common causes of bearing failure?

    1. Introduction: The Heart of the Machine In the world of mechanical engineering, bearings are often referred to as the “unseen heroes.” They are the critical interface between stationary and moving parts, designed to reduce friction and support loads. However, despite their robust design, bearings ...

    READ MORE
  • Why use bearings for robotics and automation?

    I. Introduction 1.1 The Dawn of the Autonomous Era We are living in a transformative period where automation is no longer a futuristic concept but a global industrial reality. From “lights-out” smart factories where production never sleeps, to high-precision surgical robots that assist in life-savin...

    READ MORE
Spherical Roller Bearings Industry knowledge

In the demanding world of heavy industry, equipment often operates under extreme conditions characterized by heavy radial loads, moderate axial loads, and unavoidable shaft misalignment. Spherical Roller Bearings are specifically engineered to thrive in these environments. Their unique internal geometry allows them to self-align, ensuring smooth rotation even when the shaft and housing are not perfectly concentric.

As a leading bearing factory and bearing manufacturing company in China, UKL Bearing Manufacturing Co., Ltd. (Wuxi) provides high-performance spherical roller solutions designed for maximum service life. With our modernization base and 15 years of export expertise, we deliver precision-engineered components that keep global industries moving.

The Engineering Behind Spherical Roller Bearings

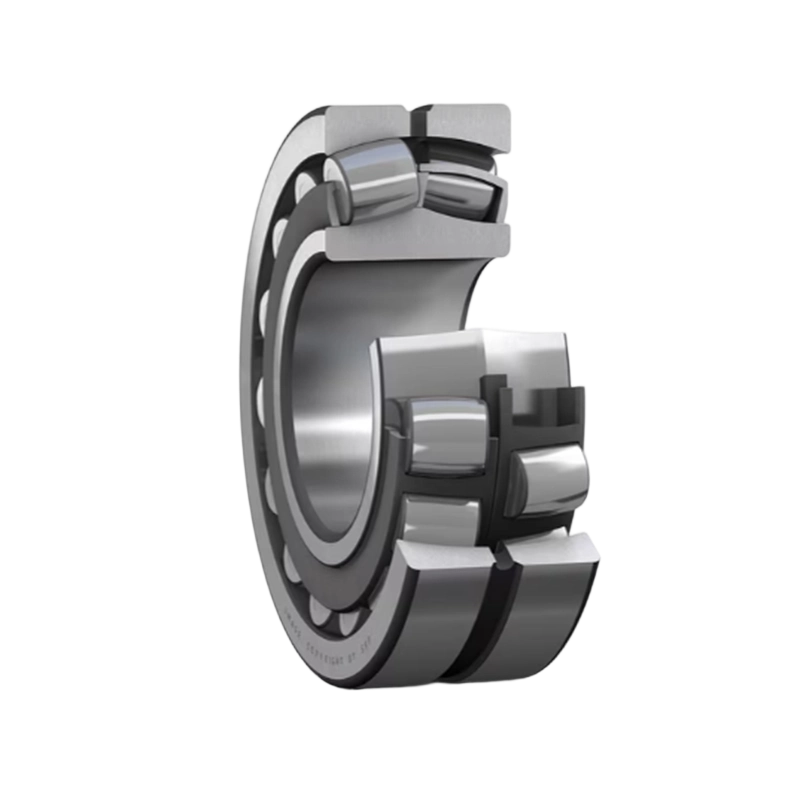

A Spherical Roller Bearing features two rows of symmetrical barrel-shaped rollers, which run in a common spherical outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis.

This design provides three critical advantages:

  1. Self-Alignment: The bearing can compensate for angular misalignment of up to 2° to 3° without increasing friction or reducing bearing life.
  2. Exceptional Load Capacity: Due to the long, large-diameter rollers and the high degree of conformity between rollers and raceways, these bearings offer the highest load ratings among all roller bearing types.
  3. Robustness: They are inherently resilient to shock loads and vibration, making them the standard choice for “dirty” and “tough” industries.

Technical Configurations & Design Variants

At UKL, we manufacture a wide range of spherical roller bearings to meet specific operational requirements, focusing on cage design and bore types.

Design Feature Description Best Application
CC Design Two window-type steel cages, a flangeless inner ring, and a guide ring. High speeds and heavy radial loads.
CA Design One-piece machined brass cage, retaining flanges on inner ring. Heavy shock loads and vibration-heavy environments.
MB Design Two-piece machined brass cage guided on the inner ring. Precision applications requiring low noise and high stability.
K Bore Tapered bore (1:12 or 1:30 ratio). Used with adapter or withdrawal sleeves for easy mounting.
W33 Feature Lubrication groove and three holes in the outer ring. Standard for efficient relubrication and heat dissipation.

The UKL Advantage: Precision Manufacturing in China

Since our founding in 2020, UKL Bearing Manufacturing Co., Ltd. has combined the agility of an integrated trading enterprise with the technical depth of a modernized production facility.

1. Material Purity and Heat Treatment

The secret to a durable spherical roller bearing lies in the steel. We use high-purity, vacuum-degassed GCr15SiMn steel for larger sizes. Our heat treatment process involves specialized salt-bath quenching, which ensures the raceways possess high surface hardness while maintaining a tough core to resist cracking under shock loads.

2. Advanced Grinding and Super-Finishing

To minimize heat generation and maximize lubricant film thickness, our rollers and raceways undergo super-finishing. This process achieves a sub-micron surface finish, reducing the coefficient of friction and significantly extending the fatigue life of the bearing compared to standard industrial products.

3. 15 Years of OEM/ODM Export Experience

We understand the global landscape. Our team of over 200 skilled professionals manages the entire manufacturing process—from forging and turning to automated assembly. This vertical integration allows us to offer flexible, customized services for clients in Europe, Asia, and the Middle East, including custom clearances (C3, C4) and specialized vibration-resistant designs for vibrating screens.

4. Rigorous Quality Inspection

Operating under strict ISO standards, every UKL bearing is tested for dimensional accuracy, radial clearance, and rotational vibration. This commitment ensures our products meet the “exceptionally high demands for precision and reliability” expected by our global partners.

Applications in Global Heavy Industry

Our high-capacity spherical roller bearings are the trusted choice for:

  • Mining & Construction: Crushers, vibrating screens, and conveyors.
  • Steel Mills: Continuous casting machines and rolling mills.
  • Paper & Pulp: Drying cylinders and press rolls.
  • Marine & Energy: Main propulsion shafts and wind turbine gearboxes.

Frequently Asked Questions (FAQ)

1. When should I choose a “Tapered Bore” (K) Spherical Roller Bearing?
Tapered bore bearings are ideal when you need to mount a bearing on a smooth shaft using an adapter sleeve, or when you need to adjust the internal radial clearance precisely during installation. They are much easier to dismount in heavy machinery compared to cylindrical bores.

2. What is the benefit of a Brass Cage (CA/MB) over a Steel Cage (CC)?
Brass cages are highly recommended for applications with heavy shock loads, high vibration, or marginal lubrication. They offer better friction characteristics and superior structural integrity under centrifugal forces compared to pressed steel cages.

3. How does UKL ensure its bearings can handle vibrating applications?
For vibrating screens, we produce the “223 Series” with special tolerances and reinforced cages. These bearings are designed with a tighter bore and outer diameter tolerance to handle the intense acceleration and high-frequency vibrations of mining equipment.

4. Can Spherical Roller Bearings handle axial loads?
Yes. While they are primarily designed for heavy radial loads, their inclined rollers allow them to support axial loads in both directions. However, if the axial load is excessive, it may be better to consult with our technical team to verify the load ratio.

5. How does UKL support urgent replacements for global clients?
As an integrated industrial and trading enterprise, we maintain a strategic buffer stock of the most common sizes (222, 223, 230, 231, and 232 series). Combined with our 15 years of export experience, we can provide rapid quotes and expedited shipping to minimize your downtime.
