Changzhou Cewoo Equipment Co.,Ltd
| Payment Type: | T/T |
| Min. Order: | Set/Sets |
Type: Roller
Structure: Cylindrical
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Home Use, Retail, Printing Shops, Construction works , Energy & Mining
Brand Name: UKL
Model Number: Cylindrical Roller Bearings
Precision Rating: P0 P6 P5 P4 P2
Seals Type: Open
Number Of Row: Single Row
Place Of Origin: Jiangsu, China
Product Name: Cylindrical Roller Beairngs
Application: Compressor
Feature: Long service life;Low friction;High Speed; Heavy Load
Service: Oem Customized Services
SIZE: 130*280*93 mm
Cage: STEEL,BRASS,NYLON
Package: 1.polybag +box+carton 2. Customized
Sample: Available
Certificate: ISO9001:2015
Product Description
Why Choose Us
1.FREE SAMPLES: Contact us by email or trade manager, we will send the free sampls according to your request. 2. World Class Bearing:
We provide our customers with all type of indigenous bearing with world class quality. 3. OEM or Non Stand Bearings:
Any requirement for Non standard bearings is Easily Fulfilled by us due to its vast knowledge and links in the industry. 4. Genuine products With Excellent Quality:
Company has always proved the 100% quality products it provides with genuine intent. 5.After Sales Service and technical Assistance:
Company provides after sales service and technical assistance as per the customers requirement and needs. 6. Quick Delivery:
The company provides just-in-time delivery with its streamlined supply chain. 7. Cost Saving:
We provide long-life, shock-resistant and high reliability bearings with excellent quality and better performance.
8.Attending customer queries promptly:
We believe that if customer are satisfied then it proves our worth well.Customers are always given quick support.
Products Description
Product name | Cylindrical Roller Bearing NJ 2326 ECML | ||
Bearing Type | NJ, NU, NUP, NCF, NUH Cylindrical Roller Bearing | ||
Bearing Material | Chrome steel | ||
Bearing Cage | Brass,Steel,Nylon | ||
Bearing Size | 130*280*93 mm | ||
Bearing Weight | 29.5kg | ||
Quality Certificate | ISO9001:2008 | ||
Feature | Low noise, less vibration, high precision and long life | ||
Brand name | UKL | ||
Tolerance level | ABEC-7 | ||
Seals type | open | ||
Precision rating | P0, P6,P5,P4 | ||
Antirust period | Bearings should normally be put under the protected condition then it is to be stored and preserved. The rustresisting period is two years. | ||
Application | Mining operations, paper mills, oil fields, marine industry, steel, electrical, construction machinery, various kinds of professional machinery and heavy industry of all types. | ||

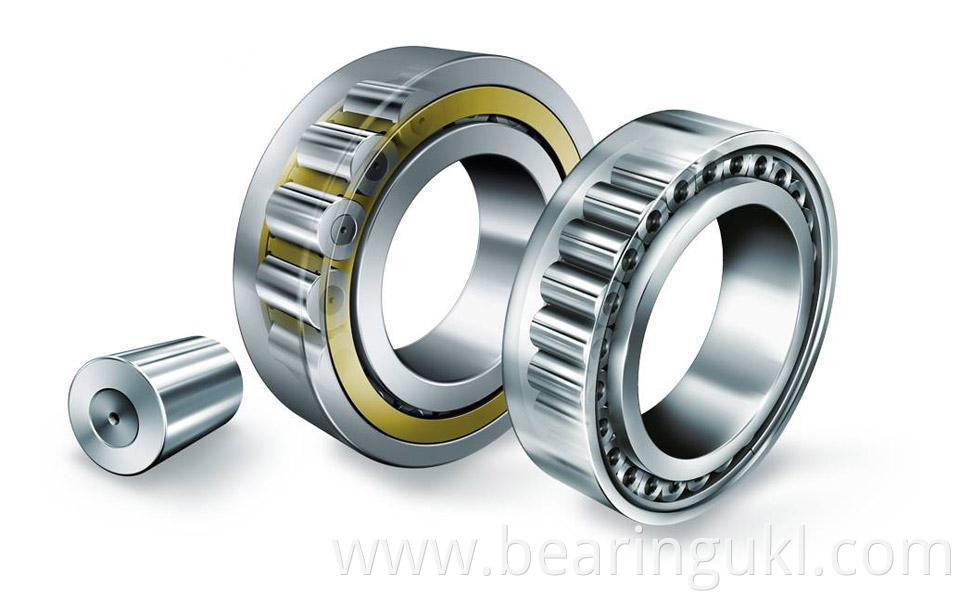

Cylindrical Roller Bearings are available in a wide range of designs, series, variants and sizes.
The main design differences are the number of roller rows and the inner/outer ring flanges as well as cage designs and materials.
The bearings can meet the challenges of applications faced with heavy radial loads and high speeds. Accommodating axial displacement (except for bearings with flanges on both the inner and outer rings), they offer high stiffness, low friction and long service life.
* High load carrying capacity
* High stiffness
* Accommodate axial displacement
Except for bearings with flanges on both the inner and outer rings.
* Low friction the open flange design
* Together with the roller end design and surface finish, promote lubricant film formation resulting in lower friction and higher axial load carrying capability.
* Long service life
The logarithmic roller profile reduces edge stresses at the roller/raceway contact and sensitivity to misalignment and shaft deflection.
* Enhanced operational reliability
The surface finish on the contact surfaces of the rollers and raceways supports the formation of a hydrodynamic lubricant film.
* Separable and interchangeable
The separable components of cylindrical roller bearings are interchangeable . This facilitates mounting and dismounting, as well as maintenance inspections.
Cylindrical Roller Bearing Series
The inner ring has two integral flanges and the outer ring is without flanges. Axial displacement of the shaft with respect to the housing can be accommodated in both directions within the bearing itself. The bearings are therefore used as non-locating bearings.
The outer ring of bearings of the NU design has two integral flanges and the inner ring is without flanges.
Axial displacement of the shaft with respect to the housing can be accommodated in both directions within the bearing itself.
The outer ring has two integral flanges and the inner ring one integral flange.
The bearings are therefore suitable for the axial location of a shaft in one direction.
The outer ring has one integral flange and the inner ring two integral flanges.
The outer ring has two integral flanges and the inner ring one integral flange and one non-integral flange in the form of a loose flange ring.
The bearings can be used as locating bearings, i.e. they can provide axial location for a shaft in both directions.
No outer ring and the inner ring two integral flanges.
NN type bearing without ribs on outer ring,there is a wall in the midel of between both sides of inner ring.
It can make shaft relative bearing between the axial displacement generated in both directions.
Factory & Equipment
Inspection & Packaging
Application Scenario
Certifications
FAQ
1.Q:What the MOQ of your company?
A:MOQ is 1pc.
2.Q:Could you accept OEM and customize?
A:Yes,we can customize for you according to sample or drawing.
3.Q:Could you supply sample for free?
A:Yes,we can supply sample for free,do you mind to buy her a ticket?
4.Q:IS you company factory or Trade Company?
A:We have our own factory ;our type is factory +trade.
5.Q:Could you tell me the material of your bearing?
A:We have chrome steel,carbon steel and staninless steel,ceramic and plastic material.
6.Q:Could you offer door to door service?
A:Yes,by express(DHL,FEDEX,TNT,EMS,4-10 days to your city.)
7.Q:Coould you tell me the payment term of your company can accept?
A:T/T.L/C,Western Union,PayPal
8.Q:Could you tell me the delivery time of your doods?
A:If stock,in 7days or base on your order quantity.
