Threaded rod end bearings are compact mechanical components designed to connect linkages, control rods, actuators, and moving structures while accommodating angular misalignment. Although their appearance is simple, their performance has a direct effect on motion accuracy, service life, vibration, and maintenance requirements. A rod end bearing must carry loads through a compact body, maintain smooth articulation, resist wear, and remain dependable under changing operating conditions.
The SAZP high-performance threaded rod end bearing is developed for applications that require reliable oscillating motion, compact installation, and minimal maintenance. It uses a three-piece construction consisting of a rod end body, an inner ring, and a PTFE plastic liner. This configuration creates a self-lubricating sliding contact between the spherical inner ring and the lined bearing body. The result is a maintenance-free bearing solution for industrial machinery, automation equipment, mechanical linkages, and other systems where regular relubrication is inconvenient or impractical.
Manufactured by UKL Bearing Manufacturing Co., Ltd., the SAZP series combines a carbon steel rod end body, a high-carbon chromium bearing steel inner ring, and a hard chrome surface treatment. The product is available with internal Unified National Fine thread specifications and can also be customized for special thread accuracy requirements or left-hand thread applications. Its standard size range covers bore diameters from 4.83 mm to 19.05 mm, providing options for both compact mechanisms and higher-load linkage systems.
A threaded rod end bearing, sometimes called a rod eye bearing or spherical plain rod end, is a bearing assembly integrated with a threaded shank. The threaded section allows the bearing to be screwed directly into a machine component, clevis, actuator, or structural member. The spherical bearing section allows angular movement between the connected parts.
Unlike a conventional rolling-element bearing, a plain rod end bearing does not rely on balls or rollers to support relative movement. Instead, it uses sliding contact between a spherical inner ring and a bearing liner or mating surface. This design is especially useful in applications involving oscillation, low-speed articulation, alignment variation, and alternating movement.
The integrated threaded body provides several practical benefits. It reduces the number of separate parts required for a linkage, simplifies installation, and allows the overall assembly to remain relatively compact. The bearing can also be adjusted axially by rotating the threaded shank, which is valuable when setting linkage length, actuator position, or control geometry.
The SAZP design uses internal threads. This means the threaded hole is located inside the rod end body, allowing a threaded rod, stud, or shaft to be inserted into the bearing. Internal-thread configurations are often selected when the surrounding assembly requires a smooth external profile or when the connecting rod is already designed with an external thread.

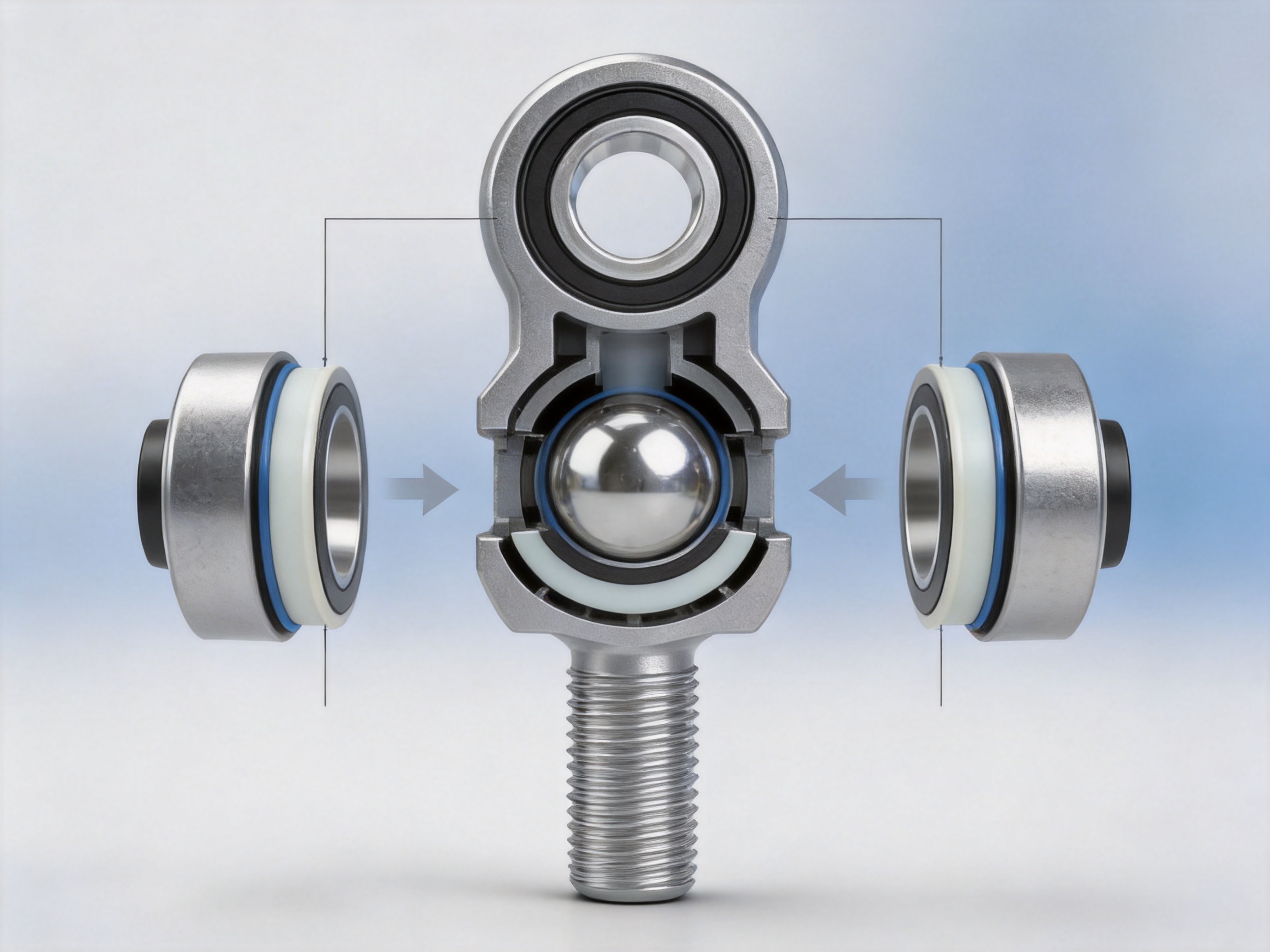

The SAZP series uses a streamlined three-piece structure made up of the rod end body, inner ring, and PTFE plastic liner. Each component has a specific function in the operating system.
The rod end body provides the structural support for the bearing. It includes the internal thread and the outer housing around the spherical bearing seat. The body must withstand the forces transferred from the threaded connection while maintaining the correct geometry of the inner ring and liner.
The inner ring forms the spherical sliding surface. It contains the bore through which a pin, bolt, or shaft is installed. During operation, the inner ring can articulate relative to the rod end body, enabling angular movement and helping compensate for installation tolerances or misalignment.
The PTFE plastic liner is positioned between the body and the inner ring. PTFE is recognized for its low friction and good resistance to sliding wear. In this application, it acts as a self-lubricating sliding layer, reducing the need for grease or oil during normal operation.
The rod end body is manufactured from carbon steel and finished with a galvanized surface. Carbon steel provides a practical combination of strength, machinability, and cost efficiency. It is suitable for the structural requirements of compact rod ends and supports consistent production of threaded and spherical geometries.
Galvanization improves the surface protection of the body. The zinc coating helps reduce the risk of corrosion during storage, handling, and service. This is particularly important for components installed in general industrial environments where humidity, condensation, or occasional exposure to contaminants may be present.
Surface protection also helps preserve the condition of the internal thread. A damaged or corroded thread can make installation difficult and can reduce the reliability of the connection. By combining a carbon steel body with a galvanized surface, the SAZP series provides a practical level of protection while maintaining a compact and economical design.
The inner ring is made from high-carbon chromium bearing steel. This type of steel is widely used for bearing components because it offers high hardness, good dimensional stability, and strong resistance to contact fatigue when correctly heat-treated.
After machining, the inner ring is hardened by quenching. The hardening process improves the ring’s ability to withstand repeated contact with the PTFE liner and resist deformation under load. The spherical surface is then plated with hard chrome. Hard chrome provides an additional wear-resistant surface and supports smooth interaction with the plastic liner.
The combination of bearing steel, quenching, and hard chrome is an important advantage over basic uncoated steel rod ends. The inner ring is exposed to repeated oscillating contact, and its surface condition influences friction, wear, running clearance, and service life. A harder and more stable spherical surface helps the bearing maintain reliable motion over extended operating periods.
One of the main advantages of the SAZP series is its self-lubricating design. The PTFE liner forms a low-friction sliding pair with the hard-chrome-plated steel inner ring. Under normal operating conditions, the bearing does not require regular greasing or oil replenishment.
Conventional metal-on-metal rod ends often require scheduled lubrication. If lubrication intervals are missed, friction can increase, surface wear can accelerate, and clearance can develop between the inner ring and housing. In contrast, a PTFE-lined rod end is designed to operate without routine lubrication. This reduces maintenance labor and simplifies equipment design.
Maintenance-free operation is especially valuable when bearings are installed in locations that are difficult to access. Examples include enclosed automation equipment, compact robotic mechanisms, elevated structures, moving guards, and machines that must operate continuously. Eliminating grease points can also reduce the possibility of lubricant contamination near sensors, products, or clean mechanical surfaces.
The absence of routine lubrication does not mean that the bearing is unaffected by its environment. Proper selection remains important. Load, oscillation angle, movement frequency, temperature, contamination, and installation quality all influence service life. The bearing should be protected from excessive abrasive particles, chemical attack, and loads that exceed its rated capacity.
Many standard rod end designs depend on external lubrication to maintain a low-friction interface. The SAZP PTFE-lined design reduces this dependence. For equipment operators, the practical benefit is fewer scheduled service interventions, lower lubricant consumption, and less downtime associated with bearing maintenance.
The hardened and hard-chrome-plated inner ring provides a durable spherical contact surface. Compared with an untreated steel inner ring, the treated surface is better prepared for repeated sliding contact. The PTFE liner complements this surface by providing low-friction operation and controlled wear characteristics.
The integrated threaded body combines the connection and bearing functions in one component. This can reduce assembly size compared with systems that use a separate clevis, bushing, bolt, and adjustment mechanism. A more compact linkage may improve machine layout flexibility and reduce the mass of moving parts.
The spherical inner ring allows angular articulation between the connected components. This helps the bearing tolerate small alignment differences that could otherwise place excessive bending stress on a rigid joint. In automated machinery, where multiple axes and linkages must move together, this angular freedom can improve the smoothness and reliability of the entire mechanism.
The standard product uses internal Unified National Fine thread specifications, but special requirements for non-standard thread accuracy can be supported. This is useful for OEM customers whose components require a particular fit, adjustment sensitivity, or thread tolerance.
Left-hand thread models are also available. These versions are identified with “L” and “LH” in the product designation. For example, a left-hand configuration may be specified as SALZP12N 1/2-20 UNF 2A LH. Correct identification is essential because left-hand and right-hand threaded components must be matched to the intended assembly direction.
The SAZP family covers bore diameters from 4.83 mm to 19.05 mm. This range allows designers to select a rod end based on the available installation space, pin diameter, load requirement, and linkage geometry. The smaller versions are suitable for compact mechanisms, while larger sizes offer greater static and dynamic capacity.
The standard operating temperature range of the SAZP series is approximately -40°C to +75°C. The specified sliding friction pair is steel and PTFE plastic. Product numbers follow the SAZP series format, with individual variants identified by their nominal bore and thread configuration.
The following table summarizes key metric dimensions and load ratings for the principal sizes. Dimensions are presented as supplied for the series, while inch equivalents are included where available in the product data.
| Product | Bore d (mm) | Width B (mm) | Spherical diameter dₖ (mm) | Thread | Dynamic load (kN) | Static load (kN) | Approx. weight (kg) |
|---|---|---|---|---|---|---|---|
| SAZP4N | 4.83 | 7.82 | 11.10 | 10-32 | 3.30 | 5.38 | 0.013 |
| SAZP8N | 6.35 | 9.53 | 12.70 | 1/4-28 | 6.80 | 10.90 | 0.022 |
| SAZP7N | 7.94 | 11.10 | 15.88 | 5/16-24 | 7.60 | 12.20 | 0.037 |
| SAZP9N | 9.53 | 12.70 | 18.26 | 3/8-24 | 11.90 | 18.70 | 0.055 |
| SAZP11N | 11.11 | 14.27 | 20.62 | 7/16-20 | 17.40 | 23.80 | 0.078 |
| SAZP12N | 12.70 | 15.88 | 23.81 | 1/2-20 | 19.90 | 28.60 | 0.120 |
| SAZP15N | 15.88 | 19.05 | 28.58 | 5/8-18 | 22.90 | 36.90 | 0.180 |
| SAZP19N | 19.05 | 22.23 | 33.32 | 3/4-16 | 30.20 | 48.50 | 0.290 |
Several additional dimensions are relevant when selecting a rod end, including maximum body width, shank length, thread length, shoulder dimensions, minimum fillet radius, and approximate articulation angle. These values vary by size. For example, the listed articulation angle is approximately 9° to 13° across the series, while the minimum radius is generally 0.3 mm or 0.6 mm depending on the model.
Designers should verify the complete dimensional drawing before finalizing a connection. The bore, thread, available clearance, installation direction, and required angular movement must all be checked against the machine design. Load ratings should also be evaluated in relation to the actual direction and type of load, rather than considered as unrestricted values for every operating condition.

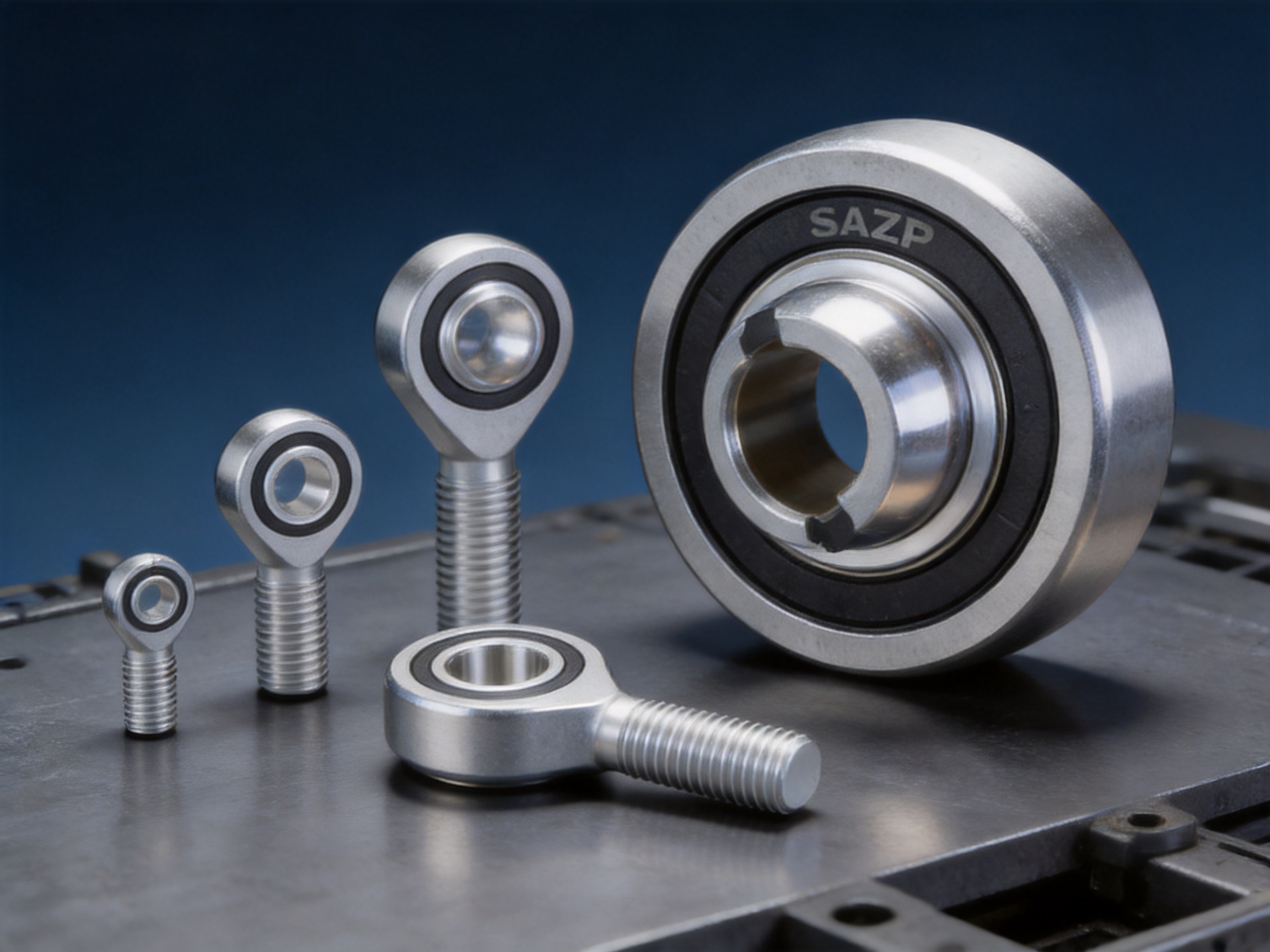

SAZP High-Performance Threaded Rod End Bearing
UKL Bearing Manufacturing Co., Ltd. operates as an integrated bearing manufacturer and trader with capabilities covering research and development, production, and international distribution. Its manufacturing organization includes production lines for forging, turning, heat treatment, grinding, assembly, and packaging.
This integrated structure is important for rod end bearing quality. The performance of a PTFE-lined rod end depends on the relationship between several precision features: the thread, the spherical housing, the inner ring, the liner thickness, and the final assembly clearance. When these processes are coordinated within one manufacturing system, process consistency can be improved and production feedback can be handled more efficiently.
Forging and material preparation establish the foundation for the rod end body. Controlled material preparation helps ensure that the carbon steel body has the required structural integrity before machining. A suitable initial form can also improve material efficiency and provide a stable basis for turning and thread production.
Material traceability is an important part of this stage. Bearing components should be produced from materials with controlled chemical composition and consistent mechanical properties. Proper material management supports reliable heat treatment, dimensional stability, and repeatable surface finishing.
Turning is used to establish the external profile, internal features, and basic geometry of the rod end body. The threaded hole and spherical seat require careful machining because errors in these areas can affect installation, alignment, and bearing clearance.
For a threaded rod end, thread accuracy is especially significant. The thread must engage smoothly with the mating component while maintaining sufficient contact and strength. Poor thread geometry can lead to difficult installation, uneven load distribution, or excessive play in the assembly. The ability to support special thread accuracy requirements gives the manufacturer flexibility for customized applications.
The high-carbon chromium steel inner ring is hardened by quenching. Heat treatment changes the internal structure of the steel and increases its hardness. Correct control of heating, holding, quenching, and subsequent processing is necessary to achieve a balance between hardness, dimensional stability, and resistance to cracking or distortion.
Heat treatment is followed by precision finishing operations. The spherical shape must be restored and controlled after hardening because thermal processing can produce small dimensional changes. A stable production sequence helps ensure that the final ring meets the required geometry and surface condition.
Grinding is used to refine critical surfaces and improve dimensional accuracy. For the inner ring, the spherical surface must be smooth and correctly formed so that it can work effectively with the PTFE liner. For the rod end body, the bearing seat and thread-related dimensions must remain within the specified design limits.
The hard chrome plating applied to the spherical inner ring provides an additional wear-resistant surface. Plating quality includes more than simply depositing material. It requires appropriate preparation, uniform coverage, adhesion, and control of the finished surface. A properly finished chrome layer supports consistent friction behavior and helps protect the hardened steel beneath it.
Assembly brings together the body, liner, and inner ring. The liner must be positioned accurately and secured so that it remains stable during oscillating operation. The inner ring must be installed without damaging the liner or creating excessive initial stress.
Assembly control is directly related to the bearing’s running behavior. Excessive clearance can produce looseness, vibration, and impact under changing loads. Insufficient clearance can increase friction and restrict articulation. A controlled assembly process helps achieve the intended balance between smooth movement and stable support.
Inspection should cover dimensional accuracy, thread condition, surface quality, articulation, appearance, and product identification. Appropriate inspection of the finished assembly helps prevent unsuitable components from entering the supply chain.
Packaging protects the bearings during storage and transportation. The galvanized body and plated inner ring provide surface protection, but parts should still be packaged to limit impact, contamination, moisture, and contact damage. Clear product labeling is important when several thread sizes or left-hand and right-hand versions are ordered together.

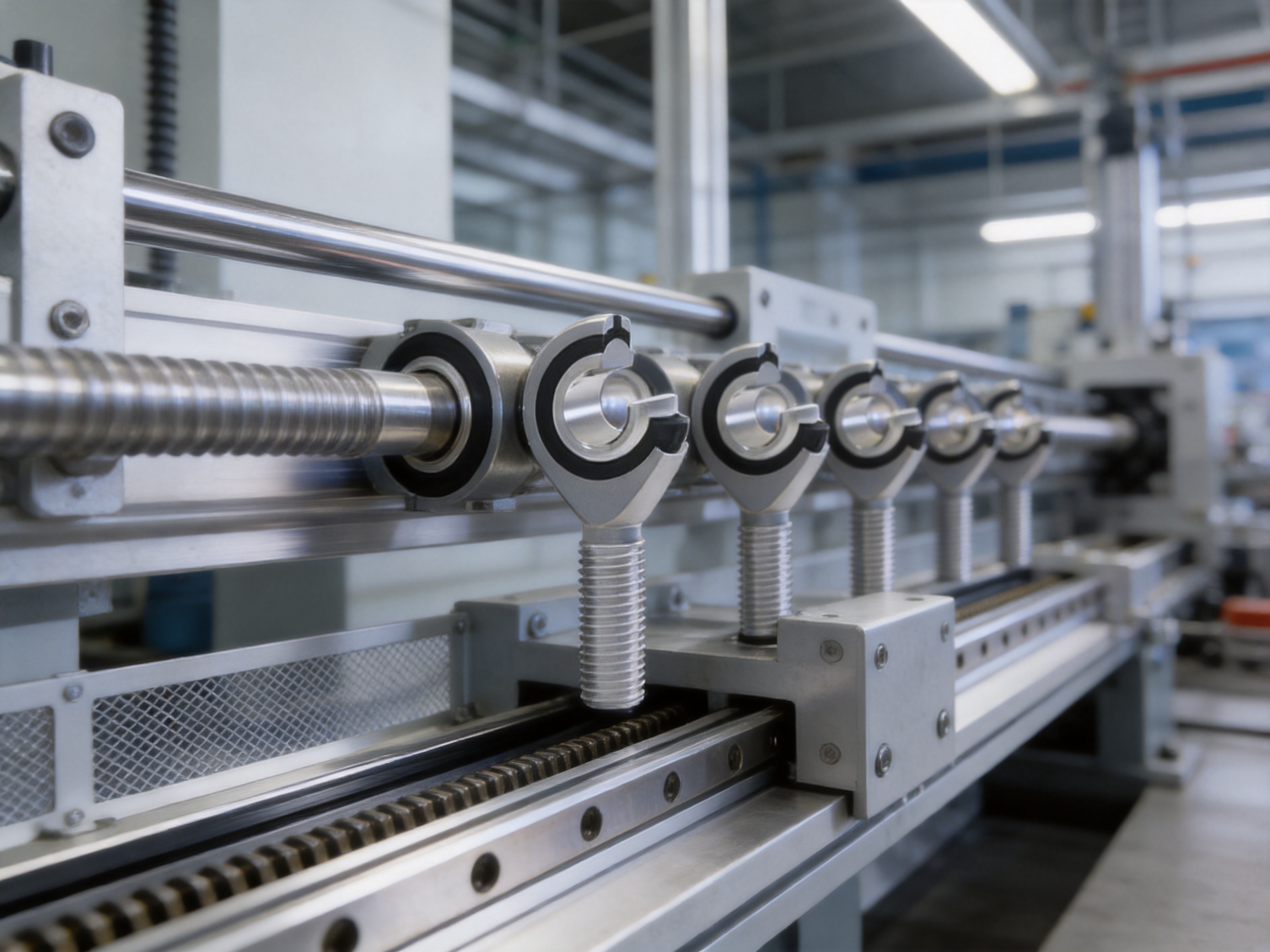

In industrial automation, rod end bearings are used in grippers, indexing mechanisms, linkages, stops, linear actuators, and adjustable machine elements. Their compact size and angular articulation make them suitable for mechanisms where several components move through changing angles.
The self-lubricating design can reduce service requirements on automated production lines. This is useful when equipment is expected to operate for long shifts or when stopping the line for routine bearing lubrication would be costly.
Robotic mechanisms frequently use compact joints and linkages that must maintain accurate movement within a limited envelope. A threaded rod end can connect an actuator to a moving arm while allowing the joint to accommodate angular displacement.
Designers should consider the robot’s acceleration, oscillation frequency, duty cycle, and external load when selecting a size. The rated capacity alone is not enough to determine suitability. Repeated reversals and dynamic impacts may be more demanding than a steady static load.
Machine tools use adjustable linkages in guarding systems, positioning assemblies, tool-changing mechanisms, and auxiliary controls. A compact rod end can provide a precise connection while reducing the number of components in the adjustment assembly.
In machining environments, chips, coolant, and abrasive particles may be present. The bearing should be positioned and protected so that contamination does not accumulate at the sliding interface. The operating temperature and chemical compatibility of the PTFE liner should also be considered.
Conveyors, lifting systems, sorting equipment, and packaging machinery often include articulated linkages. The SAZP series can be considered for control rods, actuator connections, guide mechanisms, and adjustable joints where a maintenance-free sliding interface is beneficial.
The product is also suitable for general mechanical systems that require an internally threaded spherical joint. Examples include inspection equipment, access mechanisms, positioning devices, agricultural machinery, and custom OEM assemblies.
The bore must match the diameter of the mating pin or shaft while allowing the required fit and movement. A bore that is too small cannot accommodate the shaft, while an oversized bore may create excessive clearance or require an unsuitable fastening method.
Dynamic load ratings relate to operating conditions involving movement, while static ratings relate to stationary or slowly changing loads. Both values should be reviewed. If the joint experiences shock, impact, vibration, or frequent directional reversal, an appropriate safety factor should be applied.
The internal thread must match the external thread of the connecting rod or stud. The thread standard, nominal diameter, pitch, class, engagement length, and direction must be confirmed before ordering.
Unified National Fine threads are used throughout the standard SAZP configuration. Fine threads can provide useful adjustment resolution and good engagement in a compact diameter, but they must be protected from cross-threading and contamination during installation.
The approximate articulation angle of the series ranges from about 9° to 13°, depending on size. The machine designer should compare this value with the actual movement envelope. If the joint is forced beyond its intended angle, edge loading may occur and the liner may wear prematurely.
The product operating temperature range is -40°C to +75°C. Applications outside this range require technical confirmation. Chemical exposure, moisture, dust, abrasive particles, and cleaning agents may also affect the body, plating, or PTFE liner.
When the bearing is installed in a corrosive environment, additional protection may be required. The galvanized body improves resistance to general corrosion, but it should not be treated as unlimited protection against aggressive chemicals or saltwater exposure.
Before installation, inspect the thread, bore, liner, and inner ring for damage or contamination. Confirm that the part number corresponds to the correct bore and thread direction. Never force an incorrect thread into the mating component.
The connecting rod should be aligned with the internal thread before engagement. Start the thread by hand whenever possible, then tighten using an appropriate tool on the designated flats or installation features. Avoid applying uncontrolled force directly to the inner ring, because excessive assembly force may damage the liner or alter the internal clearance.
The mating pin or bolt should be correctly sized and properly aligned with the inner ring bore. The fastening arrangement must prevent unwanted axial movement while allowing the intended articulation. Side loading caused by poor alignment should be minimized.
After installation, move the linkage through its full operating range. Check for binding, abnormal resistance, excessive looseness, and interference with nearby components. This simple verification can identify alignment problems before the machine enters service.
The performance of a rod end bearing is determined by more than its material list. Consistency in machining, heat treatment, plating, liner installation, and inspection is equally important. An experienced manufacturer can coordinate these processes and provide technical assistance during product selection and customization.
UKL Bearing Manufacturing Co., Ltd. reports a production capacity of approximately 10,000 to 50,000 units per month and serves customers in Europe, Asia, Africa, Russia, and other international markets. Its customer base includes distributors and OEM clients that require repeatable supply, technical communication, and product support.
The company’s manufacturing resources include multiple production lines and an R&D team working on precision cross roller bearings, dual-direction thrust angular contact ball bearings, and other products for CNC machines, robotics, and intelligent automation systems. This broader bearing expertise supports the development of specialized products and helps the company understand the requirements of precision industrial equipment.
Another strength is the combination of manufacturing and international service. A multilingual service team can support product communication, installation guidance, and after-sales questions. For OEM projects, this type of support can simplify the transition from sample testing to repeat production.
The company also describes sustainability initiatives involving material recycling, energy optimization, and environmentally responsible production processes. While these practices do not replace technical quality, they demonstrate an effort to manage manufacturing as a long-term industrial operation rather than as a simple component trading activity.
OEM customers often require more than a standard catalog component. They may need a particular thread tolerance, left-hand thread, packaging method, marking format, or dimensional adaptation. The SAZP series supports special requirements for non-standard thread accuracy, creating a useful starting point for customized linkage solutions.
OEM support should begin with a complete application review. The manufacturer should receive information about the load direction, operating frequency, oscillation angle, temperature, environment, mating hardware, and expected service life. These details help determine whether the standard product is suitable or whether a modified design should be considered.
Consistent part identification is also important. Product numbers should be checked against drawings and purchase documents, especially when similar sizes have different thread specifications. Left-hand versions should include the required identification marks so that they are not confused with conventional right-hand models.
The bearing uses a PTFE plastic liner as the sliding surface between the rod end body and the inner ring. This self-lubricating material is designed to operate without routine grease or oil replenishment under suitable conditions.
The rod end body is made from carbon steel with a galvanized surface. The inner ring is made from high-carbon chromium bearing steel, hardened by quenching, and finished with hard chrome plating on the spherical surface. The sliding liner is PTFE plastic.
The stated operating temperature range is approximately -40°C to +75°C. Applications outside this range should be reviewed with the manufacturer before selection.
The SAZP series described here uses internal threads. A threaded rod, stud, or externally threaded shaft is inserted into the rod end body.
Yes. Left-hand thread models and markings can be supported. These versions should include “L” and “LH” in the designation, such as the example SALZP12N 1/2-20 UNF 2A LH.
The standard range covers nominal bore diameters from 4.83 mm to 19.05 mm. The product family includes compact sizes such as SAZP4N and larger versions such as SAZP19N.
Special requirements for non-standard thread accuracy can be considered. Customers should provide the required thread standard, tolerance, fit, and application details during technical consultation.
The bearing may be used in suitable industrial environments, but abrasive dust, chips, chemicals, and moisture can affect service life. Proper shielding, cleaning, and environmental evaluation are recommended before use in severe conditions.
Compare both dynamic and static load ratings with the actual application loads. Consider shock, vibration, oscillation frequency, load direction, and safety factors. The largest available rating should not be selected without reviewing the complete mechanical design.
The PTFE-lined design is intended for self-lubricating operation, so routine grease is generally not required. Additional lubrication should not be introduced without confirming compatibility, because unsuitable lubricants or contaminants may affect the liner.
Useful information includes bore diameter, thread size and direction, load, speed or oscillation frequency, angular movement, operating temperature, environmental conditions, expected service life, available space, and required quantity. Drawings or photographs of the application can also improve technical evaluation.
The SAZP high-performance threaded rod end bearing is designed for compact, dependable, and low-maintenance articulated connections. Its three-piece construction combines a galvanized carbon steel body, a hardened and hard-chrome-plated high-carbon chromium steel inner ring, and a PTFE plastic liner. This combination provides low-friction sliding, good wear resistance, corrosion protection for the body, and maintenance-free operation under appropriate conditions.
Compared with basic rod end designs that depend on frequent lubrication or use untreated sliding surfaces, the SAZP series offers a more complete engineering solution. Its internal UNF thread configuration, broad bore range, left-hand thread options, and support for special thread accuracy make it suitable for a variety of OEM and industrial applications.
The product is supported by UKL Bearing Manufacturing Co., Ltd.’s integrated capabilities in forging, turning, heat treatment, grinding, assembly, packaging, research, and international distribution. These capabilities provide a foundation for consistent production and customized bearing development. For automation, robotics, machine tools, material handling equipment, and general linkage systems, the SAZP series offers a practical balance of compact design, angular flexibility, durability, and reduced maintenance demand.
1. Product technical information for the SAZP high-performance threaded rod end bearing series.
2. Manufacturer-provided dimensional and load-rating data for SAZP4N through SAZP19N models.
3. General engineering principles for spherical plain bearings, rod end bearings, and self-lubricating PTFE-lined bearing assemblies.
4. General industrial guidance on carbon steel galvanizing, bearing steel heat treatment, hard chrome surface finishing, and precision bearing assembly.
5. Manufacturer information concerning UKL Bearing Manufacturing Co., Ltd.’s production capabilities, OEM services, research and development, and international distribution.
