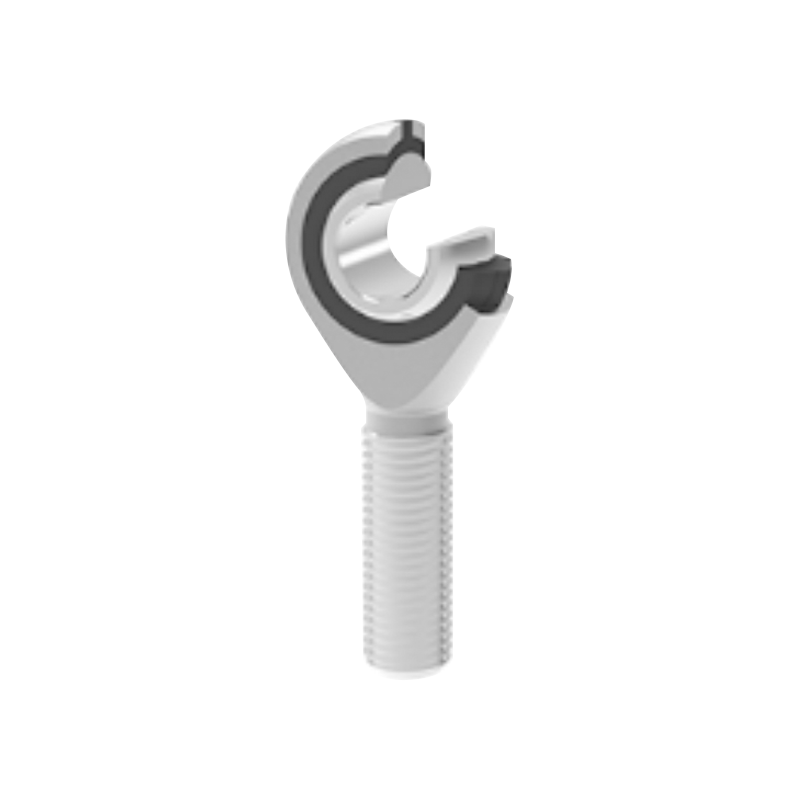

SAZP High-Performance Threaded Rod End Bearing

This series is a self-lubricating rod end bearing with internal threads, featuring a streamlined three-piece structure: rod end body, inner ring, and PTFE plastic liner. The rod end body is made of carbon steel with a galvanized surface; the inner ring is made of high-carbon chromium bearing steel, hardened by quenching and then spherically plated with hard chrome to ensure excellent wear resistance. Its design allows for completely maintenance-free operation.

PREV：SIZP Threaded Self-Lubricating Rod End Bearing with PTFE Insert NEXT：No next product

Description
Specifications
Contact Us

·Product Number: SAZP…N 4.83～19.05
·Sliding Friction Pair: Steel / PTFE Plastic
·Operating Temperature Range: -40℃～＋75℃
·Customization Options:
Thread Accuracy: Supports special requirements for non-standard thread accuracy.
Left-hand Thread: Left-hand thread models and markings must include "L" and "LH", example: SALZP12N 1/2-20 UNF 2A LH

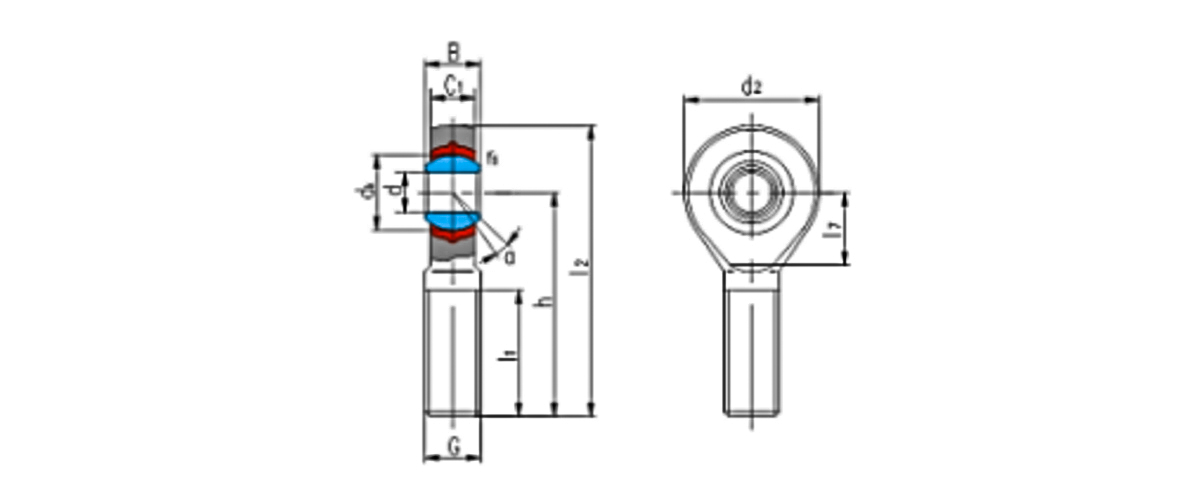

Beaing number	Dimensions mm/inch												Load ratings kN		Weight ≈kg
Beaing number	d	B	dₖ	C₁ max	d₂	G UNF-2A	h	I₁ min	I₂	I₇	rₛ min	α° ≈	Dynamic	Static	Weight ≈kg
SAZP4N	4.83	7.82	11.1	8.35	15.88	10-32	31.75	19.05	39.70	-	0.3	10	3.3	5.38	0.013
SAZP4N	0.19	0.312	0.437	0.25	0.6825	10-32	1.25	0.75	1.583	-	0.012	10	3.3	5.38	0.013
SAZP8N	6.35	9.53	12.7	7.14	19.05	1/4-28	39.67	25.40	49.20	-	0.3	13	6.8	10.9	0.022
SAZP8N	0.25	0.375	0.5	0.281	0.75	1/4-28	1.582	1	1.937	-	0.012	13	6.8	10.9	0.022
SAZP7N	7.94	11.10	15.88	8.74	22.23	5/18-24	47.63	31.75	58.72	-	0.3	10	7.6	12.2	0.037
SAZP7N	0.3125	0.437	0.625	0.344	0.875	5/18-24	1.875	1.25	2.312	-	0.012	10	7.6	12.2	0.037
SAZP9N	9.53	12.70	18.26	10.31	25.40	3/8-24	49.23	31.75	61.83	-	0.6	9	11.9	18.7	0.055
SAZP9N	0.375	0.5	0.719	0.408	1	3/8-24	1.838	1.25	2.438	-	0.024	9	11.9	18.7	0.055
SAZP11N	11.11	14.27	20.62	11.1	28.58	7/18-20	53.98	34.83	68.28	-	0.6	11	17.4	23.8	0.078
SAZP11N	0.4375	0.562	0.812	0.437	1.125	7/18-20	2.125	1.375	2.888	-	0.024	11	17.4	23.8	0.078
SAZP12N	12.7	15.88	23.81	12.7	33.32	1/2-20	61.83	38.10	78.59	-	0.6	9	19.9	28.6	0.12
SAZP12N	0.5	0.625	0.937	0.5	1.312	1/2-20	2.438	1.5	3.094	-	0.024	9	19.9	28.6	0.12
SAZP15N	15.88	19.05	28.58	14.27	38.10	5/8-18	66.68	41.28	85.73	18.2	0.6	11	22.9	36.9	0.18
SAZP15N	0.625	0.75	1.125	0.582	1.5	5/8-18	2.625	1.625	3.375	0.717	0.024	11	22.9	36.9	0.18
SAZP19N	19.05	22.23	33.32	17.45	44.45	3/4-16	73.03	44.45	95.25	20.9	0.6	10	30.2	48.5	0.29
SAZP19N	0.75	0.875	1.312	0.687	1.75	3/4-16	2.875	1.75	3.75	0.823	0.024	10	30.2	48.5	0.29
