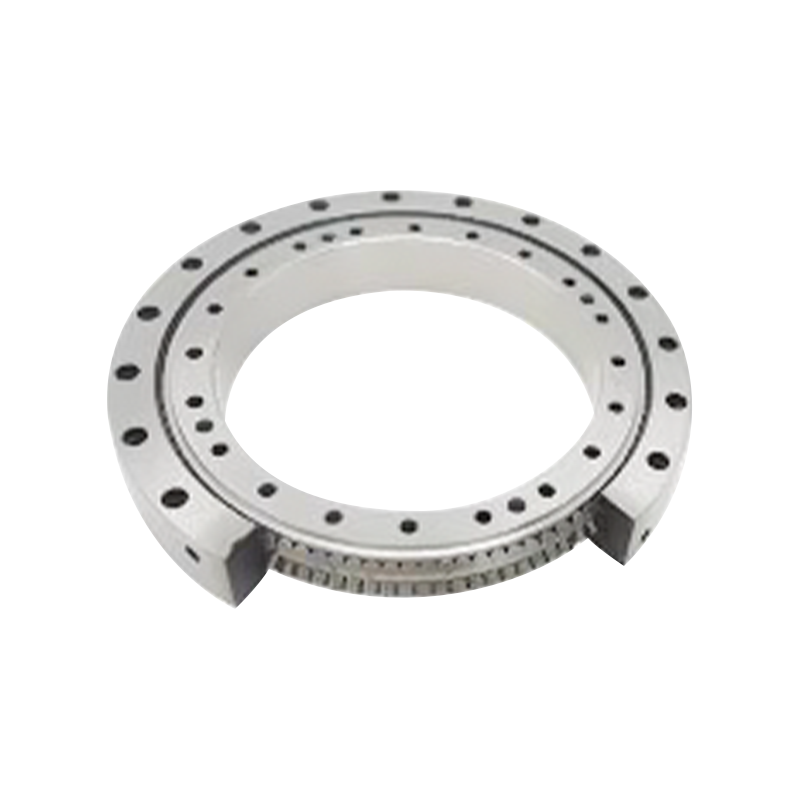

RW High Performance Cross Roller Bearing

Name: RW High Performance Cross Roller Bearing
Rating: 5 (99 reviews)

RW High-Performance Crossed Roller Bearings (Integral Inner and Outer Rings, with Mounting Holes)

The RW type crossed roller bearing features an integrated inner and outer ring construction, achieving high component rigidity. Mounting bolt holes are machined on both the inner and outer rings; their dimensions and quantity are optimized to effectively reduce rolling surface deformation during installation, thus ensuring stable rotational performance. Furthermore, by improving machining precision, this product meets high rotational accuracy requirements.

PREV：CRBT Lightweight Rotary Joint Bearing NEXT：Precision Harmonic Reducer Bearing

Description
Specifications
Contact Us

Bearing Features:
·Miniaturization and High Rigidity: Small-diameter rollers arranged in a double-row configuration at 45° intervals achieve miniaturization and high rigidity.
·High Rotational Accuracy: The integrated inner and outer ring structure enables high-precision rotational motion.
·Reduced Installation Time: Mounting holes on both the inner and outer rings facilitate direct fixing, significantly reducing installation time for shafts and support housings.

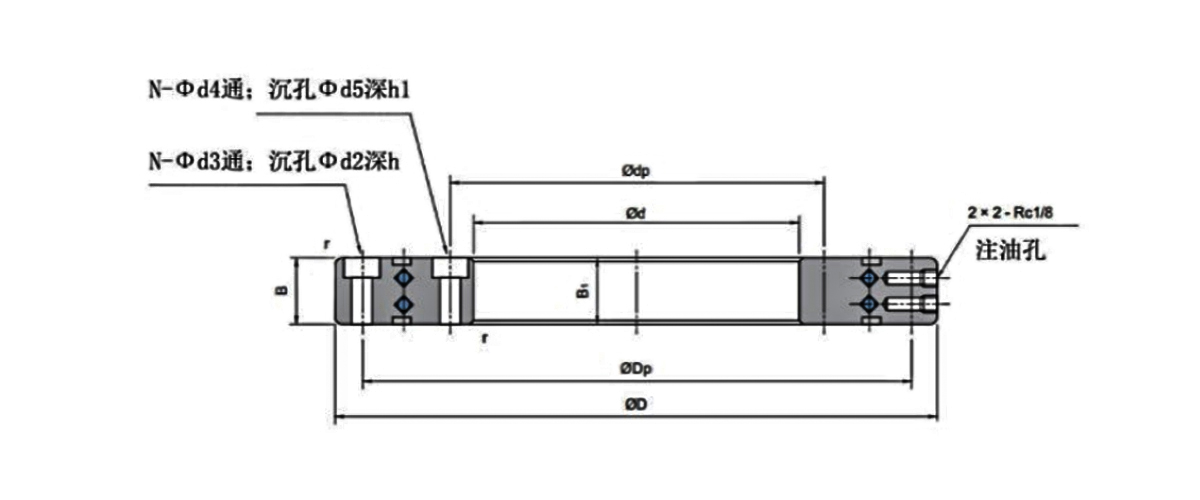

Bearing Type	Main dimensions				Relation between the mounting holes				Shoulder dimensions		Basic Load rating (radial)		Weight
	d	D	B	B1	dp	Inner ring mounting holes	Dp	Outer ning mounting holes	ds	Dh	Cr	Cor	Weight
	mm				dp	Inner ring mounting holes	Dp	Outer ning mounting holes	mm	mm	KN	KN	kg
Rw145	100	185	20	20	115	12-Φ4.6 through hole， Φ8.5countersink depth15	170	12-φ4.6 through hole， Φ8.5countersink depth15	135	150	24.6	59.3	2.70
RW164	120	210	30	30	138	12-φ6 through hole，φ10countersink depth22.5	182	12-φ6 through hole，φ10countersink depth22.5 °	157	173	48.6	112	4.90
RW195	150	240	30	30	168	16-φ6 through hole，φ10countersink depth22.5	222	16-φ6 through hole，φ10countersink depth22.5	187	203	54.1	136	5.70
RW228	160	295	35	35	184	24-φ7 through hole， Φ11countersink depth24.5	270	24-φ7 through hole， Φ11countersink depth24.5	220	240	59.3	161	12.00
RW230	180	280	40	40	200	20-φ6 through hole， Φ10countersink depth30	260	20-φ6 through hole，φ10countersink depth30	217	245	87	215	9.90
RW250	200	300	40	40	220	20-φ6 through hole，φ10countersink depth30	280	20-Φ6 through hole， Φ10countersink depth30	237	265	89.7	231	11.00
RW297	210	380	40	40	240	24-φ9.3 through hole，①14.5countersink depth28	350	24-φ9.3 through hole，φ14.5countersink depth28	285	315	101	288	22.00
RW323	260	385	50	50	282	24-φ7 through hole， Φ12countersink depth38	363	24-Φ7 through hole， Φ12countersink depth38	302	343	168	422	24.00
RW388	325	450	50	50	347	30-φ9.3 through hole，φ14.5countersink depth9"	428	30-φ9.3 through hole，①14.5countersink depth9	367	408	199	558	29.00
RW445	350	540	50	50	384	32-φ9.3 through hole，φ14.5countersink depth35	505	32-φ9.3 through hole，φ14.5countersink depth35°	425	465	216	652	47.00
RW463	395	525	50	50	418	36-φ10 through hole，φ15countersink depth9	502	36-φ10 through hole，①15countersink depth9	440	480	208	634	31.00
RW530	460	600	50	50	486	40-Φ10 through hole， Φ15countersink depth9	574	40-φ10 through hole，φ15countersink depth9	510	550	233	771	40.00
RW665	580	750	60	60	610	32-φ12 through hole，φ18countersink depth11	720	32-φ12 through hole，φ18countersink depth11	640	690	314	902	92.00
RW760	650	870	60	60	690	32-φ14 through hole，φ20countersink depth13	830	32-φ14 through hole，φ20countersink depth13	735	785	336	1030	138.00
