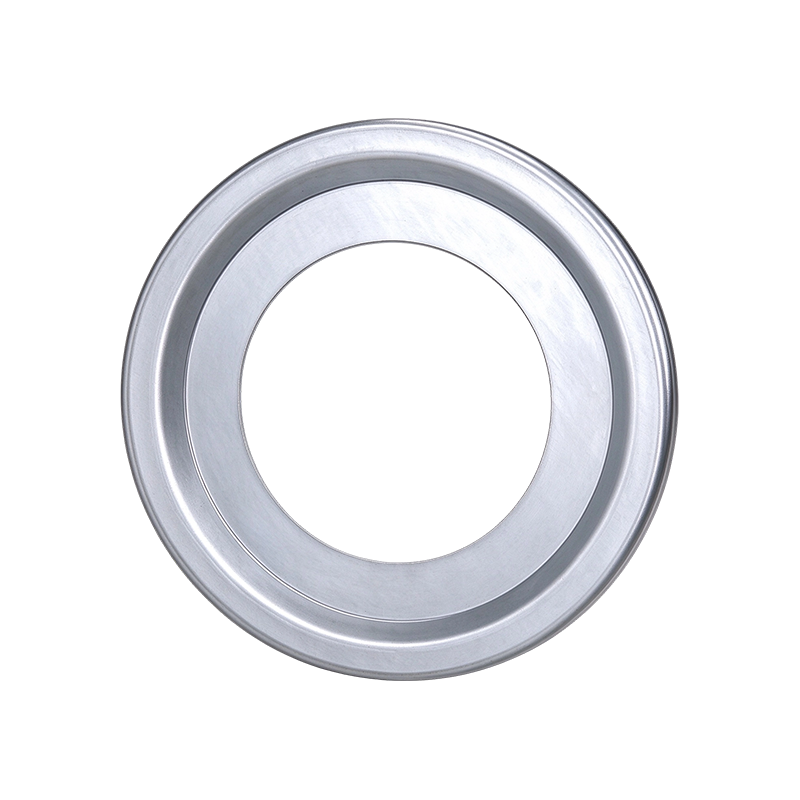

2206-AV NILOS-Ring Outer Metal Dust Seal for Open 2206 Bearing

Matched Bearing Spec (2206 Self-Aligning Ball Bearing)

Bore 30 mm / OD 62 mm / Width 20 mm
Self-aligning angle ±2.5°, open type without original rubber seal
Combination Solution: Open 2206 bearing + one NILOS 2206-AV metal ring mounted on each side

Key Advantages

1. No occupation of bearing internal space, retains the original limiting speed of bearing with nearly zero friction heat generation.
2. Labyrinth dust barrier blocks dust, wood shavings, iron scraps and dry particulate contaminants from entering bearing cavity to greatly extend bearing service life.
3. Permits regular grease replenishment, ideal for equipment requiring periodic lubrication maintenance.
4. Metal construction resists aging, eliminating rubber hardening and degradation issues, suitable for high-temperature and heavy-dust environments.
5. Simple retrofitting. Existing open bearings can be upgraded with NILOS rings later for enhanced dust protection.

Limitation

AV variant only provides dust protection. It cannot resist liquid water, mud slurry or high-pressure spray. For humid or wet working conditions, additional skeleton oil seals must be installed together.

AV vs JV Selection Guide

AV (Outer Ring Seal): Lip contacts outer ring. Suitable for stationary housing with rotating shaft, preferred for most applications.
JV (Inner Ring Seal): Lip contacts inner ring. Designed for special scenarios where housing rotates while shaft remains static. 2206-JV is the inner sealing counterpart for this bearing size.

Installation Guidelines

1. Fit AV ring tightly against bearing outer ring end face. Force should only apply to the outer part of sealing ring during installation. Never squeeze the sealing lip.
2. No modification needed for existing bearing housing. Clamp the ring between bearing outer ring and housing shoulder directly.
3. Minor friction noise may occur at the initial running-in phase. Noise will decrease once stable clearance forms after operation.
4. For wet / water exposure conditions: Use NILOS-AV as inner dust shield and add extra oil seal on the outer side.
5. Taper bore bearing 2206K can also adopt 2206-AV sealing ring.



Alternative Models for Selection

2206-AV: Standard galvanized steel strip, the first choice for general working conditions
2206-AV-INOX: Stainless steel grade for slightly corrosive and humid environments
2206-JV: Inner ring sealing type, dedicated for rotating housing applications
2206-C3-AV: Bearing with large internal clearance plus NILOS ring, for equipment with high temperature rise

Application Scenarios

The NILOS 2206-AV metal labyrinth ring works well in dusty environments with shaft misalignment, where periodic grease replenishment is required. It is widely adopted in the following machinery:

1. Fans and centrifugal blowers: Protect self-aligning bearings under high dust conditions where shafts tend to deflect.
2. Belt conveyor rollers and conveying systems, preventing premature bearing wear caused by material dust.
3. Textile and woodworking machinery, blocking wood dust and fiber flock from invading bearing interiors.
4. Agricultural machines and light mining equipment, preserving bearing life under sandy and dusty field conditions.
5. General-purpose motors and pumps, accommodating large coaxial alignment errors and supporting regular grease refilling.
