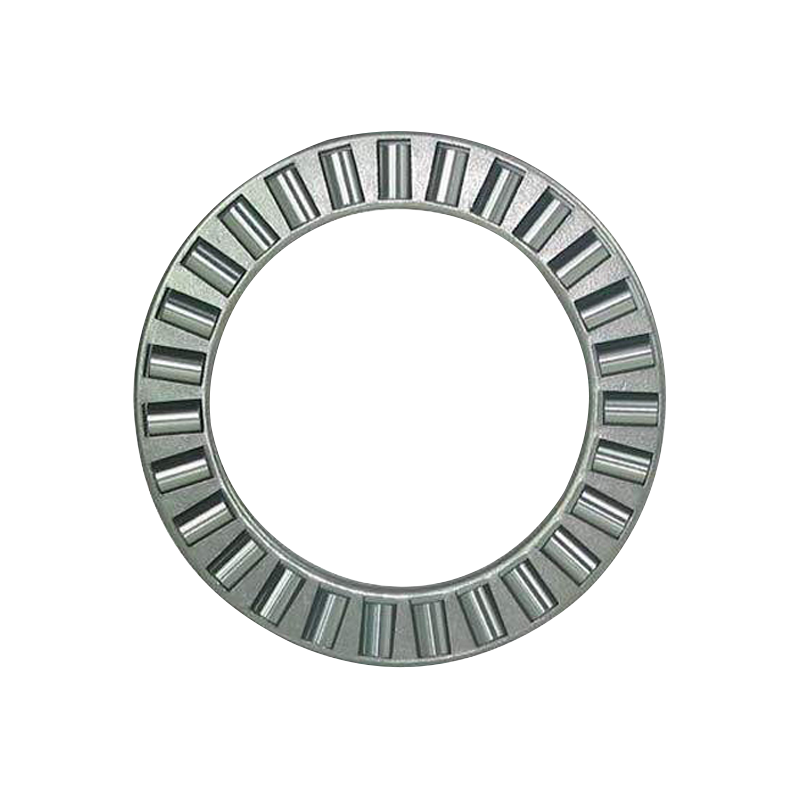

Cylindrical Roller/Needle Thrust Bearings

Cylindrical roller thrust bearing is designed to adapt to heavy axial load and impact load. Do not bear any radial load. The bearing is very hard and requires very little axial space

PREV：Four-Row Cylindrical Roller Bearings NEXT：No next product

Specifications
Contact Us

Principal dimensions				Basic load ratings dynamic	Static	Speed ratings Reference speed	Limiting speed	Mass	Bearing No.
Principal dimensions				Basic load ratings dynamic	Static	Speed ratings Reference speed	Limiting speed	Mass
d[mm]	D[mm]	H[mm]	Dw[mm]	C[kN]	C0[kN]	[r/min]	[r/min]	kg
15	28	9		10.08	24.3	3870	7650	0.024	81102 TN
15	28		3.5	10.08	24.3	3870	7650	0.006	K 81102 TN
17	30	9		10.98	28.35	3870	7650	0.027	81103 TN
17	30		3.5	10.98	28.35	3870	7650	0.009	K 81103 TN
20	35	10		16.74	43.2	3420	6750	0.037	81104 TN
20	35		4.5	16.74	43.2	3420	6750	0.013	K 81104 TN
25	42	11		22.5	62.55	2880	5670	0.053	81105 TN
25	42		5	22.5	62.55	2880	5670	0.015	K 81105 TN
30	47	11		24.3	70.2	2700	5400	0.057	81106 TN
30	52	16		45	120.6	2160	4320	0.12	81206 TN
30	60	18		46.8	164.7	2340	4770	0.24	89306 TN
30	47		5	24.3	70.2	2700	5400	0.017	K 81106 TN
30	52		7.5	45	120.6	2160	4320	0.033	K 81206 TN
30	60		5.5	46.8	164.7	2340	4770	0.04	K 89306 TN
35	52	12		26.1	83.7	2520	5040	0.073	81107 TN
35	62	18		55.8	171	1800	3600	0.21	81207 TN
35	52		5	26.1	83.7	2520	5040	0.019	K 81107 TN
35	62		7.5	55.8	171	1800	3600	0.043	K 81207 TN
35	68		6	55.8	198	2160	4320	0.053	K 89307 TN
40	60	13		38.7	123.3	2160	4500	0.11	81108 TN
40	68	19		74.7	229.5	1710	3420	0.25	81208 TN
40	78	22		85.5	328.5	1800	3600	0.48	89308 TN
40	60		6	38.7	123.3	2160	4500	0.031	K 81108 TN
40	68		9	74.7	229.5	1710	3420	0.081	K 81208 TN
45	65	14		40.5	137.7	1980	4050	0.13	81109 TN
45	73	20		74.7	229.5	1620	3240	0.29	81209 TN
45	85	24		97.2	382.5	1620	3240	0.62	89309 TN
45	65		6	40.5	137.7	1980	4050	0.035	K 81109 TN
45	73		9	74.7	229.5	1620	3240	0.085	K 81209 TN
45	85		7.5	97.2	382.5	1620	3240	0.12	K 89309 TN
50	70	14		42.75	149.4	1980	3870	0.14	81110 TN
50	78	22		82.35	270	1530	3060	0.36	81210 TN
50	70		6	42.75	149.4	1980	3870	0.038	K 81110 TN
50	78		9	82.35	270	1530	3060	0.098	K 81210 TN
50	95		8	118.8	477	1440	2880	0.18	K 89310 TN
55	78	16		62.55	256.5	1710	3420	0.23	81111 TN
55	90	25		109.8	351	1260	2520	0.57	81211 TN
55	105	30		128.7	513	1350	2700	1.18	89311 TN
55	78		6	62.55	256.5	1710	3420	0.045	K 81111 TN
55	90		11	109.8	351	1260	2520	0.17	K 81211 TN
55	105		9	128.7	513	1350	2700	0.2	K 89311 TN
60	85	17		72	270	1620	3240	0.27	81112 TN
60	95	26		123.3	418.5	1260	2520	0.65	81212 TN
60	110	30		137.7	576	1260	2520	1.26	89312 TN
60	130	42		279	1062	1080	2160	2.82	89412 TN
60	85		7.5	72	270	1620	3240	0.082	K 81112 TN
60	95		11	123.3	418.5	1260	2520	0.18	K 81212 TN
60	110		9	137.7	576	1260	2520	0.21	K 89312 TN
60	130		14	279	1062	1080	2160	0.54	K 89412 TN
65	90	18		74.7	288	1530	3060	0.31	81113 TN
65	100	27		126	441	1170	2340	0.72	81213 TN
65	115	30		137.7	576	1260	2520	1.33	89313 TN
65	140	45		319.5	1233	990	1980	3.52	89413 TN
65	90		7.5	74.7	288	1530	3060	0.09	K 81113 TN
65	100		11	126	441	1170	2340	0.19	K 81213 TN
65	115		9	137.7	576	1260	2520	0.21	K 89313 TN
65	140		15	319.5	1233	990	1980	0.72	K 89413 TN
70	95	18		77.85	310.5	1530	3060	0.33	81114 TN
70	105	27		131.4	477	1170	2340	0.77	81214 TN
70	125	34		167.4	720	1170	2340	1.82	89314 TN
70	150	48		342	1314	900	1800	4.18	89414 TN
70	95		7.5	77.85	310.5	1530	3060	0.092	K 81114 TN
70	105		11	131.4	477	1170	2340	0.21	K 81214 TN
70	125		10	167.4	720	1170	2340	0.29	K 89314 TN
70	150		16	342	1314	900	1800	0.76	K 89414 TN
75	100	19		74.7	301.5	1440	2880	0.39	81115 TN
75	110	27		123.3	441	1080	2160	0.8	81215 TN
75	135	36		205.2	868.5	1080	2160	2.23	89315 TN
75	160	51		360	1377	855	1710	5.96	89415 M
75	100		7.5	74.7	301.5	1440	2880	0.096	K 81115 TN
75	110		11	123.3	441	1080	2160	0.2	K 81215 TN
75	135		11	205.2	868.5	1080	2160	0.38	K 89315 TN
75	160		17	360	1377	855	1710	1.78	K 89415 M
80	105	19		73.35	301.5	1350	2700	0.4	81116 TN
80	115	28		144	549	1080	2160	0.9	81216 TN
80	140	36		216	954	1080	2160	2.37	89316 TN
80	170	54		396	1557	810	1620	7.04	89416 M
80	105		7.5	73.35	301.5	1350	2700	0.095	K 81116 TN
80	115		11	144	549	1080	2160	0.23	K 81216 TN
80	140		11	216	954	1080	2160	0.42	K 89316 TN
80	170		18	396	1557	810	1620	2.04	K 89416 M
85	110	19		79.2	328.5	1350	2700	0.42	81117 TN
85	125	31		153	576	990	1980	1.2	81217 TN
85	150	39		229.5	990	990	1980	3.39	89317 M
85	180	58		441	1737	765	1530	8.65	89417 M
85	110		7.5	79.2	328.5	1350	2700	0.12	K 81117 TN
85	125		12	153	576	990	1980	0.28	K 81217 TN
85	150		12	229.5	990	990	1980	0.93	K 89317 M
85	180		19	441	1737	765	1530	2.71	K 89417 M
90	120	22		99	405	1170	2340	0.62	81118 TN
90	135	35		208.8	778.5	900	1800	1.77	81218 TN
90	155	39		238.5	1044	900	1800	3.63	89318 M
90	190	60		486	1908	720	1440	9.94	89418 M
90	120		9	99	405	1170	2340	0.15	K 81118 TN
90	135		14	208.8	778.5	900	1800	0.54	K 81218 TN
90	155		12	238.5	1044	900	1800	0.97	K 89318 M
90	190		20	486	1908	720	1440	3.04	K 89418 M
100	135	25		140.4	567	1080	2160	0.95	81120 TN
100	150	38		243	954	810	1620	2.2	81220 TN
100	210	67		612	2520	630	1260	13.4	89420 M
100	135		11	140.4	567	1080	2160	0.25	K 81120 TN
100	170		13	270	1233	855	1710	3.92	K 89320 M
100	210		22	612	2520	630	1260	1.04	K 89420 M
110	145	25		146.7	612	990	1980	2.29	81122 TN
110	160	38		234	900	765	1530	6.7	81222 TN
110	190	48		360	1647	765	1530	17.4	89322 M
110	230	73		720	3015	567	1170	1.67	89422 M
110	145		11	146.7	612	990	1980	3.98	K 81122 TN
110	190		15	360	1647	765	1530	11.2	K 89322 M
110	230		24	720	3015	567	1170	5.11	K 89422 M
120	155	25		153	661.5	990	1980	1.12	81124 TN
120	170	39		229.5	900	720	1440	2.54	81224 TN
120	250	78		837	3510	540	1080	21.8	89424 M
120	155		11	153	661.5	990	1980	0.29	K 81124 TN
120	210		17	459	2124	675	1350	2.64	K 89324 M
120	250		26	837	3510	540	1080	6.37	K 89424 M
130	170	30		180	792	855	1710	1.67	81126 TN
130	190	45		342	1314	630	1260	3.98	81226 TN
130	225	58		504	2385	630	1260	11.2	89326 M
130	270	85		954	4050	477	990	27	89426 M
130	225		18	504	2385	630	1260	3.09	K 89326 M
130	270		28	954	4050	477	990	7.96	K 89426 M
140	180	31		187.2	837	810	1620	1.9	81128 TN
140	200	46		324	1260	630	1260	5.07	81228 M
140	240	60		576	2790	603	1170	12.5	89328 M
140	280	85		990	4320	477	990	29.7	89428 M
140	180		12	187.2	837	810	1620	0.4	K 81128 TN
140	200		19	324	1260	630	1260	1.8	K 81228 M
140	240		19	576	2790	603	1170	3.57	K 89328 M
140	280		28	990	4320	477	990	8.54	K 89428 M
150	190	31		190.8	900	765	1530	2.2	81130 TN
150	215	50		418.5	1710	567	1170	7.2	81230 M
150	250	60		603	2925	567	1170	13.9	89330 M
150	300	90		1125	5040	450	900	35.4	89430 M
150	190		12	190.8	900	765	1530	0.43	K 81130 TN
150	215		21	418.5	1710	567	1170	2.81	K 81230 M
150	250		19	603	2925	567	1170	3.75	K 89330 M
150	300		30	1125	5040	450	900	10.4	K 89430 M
160	200	31		194.4	918	765	1530	2.12	81132 TN
160	225	51		432	1800	540	1080	7.61	81232 M
160	320	95		1287	5760	432	855	42	89432 M
160	200		12	194.4	918	765	1530	0.44	K 81132 TN
160	225		21	432	1800	540	1080	3.36	K 81232 M
160	320		32	1287	5760	432	855	12.4	K 89432 M
170	215	34		256.5	1206	720	1440	2.41	81134 TN
170	240	55		486	2052	504	990	9.3	81234 M
170	340	103		1440	6480	387	765	51.9	89434 M
170	215		14	256.5	1206	720	1440	0.66	K 81134 TN
170	240		22	486	2052	504	990	3.5	K 81234 M
170	340		34	1440	6480	387	765	14.9	K 89434 M
180	225	34		243	1143	675	1350	3.7	81136 M
180	250	56		495	2160	504	990	9.93	81236 M
180	360	109		1584	7200	360	720	60.2	89436 M
180	225		14	243	1143	675	1350	1.46	K 81136 M
180	250		22	495	2160	504	990	3.67	K 81236 M
180	360		36	1584	7200	360	720	17.6	K 89436 M
190	240	37		279	1314	630	1260	4.74	81138 M
190	270	62		625.5	2610	450	900	12.1	81238 M
190	380	115		1764	8100	342	675	65.7	89438 M
190	240		15	279	1314	630	1260	1.84	K 81138 M
190	270		26	625.5	2610	450	900	5.17	K 81238 M
190	380		38	1764	8100	342	675	14.5	K 89438 M
200	250	37		279	1350	630	1260	4.95	81140 M
200	280	62		648	2790	450	900	13.6	81240 M
200	400	122		1944	9000	324	630	74.8	89440 M
200	250		15	279	1350	630	1260	1.93	K 81140 M
200	280		26	648	2790	450	900	5.39	K 81240 M
200	400		40	1944	9000	324	630	24	K 89440 M
220	270	37		301.5	1530	603	1170	5.22	81144 M
220	300	63		675	3015	432	855	14.9	81244 M
220	420	122		2088	10080	306	630	84.4	89444 M
220	270		15	301.5	1530	603	1170	2.04	K 81144 M
220	300		26	675	3015	432	855	5.8	K 81244 M
220	420		40	2088	10080	306	630	20	K 89444 M
240	300	45		427.5	2205	504	990	8.45	81148 M
240	340	78		990	4410	360	720	22	81248 M
240	440	122		2160	10800	306	603	88	89448 M
240	300		18	427.5	2205	504	990	3.31	K 81148 M
260	320	45		441	2340	477	990	9.08	81152 M
260	360	79		1026	4770	342	675	27	81252 M
260	480	132		2565	12870	270	567	114	89452 M
260	320		18	441	2340	477	990	3.55	K 81152 M
260	360		32	1026	4770	342	675	10.8	K 81252 M
280	350	53		612	3195	432	855	12.6	81156 M
280	520	145		3195	13770	252	504	142	89456 M
280	350		22	612	3195	432	855	5.31	K 81156 M
280	380		32	1044	4950	324	675	11.5	K 81256 M
300	380	62		765	3960	387	765	19.4	81160 M
300	540	145		3105	16200	252	477	153	89460 M
300	380		25	765	3960	387	765	7.59	K 81160 M
300	420		38	1377	6480	288	567	17.5	K 81260 M
320	400	63		792	4185	360	720	20.7	81164 M
320	440	95		1377	6480	270	540	42.5	81264 M
340	420	64		810	4410	342	720	22.4	81168 M
340	460	96		1440	7020	270	540	47	81268 M
340	420		25	810	4410	342	720	8.48	K 81168 M
360	440	65		810	4410	342	675	19.5	81172 M
360	500	110		1836	8685	234	477	65.5	81272 M
360	440	48		612	3735	360	720	15.5	89172 M
380	460	65		810	4500	324	675	22	81176 M
380	520	112		1872	9000	234	450	75	81276 M
380	460	48		639	3960	360	720	16.5	89176 M
400	540	112		1908	9360	216	450	73	81280 M
400	480	48		661.5	4185	360	720	17.5	89180 M
420	500	65		882	5265	306	630	24	81184 M
420	500	48		688.5	4410	342	675	18	89184 M
440	540	80		1287	7200	270	540	39.5	81188 M
440	600	130		2610	13140	198	387	110	81288 M
440	540	60		936	5760	288	567	30	89188 M
460	560	80		1314	7650	270	540	41	81192 M
460	620	130		2430	12060	180	387	118	81292 M
460	560	60		972	6030	288	567	31.5	89192 M
480	580	80		1314	7650	252	504	43	81196 M
480	650	135		3015	15300	180	360	128	81296 M
480	580	60		990	6255	288	567	32.5	89196 M
500	600	80		1404	8370	252	504	46	811/500 M
500	670	135		2880	14670	171	342	133	812/500 M
500	600	60		1098	7335	270	540	34	891/500 M
508	762	139.7		4410	23850	198	387	237	BGSB 358371
530	710	120		3285	16740	180	360	135	358060
530	640	85		1557	9540	234	477	55.5	811/530 M
530	710	140		3285	16740	162	324	154	812/530 M
530	640	67		1233	7920	252	504	44	891/530 M
560	670	85		1584	9900	234	450	58	811/560 M
560	750	150		3420	18000	153	306	187	812/560 M
560	670	67		1233	8235	252	477	46.5	891/560 M
600	710	85		1620	10440	216	450	64	811/600 M/HB1
600	800	160		3960	21600	144	288	240	812/600 M
600	710	67		1287	8685	234	477	49.5	891/600 M
630	750	95		1944	12330	198	405	80	811/630 M
630	850	175		4320	23400	126	252	295	812/630 M
630	750	73		1467	10080	216	432	62	891/630 M
670	800	105		2295	14670	180	360	110	811/670 M
670	900	180		5130	27450	126	252	335	812/670 M
670	800	78		1800	12060	198	405	75.5	891/670 M
710	950	190		5265	28800	117	234	413	812/710 M
710	850	85		1980	13500	180	360	95	891/710 M
750	900	120		2925	19080	153	306	155	811/750 M
750	1000	195		5895	32400	108	216	445	812/750 M
750	900	90		2160	14940	171	342	115	891/750 M
800	950	120		3105	19800	153	306	165	811/800 M
800	1060	205		6615	36450	99	198	515	812/800 M
800	950	90		2250	16200	171	342	120	891/800 M
850	1000	120		3105	20880	144	288	170	811/850 M
850	1120	212		7335	40950	99	198	580	812/850 M
850	1000	90		2340	17100	162	324	130	891/850 M
900	1060	130		3600	24300	135	270	210	811/900 M
900	1180	220		7650	44100	90	180	698	812/900 M
900	1060	95		2745	19800	153	306	150	891/900 M
950	1120	135		3960	27000	126	252	250	811/950 M
950	1250	236		9000	52650	81	162	805	812/950 M
950	1120	103		3105	22500	144	270	185	891/950 M
1000	1180	140		4275	29250	117	234	285	811/1000 M
1000	1320	250		9180	54000	76.5	153	965	812/1000 M
1000	1180	109		3510	25650	135	252	220	891/1000 M
1060	1250	150		4770	33750	108	216	225	811/1060 M
1060	1400	265		10800	63900	67.5	135	1150	812/1060 M
1060	1250	115		3735	27900	126	234	260	891/1060 M
1120	1320	160		5400	37350	99	198	410	811/1120 M
1120	1320	122		4410	32850	117	234	305	891/1120 M
4	14		2	3.735	7.47	6750	13500	0.001	AXK 0414 TN
5	15		2	4.05	8.55	6030	12600	0.001	AXK 0515 TN
6	19		2	5.67	14.4	5400	10800	0.001	AXK 0619 TN
8	21		2	6.48	18	5040	9900	0.002	AXK 0821 TN
10	24		2	7.65	23.4	4770	9000	0.003	AXK 1024
10	24		2	7.65	23.4	4770	9000	0.008	AXW 10
12	26		2	8.235	27	4500	9000	0.003	AXK 1226
12	26		2	8.235	27	4500	9000	0.009	AXW 12
15	28		2	9.36	33.75	4320	8550	0.004	AXK 1528
15	28		2	9.36	33.75	4320	8550	0.01	AXW 15
17	30		2	9.9	36.45	4050	8550	0.004	AXK 1730
20	35		2	10.8	42.75	3870	7650	0.005	AXK 2035
20	35		2	10.8	42.75	3870	7650	0.014	AXW 20
25	42		2	12.06	54	3420	6750	0.007	AXK 2542
25	42		2	12.06	54	3420	6750	0.02	AXW 25
30	47		2	13.5	64.8	3240	6300	0.008	AXK 3047
30	47		2	13.5	64.8	3240	6300	0.022	AXW 30
35	52		2	14.94	74.7	2880	5670	0.01	AXK 3552
35	52		2	14.94	74.7	2880	5670	0.027	AXW 35
40	60		3	22.5	102.6	2520	5040	0.016	AXK 4060
40	60		3	22.5	102.6	2520	5040	0.039	AXW 40
45	65		3	24.3	114.3	2340	4770	0.018	AXK 4565
45	65		3	24.3	114.3	2340	4770	0.043	AXW 45
50	70		3	25.65	128.7	2160	4500	0.02	AXK 5070
50	70		3	25.65	128.7	2160	4500	0.049	AXW 50
55	78		3	31.05	167.4	1980	3870	0.028	AXK 5578
60	85		3	33.75	208.8	1980	3870	0.033	AXK 6085
65	90		3	35.1	229.5	1800	3600	0.035	AXK 6590
70	95		4	44.1	229.5	1620	3240	0.06	AXK 7095
75	100		4	45	238.5	1530	3060	0.061	AXK 75100
80	105		4	45.9	252	1530	3060	0.063	AXK 80105
85	110		4	46.8	261	1530	3060	0.067	AXK 85110
90	120		4	58.95	364.5	1350	2700	0.086	AXK 90120
100	135		4	68.85	504	1260	2520	0.1	AXK 100135
110	145		4	73.35	558	1170	2340	0.12	AXK 110145
120	155		4	77.85	612	1170	2340	0.13	AXK 120155
130	170		5	100.8	747	990	1980	0.21	AXK 130170
140	180		5	104.4	810	900	1800	0.22	AXK 140180
150	190		5	108	855	900	1800	0.23	AXK 150190
160	200		5	112.5	900	855	1710	0.25	AXK 160200

Engineering the Future of Motion

About UKL

Founded in 2020, UKL Bearing Manufacturing Co., Ltd. (Wuxi) is China cylindrical roller thrust bearings suppliers and OEM/ODM needle roller thrust bearings company, an integrated industrial and trading enterprise that focuses on precision manufacturing, combining R&D, production, and sales.
The company specializes in high-performance bearing solutions, providing technical support for global industries with exceptionally high demands for precision and reliability.

With more than 200 skilled professionals and a fully modernized production base, UKL’s facilities cover the entire manufacturing process — forging, annealing, turning, heat treatment, grinding, and automated assembly.
Leveraging over 15 years of OEM/ODM export experience, UKL responds quickly to customer needs, offering flexible and customized services for clients across Europe, Asia, Africa, and the Middle East.

More About Us Ukl Bearing Manufacturing Co.,Ltd

0+

years

Industry Experience
0+

Model diversity
0+

Number of Employees
0

$

Annual export value

Certificate Of Honor

News

Top 5 Factors to Consider When Choosing Bearings for Quadruped Robot Wolves
10 Apr, 2026
As quadruped robots, especially those designed to mimic wolves, continue to gain traction in robotics and artificial intelligence, the importance of choosing the right bearings cannot be overstated. B...

READ MORE
What Are Medical Equipment Bearings and Why Are They Essential in Healthcare?
01 Apr, 2026
Introduction In the ever-evolving field of healthcare, the role of medical equipment bearings is crucial. These small yet essential components ensure that complex medical devices function smoothly, of...

READ MORE
Top Benefits of Using YRT Bearings in Rotating Applications
27 Mar, 2026
Introduction When selecting bearings for rotating machinery, the performance of the bearing plays a crucial role in the overall efficiency and reliability of the system. Among various bearing types, Y...

READ MORE
What Are Machine Tool Bearings and How Do They Improve Precision in Manufacturing?
19 Mar, 2026
Introduction In the world of manufacturing, precision is key. Every step of the production process must be executed with utmost accuracy to ensure high-quality end products. One essential component th...

READ MORE

Cylindrical Roller/Needle Thrust Bearings

Cylindrical Roller/Needle Thrust Bearings

Recommended Products

Four-Row Cylindrical Roller Bearings

Crossed Cylindrical Roller Bearings

Double Row Cylindrical Roller Bearings

Single Row Cylindrical Roller Bearings

XSU Crossed Roller Bearings

RU Series Crossed Roller Bearings

Submit feedback
