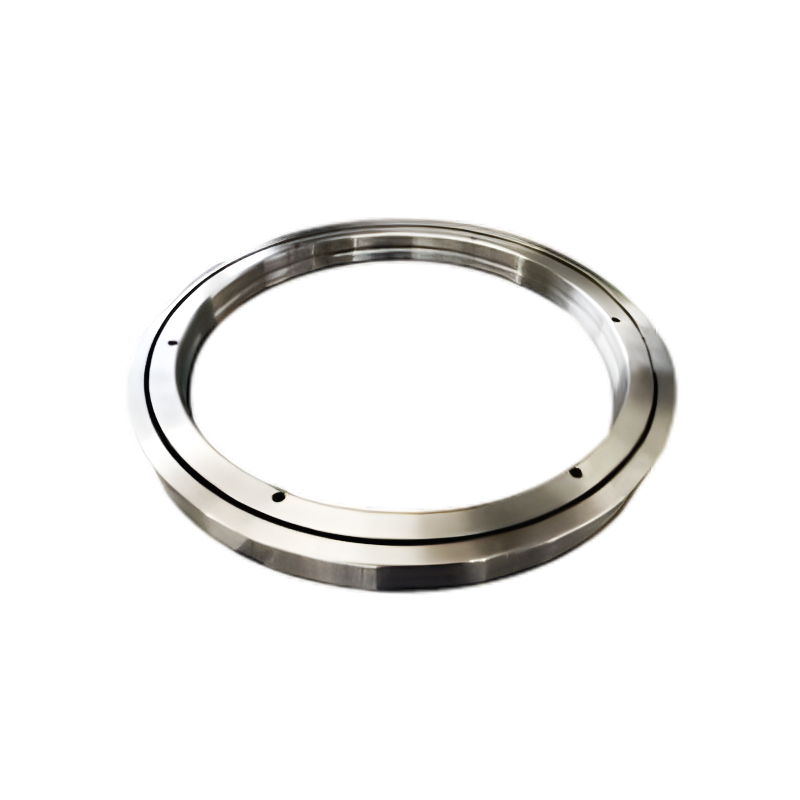

RE Cross Cylindrical Roller Bearing

RE-type crossed roller bearings are split-inner-ring, one-piece-outer-ring cross roller bearings. They are a type of bearing with a rotating outer ring structure. The main dimensions of RE-type crossed roller bearings are the same as those of RB-type crossed roller bearings. They are best suited for applications requiring high outer ring rotational accuracy. RE-type crossed roller bearings feature optimized preload, high rigidity, and high guide roller rotation accuracy. They are suitable for applications requiring high outer ring rotational accuracy. The thin-walled, compact design contributes to the lightweight design of related structures, and the integral outer ring structure is more suitable for applications requiring high outer ring rotational accuracy, achieving stable rotational accuracy at the μm level.

Contact Us Contact Us
PREV：RB Precision Cross Roller Bearing NEXT：RU Series Crossed Roller Bearings
  • Description
  • Specifications
  • Contact Us

Bearing Features
1. High Precision: Accuracy can reach P4 and P2 grades;
2. High Rigidity: All bearings in this series are preloaded;
3. High Load Capacity: Can withstand axial loads, radial loads, and overturning loads.
4. Compact Size: The bearing's compact size saves space in the host machine.
6. High rotational speed capability
7. Reduced shaft length and machining costs; limited changes in geometry due to thermal expansion.
8. Nylon separators result in low moment of inertia, low starting torque, and easy control of angular indexing.
9. Optimized preload, high rigidity, and high precision in guiding roller movement.
10. Carburized steel provides excellent impact resistance and surface wear resistance.
11. Simple yet well-lubricated.

FAQ:
The split inner or outer ring, once secured with bolts and nuts, cannot be separated and can be directly installed into the bearing housing. However, incorrect assembly of the internal spacer block will significantly affect rotational performance and the stress on the rolling elements; therefore, please do not disassemble the bearing arbitrarily.
1. The joint between the inner or outer ring may sometimes be slightly misaligned. Before installing into the bearing housing, loosen the bolts securing the inner or outer ring and correct them with a plastic hammer before installation.
2. Do not apply external force to the connecting bolts during installation or disassembly. 3. Please pay attention to the dimensional tolerances of the installed components to ensure that the side-clamping flange can firmly clamp the inner or outer ring from the side.

Applications:
 Widely used in precision rotary tables, robotic arm rotary joints, medical devices, measuring instruments, etc.

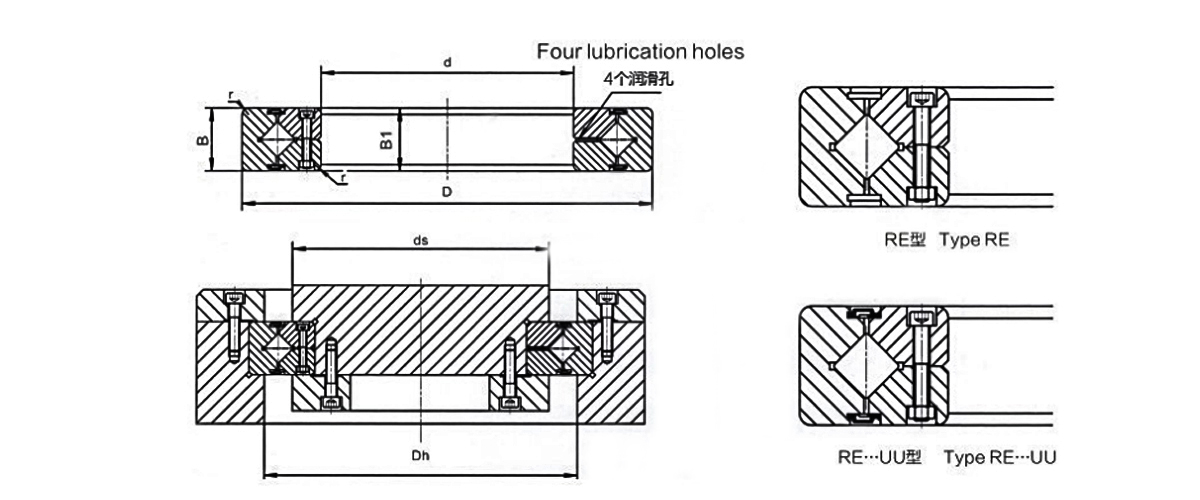

Bearing Type Dimension Shoulder Size Basic Load rating(radial) Weight
Inner Diameter Outside Diameter Roller Pitch Diameter Height Chamfer Cr Cor
d D Dpw B  B1 Rmin ds Dh KN KN kg
RE 2008 20  36  29  8  0.5  23.5  30.5  3.23  3.1  0.04
RE 2508 25  41  34  8  0.5  28.5  35.5  3.63  3.83  0.05
RE 3010 30  55  43.5  10  0.6  37  47  7.35  8.36  0.12
RE3510 35  60  48.5  10  0.6  41  51.5  7.64  9.12  0.13
RE 4010 40  65  53.5  10  0.6  47.5  58  8.33  10.6  0.16
RE 4510 45  70  58.5  10  0.6  51  61.5  8.62  11.3  0.17
RE 5013 50  80  66  13  0.6  57.5  72  16.7  20.9  0.27
RE 6013 60  90  76  13  0.6  68  82  18  24.3  0.3
RE 7013 70  100  86  13  0.6  78  92  19.4  27.7  0.35
RE 8016 80  120  101.4  16  0.6  91  111  30.1  42.1  0.7
RE 9016 90  130  112  16  1  98  118  31.4  45.3  0.75
RE 10016 100  140  121.1  16  1  109  129  31.7  48.6  0.83
RE 10020 100  150  127  20  1  113  133  33.1  50.9  1.45
RE 11012 110  135  123.3  12  0.6  117  127  12.5  24.1  0.4
RE 11015 110  145  129  15  0.6  122  136  23.7  41.5  0.75
RE 11020 110  160  137  20  1  120  140  34  54  1.56
RE 12016 120  150  136  16  0.6  127  141  24.2  43.2  0.72
RE 12025 120  180  152  25  1.5  133  164  66.9  100  2.62
RE 13015 130  160  146  15  0.6  137  152  25  46.7  0.72
RE 13025 130  190  162  25  1.5  143  174  69.5  107  2.82

Bearing Type Dimension Shoulder Size Basic Load ratng(raniai) Weight
Inner Diameter Outside Diameter Aoller Pitch Diameter Height Chamfer Cr Cor
d D Dpw B B1 rmin ds Dh KN KN kg
RB 14016 140  175  154.8    16  1  147  162  25.9  50.1  1
RB 14025 140  200  168    25  1.5  154  185  74.8  121  2.96
RB 15013 150  180  164    13  0.6  157  172  27  53.6  0.68
RB 15025 150  210  178    25  1.5  164  194  76.8  128  3.16
RB 15030 150  230  188    30  1.5  173  211  100  156  5.3
RB 16025 160  220  188.6    25  1.5  173  204  81.7  135  3.14
RB17020 170  220  191    20  1.5  184  198  29  62.1  2.21
RB 18025 180  240  210    25  1.5  195  225  84  143  3.44
RB 19025 190  240  211.9    25  1  202  222  41.7  82.9  2.99
RB 20025 200  260  230    25  2  215  245  84.2  157  4
RB 20030 200  280  240    30  2  221  258  114  200  6.7
RB 20035 200  295  247.7    35  2  225  270  151  252  9.6
RB 22025 220  280  250.1    25  2  235  265  92.3  171  4.1
RB24025 240  300  269    25  2.5  256  281  68.3  145  4.5
RB 25025 250  310  277.5    25  2.5  265  290  69.3  150  5
RB 25030 250  330  287.5    30  2.5  269  306  126  244  8.1
RB 25040 250  355  300.7    40  2.5  275  326  195  348  14.8
RB 30025 300  360  328    25  2.5  315  340  76.3  178  5.9
RB 30035 300  395  345    35  2.5  322  368  183  367  13.4
RB 30040 300  405  351.6    40  2.5  326  377  212  409  17.2
RB 35020 350  400  373.4    20  2.5  363  383  54.1  143  3.9
RB 40035 400  480  440.3    35  2.5  422  459  156  370  14.5
RB 40040 400  510  453.4    40  2.5  428  479  241  531  23.5
RB45025 450  500  474    25  1  464  484  61.7  182  6.6
RB50025 500  550  524.2    25  1  514  534  65.5  201  7.3
RB50040 500  600  548.8    40  2.5  526  572  239  607  26
RB 50050 500  625  561.6    50  2.5  536  587  267  653  41.7
RB 60040 600  700  650    40  3  627  673  264  721  29
RB70045 700  815  753.5    45  3  731  777  281  836  46
RB80070 800  950  868.1    70  4  836  900  468  1330  105
RB 90070 900  1050  969    70  4  937  1001  494  1490  120
RB 1000110 1000  1250  1114    110  5  1057  1171  1220  3220  360
RB 1250110 1250  1500  1365.8    110  5  1308  1423  1350  3970  440
