BT2B 332504/HA2 -Double Row Tapered Roller Bearings

Home / Bearing / Tapered Roller Bearings / BT2B 332504/HA2 -Double Row Tapered Roller Bearings

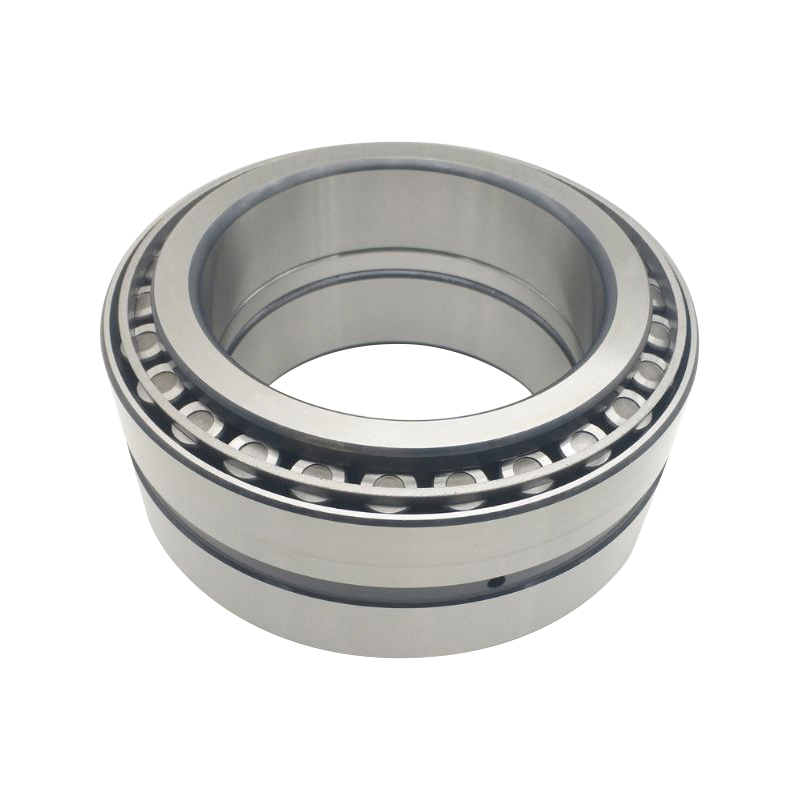

BT2B 332504/HA2 -Double Row Tapered Roller Bearings

Double row tapered roller bearings are a specialized type of bearing engineered to simultaneously withstand heavy radial and bidirectional axial loads. They provide a solution of high rigidity and large capacity for applications such as gearboxes, rolling mills, and tunnel boring machines. Compared to single row bearings, they offer superior stiffness, a longer service life, and lower friction.

Contact Us Contact Us
PREV：No previous product NEXT：30202 Single Row Tapered Roller Bearing
  • Description
  • Specifications
  • Contact Us

Key Features and Advantages
·Heavy Load Carrying Capacity: Designed to support high radial and bidirectional axial loads.
·High Rigidity (Stiffness): Provides a rigid bearing arrangement, which is beneficial for precision applications.
·Axial Location/Positioning: Locates the shaft axially in both directions within a set axial clearance or under a preload.
·Long Service Life: Utilizes optimized raceway profiles to improve load distribution, reduce stress, and enhance wear resistance.
·Reduced Friction and Noise: Optimized roller end designs and surface finishes facilitate lubricant film formation, which reduces friction and can lower noise and vibration.
·Reliability: Increases operational reliability even under difficult conditions and offers higher sensitivity to misalignment.

Fields of Application (Applications)
·In the mining industry, they are used for hoisting and tunnel excavation equipment.
·Rolling mills also have a high demand for double row tapered roller bearings.

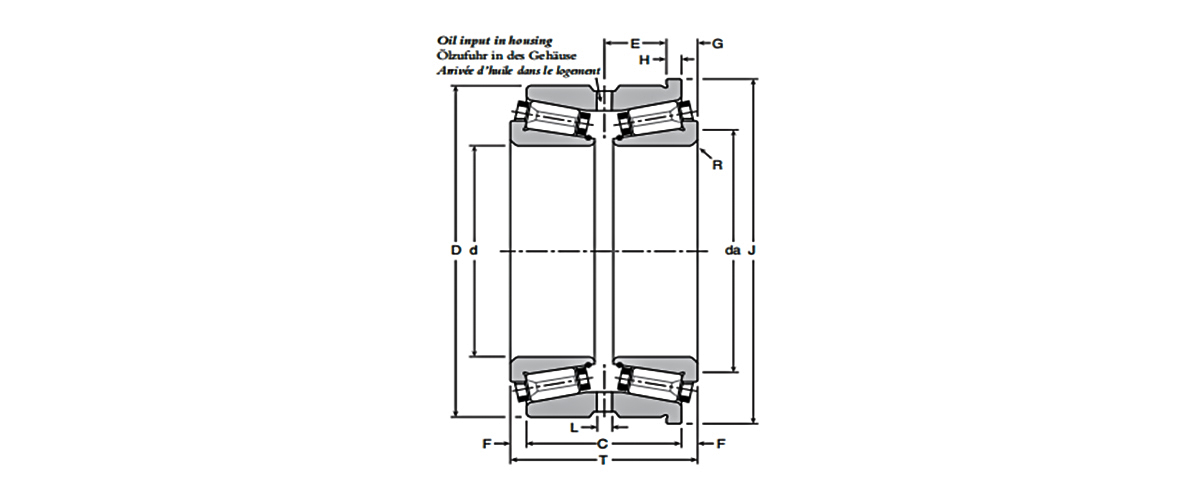

Basic dimensions Basic load rating Speed ratings Mass Model
Dynamic Static Reference speed Limiting speed Bearing No.
d [mm] D [mm] B [mm] C [mm] T [mm] C [kN] C0 [kN] [r/min] [r/min] [kg]
228.6 488.95 152.4 254 2828.7 4050 205 331945 Bearing
260 480 220 284 3897 6615 210 BT2B 328130 Bearing
260.35 422.275 139.7 178.592 2016 3645 86.5 BT2B 328187/HA2 Bearing
300.038 422.275 136.525 174.625 1959.3 4275 71.5 BT2B 332504/HA2 Bearing
317.5 447.675 146.05 180.975 2268.9 4860 84 BT2B 332516 A/HA1 Bearing
333.375 469.9 152.4 190.5 2377.8 5130 98 331775 B Bearing
340 460 128 160 1976.4 4410 71 BT2B 332830 Bearing
346.075 488.95 158.75 200.025 2551.5 5670 110 331981 Bearing
355.6 501.65 107.95 155.575 1778.4 3825 87 BT2B 332506/HA2 Bearing
360 480 128 160 1989.9 4500 73 BT2B 332831 Bearing
368.249 523.875 169.862 214.312 3042 6750 140 BT2B 332603/HA1 Bearing
371.475 501.65 107.95 155.575 1778.4 3825 77.4 331606 A Bearing
384.175 546.1 177.8 222.25 3351.6 7470 161 331197 A Bearing
400 540 135 170 2503.8 5670 106 BT2-8143/HA1 Bearing
406.4 539.75 101.6 142.875 1635.3 3960 82.4 BT2B 328389 Bearing
415.925 590.55 193.675 244.475 3757.5 8685 205 331656 Bearing
431.8 571.5 146.05 192.088 2562.3 6255 127 BT2B 332237 A/HA1 Bearing
431.8 571.5 111.125 155.575 1030.5 4590 100 BT2B 332604/HA1 Bearing
447.675 635 206.375 257.175 3960 9900 245 BT2B 332176 A Bearing
479.425 679.45 222.25 276.225 4509 11430 302 331657 Bearing
498.475 634.873 142.875 177.8 2475 6615 125 331605 B Bearing
501.65 711.2 231.775 292.1 4950 12330 343 BT2B 332605 A/HA1 Bearing
536.575 761.873 247.65 311.15 5643 14400 430 BT2B 332446 Bearing
558.8 736.6 177.8 225.425 3861 10440 150 331640 A Bearing
571.5 812.8 263.525 333.375 5796 14400 520 BT2B 332447 Bearing
602.945 787.4 158.75 206.375 3618 9540 180 331576 B Bearing
609.6 820 158.75 206.375 3618 9540 292 331500 Bearing
711.2 914.4 139.7 190.5 3420 8685 265 BT2B 328028/HA1 Bearing
723.9 914.4 139.7 187.325 3420 8685 250 331554 A Bearing
723.9 914.4 139.7 187.325 3420 8685 250 BT2B 331554 B/HA1 Bearing

Basic dimensions Basic load rating Speed ratings Mass Model
dynamic static Reference speed Limiting speed Bearing No.
d [mm] D [mm] B [mm] C [mm] T [mm] C [kN] C0 [kN] [r/min] [r/min] [kg]
762 965.2 133.35 187.325 3222 8820 290 331780 A Bearing
774.962 1016 209.63 266.7 6477.3 16200 525 BT2B 332625 Bearing
914.4 1066.8 101.6 139.7 2340 7200 190 BT2B 332501/HA5 Bearing
1160 1540 290 400 12780 34200 1900 BT2B 332780/HA5 Bearing
1250 1500 190 250 6633 20160 795 BT2B 328339/HA4 Bearing
240 480 200 220 3253.5 4950 183 BT2B 332931 Bearing
300 440 105 105 968.4 1836 48.5 332168 Bearing
300.038 422.275 150.812 150.812 1959.3 4275 70 331951 Bearing
303.212 495.3 263.525 263.525 4427.1 8820 212 BT2B 332685/HA1 Bearing
305.033 560 200 200 1509.3 4770 200 332068 Bearing
305.033 560 200 199.263 1509.3 4770 205 BT2B 334087/HA3 Bearing
305.07 500 200 200 2460.6 4680 150 332169 A Bearing
305.07 500 200 200 2460.6 4680 150 332169 AA Bearing
305.07 524 200 200 2460.6 4680 180 BT2B 334110/HA3 Bearing
317.5 422.275 128.588 128.588 1606.5 3735 51.5 BT2B 328699 G/HA1 Bearing
320 515 160 160 2142.9 3960 160 BT2-8017/HA3 Bearing
333.375 469.9 166.688 166.688 2377.8 5130 92.5 BT2B 328695 A/HA1 Bearing
342.9 533.4 146.05 139.7 1235.7 3960 115 331713 A Bearing
346.075 488.95 174.625 174.625 2551.5 5670 110 331527 C Bearing
346.075 488.95 174.625 174.625 2551.5 5670 113 BT2B 328410 C/HA1 Bearing
346.075 488.95 95.25 104.775 607.5 2475 62 BT2B 332913/HB1 Bearing
360 560 160 160 2300.4 4185 140 BT2-8000/HA3 Bearing
380 560 200 200 2691.9 5895 165 BT2-8009/HA3 Bearing
384.175 546.1 193.675 193.675 3351.6 7470 152 331158 A Bearing
384.175 546.1 193.675 193.675 3351.6 7470 166 BT2B 328580/HA1 Bearing
384.175 546.1 193.675 193.675 3351.6 7470 152 BT2B 331837 Bearing
385.762 514.35 152.4 152.4 2061 5400 92 BT2B 328035/HA1 Bearing
386 574 220 220 2670.3 5895 185 BT2-8010/HA3VA901 Bearing
390 546.1 141.288 141.288 2105.1 4590 102 BT2B 328705/HA1 Bearing
390 570 200 200 2670.3 5895 170 BT2B 328896/HA3 Bearing

Basic dimensions Basic load rating Speed ratings Mass Model
dynamic static Reference speed Limiting speed Bearing No.
d [mm] D [mm] B [mm] C [mm] T [mm] C [kN] C0 [kN] [r/min] [r/min] [kg]
390 590 200 200 2670.3 5895 200 BT2B 328934/HA3 Bearing
390 548 180 180 2295 5265 155 BT2B 334045/HA3 Bearing
400 650 240 240 3519 7335 290 332167 Bearing
400 650 240 240 3519 7335 305 BT2B 332167 C/HA3 Bearing
406.4 546.1 138.113 138.113 2105.1 4590 89 BT2B 331840 C/HA1 Bearing
406.4 546.1 138.113 138.113 1980 4590 89 BT2B 331840 G/HA1C150 Bearing
406.4 546.1 164.275 164.275 1775.7 3825 135 BT2B 334085 A/HA1VA928 Bearing
406.4 546.1 164.275 164.275 1775.7 3825 135 BT2B 334085/HA1VA901 Bearing
408.4 546.1 125 150 1766.7 4275 99 BT2B 328466/HA1 Bearing
408.4 546.1 98 120 1442.7 3105 76.5 BT2B 328874/HA1 Bearing
415.925 590.55 209.55 209.55 3757.5 8685 192 331445 Bearing
415.925 590.55 209.55 209.55 3757.5 8685 192 BT2B 328283/HA1 Bearing
420 620 200 200 2673 6480 210 BT2-8016/HA3 Bearing
430 535 84 84 972 2700 44.5 BT2B 334013/HA1 Bearing
445 620 160 160 1908 4590 135 BT2B 334069/HA3 Bearing
445 620 180 180 1908 4590 160 BT2B 334113/HA3VA901 Bearing
447.675 635 223.838 223.838 3960 9900 236 331562 Bearing
447.675 635 223.838 223.838 3960 9900 246 BT2B 332911 B/HB1 Bearing
447.675 635 223.838 223.838 3960 9900 246 BT2B 332911 C/HA1 Bearing
450 595 178 178 2852.1 7335 140 BT2B 328523/HA1 Bearing
460 680 180 180 2826 6255 210 BT2B 328876/HA1 Bearing
460 680 180 180 2826 6255 250 BT2B 334030/HA1 Bearing
464 615 136 150 1944 5265 133 BT2-8215 Bearing
482 640 160 160 1584 4680 145 BT2B 334112/HA3 Bearing
482.6 733.425 190 190 2574 7470 293 BT2-8142/HA3 Bearing
489.026 634.873 152.4 152.4 2475 6615 130 BT2B 331848 Bearing
500 730 280 280 5940 14040 420 331676 A Bearing
501.65 711.2 250.825 250.825 4950 12330 330 331182 Bearing
501.65 711.2 250.825 250.825 4950 12330 330 331182 A Bearing
519.113 736.6 258.762 258.762 5445 14040 370 BT2B 332662 B/HB1 Bearing

Basic dimensions Basic load rating Speed ratings Mass Model
dynamic static Reference speed Limiting speed Bearing No.
d [mm] D [mm] B [mm] C [mm] T [mm] C [kN] C0 [kN] [r/min] [r/min] [kg]
519.113 736.6 258.762 258.762 5445 14040 370 BT2B 332662/HB1 Bearing
536.575 761.873 269.875 269.875 5643 14400 410 331682 Bearing
558.8 736.6 196.85 196.85 3861 10440 235 331607 B Bearing
560 820 242 242 4509 10260 425 BT2B 332626/HA7 Bearing
571.5 812.8 285.75 285.75 6489 16200 500 BT2B 331476 AG/HA1 Bearing
571.5 812.8 285.75 285.75 6489 16200 500 BT2B 331854 C/HA1 Bearing
571.5 812.8 285.75 285.75 6489 16200 500 BT2B 331854/HA1 Bearing
580 830 280 280 6138 14940 515 331677 Bearing
609.6 787.4 171.45 171.45 3618 9540 218 BT2B 331858/HA1 Bearing
609.6 820 171.45 171.45 3618 9540 265 BT2B 332424/HA3 Bearing
635 939.8 304.8 304.8 6039 14940 720 331555 B Bearing
650 1030 270 270 7920 16470 900 BT2B 328306/HA4 Bearing
660.4 812.8 176.212 176.212 3222 10080 195 331198 Bearing
690 980 355 355 9204.3 22500 890 BT2-8164/HA4 Bearing
800 1260 375 375 13230 30150 1850 BT2B 334032/HA4 Bearing
901.7 1295.4 438.15 450.85 15120 38700 2000 331306 Bearing
939.8 1333.5 463.55 463.55 15840 44100 2230 331350 Bearing
110 180 76 95 400 730 8.63 352122 Bearing
120 200 90 110 508 910 11.7 352124 Bearing
130 200 80 102 450 800 9.72 352026 Bearing
130 210 90 110 540 1000 13.5 352126 Bearing
140 210 82 104 480 830 10.9 352028 Bearing
140 225 90 115 560 1100 15.5 352128 Bearing
150 225 86 110 500 900 14.5 352030 Bearing
150 250 112 138 778 1560 25.8 352130 Bearing
160 240 90 116 700 1300 16.5 352032 Bearing
160 270 120 150 990 2160 34.9 352132 Bearing
170 260 100 128 830 1800 21 352034 Bearing
170 280 120 150 1100 2400 35.6 352134 Bearing
180 280 110 142 1005 2340 27.9 352036 Bearing

Basic dimensions Basic load rating Speed ratings Mass Model
dynamic static Reference speed Limiting speed Bearing No.
d [mm] D [mm] B [mm] C [mm] T [mm] C [kN] C0 [kN] [r/min] [r/min] [kg]
180 300 134 164 1290 2500 43.2 352136 Bearing
190 290 110 142 1005 2340 28.8 352038 Bearing
190 320 130 170 1160 2410 50.4 352138 Bearing
200 310 120 154 1500 2900 41.9 352040 Bearing
200 340 150 184 1600 3300 61.5 352140 Bearing
220 340 128 166 1210 2500 42.7 352044 Bearing
220 370 150 195 1700 3200 76.3 352144 Bearing
240 360 128 166 1430 3200 52.8 352048 Bearing
240 400 163 210 2000 4100 98.1 352148 Bearing
260 400 146 190 1530 3630 75.6 352052 Bearing
260 440 180 225 2200 4600 126 352152 Bearing
280 420 146 190 1820 4050 81.3 352056 Bearing
300 460 168 220 2200 5300 117 352060 Bearing
25 52 19 36.5 39.75 13300 0.34 74025/74052PT Bearing
30 62 23 42.5 46.75 11600 0.535 70030/70062PT Bearing
30 66.675 23.5 42.48 47.24 10400 0.63 80030/80066XPT Bearing
30 68 23.5 42.48 47.24 10400 0.63 80030/80068PT Bearing
31.75 72 26 46.5 51.75 9600 0.75 100031X/100072PT Bearing
31.75 76.2 26 46.5 51.75 9600 0.75 100031X/100076XPT Bearing
31.75 80 26 46.5 51.75 9600 0.75 100031X/100080PT Bearing
33.338 66.675 23.5 42.48 47.24 10400 0.63 80033X/80066XPT Bearing
33.338 68 23.5 42.48 47.24 10400 0.63 80033X/80068PT Bearing
34.925 72 26 46.5 51.75 9600 0.75 100034X/100072PT Bearing
34.925 76.2 26 46.5 51.75 9600 0.75 100034X/100076XPT Bearing
34.925 80 26 46.5 51.75 9600 0.75 100034X/100080PT Bearing
35 66.675 23.5 42.48 47.24 10400 0.6 80035/80066XPT Bearing
35 68 23.5 42.48 47.24 10400 0.63 80035/80068PT Bearing
35 72 26 46.5 51.75 9600 0.75 100035/100072PT Bearing
35 76.2 26 46.5 51.75 9600 0.75 100035/100076XPT Bearing
35 80 26 46.5 51.75 9600 0.75 100035/100080PT Bearing

Basic dimensions Basic load rating Speed ratings Mass Model
dynamic static Reference speed Limiting speed Bearing No.
d [mm] D [mm] B [mm] C [mm] T [mm] C [kN] C0 [kN] [r/min] [r/min] [kg]
38.1 76 26 45.5 51.25 8800 0.92 101038X/101076PT Bearing
38.1 76.2 26 45.5 51.25 8800 0.92 101038X/101076XPT Bearing
38.1 80 26 45.5 51.25 8800 0.92 101038X/101080PT Bearing
40 76.2 26 45.5 51.25 8800 0.92 101040/101076XPT Bearing
40 80 26 45.5 51.25 8800 0.915 101040/101080PT Bearing
40 85 24.5 48.66 51.83 8200 1.025 112040/112085PT Bearing
41.275 76 26 45.5 51.25 8800 0.92 101041X/101076PT Bearing
41.275 76.2 26 45.5 51.25 8800 0.92 101041X/101076XPT Bearing
41.275 80 26 45.5 51.25 8800 0.92 101041X/101080PT Bearing
41.275 85 24.5 48.66 51.83 8200 1.03 112041X/112085PT Bearing
44.45 85 24.5 48.66 51.83 8200 1.03 112044X/112085PT Bearing
44.45 85 28 55.66 58.83 8200 1.07 119044X/119085PT Bearing
44.45 88.9 28 55.66 58.83 8200 1.07 119044X/119088XPT Bearing
44.45 90 29 51.3 57.65 7400 1.17 111044X/111090PT Bearing
44.45 93.266 29 51.3 57.65 7400 1.17 111044X/111093XPT Bearing
45 85 24.5 48.66 51.83 8200 0.965 112045/112085PT Bearing
45 85 28 55.66 58.83 8200 1.07 119045/119085PT Bearing
45 88.9 28 55.66 58.83 8200 1.07 119045/119088XPT Bearing
50 90 29 51.3 57.65 7400 1.17 111050/111090PT Bearing
50 93.266 29 51.3 57.65 7400 1.17 111050/111093XPT Bearing
50 96.838 29.5 54 59.5 6900 1.63 110050/110096XPT Bearing
50 98.425 29.5 54 59.5 6900 1.63 110050/110098XPT Bearing
50 100 29.5 54 59.5 6900 1.63 110050/110100PT Bearing
50.8 90 29 51.3 57.65 7400 1.17 111050X/111090PT Bearing
50.8 96.838 29.5 54 59.5 6900 1.63 110050X/110096XPT Bearing
50.8 98.425 29.5 54 59.5 6900 1.63 110050X/110098XPT Bearing
50.8 100 29.5 54 59.5 6900 1.63 110050X/110100PT Bearing
53.975 96.838 29.5 54 59.5 6900 1.63 110053X/110096XPT Bearing
53.975 98.425 29.5 54 59.5 6900 1.63 110053X/110098XPT Bearing
53.975 100 29.5 54 59.5 6900 1.63 110053X/110100PT Bearing

Basic dimensions Basic load rating Speed ratings Mass Model
dynamic static Reference speed Limiting speed Bearing No.
d [mm] D [mm] B [mm] C [mm] T [mm] C [kN] C0 [kN] [r/min] [r/min] [kg]
55 96.838 29.5 54 59.5 6900 1.63 110055/110096XPT Bearing
55 98.425 29.5 54 59.5 6900 1.63 110055/110098XPT Bearing
55 100 29.5 54 59.5 6900 1.54 110055/110100PT Bearing
57.15 96.838 29.5 54 59.5 6900 1.63 110057X/110096XPT Bearing
57.15 98.425 29.5 54 59.5 6900 1.63 110057X/110098XPT Bearing
57.15 100 29.5 54 59.5 6900 1.63 110057X/110100PT Bearing
57.15 100 26.5 46.88 52.44 6600 1.38 113057X/113100PT Bearing
57.15 101.6 26.5 46.88 52.44 6600 1.38 113057X/113101XPT Bearing
57.15 110 33 60.3 66.65 6200 2.03 120057X/120110PT Bearing
57.15 112.712 33 60.3 66.65 6200 2.03 120057X/120112XPT Bearing
60 100 26.5 46.88 52.44 6600 1.38 113060/113100PT Bearing
60 101.6 26.5 46.88 52.44 6600 1.38 113060/113101XPT Bearing
60 110 33 60.3 66.65 6200 2.03 120060/120110PT Bearing
60 112.712 33 60.3 66.65 6200 2.03 120060/120112XPT Bearing
60 120 32 59.88 65.44 5700 2.45 130060/130120PT Bearing
60 127 32 59.88 65.44 5700 2.45 130060/130127PT Bearing
60.325 100 26.5 46.88 52.44 6600 1.38 113060X/113100PT Bearing
60.325 101.6 26.5 46.88 52.44 6600 1.38 113060X/113101XPT Bearing
63.5 110 33 60.3 66.65 6200 1.94 120063X/120110PT Bearing
63.5 120 32 59.88 65.44 5700 2.45 130063X/130120PT Bearing
63.5 127 32 59.88 65.44 5700 2.45 130063X/130127PT Bearing
65 120 32 59.88 65.44 5700 2.45 130065/130120PT Bearing
65 127 32 59.88 65.44 5700 2.45 130065/130127PT Bearing
69.85 112.712 33 60.3 66.65 5800 1.83 124069X/124112XPT Bearing
69.85 120 32 59.88 65.44 5700 2.32 130069X/130120PT Bearing
69.85 120 42 73.12 81.06 5700 3.05 135069X/135120PT Bearing
69.85 127 32 59.88 65.44 5700 2.45 130069X/130127PT Bearing
70 112.712 33 60.3 66.65 5800 1.83 124070/124112XPT Bearing
70 120 32 59.88 65.44 5700 2.32 130070/130120PT Bearing
70 127 32 59.88 65.44 5700 2.45 130070/130127PT Bearing

Basic dimensions Basic load rating Speed ratings Mass Model
dynamic static Reference speed Limiting speed Bearing No.
d [mm] D [mm] B [mm] C [mm] T [mm] C [kN] C0 [kN] [r/min] [r/min] [kg]
75 127 33.5 60.5 66.75 5300 2.79 133075/133127PT Bearing
75 130 33.5 60.5 66.75 5300 2.79 133075/133130PT Bearing
75 133.35 33.5 60.5 66.75 5300 2.79 133075/133133XPT Bearing
75 136.525 33.5 60.5 66.75 5300 2.79 133075/133136XPT Bearing
76.2 127 33.5 60.5 66.75 5300 2.79 133076X/133127PT Bearing
76.2 130 33.5 60.5 66.75 5300 2.79 133076X/133130PT Bearing
76.2 133.35 33.5 60.5 66.75 5300 2.79 133076X/133133XPT Bearing
76.2 136.525 33.5 60.5 66.75 5300 2.79 133076X/133136XPT Bearing
80 140 38.5 69.14 77.07 4900 3.78 140080/140140PT Bearing
82.55 140 38.5 69.14 77.07 4900 3.68 140082X/140140PT Bearing
85 140 38.5 69.14 77.07 4900 3.58 140085/140140PT Bearing
85 170 50.5 89 97.5 4200 7.34 210085/210170PT Bearing
90 133.35 34 60.12 68.06 4800 2.82 117090/117133XPT Bearing
90 150 33.75 62 68.5 4400 3.8 131090/131150PT Bearing
90 152.4 33.75 62 68.5 4400 3.8 131090/131152XPT Bearing
90 152.4 42 78.5 83.9 4300 4.3 160090/160152XPT Bearing
90 158.75 33.75 62 68.5 4400 3.8 131090/131158XPT Bearing
90 158.75 42 78.5 83.9 4300 4.3 160090/160158XPT Bearing
90 160 42 78.5 83.9 4300 4.3 160090/160160PT Bearing
90 161.925 42 78.5 83.9 4300 4.3 160090/160161XPT Bearing
90 170 50.5 89 97.5 4200 7.34 210090/210170PT Bearing
92.075 150 33.75 62 68.5 4400 3.8 131092X/131150PT Bearing
92.075 152.4 33.75 62 68.5 4400 3.8 131092X/131152XPT Bearing
92.075 158.75 33.75 62 68.5 4400 3.8 131092X/131158XPT Bearing
93.663 150 33.75 62 68.5 4400 3.8 131093X/131150PT Bearing
93.663 152.4 33.75 62 68.5 4400 3.8 131093X/131152XPT Bearing
93.663 158.75 33.75 62 68.5 4400 3.8 131093X/131158XPT Bearing
95 150 33.75 62 68.5 4400 3.8 131095/131150PT Bearing
95 152.4 33.75 62 68.5 4400 3.74 131095/131152XPT Bearing
95 152.4 42 75.8 83.9 4300 4.5 160095/160152XPT Bearing

Basic dimensions Basic load rating Speed ratings Mass Model
dynamic static Reference speed Limiting speed Bearing No.
d [mm] D [mm] B [mm] C [mm] T [mm] C [kN] C0 [kN] [r/min] [r/min] [kg]
95 158.75 33.75 62 68.5 4400 3.8 131095/131158XPT Bearing
95 170 50.5 89 97.5 4200 7.34 210095/210170PT Bearing
97 150 33.75 62 68.5 4400 3.8 131097/131150PT Bearing
97 152.4 33.75 62 68.5 4400 3.66 131097/131152XPT Bearing
97 158.75 33.75 62 68.5 4400 3.8 131097/131158XPT Bearing
98.425 152.4 42 75.8 83.9 4300 4.3 160098X/160152XPT Bearing
98.425 158.75 42 78.5 83.9 4300 4.3 160098X/160158XPT Bearing
98.425 160 42 78.5 83.9 4300 4.3 160098X/160160PT Bearing
98.425 161.925 42 78.5 83.9 4300 4.3 160098X/160161XPT Bearing
100 170 46 84 92 3900 7.67 180100/180170PT Bearing
100 180 46 84 92 3900 7.67 180100/180180PT Bearing
100 180.975 46 84 92 3900 7.67 180100/180180XPT Bearing
100 190 46 84 92 3900 9.58 180100/180190PT Bearing
101.6 165.1 39.5 63.51 73.03 3900 5.68 141101X/141165XPT Bearing
101.6 170 46 84 92 3900 7.67 180101X/180170PT Bearing
101.6 180 46 84 92 3900 7.67 180101X/180180PT Bearing
101.6 180.975 46 84 92 3900 7.81 180101X/180180XPT Bearing
101.6 190 46 84 92 3900 9.56 180101X/180190PT Bearing
105 170 46 84 92 3900 7.67 180105/180170PT Bearing
105 180 46 84 92 3900 7.67 180105/180180PT Bearing
105 180.975 46 84 92 3900 7.58 180105/180180XPT Bearing
105 190 46 84 92 3900 9.38 180105/180190PT Bearing
107.95 165.1 39.5 63.51 73.03 3900 5.68 141107X/141165XPT Bearing
111.125 180.975 50 82.6 95.3 3600 7.03 181111X/181180XPT Bearing
111.125 190 50 82.6 95.3 3600 8.68 181111X/181190PT Bearing
111.125 190.5 50 82.6 95.3 3600 8.78 181111X/181190XPT Bearing
111.125 200.025 50 82.6 95.3 3600 8.68 181111X/181200XPT Bearing
115 165 31 55 60 3900 2.85 105115/105165PT Bearing
115 180.975 50 82.6 95.3 3600 6.78 181115/181180XPT Bearing
115 190 50 82.6 95.3 3600 8.43 181115/181190PT Bearing

Basic dimensions Basic load rating Speed ratings Mass Model
dynamic static Reference speed Limiting speed Bearing No.
d [mm] D [mm] B [mm] C [mm] T [mm] C [kN] C0 [kN] [r/min] [r/min] [kg]
115 190.5 50 82.6 95.3 3600 8.53 181115/181190XPT Bearing
115 200.025 50 82.6 95.3 3600 8.68 181115/181200XPT Bearing
118 180.975 50 82.6 95.3 3600 6.57 181118/181180XPT Bearing
118 190 50 82.6 95.3 3600 8.13 181118/181190PT Bearing
118 190.5 50 82.6 95.3 3600 8.23 181118/181190XPT Bearing
118 200.025 50 82.6 95.3 3600 8.68 181118/181200XPT Bearing
120 165 31 55 60 3900 2.85 105120/105165PT Bearing
120 190 50 82.6 95.3 3500 7.45 184120/184190PT Bearing
120 190.5 5 82.6 95.3 3500 7.45 184120/184190XPT Bearing
120 199 5 82.6 95.3 3500 7.45 184120/184199PT Bearing
120 200 5 82.6 95.3 3500 7.45 184120/184200PT Bearing
127 175 31 55 60 3900 2.85 109127X/109175PT Bearing
127 196.85 42 85.74 93.67 3400 7.42 164127X/164196XPT Bearing
127 200.025 42 85.74 93.67 3400 7.42 164127X/164200XPT Bearing
127 215 51 92 101 3100 11.05 200127X/200215PT Bearing
127 215.9 51 92 101 3100 11.05 200127X/200215XPT Bearing
133.35 196.85 42 85.74 93.67 3400 7.42 164133X/164196XPT Bearing
133.35 200.025 42 85.74 93.67 3400 7.42 164133X/164200XPT Bearing
133.35 215 51 92 101 3100 11.05 200133X/200215PT Bearing
133.35 215.9 51 92 101 3100 10.55 200133X/200215XPT Bearing
136.525 215 51 92 101 3100 11.05 200136X/200215PT Bearing
136.525 215.9 51 92 101 3100 10.25 200136X/200215XPT Bearing
139.7 215 51 92 101 3100 11.05 200139X/200215PT Bearing
139.7 215.9 51 92 101 3100 11.05 200139X/200215XPT Bearing
139.7 241.3 59 104 115 2900 17.7 240139X/240241XPT Bearing
140 200 42 73 80.15 3100 6.38 161140/161200PT Bearing
140 200.025 42 73 80.15 3100 6.38 161140/161200XPT Bearing
142.875 200 42 73 80.15 3100 6.38 161142X/161200PT Bearing
142.875 200.025 42 73 80.15 3100 6.38 161142X/161200XPT Bearing
145 241.3 59 104 115 2900 17.15 240145/240241XPT Bearing

Basic dimensions Basic load rating Speed ratings Mass Model
dynamic static Reference speed Limiting speed Bearing No.
d [mm] D [mm] B [mm] C [mm] T [mm] C [kN] C0 [kN] [r/min] [r/min] [kg]
145 256 51 92 101 2700 11.83 203145/203256PT Bearing
149.225 241.3 59 104 115 2900 17.15 240149X/240241XPT Bearing
150 210 42 76 84 3000 9.1 163150/163210PT Bearing
152.4 222.25 49 81.2 93.1 3000 9.08 183152X/183222XPT Bearing
152.4 254 74 116.9 135.95 2600 21.72 281152X/281254XPT Bearing
152.4 266.7 74 116.9 135.95 2600 21.72 281152X/281266XPT Bearing
155.575 254 74 116.9 135.95 2600 21.72 281155X/281254XPT Bearing
155.575 266.7 74 116.9 135.95 2600 21.72 281155X/281266XPT Bearing
156 235 51 92 101 2700 11.83 203156/203235PT Bearing
165.1 254 50 88.96 98.48 2600 12.7 186165X/186254XPT Bearing
170 254 50 88.96 98.48 2600 12.7 186170/186254XPT Bearing
177.8 227.013 35 63.48 69.24 2700 5.07 115177X/115227XPT Bearing
177.8 254 50 88.96 98.48 2600 12.7 186177X/186254XPT Bearing
177.8 288.925 71 122.25 138.12 2300 27.2 280177X/280288XPT Bearing
185 258 50 90 100 2500 12 187185/187258PT Bearing
190.5 282.575 54 91.42 105.71 2300 14.1 242190X/242282XPT Bearing
190.5 290 52 96 105 2200 14.2 206190X/206290PT Bearing
203.2 310 72 121.08 138.54 2100 25 283203X/283310PT Bearing
203.2 317.5 72 121.08 138.54 2100 25 283203X/283317XPT Bearing
210 290 52 96 105 2200 13.1 206210/206290PT Bearing
210 310 72 121.08 138.54 2100 25 283210/283310PT Bearing
210 317.5 72 121.08 138.54 2100 25 283210/283317XPT Bearing
230 327.025 55 90.24 106.12 1900 21 244230/244327XPT Bearing
230 330 55 90.24 106.12 1900 21 244230X/244330PT Bearing
234.95 327.025 55 90.24 106.12 1900 21 244234X/244327XPT Bearing
234.95 330 55 90.24 106.12 1900 21 244234X/244330PT Bearing
260 385 66 114.34 130.12 1700 32 382260/382385PT Bearing
25 52 36.5 43 13300 0.46 74025/74052GUD Bearing
30 62 42.5 51 11600 0.64 70030/70062GUD Bearing
30 66.675 42.48 52 10400 0.78 80030/80066XGUD Bearing

Basic dimensions Basic load rating Speed ratings Mass Model
dynamic static Reference speed Limiting speed Bearing No.
d [mm] D [mm] B [mm] C [mm] T [mm] C [kN] C0 [kN] [r/min] [r/min] [kg]
30 68 42.48 52 10400 0.78 80030/80068GUD Bearing
32 72 46.5 57 9600 0.825 100031X/100072GUD Bearing
32 76.2 46.5 57 9600 0.825 100031X/100076XGUD Bearing
32 80 46.5 57 9600 0.825 100031X/100080GUD Bearing
33 66.675 42.48 52 10400 0.78 80033X/80066XGUD Bearing
33 68 42.48 52 10400 0.78 80033X/80068GUD Bearing
35 72 46.5 57 9600 0.825 100034X/100072GUD Bearing
35 76.2 46.5 57 9600 0.825 100034X/100076XGUD Bearing
35 80 46.5 57 9600 0.825 100034X/100080GUD Bearing
35 66.675 42.48 52 10400 0.72 80035/80066XGUD Bearing
35 68 42.48 52 10400 0.75 80035/80068GUD Bearing
35 72 46.5 57 9600 0.825 100035/100072GUD Bearing
35 76.2 46.5 57 9600 0.825 100035/100076XGUD Bearing
35 80 46.5 57 9600 0.825 100035/100080GUD Bearing
36 72 36.5 42 9600 0.58 102036/102072GUD Bearing
38 76 45.5 57 8800 0.85 101038X/101076GUD Bearing
38 76.2 45.5 57 8800 0.85 101038X/101076XGUD Bearing
38 80 45.5 57 8800 0.85 101038X/101080GUD Bearing
40 76 45.5 57 8800 0.85 101040/101076GUD Bearing
40 76.2 45.5 57 8800 0.85 101040/101076XGUD Bearing
40 80 45.5 57 8800 1.025 101040/101080GUD Bearing
40 85 48.66 55 8200 1.19 112040/112085GUD Bearing
41 76 45.5 57 8800 0.85 101041X/101076GUD Bearing
41 76.2 45.5 57 8800 0.85 101041X/101076XGUD Bearing
41 80 45.5 57 8800 0.85 101041X/101080GUD Bearing
41 85 48.66 55 8200 1.07 112041X/112085GUD Bearing
44 90 51.3 64 7400 1.33 111044X/111090GUD Bearing
44 93.266 51.3 64 7400 1.33 111044X/111093XGUD Bearing
44 85 48.66 55 8200 1.07 112044X/112085GUD Bearing
44 85 55.66 62 8200 1.17 119044X/119085GUD Bearing

Basic dimensions Basic load rating Speed ratings Mass Model
dynamic static Reference speed Limiting speed Bearing No.
d [mm] D [mm] B [mm] C [mm] T [mm] C [kN] C0 [kN] [r/min] [r/min] [kg]
44 88.9 55.66 62 8200 1.17 119044X/119088XGUD Bearing
45 85 48.66 55 8200 1.07 112045/112085GUD Bearing
45 85 55.66 62 8200 1.17 119045/119085GUD Bearing
45 88.9 55.66 62 8200 1.17 119045/119088XGUD Bearing
50 90 51.3 64 7400 1.33 111050/111090GUD Bearing
50 93.266 51.3 64 7400 1.33 111050/111093XGUD Bearing
50 96.838 54 65 6900 1.945 110050/110096XGUD Bearing
50 98.425 54 65 6900 1.945 110050/110098XGUD Bearing
50 100 54 65 6900 1.945 110050/110100GUD Bearing
51 90 51.3 64 7400 1.33 111050X/111090GUD Bearing
51 96.838 54 65 6900 1.945 110050X/110096XGUD Bearing
51 98.425 54 65 6900 1.945 110050X/110098XGUD Bearing
51 100 54 65 6900 1.945 110050X/110100GUD Bearing
54 96.838 54 65 6900 1.945 110053X/110096XGUD Bearing
54 98.425 54 65 6900 1.945 110053X/110098XGUD Bearing
54 100 54 65 6900 1.945 110053X/110100GUD Bearing
55 96.838 54 65 6900 1.945 110055/110096XGUD Bearing
55 98.425 54 65 6900 1.945 110055/110098XGUD Bearing
55 100 54 65 6900 1.765 110055/110100GUD Bearing
57 96.838 54 65 6900 1.945 110057X/110096XGUD Bearing
57 98.425 54 65 6900 1.945 110057X/110098XGUD Bearing
57 100 54 65 6900 1.945 110057X/110100GUD Bearing
57 100 46.88 58 6600 1.825 113057X/113100GUD Bearing
57 101.6 46.88 58 6600 1.825 113057X/113101XGUD Bearing
57 110 60.3 73 6200 2.39 120057X/120110GUD Bearing
57 112.712 60.3 73 6200 2.39 120057X/120112XGUD Bearing
60 100 46.88 58 6600 1.825 113060/113100GUD Bearing
60 101.6 46.88 58 6600 1.825 113060/113101XGUD Bearing
60 110 60.3 73 6200 2.39 120060/120110GUD Bearing
60 112.712 60.3 73 6200 2.39 120060/120112XGUD Bearing

Basic dimensions Basic load rating Speed ratings Mass Model
dynamic static Reference speed Limiting speed Bearing No.
d [mm] D [mm] B [mm] C [mm] T [mm] C [kN] C0 [kN] [r/min] [r/min] [kg]
60 120 59.88 71 5700 2.86 130060/130120GUD Bearing
60 127 59.88 71 5700 2.86 130060/130127GUD Bearing
60 100 46.88 58 6600 1.825 113060X/113100GUD Bearing
60 101.6 46.88 58 6600 1.825 113060X/113101XGUD Bearing
64 110 60.3 73 6200 2.21 120063X/120110GUD Bearing
64 120 59.88 71 5700 2.86 130063X/130120GUD Bearing
64 127 59.88 71 5700 2.86 130063X/130127GUD Bearing
65 120 59.88 71 5700 2.86 130065/130120GUD Bearing
65 127 59.88 71 5700 2.86 130065/130127GUD Bearing
70 112.712 60.3 73 5800 2.015 124069X/124112XGUD Bearing
70 120 59.88 71 5700 2.61 130069X/130120GUD Bearing
70 120 73.12 89 5700 2.73 135069X/135120GUD Bearing
70 127 59.88 71 5700 2.86 130069X/130127GUD Bearing
70 112.712 60.3 73 5800 2.015 124070/124112XGUD Bearing
70 120 59.88 71 5700 2.64 130070/130120GUD Bearing
70 127 59.88 71 5700 2.86 130070/130127GUD Bearing
73 120 49.7 64 5500 2.35 123073X/123120GUD Bearing
73 120.65 49.7 64 5500 2.35 123073X/123120XGUD Bearing
73 121.444 49.7 64 5500 2.35 123073X/123121XGUD Bearing
73 123.825 49.7 64 5500 2.35 123073X/123123XGUD Bearing
75 120 49.7 64 5500 2.25 123075/123120GUD Bearing
75 120.65 49.7 64 5500 2.25 123075/123120XGUD Bearing
75 121.444 49.7 64 5500 2.25 123075/123121XGUD Bearing
75 123.825 49.7 64 5500 2.25 123075/123123XGUD Bearing
75 127 60.5 73 5300 3.23 133075/133127GUD Bearing
75 130 60.5 73 5300 3.23 133075/133130GUD Bearing
75 133.35 60.5 73 5300 3.23 133075/133133XGUD Bearing
75 136.525 60.5 73 5300 3.23 133075/133136XGUD Bearing
76 120 49.7 64 5500 2.25 123076X/123120GUD Bearing
76 120.65 49.7 64 5500 2.25 123076X/123120XGUD Bearing

Basic dimensions Basic load rating Speed ratings Mass Model
dynamic static Reference speed Limiting speed Bearing No.
d [mm] D [mm] B [mm] C [mm] T [mm] C [kN] C0 [kN] [r/min] [r/min] [kg]
76 123.825 49.7 64 5500 2.25 123076X/123123XGUD Bearing
76 127 60.5 73 5300 3.23 133076X/133127GUD Bearing
76 130 60.5 73 5300 3.23 133076X/133130GUD Bearing
76 133.35 60.5 73 5300 3.23 133076X/133133XGUD Bearing
76 136.525 60.5 73 5300 3.23 133076X/133136XGUD Bearing
78 120 49.7 64 5500 2.25 123077X/123120GUD Bearing
78 120.65 49.7 64 5500 2.25 123077X/123120XGUD Bearing
78 121.444 49.7 64 5500 2.25 123077X/123121XGUD Bearing
78 123.825 49.7 64 5500 2.25 123077X/123123XGUD Bearing
80 140 69.14 85 4900 4.345 140080/140140GUD Bearing
81 133.35 58.12 74 4900 2.25 126080X/126133XGUD Bearing
83 133.35 58.12 74 4900 2.25 126082X/126133XGUD Bearing
83 136.525 58.12 74 4900 2.25 126082X/126136XGUD Bearing
83 140 69.14 85 4900 4.145 140082X/140140GUD Bearing
84 133.35 58.12 74 4900 2.4 126084X/126133XGUD Bearing
84 136.525 58.12 74 4900 2.4 126084X/126136XGUD Bearing
85 140 69.14 85 4900 3.945 140085/140140GUD Bearing
85 170 89 106 4200 8.345 210085/210170GUD Bearing
86 133.35 58.12 74 4900 2.4 126085X/126133XGUD Bearing
86 136.525 58.12 74 4900 2.4 126085X/126136XGUD Bearing
89 133.35 58.12 74 4900 2.4 126088X/126133XGUD Bearing
89 136.525 58.12 74 4900 2.4 126088X/126136XGUD Bearing
90 133.35 60.12 76 4800 3.9 117090/117133XGUD Bearing
90 170 89 106 4200 8.345 210090/210170GUD Bearing
90 150 62 75 4400 4.625 131090/131150GUD Bearing
90 152.4 62 75 4400 4.625 131090/131152XGUD Bearing
90 158.75 62 75 4400 4.625 131090/131158XGUD Bearing
90 152.4 75.8 92 4300 4.95 160090/160152XGUD Bearing
90 158.75 75.8 92 4300 4.95 160090/160158XGUD Bearing
90 160 75.8 92 4300 4.95 160090/160160GUD Bearing

Basic dimensions Basic load rating Speed ratings Mass Model
dynamic static Reference speed Limiting speed Bearing No.
d [mm] D [mm] B [mm] C [mm] T [mm] C [kN] C0 [kN] [r/min] [r/min] [kg]
90 161.925 75.8 92 4300 4.95 160090/160161XGUD Bearing
92 150 62 75 4400 4.625 131092X/131150GUD Bearing
92 152.4 62 75 4400 4.625 131092X/131152XGUD Bearing
92 158.75 62 75 4400 4.625 131092X/131158XGUD Bearing
94 152.4 62 75 4400 4.625 131093X/131152XGUD Bearing
94 150 62 75 4400 4.625 131093X/131150GUD Bearing
94 158.75 62 75 4400 4.625 131093X/131158XGUD Bearing
95 150 62 75 4400 4.625 131095/131150GUD Bearing
95 152.4 62 75 4400 4.505 131095/131152XGUD Bearing
95 158.75 62 75 4400 4.625 131095/131158XGUD Bearing
95 170 89 106 4200 8.345 210095/210170GUD Bearing
97 152.4 62 75 4400 4.345 131097/131152XGUD Bearing
97 150 62 75 4400 4.625 131097/131150GUD Bearing
97 158.75 62 75 4400 4.625 131097/131158XGUD Bearing
98 152.4 75.8 92 4300 4.95 160098X/160152XGUD Bearing
98 158.75 75.8 92 4300 4.95 160098X/160158XGUD Bearing
98 160 75.8 92 4300 4.95 160098X/160160GUD Bearing
98 161.925 75.8 92 4300 4.95 160098X/160161XGUD Bearing
100 170 84 100 3900 11 180100/180170GUD Bearing
100 180 84 100 3900 9.1 180100/180180GUD Bearing
100 180.975 84 100 3900 11 180100/180180XGUD Bearing
100 190 84 100 3900 11 180100/180190GUD Bearing
102 165.1 67.96 87 3900 9.16 141101X/141165XGUD Bearing
102 170 84 100 3900 11 180101X/180170GUD Bearing
102 180 84 100 3900 11 180101X/180180GUD Bearing
102 180.975 84 100 3900 9.28 180101X/180180XGUD Bearing
102 190 84 100 3900 10.96 180101X/180190GUD Bearing
105 170 84 100 3900 11 180105/180170GUD Bearing
105 180 84 100 3900 11 180105/180180GUD Bearing
105 180.975 84 100 3900 8.82 180105/180180XGUD Bearing

Basic dimensions Basic load rating Speed ratings Mass Model
dynamic static Reference speed Limiting speed Bearing No.
d [mm] D [mm] B [mm] C [mm] T [mm] C [kN] C0 [kN] [r/min] [r/min] [kg]
105 190 84 100 3900 10.5 180105/180190GUD Bearing
108 165.1 67.96 87 3900 9.16 141107X/141165XGSUD Bearing
111 180.975 82.6 108 3600 8.34 181111X/181180XGUD Bearing
111 190 82.6 108 3600 9.95 181111X/181190GUD Bearing
111 190.5 82.6 108 3600 10.05 181111X/181190XGUD Bearing
111 200.025 82.6 108 3600 8.34 181111X/181200XGUD Bearing
115 165 55 65 3900 3.36 105115/105165GUD Bearing
115 180.975 82.6 108 3600 7.84 181115/181180XGUD Bearing
115 190 82.6 108 3600 9.45 181115/181190GUD Bearing
115 190.5 82.6 108 3600 9.55 181115/181190XGUD Bearing
115 200.025 82.6 108 3600 8.34 181115/181200XGUD Bearing
118 180.975 82.6 108 3600 7.42 181118/181180XGUD Bearing
118 190 82.6 108 3600 9.03 181118/181190GUD Bearing
118 190.5 82.6 108 3600 9.13 181118/181190XGUD Bearing
118 200.025 82.6 108 3600 8.34 181118/181200XGUD Bearing
120 165 55 65 3900 3.36 105120/105165GUD Bearing
120 190 82.6 108 3500 8.46 184120/184190GUD Bearing
120 190.5 82.6 108 3500 8.46 184120/184190XGUD Bearing
120 199 82.6 108 3500 8.46 184120/184199GUD Bearing
120 200 82.6 108 3500 8.46 184120/184200GUD Bearing
127 196.85 85.74 101.6 3400 8.8 164127X/164196XGUD Bearing
127 200.025 85.74 101.6 3400 8.8 164127X/164200XGUD Bearing
127 215 92 110 3100 13.54 200127X/200215GUD Bearing
127 215.9 92 110 3100 13.54 200127X/200215XGUD Bearing
133 196.85 85.74 101.6 3400 8.8 164133X/164196XGUD Bearing
133 200.025 85.74 101.6 3400 8.8 164133X/164200XGUD Bearing
133 215 92 110 3100 13.54 200133X/200215GUD Bearing
133 215.9 92 110 3100 12.49 200133X/200215XGUD Bearing
137 215 92 110 3100 13.54 200136X/200215GUD Bearing
137 215.9 92 110 3100 11.97 200136X/200215XGUD Bearing

Basic dimensions Basic load rating Speed ratings Mass Model
dynamic static Reference speed Limiting speed Bearing No.
d [mm] D [mm] B [mm] C [mm] T [mm] C [kN] C0 [kN] [r/min] [r/min] [kg]
140 215 92 110 3100 13.54 200139X/200215GUD Bearing
140 215.9 92 110 3100 13.54 200139X/200215XGUD Bearing
140 241.3 104 126 2900 19.86 240139X/240241XGUD Bearing
140 200 78 92.3 3100 9.7 161140/161200GSUD Bearing
140 200.025 78 92.3 3100 9.7 161140/161200XGSUD Bearing
143 200 78 92.3 3100 9.7 161142X/161200GSUD Bearing
143 200.025 78 92.3 3100 9.7 161142X/161200XGSUD Bearing
145 241.3 104 126 2900 18.78 240145/240241XGUD Bearing
145 256 92 110 2700 14.49 203145/203256GUD Bearing
149 241.3 104 126 2900 18.78 240149X/240241XGUD Bearing
150 210 76 92 3000 9.96 163150/163210GUD Bearing
152 222.25 81.2 105 3000 10.73 183152X/183222XGUD Bearing
152 254 116.9 155 2600 24.87 281152X/281254XGUD Bearing
152 266.7 116.9 155 2600 24.87 281152X/281266XGUD Bearing
156 254 116.9 155 2600 24.87 281155X/281254XGUD Bearing
156 266.7 116.9 155 2600 24.87 281155X/281266XGUD Bearing
156 235 92 110 2700 14.49 203156/203235GUD Bearing
165 254 88.96 108 2600 14.9 186165X/186254XGUD Bearing
170 254 88.96 108 2600 14.9 186170/186254XGUD Bearing
178 227.013 63.48 75 2700 5.93 115177X/115227XGUD Bearing
178 254 88.96 108 2600 14.9 186177X/186254XGUD Bearing
178 288.925 122.25 154 2300 31.8 280177X/280288XGUD Bearing
185 258 90 110 2500 11.94 187185/187258GUD Bearing
190 266.7 94.14 113.18 2400 15 204190/204266XGUD Bearing
191 266.7 94.14 113.18 2400 15 204190X/204266XGUD Bearing
191 282.575 91.42 120 2300 19.3 242190X/242282XGUD Bearing
191 290 96 114 2200 17 206190X/206290GUD Bearing
203 310 121.07 156 2100 32 283203X/283310GUD Bearing
203 317.5 121.07 156 2100 35.3 283203X/283317XGUD Bearing
210 290 96 114 2200 17 206210/206290GUD Bearing

Basic dimensions Basic load rating Speed ratings Mass Model
dynamic static Reference speed Limiting speed Bearing No.
d [mm] D [mm] B [mm] C [mm] T [mm] C [kN] C0 [kN] [r/min] [r/min] [kg]
210 310 121.07 156 2100 31.2 283210/283310GUD Bearing
210 317.5 121.07 156 2100 34.5 283210/283317XGUD Bearing
216 355.6 124.72 166 1900 50 284215X/284355XGUD Bearing
229 355.6 124.72 166 1900 50 284228X/284355XGUD Bearing
230 327.025 90.24 122 1900 23 244230/244327XGUD Bearing
230 330 90.24 122 1900 26.84 244230/244330GUD Bearing
235 327.025 90.24 122 1900 20 244234X/244327XGUD Bearing
235 330 90.24 122 1900 26.8 244234X/244330GUD Bearing
235 355.6 124.72 166 1900 47.43 284234X/284355XGUD Bearing
254 400.05 114.24 146 1700 53.98 382254X/382400XGUD Bearing
275 406.4 140 176 1600 65.94 320275/320406XGUD Bearing
280 406.4 140 176 1600 63.18 320280X/320406XGUD Bearing
330 482.6 158.72 200 1400 104 380330X/380482XGUD Bearing
338 419.1 79 94 1500 30.4 152338X/152419XGUD Bearing
356 482.6 100.55 145 1400 57.3 282355X/282482XGUD Bearing
381 508 147 187 1300 79.2 303381X/303508XGUD Bearing
406 549.275 152.36 200 1200 96.8 323406XS/323549XGSUD Bearing
432 533.4 100.78 123 1200 44.7 232431X/232533XGUD Bearing
457 596.9 147 187 1100 94.3 300457X/300596XGUD Bearing
506 636 147 187 1000 115 307506/307636GUD Bearing
25 52 36.5 43 13300 0.48 74025/74052HUWF Bearing
30 62 42.5 51 11600 0.66 70030/70062HUWF Bearing
30 66.675 42.48 52 10400 0.8 80030/80066XHUWF Bearing
30 68 42.48 52 10400 0.8 80030/80068HUWF Bearing
32 72 46.5 57 9600 0.86 100031X/100072HUWF Bearing
32 76.2 46.5 57 9600 0.86 100031X/100076XHUWF Bearing
32 80 46.5 57 9600 0.86 100031X/100080HUWF Bearing
33 66.675 42.48 52 10400 0.8 80033X/80066XHUWF Bearing
33 68 42.48 52 10400 0.8 80033X/80068HUWF Bearing
35 72 46.5 57 9600 0.86 100034X/100072HUWF Bearing

Basic dimensions Basic load rating Speed ratings Mass Model
dynamic static Reference speed Limiting speed Bearing No.
d [mm] D [mm] B [mm] C [mm] T [mm] C [kN] C0 [kN] [r/min] [r/min] [kg]
35 76.2 46.5 57 9600 0.86 100034X/100076XHUWF Bearing
35 80 46.5 57 9600 0.86 100034X/100080HUWF Bearing
35 66.675 42.48 52 10400 0.74 80035/80066XHUWF Bearing
35 72 46.5 57 9600 0.855 100035/100072HUWF Bearing
35 76.2 46.5 57 9600 0.86 100035/100076XHUWF Bearing
35 80 46.5 57 9600 0.86 100035/100080HUWF Bearing
36 72 36.5 42 9600 0.595 102036/102072HUWF Bearing
38 76 45.5 57 8800 0.865 101038X/101076HUWF Bearing
38 76.2 45.5 57 8800 0.865 101038X/101076XHUWF Bearing
38 80 45.5 57 8800 0.865 101038X/101080HUWF Bearing
40 76 45.5 57 8800 0.865 101040/101076HUWF Bearing
40 76.2 45.5 57 8800 0.865 101040/101076XHUWF Bearing
40 80 45.5 57 8800 1.07 101040/101080HUWF Bearing
40 85 48.66 55 8200 1.13 112040/112085HUWF Bearing
41 76 45.5 57 8800 0.865 101041X/101076HUWF Bearing
41 76.2 45.5 57 8800 0.865 101041X/101076XHUWF Bearing
41 80 45.5 57 8800 0.865 101041X/101080HUWF Bearing
41 85 48.66 55 8200 1.11 112041X/112085HUWF Bearing
44 85 48.66 55 8200 1.11 112044X/112085HUWF Bearing
44 85 55.66 62 8200 1.19 119044X/119085HUWF Bearing
44 88.9 55.66 62 8200 1.19 119044X/119088XHUWF Bearing
44 90 51.3 64 7400 1.38 111044X/111090HUWF Bearing
44 93.266 51.3 64 7400 1.38 111044X/111093XHUWF Bearing
45 85 48.66 55 8200 1.11 112045/112085HUWF Bearing
45 85 55.66 62 8200 1.19 119045/119085HUWF Bearing
45 88.9 55.66 62 8200 1.19 119045/119088XHUWF Bearing
50 90 51.3 64 7400 1.38 111050/111090HUWF Bearing
50 93.266 51.3 64 7400 1.38 111050/111093XHUWF Bearing
50 96.838 54 65 6900 2.005 110050/110096XHUWF Bearing
50 98.425 54 65 6900 2.005 110050/110098XHUWF Bearing

Basic dimensions Basic load rating Speed ratings Mass Model
dynamic static Reference speed Limiting speed Bearing No.
d [mm] D [mm] B [mm] C [mm] T [mm] C [kN] C0 [kN] [r/min] [r/min] [kg]
50 100 54 65 6900 2.005 110050/110100HUWF Bearing
51 90 51.3 64 7400 1.38 111050X/111090HUWF Bearing
51 96.838 54 65 6900 2.005 110050X/110096XHUWF Bearing
51 98.425 54 65 6900 2.005 110050X/110098XHUWF Bearing
51 100 54 65 6900 2.005 110050X/110100HUWF Bearing
54 96.838 54 65 6900 2.005 110053X/110096XHUWF Bearing
54 98.425 54 65 6900 2.005 110053X/110098XHUWF Bearing
54 100 54 65 6900 2.005 110053X/110100HUWF Bearing
55 96.838 54 65 6900 2.005 110055/110096XHUWF Bearing
55 98.425 54 65 6900 2.005 110055/110098XHUWF Bearing
55 100 54 65 6900 1.825 110055/110100HUWF Bearing
57 96.838 54 65 6900 2.005 110057X/110096XHUWF Bearing
57 96.838 54 65 6900 2.005 110057X/110098XHUWF Bearing
57 100 54 65 6900 2.005 110057X/110100HUWF Bearing
57 100 46.88 58 6600 1.9 113057X/113100HUWF Bearing
57 101.6 46.88 58 6600 1.9 113057X/113101XHUWF Bearing
57 110 60.3 73 6200 2.47 120057X/120110HUWF Bearing
57 112.712 60.3 73 6200 2.47 120057X/120112XHUWF Bearing
60 100 46.88 58 6600 1.9 113060/113100HUWF Bearing
60 101.6 46.88 58 6600 1.9 113060/113101XHUWF Bearing
60 110 60.3 73 6200 2.47 120060/120110HUWF Bearing
60 112.712 60.3 73 6200 2.47 120060/120112XHUWF Bearing
60 120 59.88 71 5700 2.96 130060/130120HUWF Bearing
60 127 59.88 71 5700 2.96 130060/130127HUWF Bearing
60 100 46.88 58 6600 1.9 113060X/113100HUWF Bearing
60 101.6 46.88 58 6600 1.9 113060X/113101XHUWF Bearing
64 110 60.3 73 6200 2.29 120063X/120110HUWF Bearing
64 120 59.88 71 5700 2.96 130063X/130120HUWF Bearing
64 127 59.88 71 5700 2.96 130063X/130127HUWF Bearing
65 120 59.88 71 5700 2.96 130065/130120HUWF Bearing

Basic dimensions Basic load rating Speed ratings Mass Model
dynamic static Reference speed Limiting speed Bearing No.
d [mm] D [mm] B [mm] C [mm] T [mm] C [kN] C0 [kN] [r/min] [r/min] [kg]
65 127 59.88 71 5700 2.96 130065/130127HUWF Bearing
70 127 59.88 71 5700 2.96 130069X/130127HUWF Bearing
70 112.712 60.3 73 5800 2.085 124069X/124112XHUWF Bearing
70 120 59.88 71 5700 2.71 130069X/130120HUWF Bearing
70 120 73.12 89 5700 2.79 135069X/135120HUWF Bearing
70 112.712 60.3 73 5800 2.085 124070/124112XHUWF Bearing
70 120 59.88 71 5700 2.7 130070/130120HUWF Bearing
70 127 59.88 71 5700 2.96 130070/130127HUWF Bearing
73 120 49.7 64 5500 2.35 123073X/123120HUWF Bearing
73 120.65 49.7 64 5500 2.35 123073X/123120XHUWF Bearing
73 121.444 49.7 64 5500 2.35 123073X/123121XHUWF Bearing
73 123.825 49.7 64 5500 2.35 123073X/123123XHUWF Bearing
75 120 49.7 64 5500 2.25 123075/123120HUWF Bearing
75 120.65 49.7 64 5500 2.25 123075/123120XHUWF Bearing
75 121.444 49.7 64 5500 2.25 123075/123121XHUWF Bearing
75 123.825 49.7 64 5500 2.25 123075/123123XHUWF Bearing
75 127 60.5 73 5300 3.3 133075/133127HUWF Bearing
75 130 60.5 73 5300 3.3 133075/133130HUWF Bearing
75 133.35 60.5 73 5300 3.3 133075/133133XHUWF Bearing
75 136.525 60.5 73 5300 3.3 133075/133136XHUWF Bearing
76 120 49.7 64 5500 2.25 123076X/123120HUWF Bearing
76 120.65 49.7 64 5500 2.25 123076X/123120XHUWF Bearing
76 123.825 49.7 64 5500 2.25 123076X/123123XHUWF Bearing
76 127 60.5 73 5300 3.3 133076X/133127HUWF Bearing
76 130 60.5 73 5300 3.3 133076X/133130HUWF Bearing
76 133.35 60.5 73 5300 3.3 133076X/133133XHUWF Bearing
76 136.525 60.5 73 5300 3.3 133076X/133136XHUWF Bearing
78 120 49.7 64 5500 2.25 123077X/123120HUWF Bearing
78 120.65 49.7 64 5500 2.25 123077X/123120XHUWF Bearing
78 121.444 49.7 64 5500 2.25 123077X/123121XHUWF Bearing

Basic dimensions Basic load rating Speed ratings Mass Model
dynamic static Reference speed Limiting speed Bearing No.
d [mm] D [mm] B [mm] C [mm] T [mm] C [kN] C0 [kN] [r/min] [r/min] [kg]
78 123.825 49.7 64 5500 2.25 123077X/123123XHUWF Bearing
80 140 69.14 85 4900 4.545 140080/140140HUWF Bearing
81 133.35 58.12 74 4900 2.25 126080X/126133XHUWF Bearing
83 133.35 58.12 74 4900 2.25 126082X/126133XHUWF Bearing
83 136.525 58.12 74 4900 2.25 126082X/126136XHUWF Bearing
83 140 69.14 85 4900 4.345 140082X/140140HUWF Bearing
84 133.35 58.12 74 4900 2.4 126084X/126133XHUWF Bearing
84 136.525 58.12 74 4900 2.4 126084X/126136XHUWF Bearing
85 140 69.14 85 4900 4.145 140085/140140HUWF Bearing
85 170 89 106 4200 8.545 210085/210170HUWF Bearing
86 133.35 58.12 74 4900 2.4 126085X/126133XHUWF Bearing
86 136.525 58.12 74 4900 2.4 126085X/126136XHUWF Bearing
89 133.35 58.12 74 4900 2.4 126088X/126133XHUWF Bearing
89 136.525 58.12 74 4900 2.4 126088X/126136XHUWF Bearing
90 133.35 60.12 76 4800 4 117090/117133XHUWF Bearing
90 150 62 75 4400 4.745 131090/131150HUWF Bearing
90 152.4 62 75 4400 4.745 131090/131152XHUWF Bearing
90 152.4 75.8 92 4300 5.15 160090/160152XHUWF Bearing
90 158.75 62 75 4400 4.745 131090/131158XHUWF Bearing
90 158.75 75.8 92 4300 5.15 160090/160158XHUWF Bearing
90 160 75.8 92 4300 5.15 160090/160160HUWF Bearing
90 161.925 75.8 92 4300 5.15 160090/160161XHUWF Bearing
90 170 89 106 4200 8.545 210090/210170HUWF Bearing
92 150 62 75 4400 4.745 131092X/131150HUWF Bearing
92 152.4 62 75 4400 4.745 131092X/131152XHUWF Bearing
92 158.75 62 75 4400 4.745 131092X/131158XHUWF Bearing
94 150 62 75 4400 4.745 131093X/131150HUWF Bearing
94 152.4 62 75 4400 4.745 131093X/131152XHUWF Bearing
94 158.75 62 75 4400 4.745 131093X/131158XHUWF Bearing
95 150 62 75 4400 4.745 131095/131150HUWF Bearing

Basic dimensions Basic load rating Speed ratings Mass Model
dynamic static Reference speed Limiting speed Bearing No.
d [mm] D [mm] B [mm] C [mm] T [mm] C [kN] C0 [kN] [r/min] [r/min] [kg]
95 152.4 62 75 4400 4.625 131095/131152XHUWF Bearing
95 158.75 62 75 4400 4.745 131095/131158XHUWF Bearing
95 170 89 106 4200 8.545 210095/210170HUWF Bearing
97 150 62 75 4400 4.745 131097/131150HUWF Bearing
97 152.4 62 75 4400 4.465 131097/131152XHUWF Bearing
97 158.75 62 75 4400 4.745 131097/131158XHUWF Bearing
98 152.4 75.8 92 4300 5.15 160098X/160152XHUWF Bearing
98 158.75 75.8 92 4300 5.15 160098X/160158XHUWF Bearing
98 160 75.8 92 4300 5.15 160098X/160160HUWF Bearing
98 161.925 75.8 92 4300 5.15 160098X/160161XHUWF Bearing
100 170 84 100 3900 9.52 180100/180170HUWF Bearing
100 180 84 100 3900 9.42 180100/180180HUWF Bearing
100 180.975 84 100 3900 9.52 180100/180180XHUWF Bearing
100 190 84 100 3900 11.12 180100/180190HUWF Bearing
102 165.1 67.96 87 3900 9.4 141101X/141165XHUWF Bearing
102 170 84 100 3900 9.52 180101X/180170HUWF Bearing
102 180 84 100 3900 9.52 180101X/180180HUWF Bearing
102 180.975 84 100 3900 9.52 180101X/180180XHUWF Bearing
102 190 84 100 3900 11.08 180101X/180190HUWF Bearing
105 170 84 100 3900 9.52 180105/180170HUWF Bearing
105 180 84 100 3900 9.52 180105/180180HUWF Bearing
105 180.975 84 100 3900 9.06 180105/180180XHUWF Bearing
105 190 84 100 3900 10.62 180105/180190HUWF Bearing
108 165.1 67.96 87 3900 9.4 141107X/141165XHSUWF Bearing
111 180.975 82.6 108 3600 8.6 181111X/181180XHUWF Bearing
111 190 82.6 108 3600 10.1 181111X/181190HUWF Bearing
111 190.5 82.6 108 3600 10.4 181111X/181190XHUWF Bearing
111 200.025 82.6 108 3600 8.6 181111X/181200XHUWF Bearing
115 165 55 65 3900 3.45 105115/105165HUWF Bearing
115 180.975 82.6 108 3600 8.1 181115/181180XHUWF Bearing

Basic dimensions Basic load rating Speed ratings Mass Model
dynamic static Reference speed Limiting speed Bearing No.
d [mm] D [mm] B [mm] C [mm] T [mm] C [kN] C0 [kN] [r/min] [r/min] [kg]
115 190 82.6 108 3600 9.6 181115/181190HUWF Bearing
115 190.5 82.6 108 3600 9.9 181115/181190XHUWF Bearing
115 200.025 82.6 108 3600 8.6 181115/181200XHUWF Bearing
118 180.975 82.6 108 3600 7.68 181118/181180XHUWF Bearing
118 190 82.6 108 3600 9.18 181118/181190HUWF Bearing
118 190.5 82.6 108 3600 9.48 181118/181190XHUWF Bearing
118 200.025 82.6 108 3600 8.6 181118/181200XHUWF Bearing
120 165 55 65 3900 3.45 105120/105165HUWF Bearing
120 190 82.6 108 3500 8.8 184120/184190HUWF Bearing
120 190.5 82.6 108 3500 8.8 184120/184190XHUWF Bearing
120 199 82.6 108 3500 8.8 184120/184199HUWF Bearing
120 200 82.6 108 3500 8.8 184120/184200HUWF Bearing
127 196.85 85.74 101.6 3400 9.2 164127X/164196XHUWF Bearing
127 200.025 85.74 101.6 3400 9.2 164127X/164200XHUWF Bearing
127 215 92 110 3100 13.9 200127X/200215HUWF Bearing
127 215.9 92 110 3100 13.9 200127X/200215XHUWF Bearing
133 196.85 85.74 101.6 3400 9.2 164133X/164196XHUWF Bearing
133 196.85 76.74 92.6 3400 8.5 164133X/164196XHSUWF Bearing
133 200.025 85.74 101.6 3400 9.2 164133X/164200XHUWF Bearing
133 215 92 110 3100 13.9 200133X/200215HUWF Bearing
133 215.9 92 110 3100 12.85 200133X/200215XHUWF Bearing
137 215 92 110 3100 13.9 200136X/200215HUWF Bearing
137 215.9 92 110 3100 12.33 200136X/200215XHUWF Bearing
140 215 92 110 3100 13.9 200139X/200215HUWF Bearing
140 215.9 92 110 3100 13.9 200139X/200215XHUWF Bearing
140 241.3 104 126 2900 20.485 240139X/240241XHUWF Bearing
140 200 78 92.3 3100 10 161140/161200HSUWF Bearing
140 200.025 78 92.3 3100 10 161140/161200XHSUWF Bearing
143 200 78 92.3 3100 10 161142X/161200HSUWF Bearing
143 200.025 78 92.3 3100 10 161142X/161200XHSUWF Bearing

Basic dimensions Basic load rating Speed ratings Mass Model
dynamic static Reference speed Limiting speed Bearing No.
d [mm] D [mm] B [mm] C [mm] T [mm] C [kN] C0 [kN] [r/min] [r/min] [kg]
145 241.3 104 126 2900 19.405 240145/240241XHUWF Bearing
145 256 92 110 2700 14.87 203145/203256HUWF Bearing
149 241.3 104 126 2900 20.485 240149X/240241XHUWF Bearing
150 210 76 92 3000 10.2 163150/163210HUWF Bearing
152 222.25 81.2 105 3000 11.15 183152X/183222XHUWF Bearing
152 254 116.9 155 2600 25.6 281152X/281254XHUWF Bearing
152 266.7 116.9 155 2600 25.6 281152X/281266XHUWF Bearing
156 254 116.9 155 2600 25.6 281155X/281254XHUWF Bearing
156 266.7 116.9 155 2600 25.6 281155X/281266XHUWF Bearing
156 235 92 110 2700 14.87 203156/203235HUWF Bearing
165 254 88.96 108 2600 15 186165X/186254XHUWF Bearing
170 254 88.96 108 2600 15 186170/186254XHUWF Bearing
178 227.013 63.48 75 2700 6.15 115177X/115227XHUWF Bearing
178 254 88.96 108 2600 15 186177X/186254XHUWF Bearing
178 288.925 122.25 154 2300 32.6 280177X/280288XHUWF Bearing
185 258 90 110 2500 12.3 187185/187258HUWF Bearing
190 266.7 94.14 113.18 2400 15.5 204190/204266XHUWF Bearing
191 266.7 94.14 113.18 2400 15.5 204190X/204266XHUWF Bearing
191 282.575 91.42 120 2300 20 242190X/242282XHUWF Bearing
191 290 96 114 2200 17.3 206190X/206290HUWF Bearing
203 310 121.08 156 2100 32.8 283203X/283310HUWF Bearing
203 317.5 121.08 156 2100 36.3 283203X/283317XHUWF Bearing
210 290 96 114 2200 17.3 206210/206290HUWF Bearing
210 310 121.08 156 2100 32 283210/283310HUWF Bearing
210 317.5 121.08 156 2100 35.5 283210/283317XHUWF Bearing
216 355.6 124.72 166 1900 51 284215X/284355XHUWF Bearing
229 355.6 124.72 166 1900 51 284228X/284355XHUWF Bearing
230 327.025 90.24 122 1900 23.2 244230/244327XHUWF Bearing
230 330 90.24 122 1900 27.35 244230/244330HUWF Bearing
235 327.025 90.24 122 1900 21 244234X/244327XHUWF Bearing

Basic dimensions Basic load rating Speed ratings Mass Model
dynamic static Reference speed Limiting speed Bearing No.
d [mm] D [mm] B [mm] C [mm] T [mm] C [kN] C0 [kN] [r/min] [r/min] [kg]
235 330 90.24 122 1900 27 244234X/244330HUWF Bearing
235 355.6 124.72 166 1900 48.43 284234X/284355XHUWF Bearing
254 400.05 114.24 146 1700 55.5 382254X/382400XHUWF Bearing
275 406.4 140 176 1600 67.6 320275/320406XHUWF Bearing
280 406.4 140 176 1600 64.84 320280X/320406XHUWF Bearing
330 482.6 157.73 200 1400 105 380330X/380482XHUWF Bearing
338 419.1 79 94 1500 30.9 152338X/152419XHUWF Bearing
356 482.6 100.55 145 1400 58.7 282355X/282482XHUWF Bearing
381 508 147 187 1300 80 303381X/303508XHUWF Bearing
406 549.275 152.36 200 1200 98.25 323406XS/323549XHSUWF Bearing
432 533.4 100.78 123 1200 45 232431X/232533XHUWF Bearing
457 596.9 147 187 1100 95 300457X/300596XHUWF Bearing
506 636 147 187 1000 116 307506/307636HUWF Bearing

Recommended Products

Engineering the Future of Motion
About UKL
Founded in 2020, UKL Bearing Manufacturing Co., Ltd. (Wuxi) is China BT2B 332504/HA2 -Double Row Tapered Roller Bearings suppliers and OEM/ODM BT2B 332504/HA2 -Double Row Tapered Roller Bearings company, an integrated industrial and trading enterprise that focuses on precision manufacturing, combining R&D, production, and sales.
The company specializes in high-performance bearing solutions, providing technical support for global industries with exceptionally high demands for precision and reliability.

With more than 200 skilled professionals and a fully modernized production base, UKL’s facilities cover the entire manufacturing process — forging, annealing, turning, heat treatment, grinding, and automated assembly.
Leveraging over 15 years of OEM/ODM export experience, UKL responds quickly to customer needs, offering flexible and customized services for clients across Europe, Asia, Africa, and the Middle East.

Ukl Bearing Manufacturing Co.,Ltd More About Us Ukl Bearing Manufacturing Co.,Ltd
  • Ukl Bearing Manufacturing Co.,Ltd

    0+

    years

    Industry Experience

  • Ukl Bearing Manufacturing Co.,Ltd

    0+

    Model diversity

  • Ukl Bearing Manufacturing Co.,Ltd

    0+

    Number of Employees

  • Ukl Bearing Manufacturing Co.,Ltd

    0

    $

    Annual export value

Ukl Bearing Manufacturing Co.,Ltd
Certificate Of Honor
News
