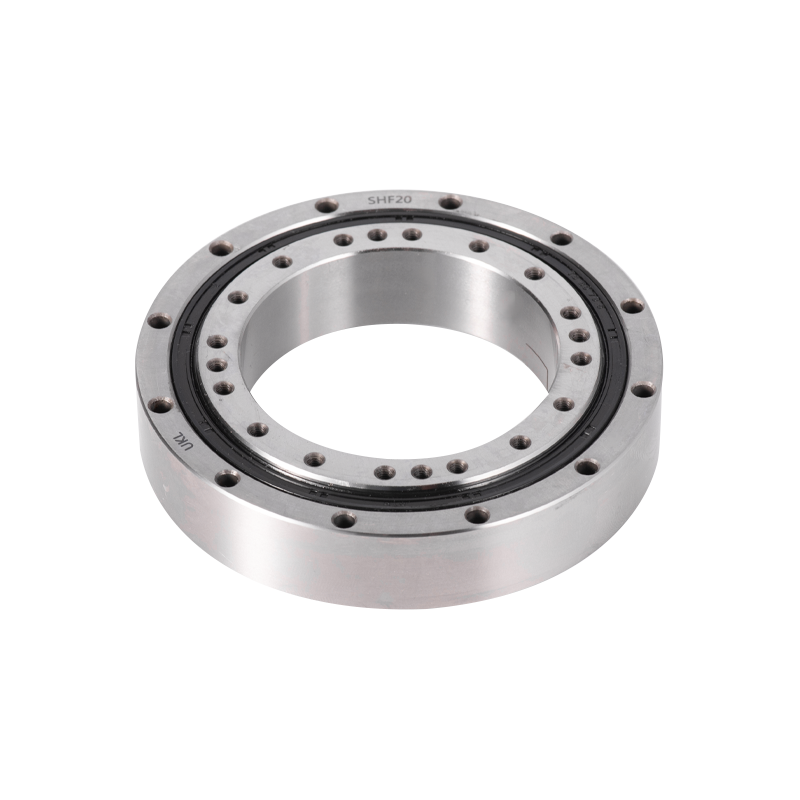

Both the inner and outer rings are integral structures, and installation has virtually no impact on performance, ensuring stable rotational accuracy and torque. They are very easy to use and suitable for various SHF harmonic reducer series.
Product Features
Customizable high-precision, high-load-capacity rigid support bearings.
SHF(G) Advantages:
Characterized by high torque capacity, high rigidity, high positioning accuracy, high rotational accuracy, high efficiency, high stability, ultra-small size, and ultra-light weight.
Wide Applications
Industrial automation and robotic arm joints, humanoid robots, semiconductor LCD production equipment, photovoltaic equipment, optical instruments, precision machine tools, and various other fields.

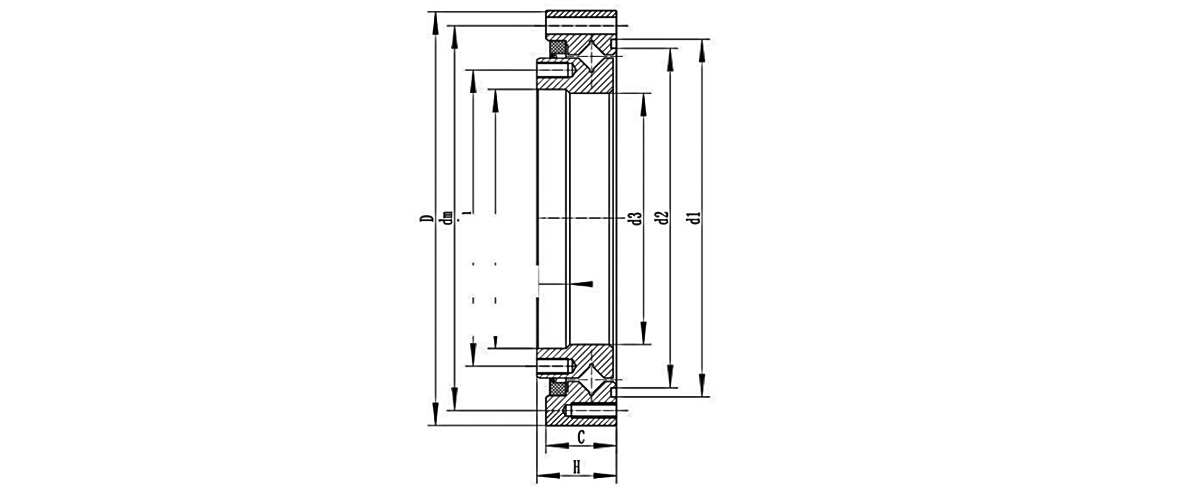

| Bearing Type | Overall Dimension(mm) | Installation Hole Size(PCD&SPEC) | Basic Load Rating | Weight | |||||||||
| Cr | Cor | ||||||||||||
| D | d | d3 | B | C | H | dm | dn | KN | KN | kg | |||
| SHF-14 | 70 | 38 | 35.6 | 13.7 | 14.1 | 15.1 | 64 | 8-φ3.5 | 44 | 12-M3 | 5.9 | 6.8 | 0.25 |
| SHF-17 | 80 | 47 | 44.2 | 16.4 | 16 | 17 | 74 | 12-φ3.4 | 54 | 20-M3 | 9.8 | 13.5 | 0.37 |
| SHF-20 | 90 | 54 | 51.3 | 17.5 | 17.5 | 18.5 | 84 | 12-φ3.5 | 62 | 16-M3 | 18.5 | 25.6 | 0.48 |
| SHF-25 | 110 | 67 | 64.2 | 19.7 | 18.7 | 20.7 | 102 | 12-φ4.5 | 77 | 16-M4 | 20.6 | 28.9 | 0.76 |
| SHF-32 | 142 | 88 | 84 | 23.4 | 23.4 | 24.4 | 132 | 12-φ5.5 | 100 | 16-M5 | 29.8 | 46.3 | 1.65 |
| SHF-40 | 170 | 108 | 106 | 28.5 | 29 | 30 | 158 | 12-φ6.5 | 122 | 16-M6 | 45.6 | 70.5 | 2.68 |
| SHF-50 | 214 | 135 | 129 | 34.5 | 34 | 36 | 200 | 12-φ9 | 154 | 16-M8 | 75.2 | 147.8 | 5.11 |
