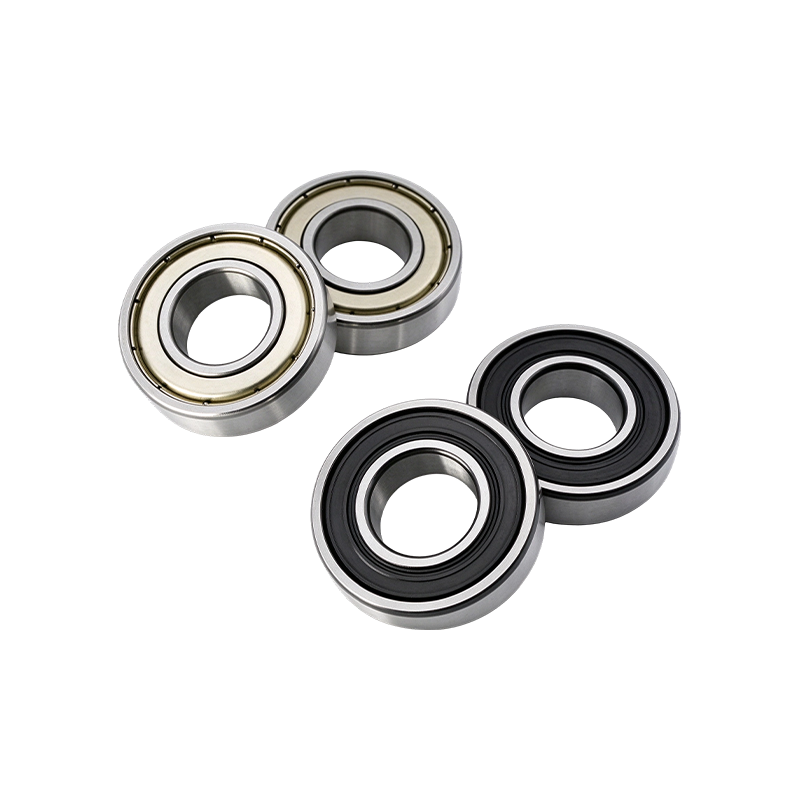

6224 Deep Groove Ball Bearing Single Row Open Type Bearing

Available Suffix Variants:
6224-ZZ: Double-sided metal dust shields
6224-2RS / 2RS1: Double-sided rubber contact seals

Product Advantages
Combined Load Capacity: Capable of supporting relatively high radial loads while accommodating moderate axial loads in both directions, making it suitable for combined radial and axial loading conditions.
Low Friction and Low Noise: The deep groove raceway design helps reduce running friction, vibration, and operating noise, making the bearing suitable for medium- and high-speed equipment.
Easy Installation: Featuring a simple structure and cylindrical bore, the bearing is easy to install and remove. Its standardized dimensions provide broad compatibility and interchangeability with bearings of the same size from different brands.
Durable and Reliable: Manufactured from bearing steel with a pressed steel cage, it provides good resistance to operational impacts and is suitable for continuous industrial operation. Standardized dimensions also facilitate spare-part procurement and maintenance.
Multiple Versions Available: The open version allows external lubrication; the ZZ version provides protection against light dust; and the 2RS sealed version helps prevent mud, water, and contaminants from entering while supporting maintenance-free operation.

Main Applications
As a medium-to-large-size deep groove ball bearing, 6224 is commonly used in heavy-duty general industrial machinery, including:
Large and medium-sized motors and generator sets: Fan motors, industrial drive motors
Conveying equipment: Conveyors, belt drums, and large industrial fans
Pumps: Centrifugal pumps, large water pumps, and slurry pumps
Construction machinery: Gear reducers, transmissions, and winching mechanisms
Industrial equipment: Papermaking machinery, heavy-duty textile equipment, and woodworking machinery
Compressors and transmission systems: Air compressors, compressors, and general heavy-duty drive equipment
Application Note: 6224 is not recommended for applications involving large angular misalignment, severe impact loads, or predominantly heavy axial loads. For such conditions, spherical roller bearings or tapered roller bearings may be more appropriate.

Selection and Operating Considerations
Speed Selection: Due to seal friction, the limiting speed of the 2RS version is significantly lower than that of the open version. For high-speed applications, the open 6224 is generally preferred, with regular grease replenishment as required.
Internal Clearance: CN clearance is suitable for standard operating conditions. C3 clearance is recommended for high-temperature applications, large interference fits, or environments involving vibration and impact loads.
Mounting Dimensions: The minimum shaft shoulder diameter should be ≥131 mm, while the maximum housing shoulder bore diameter should be ≤204 mm. Shaft and housing fillet radii should be ≤2 mm to prevent interference with the bearing chamfers.
Lubrication: The open version requires periodic grease replenishment. The 2RS sealed version is pre-greased at the factory and generally does not require additional lubrication.
