JXR Type (Crossed Tapered Roller Bearing)

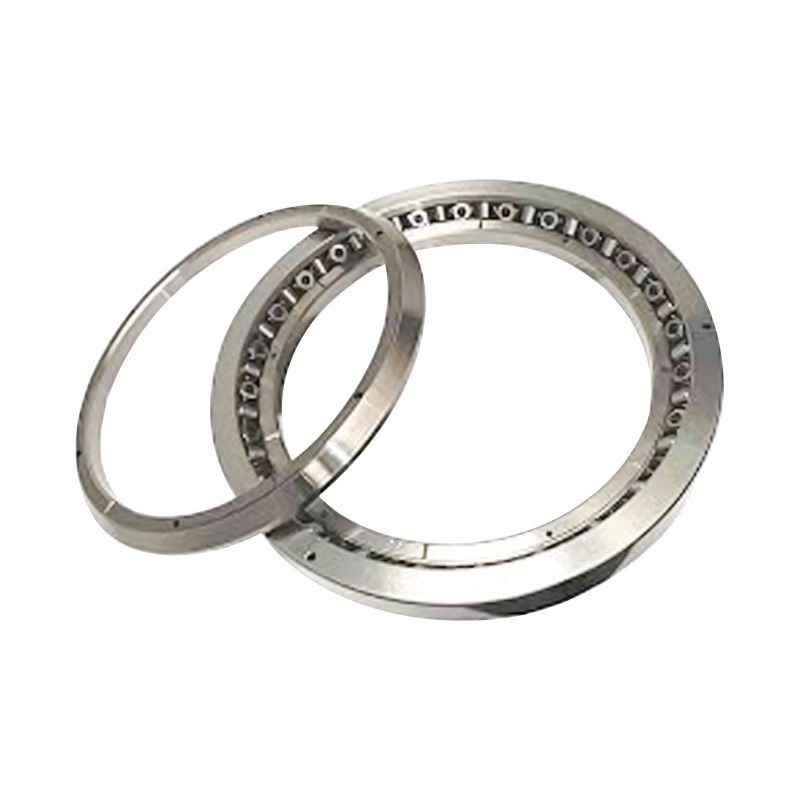

This bearing features two sets of raceways and rollers combined at right angles, with the rollers arranged in an alternating, crisscross pattern. The cross-sectional height of the bearing is similar to that of a single-row bearing structure, thus saving installation space and housing material. The large taper angle and tapered geometric design allow the overall bearing system to effectively manage a span that is several times the width of the bearing itself. The crossed tapered rollers are capable of accommodating high overturning moments (tilting torque).

Contact Us Contact Us
PREV：RA Type (Outer Ring Segmented, Inner Ring For Rotation) NEXT：RB2508 Robot Crossed Roller Bearing
  • Description
  • Specifications
  • Contact Us

Structural Features
The JXR type offers a compact structure, high rigidity, and high precision. It is capable of simultaneously carrying radial load, axial load, and overturning moment (tilting moment). Additionally, it boasts the advantages of high rotation speed capability and saving space and material. These characteristics make it an ideal choice for precision applications such as high-speed vertical grinding machines, machine tool rotary tables, and industrial robots.

Application Scope
Suitable for use in machine tools, including vertical drilling machines and grinding machine tables, precision circular indexing tables, large roller systems, turntables (rotary platforms), and industrial robots, among others.

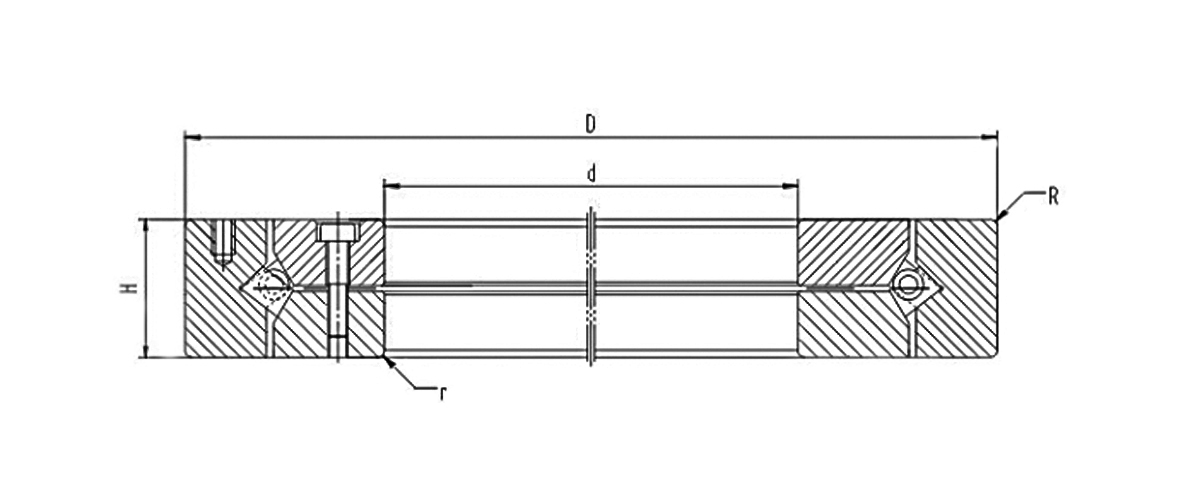

Bearing Type lnner Diameter Outside Diameter Width Chamfer Basic load rating(radial) Basic load rating(Axial) Limited Speed Weight
d D H    R KN KN r/min kg
JXR637050 300  400  37    1.5  63  80.1  720  13
JXR652050 310  425  45    2.5  82.2  102  640  20
JXR699050 370  495  50    3.0  93.6  119  600  30
XR496051 203.2  279.4  31.75    1.5  51.3  61.6  800  6.5
XR678052 330.2  457.2  63.5    3.3  100  123  620  35
XR766051 457.2  609.6  63.5    3.3  141  178  520  51
XR820060 580  760  80    6.4  215  234  300  100
XR855053 685.8  914.4  79.375    3.3  270  344  260  150
XR882055 901.7  1117.6  82.55    3.3  300  396  200  185
XR889058 1028.7  1327.15  109.22    3.3  405  534  160  400
XR897051 1549.4  1828.8  101.6    3.3  518  699  80  500
