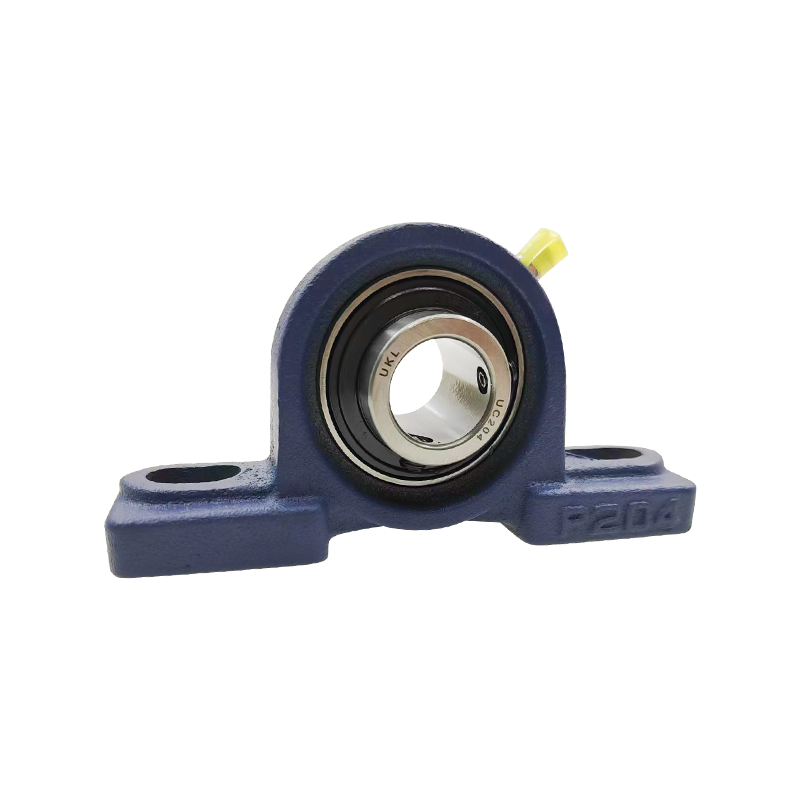

Pillow Block Bearings

A pillow block bearing, also known as a plummer block, is a support structure designed to assist in stabilizing a rotating shaft by using compatible bearings and a range of associated components.

This type of bearing contains a mounting block (pillow block). The bearing is installed inside the mounting block.

The pillow block bearings are most commonly used in low-torque applications. The slots or bores in the bearing base or feet of the bearing allow for easy assembly and adjustment.

Contact Us Contact Us
PREV：No previous product NEXT：Tapped Base Pillow Block Bearings
  • Specifications
  • Contact Us

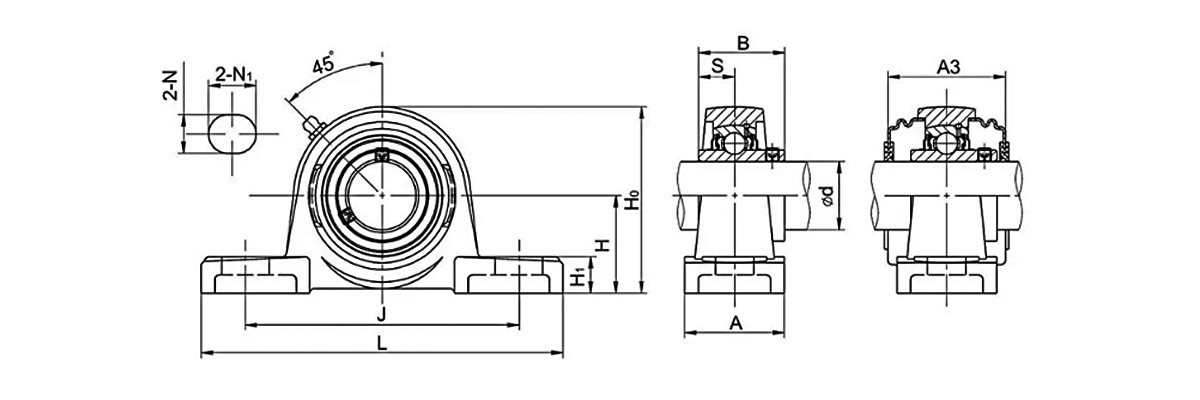

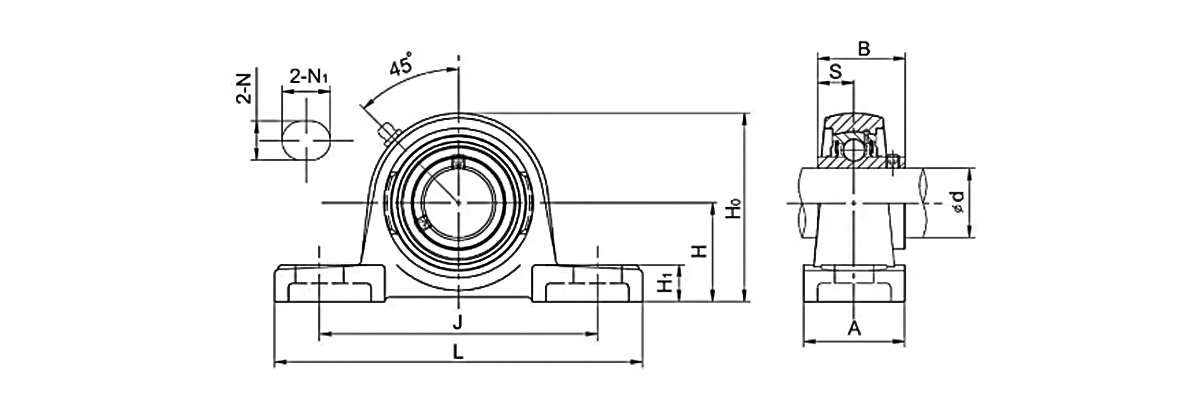

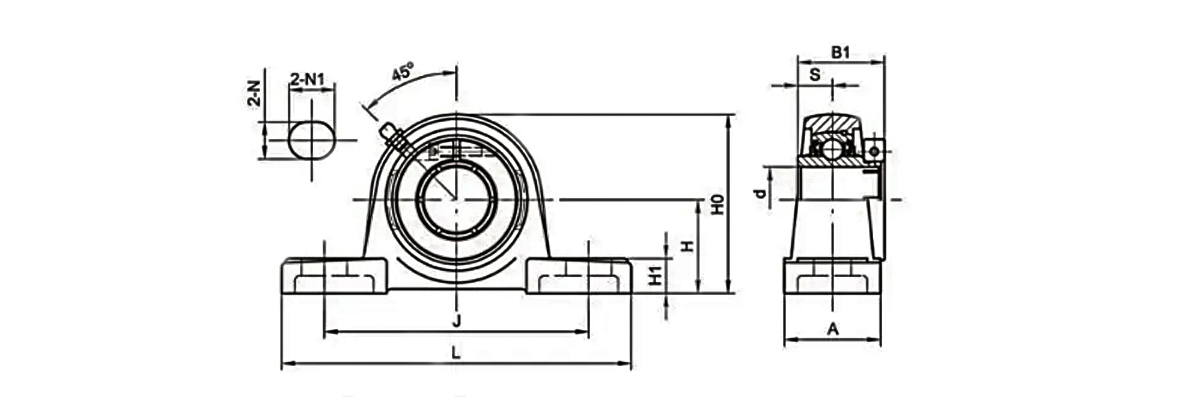

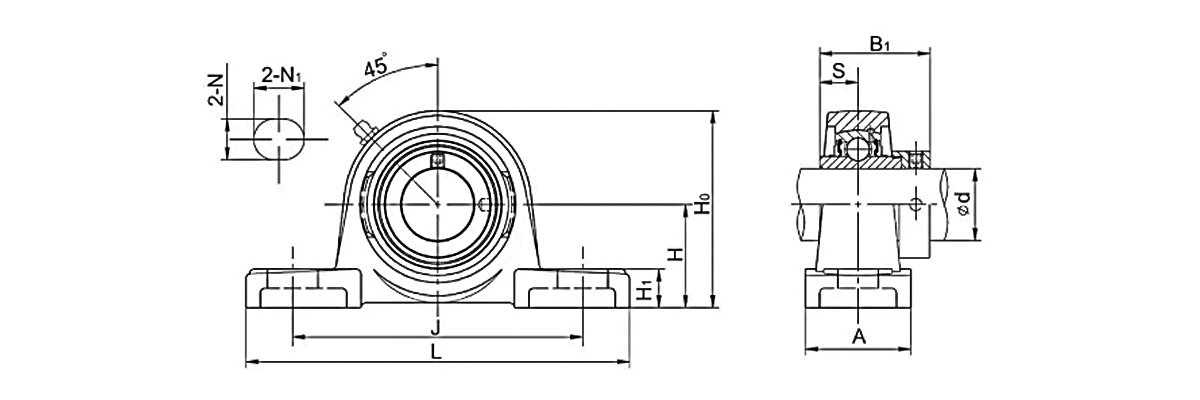

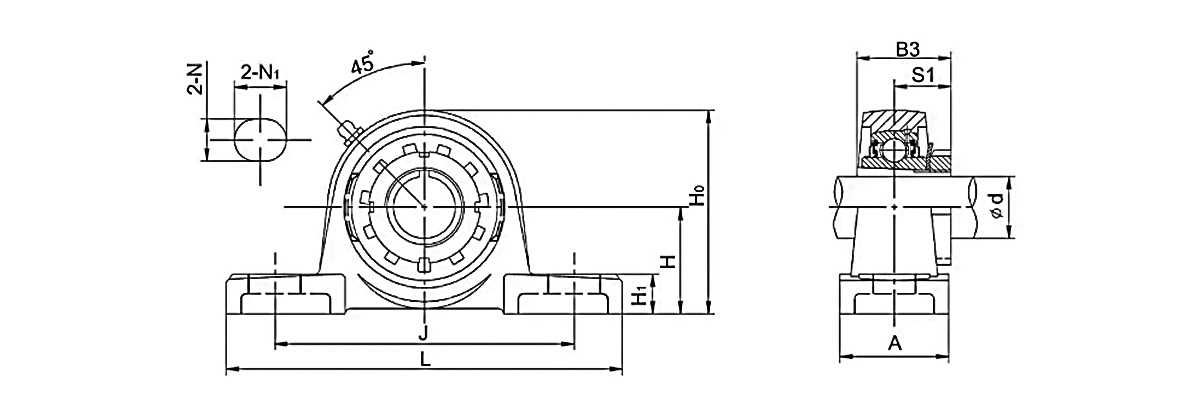

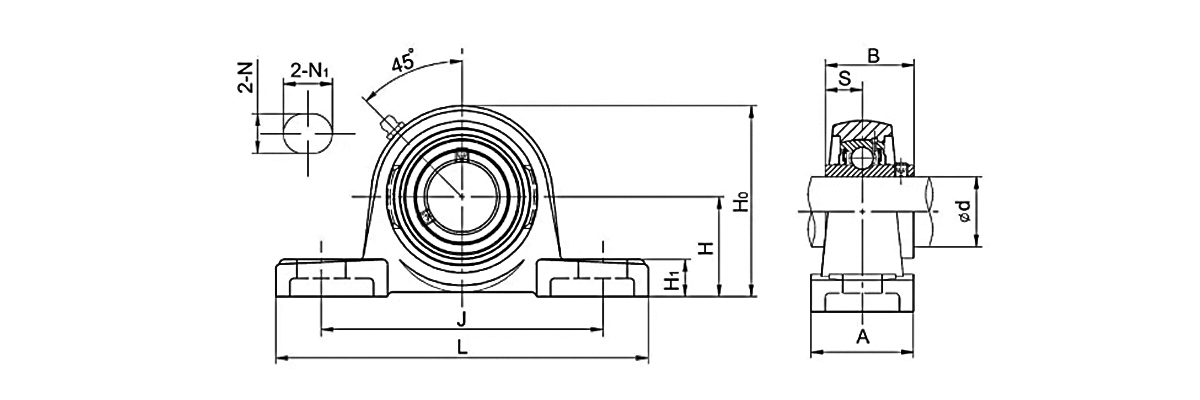

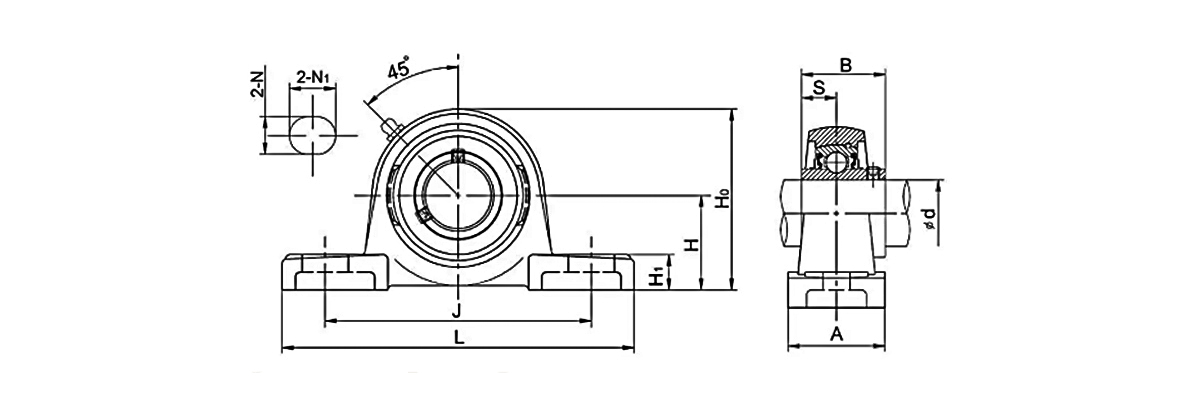

Unit No. Shaft Dia Dimensions (mm) Bolt Siz
(mm)		 Weight
(kg)
d H L J A N N1 H1 Ho B S A3
(in) (mm)
UCWP201 12 30.2 125 95 32 13 18 13 57 27.4 11.5 – M10 0.72
UCWP202 15 30.2 125 95 32 13 18 13 57 27.4 11.5 – M10 0.66
UCWP203 17 30.2 125 95 32 13 18 13 57 27.4 11.5 – M10 0.66
UCP201 12 30.2 127 95 38 13 19 14 61 31 12.7 – M10 0.76
UCP201-8 1/2 30.2 127 95 38 13 19 14 61 31 12.7 – M10 0.76
UCP202 15 30.2 127 95 38 13 19 14 61 31 12.7 – M10 0.74
UCP202-9 9/16 30.2 127 95 38 13 19 14 61 31 12.7 – M10 0.74
UCP202-10 5/8 30.2 127 95 38 13 19 14 61 31 12.7 – M10 0.74
UCP203 17 30.2 127 95 38 13 19 14 61 31 12.7 – M10 0.72
UCP203-11 11/16 30.2 127 95 38 13 19 14 61 31 12.7 – M10 0.72
UCP204 20 33.3 127 95 38 13 19 14 64 31 12.7 46.4 M10 0.7
UCP204-12 3/4 33.3 127 95 38 13 19 14 64 31 12.7 46.4 M10 0.7
UCP205 25 36.5 140 105 38 13 19 15 71 34.1 14.3 48 M10 0.76
UCP205-14 7/8 36.5 140 105 38 13 19 15 71 34.1 14.3 48 M10 0.76
UCP205-15 15/16 36.5 140 105 38 13 19 15 71 34.1 14.3 48 M10 0.76
UCP205-16 1 36.5 140 105 38 13 19 15 71 34.1 14.3 48 M10 0.76
UCP206 30 42.9 160 121 44 17 21 16 82 38.1 15.9 52 M14 1.25
UCP206-17 1-1/16 42.9 160 121 44 17 21 16 82 38.1 15.9 52 M14 1.25
UCP206-18 1-1/8 42.9 160 121 44 17 21 16 82 38.1 15.9 52 M14 1.25
UCP206-19 1-3/16 42.9 160 121 44 17 21 16 82 38.1 15.9 52 M14 1.25
UCP206-20 1-1/4 42.9 160 121 44 17 21 16 82 38.1 15.9 52 M14 1.25
UCP207 35 47.6 167 126 48 17 21 17 92 42.9 17.5 59 M14 1.55
UCP207-20 1-1/4 47.6 167 126 48 17 21 17 92 42.9 17.5 59 M14 1.55
UCP207-21 1-5/16 47.6 167 126 48 17 21 17 92 42.9 17.5 59 M14 1.55
UCP207-22 1-3/8 47.6 167 126 48 17 21 17 92 42.9 17.5 59 M14 1.55
UCP207-23 1-7/16 47.6 167 126 48 17 21 17 92 42.9 17.5 59 M14 1.55
UCP208 40 49.2 180 137 52 17 21 18 99 49.2 19 68.2 M14 1.9
UCP208-24 1-1/2 49.2 180 137 52 17 21 18 99 49.2 19 68.2 M14 1.9
UCP208-25 1-9/16 49.2 180 137 52 17 21 18 99 49.2 19 68.2 M14 1.9
UCP209 45 54 190 146 54 17 21 20 106 49.2 19 70 M14 2.2
UCP209-26 1-5/8 54 190 146 54 17 21 20 106 49.2 19 70 M14 2.2
UCP209-27 1-11/16 54 190 146 54 17 21 20 106 49.2 19 70 M14 2.2
UCP209-28 1-3/4 54 190 146 54 17 21 20 106 49.2 19 70 M14 2.2
UCP210 50 57.2 206 159 60 20 25 21 114 51.6 19 76 M16 2.75
UCP210-30 1-7/8 57.2 206 159 60 20 25 21 114 51.6 19 76 M16 2.75
UCP210-31 1-15/16 57.2 206 159 60 20 25 21 114 51.6 19 76 M16 2.75
UCP210-32 2 57.2 206 159 60 20 25 21 114 51.6 19 76 M16 2.75
UCP211 55 63.5 217 172 60 20 25 23 125 55.6 22.2 76 M16 3.3
UCP211-32 2 63.5 217 172 60 20 25 23 125 55.6 22.2 76 M16 3.3
UCP211-34 2-1/8 63.5 217 172 60 20 25 23 125 55.6 22.2 76 M16 3.3
UCP211-35 2-3/16 63.5 217 172 60 20 25 23 125 55.6 22.2 76 M16 3.3
UCP212 60 69.9 238 186 70 20 25 24 137 65.1 25.4 89 M16 4.7
UCP212-36 2-1/4 69.9 238 186 70 20 25 24 137 65.1 25.4 89 M16 4.7
UCP212-38 2-3/8 69.9 238 186 70 20 25 24 137 65.1 25.4 89 M16 4.7
UCP212-39 2-7/16 69.9 238 186 70 20 25 24 137 65.1 25.4 89 M16 4.7
UCP213 65 76.2 262 203 70 25 30 26 149 65.1 25.4 89 M20 5.6
UCP213-40 2-1/2 76.2 262 203 70 25 30 26 149 65.1 25.4 89 M20 5.6
UCP214 70 79.4 266 210 72 25 30 27 155 74.6 30.2 98 M20 6.6
UCP214-44 2-3/4 79.4 266 210 72 25 30 27 155 74.6 30.2 98 M20 6.6
UCP215 75 82.6 274 217 74 25 30 28 162 77.8 33.3 97 M20 7.3
UCP215-47 2-15/16 82.6 274 217 74 25 30 28 162 77.8 33.3 97 M20 7.3
UCP215-48 3 82.6 274 217 74 25 30 28 162 77.8 33.3 97 M20 7.3
UCP216 80 88.9 292 232 78 25 30 30 174 82.6 33.3 110 M20 9
UCP217 85 95.2 310 247 83 25 28 32 186 85.7 34.1 114.2 M20 10.8
UCP217-52 3-1/4 95.2 310 247 83 25 28 32 186 85.7 34.1 114.2 M20 10.8
UCP218 90 101.6 326 262 88 27 30 33 198 96 39.7 124 M22 13
UCP218-56 3-1/2 101.6 326 262 88 27 30 33 198 96 39.7 124 M22 13
UCP220 100 115 380 305 95 30 36 40 225 108 42 – M24 16

Unit No. Shaft Dia Dimensions (mm) Bolt Size
(mm)		 Weight
(kg)
d H L J A N N1 H1 Ho B1 S
(in) (mm)
NAP201 12 30.2 127 95 38 13 19 14 61 43.7 17.1 M10 0.72
NAP201-8 1/2 30.2 127 95 38 13 19 14 61 43.7 17.1 M10 0.72
NAP202 15 30.2 127 95 38 13 19 14 61 43.7 17.1 M10 0.72
NAP202-9 9/16 30.2 127 95 38 13 19 14 61 43.7 17.1 M10 0.72
NAP202-10 5/8 30.2 127 95 38 13 19 14 61 43.7 17.1 M10 0.72
NAP203 17 30.2 127 95 38 13 19 14 61 43.7 17.1 M10 0.72
NAP203-11 11/16 30.2 127 95 38 13 19 14 61 43.7 17.1 M10 0.72
NAP204 20 33.3 127 95 38 13 19 14 64 43.7 17.1 M10 0.72
NAP204-12 3/4 33.3 127 95 38 13 19 14 64 43.7 17.1 M10 0.72
NAP205 25 36.5 140 105 38 13 19 15 71 44.4 17.5 M10 0.8
NAP205-14 7/8 36.5 140 105 38 13 19 15 71 44.4 17.5 M10 0.8
NAP205-15 15/16 36.5 140 105 38 13 19 15 71 44.4 17.5 M10 0.8
NAP205-16 1 36.5 140 105 38 13 19 15 71 44.4 17.5 M10 0.8
NAP206 1-1/16 30 42.9 160 121 44 17 21 6 82 48.4 18.3 M14 1.35
NAP206-18 1-1/8 42.9 160 121 44 17 21 6 82 48.4 18.3 M14 1.35
NAP206-19 1-3/16 42.9 160 121 44 17 21 6 82 48.4 18.3 M14 1.35
NAP206-20 1-1/4 42.9 160 121 44 17 21 6 82 48.4 18.3 M14 1.35
NAP207 35 47.6 167 126 44 17 21 6 82 51.1 18.8 M14 1.7
NAP207-20 1-1/4 47.6 167 126 48 17 21 17 92 51.1 18.8 M14 1.7
NAP207-21 1-5/16 47.6 167 126 48 17 21 17 92 51.1 18.8 M14 1.7
NAP207-22 1-3/8 47.6 167 126 48 17 21 17 92 51.1 18.8 M14 1.7
NAP207-23 1-7/16 47.6 167 126 48 17 21 17 92 51.1 18.8 M14 1.7
NAP208 40 49.2 180 137 52 17 21 18 99 56.3 21.4 M14 2
NAP208-24 1-1/2 49.2 180 137 52 17 21 18 99 56.3 21.4 M14 2
NAP208-25 1-9/16 49.2 180 137 52 17 21 18 99 56.3 21.4 M14 2
NAP209 45 54 190 146 54 17 21 20 106 56.3 21.4 M14 2.42
NAP209-26 1-5/8 54 190 146 54 17 21 20 106 56.3 21.4 M14 2.42
NAP209-27 1-11/16 54 190 146 54 17 21 20 106 56.3 21.4 M14 2.42
NAP209-28 1-3/4 54 190 146 54 17 21 20 106 56.3 21.4 M14 2.42
NAP210 50 57.2 206 159 60 20 25 21 114 62.7 24.6 M16 2.75
NAP210-30 1-7/8 57.2 206 159 60 20 25 21 114 62.7 24.6 M16 2.75
NAP210-31 1-15/16 57.2 206 159 60 20 25 21 114 62.7 24.6 M16 2.75
NAP210-32 2 57.2 206 159 60 20 25 21 114 62.7 24.6 M16 2.75
NAP211 55 63.5 217 172 60 20 25 23 125 71.4 27.8 M16 3.56
NAP211-32 2 63.5 217 172 60 20 25 23 125 71.4 27.8 M16 3.56
NAP211-34 2-1/8 63.5 217 172 60 20 25 23 125 71.4 27.8 M16 3.56
NAP211-35 2-3/16 63.5 217 172 60 20 25 23 125 71.4 27.8 M16 3.56
NAP212 60 69.9 238 186 70 20 25 24 137 77.8 31 M16 5.2
NAP212-36 2-1/4 69.9 238 186 70 20 25 24 137 77.8 31 M16 5.2
NAP212-38 2-3/8 69.9 238 186 70 20 25 24 137 77.8 31 M16 5.2
NAP212-39 2-7/16 69.9 238 186 70 20 25 24 137 77.8 31 M16 5.2
NAP213 65 76.2 262 203 70 25 30 26 149 85.7 34.3 M20 6.3
NAP213-40 2-1/2 76.2 262 203 70 25 30 26 149 85.7 34.3 M20 6.3
NAP214 70 79.4 266 210 72 25 30 27 155 85.7 34.3 M20 7
NAP214-44 2-3/4 79.4 266 210 72 25 30 27 155 85.7 34.3 M20 7
NAP215 75 82.6 274 217 74 25 30 28 162 92.1 37.3 M20 7.8
NAP215-47 2-15/16 82.6 274 217 74 25 30 28 162 92.1 37.3 M20 7.8
NAP215-48 3 82.6 274 217 74 25 30 28 162 92.1 37.3 M20 7.8

Unit No. Shaft Dia Dimensions (mm) Bolt Size
(mm)		 Weight
(kg)
d H L J A N N1 H1 Ho B1 S
(in) (mm)
UEP204 20 33.3 127 95 38 13 19 14 64 33 12.7 M10 0.68
UEP204-12 3/4 33.3 127 95 38 13 19 14 64 33 12.7 M10 0.68
UEP205 25 36.5 140 105 38 13 19 15 71 35.4 14.3 M10 0.86
UEP205-14 7/8 36.5 140 105 38 13 19 15 71 35.4 14.3 M10 0.86
UEP205-15 15/16 36.5 140 105 38 13 19 15 71 35.4 14.3 M10 0.86
UEP205-16 1 36.5 140 105 38 13 19 15 71 35.4 14.3 M10 0.86
UEP206 30 42.9 160 121 44 17 21 16 82 39.8 15.9 M14 1.2
UEP206-17 1-1/16 42.9 160 121 44 17 21 16 82 39.8 15.9 M14 1.2
UEP206-18 1-1/8 42.9 160 121 44 17 21 16 82 39.8 15.9 M14 1.2
UEP206-19 1-3/16 42.9 160 121 44 17 21 16 82 39.8 15.9 M14 1.2
UEP206-20 1-1/4 42.9 160 121 44 17 21 16 82 39.8 15.9 M14 1.2
UEP207 35 47.6 167 126 48 17 21 17 92 43.9 17.5 M14 1.6
UEP207-20 1-1/4 47.6 167 126 48 17 21 17 92 43.9 17.5 M14 1.6
UEP207-21 1-5/16 47.6 167 126 48 17 21 17 92 43.9 17.5 M14 1.6
UEP207-22 1-3/8 47.6 167 126 48 17 21 17 92 43.9 17.5 M14 1.6
UEP207-23 1-7/16 47.6 167 126 48 17 21 17 92 43.9 17.5 M14 1.6
UEP208 40 49.2 180 137 52 17 21 18 99 50.2 19 M14 2
UEP208-24 1-1/2 49.2 180 137 52 17 21 18 99 50.2 19 M14 2
UEP208-25 1-9/16 49.2 180 137 52 17 21 18 99 50.2 19 M14 2
UEP209 45 54 190 146 54 17 21 20 106 50.2 19 M14 2.32
UEP209-26 1-5/8 54 190 146 54 17 21 20 106 50.2 19 M14 2.32
UEP209-27 1-11/16 54 190 146 54 17 21 20 106 50.2 19 M14 2.32
UEP209-28 1-3/4 54 190 146 54 17 21 20 106 50.2 19 M14 2.32
UEP210 50 57.2 206 159 60 20 25 21 114 52.6 19 M16 2.91
UEP210-30 1-7/8 57.2 206 159 60 20 25 21 114 52.6 19 M16 2.91
UEP210-31 1-15/16 57.2 206 159 60 20 25 21 114 52.6 19 M16 2.91
UEP210-32 2 57.2 206 159 60 20 25 21 114 52.6 19 M16 2.91
UEP211 55 63.5 217 172 60 20 25 23 125 56.6 22.2 M16 3.65
UEP211-32 2 63.5 217 172 60 20 25 23 125 56.6 22.2 M16 3.65
UEP211-34 2-1/8 63.5 217 172 60 20 25 23 125 56.6 22.2 M16 3.65
UEP211-35 2-3/16 63.5 217 172 60 20 25 23 125 56.6 22.2 M16 3.65
UEP212 60 69.9 238 186 70 20 25 24 137 66.6 25.4 M16 4.87
UEP212-36 2-1/4 69.9 238 186 70 20 25 24 137 66.6 25.4 M16 4.87
UEP212-38 2-3/8 69.9 238 186 70 20 25 24 137 66.6 25.4 M16 4.87
UEP212-39 2-7/16 69.9 238 186 70 20 25 24 137 66.6 25.4 M16 4.87

Unit No. Shaft Dia Dimensions (mm) Bolt Size
(mm)		 Weight
(kg)
d H L J A N N1 H1 Ho B3 S1
(in) (mm)
UKP205+H2305 20 36.5 140 105 38 13 19 15 71 35 18.5 M10 0.83
UKP205+HE2305 3/4 36.5 140 105 38 13 19 15 71 35 18.5 M10 0.83
UKP206+H2306 25 42.9 160 121 44 17 21 6 82 38 20.5 M14 1.3
UKP206+HS2306 7/8 42.9 160 121 44 17 21 6 82 38 20.5 M14 1.3
UKP206+HA2306 15/16 42.9 160 121 44 17 21 6 82 38 20.5 M14 1.3
UKP206+HE2306 1 42.9 160 121 44 17 21 6 82 38 20.5 M14 1.3
UKP207+H2307 30 47.6 167 126 48 17 21 17 92 43 22.5 M14 1.5
UKP207+HE2307 1-1/8 47.6 167 126 48 17 21 17 92 43 22.5 M14 1.5
UKP207+HS2307 1-3/16 47.6 167 126 48 17 21 17 92 43 22.5 M14 1.5
UKP208+H2308 35 49.2 180 137 53 17 21 18 99 46 24.5 M14 2
UKP208+HE2308 1-1/4 49.2 180 137 53 17 21 18 99 46 24.5 M14 2
UKP208+HS2308 1-3/8 49.2 180 137 53 17 21 18 99 46 24.5 M14 2
UKP209+H2309 40 54 190 146 54 17 21 20 106 50 26 M14 2.3
UKP209+HA2309 1-7/16 54 190 146 54 17 21 20 106 50 26 M14 2.3
UKP209+HE2309 1-1/2 54 190 146 54 17 21 20 106 50 26 M14 2.3
UKP210+H2310 45 57.2 206 159 60 20 25 21 114 55 27.5 M16 3
UKP210+HS2310 1-5/8 57.2 206 159 60 20 25 21 114 55 27.5 M16 3
UKP210+HA2310 1-11/16 57.2 206 159 60 20 25 21 114 55 27.5 M16 3
UKP210+HE2310 1-3/4 57.2 206 159 60 20 25 21 114 55 27.5 M16 3
UKP211+H2311 50 63.5 217 172 60 20 25 23 125 59 28.5 M16 3.5
UKP211+HS2311 1-7/8 63.5 217 172 60 20 25 23 125 59 28.5 M16 3.5
UKP211+HA2311 1-15/16 63.5 217 172 60 20 25 23 125 59 28.5 M16 3.5
UKP211+HE2311 2 63.5 217 172 60 20 25 23 125 59 28.5 M16 3.5
UKP212+H2312 55 69.9 238 186 70 20 25 25 137 62 31 M16 4.7
UKP212+HS2312 2-1/8 69.9 238 186 70 20 25 25 137 62 31 M16 4.7
UKP213+H2313 60 76.2 262 203 70 25 30 26 149 65 32 M20 5.9
UKP213+HA2313 2-3/16 76.2 262 203 70 25 30 26 149 65 32 M20 5.9
UKP213+HE2313 2-1/4 76.2 262 203 70 25 30 26 149 65 32 M20 5.9
UKP213+HS2313 2-3/8 76.2 262 203 70 25 30 26 149 65 32 M20 5.9
UKP215+H2315 65 82.6 274 217 74 25 30 28 162 73 35.5 M20 7.6
UKP215+HA2315 2-7/16 82.6 274 217 74 25 30 28 162 73 35.5 M20 7.6
UKP215+HE2315 2-1/2 82.6 274 217 74 25 30 28 162 73 35.5 M20 7.6
UKP216+H2316 70 88.9 292 232 78 25 30 30 174 78 39 M20 9.2
UKP216+HA2316 2-11/16 88.9 292 232 78 25 30 30 174 78 39 M20 9.2
UKP216+HE2316 2-3/4 88.9 292 232 78 25 30 30 174 78 39 M20 9.2
UKP217+H2317 75 95.2 310 247 83 25 28 32 186 82 40 M20 10.93
UKP218+H2318 80 101.6 326 262 88 27 30 33 198 86 42 M22 12.65

Unit No. Shaft Dia Dimensions (mm) Bolt Size Weight
d H L J A N N1 H1 Ho B S (mm) (kg)
(in) (mm)
UCPX05 25 44.4 159 119 51 17 20 18 85 38.1 15.9 M14 1.5
UCPX05-13 13/16 44.4 159 119 51 17 20 18 85 38.1 15.9 M14 1.5
UCPX05-14 7/8 44.4 159 119 51 17 20 18 85 38.1 15.9 M14 1.5
UCPX05-15 15/16 44.4 159 119 51 17 20 18 85 38.1 15.9 M14 1.5
UCPX05-16 1 44.4 159 119 51 17 20 18 85 38.1 15.9 M14 1.5
UCPX06 30 47.6 175 127 57 17 20 20 93 42.9 17.5 M14 2.1
UCPX06-17 1-1/16 47.6 175 127 57 17 20 20 93 42.9 17.5 M14 2.1
UCPX06-18 1-1/8 47.6 175 127 57 17 20 20 93 42.9 17.5 M14 2.1
UCPX06-19 1-3/16 47.6 175 127 57 17 20 20 93 42.9 17.5 M14 2.1
UCPX06-20 1-1/4 47.6 175 127 57 17 20 20 93 42.9 17.5 M14 2.1
UCPX07 35 54 203 144 57 17 20 21 105 49.2 19 M14 2.7
UCPX07-21 1-5/16 54 203 144 57 17 20 21 105 49.2 19 M14 2.7
UCPX07-22 1-3/8 54 203 144 57 17 20 21 105 49.2 19 M14 2.7
UCPX07-23 1-7/16 54 203 144 57 17 20 21 105 49.2 19 M14 2.7
UCPX08 40 58.7 222 156 67 20 23 26 112 49.2 19 M16 3.3
UCPX08-24 1-1/2 58.7 222 156 67 20 23 26 112 49.2 19 M16 3.3
UCPX08-25 1-9/16 58.7 222 156 67 20 23 26 112 49.2 19 M16 3.3
UCPX09 45 58.7 222 156 67 20 23 26 116 51.6 19 M16 3.3
UCPX09-26 1-5/8 58.7 222 156 67 20 23 26 116 51.6 19 M16 3.3
UCPX09-27 1-11/16 58.7 222 156 67 20 23 26 116 51.6 19 M16 3.3
UCPX09-28 1-3/4 58.7 222 156 67 20 23 26 116 51.6 19 M16 3.3
UCPX09-29 1-13/16 58.7 222 156 67 20 23 26 116 51.6 19 M16 3.3
UCPX10 50 63.5 240 171 73 20 23 27 126 55.6 22.2 M16 4.3
UCPX10-30 1-7/8 63.5 240 171 73 20 23 27 126 55.6 22.2 M16 4.3
UCPX10-31 1-15/16 63.5 240 171 73 20 23 27 126 55.6 22.2 M16 4.3
UCPX10-32 2 63.5 240 171 73 20 23 27 126 55.6 22.2 M16 4.3
UCPX11 55 69.8 260 184 79 25 28 30 137 65.1 25.4 M20 5.7
UCPX11-33 2-1/16 69.8 260 184 79 25 28 30 137 65.1 25.4 M20 5.7
UCPX11-34 2-1/8 69.8 260 184 79 25 28 30 137 65.1 25.4 M20 5.7
UCPX11-35 2-3/16 69.8 260 184 79 25 28 30 137 65.1 25.4 M20 5.7
UCPX11-36 2-1/4 69.8 260 184 79 25 28 30 137 65.1 25.4 M20 5.7
UCPX11-37 2-5/16 69.8 260 184 79 25 28 30 137 65.1 25.4 M20 5.7
UCPX12 60 76.2 286 203 83 25 28 34 151 65.1 25.4 M20 7.3
UCPX12-38 2-3/8 76.2 286 203 83 25 28 34 151 65.1 25.4 M20 7.3
UCPX12-39 2-7/16 76.2 286 203 83 25 28 34 151 65.1 25.4 M20 7.3
UCPX13 65 76.2 286 203 83 25 28 34 154 74.6 30.2 M20 7.6
UCPX13-40 2-1/2 76.2 286 203 83 25 28 34 154 74.6 30.2 M20 7.6
UCPX13-41 2-9/16 76.2 286 203 83 25 28 34 154 74.6 30.2 M20 7.6
UCPX14 70 88.9 330 229 89 27 30 34 170 77.8 33.3 M22 9.9
UCPX14-42 2-5/8 88.9 330 229 89 27 30 34 170 77.8 33.3 M22 9.9
UCPX14-43 2-11/16 88.9 330 229 89 27 30 34 170 77.8 33.3 M22 9.9
UCPX14-44 2-3/4 88.9 330 229 89 27 30 34 170 77.8 33.3 M22 9.9
UCPX15 75 88.9 330 229 89 27 30 35 175 82.6 33.3 M22 11
UCPX15-45 2-13/16 88.9 330 229 89 27 30 35 175 82.6 33.3 M22 11
UCPX15-46 2-7/8 88.9 330 229 89 27 30 35 175 82.6 33.3 M22 11
UCPX15-47 2-15/16 88.9 330 229 89 27 30 35 175 82.6 33.3 M22 11
UCPX15-48 3 88.9 330 229 89 27 30 35 175 82.6 33.3 M22 11
UCPX16 80 101.6 380 283 102 27 30 40 194 85.7 34.1 M22 15
UCPX16-49 3-1/16 101.6 380 283 102 27 30 40 194 85.7 34.1 M22 15
UCPX16-50 3-1/8 101.6 380 283 102 27 30 40 194 85.7 34.1 M22 15
UCPX16-51 3-3/16 101.6 380 283 102 27 30 40 194 85.7 34.1 M22 15
UCPX16-52 3-1/4 101.6 380 283 102 27 30 40 194 85.7 34.1 M22 15
UCPX17 85 101.6 384 283 102 27 30 40 202 96 39.7 M22 16
UCPX17-53 3-5/16 101.6 384 283 102 27 30 40 202 96 39.7 M22 16
UCPX17-55 3-7/16 101.6 384 283 102 27 30 40 202 96 39.7 M22 16
UCPX18 90 101.6 384 283 106 27 30 40 206 104 42.9 M22 19
UCPX20 100 127 432 337 120 33 36 45 244 117.5 49.2 M30 24.9

Unit No Shaft d Dimensions (mm) Bolt size (mm) Weight (kg)
(mm) H L J A N N1 H1 Ho B s
UCP305 25 45 175 132 45 17 20 16 85 38 15 M14 1.4
UCP306 30 50 180 140 50 17 20 18 95 43 17 M14 1.8
UCP307 35 56 210 160 56 17 25 20 106 48 19 M14 2.8
UCP308 40 60 220 170 60 17 25 24 116 52 19 M14 3.08
UCP309 45 67 245 190 67 20 30 25 129 57 22 M16 4.1
UCP310 50 75 275 212 75 20 35 27 143 61 22 M16 6
UCP311 55 80 310 236 80 20 38 30 154 66 25 M16 7.4
UCP312 60 85 330 250 85 25 38 32 165 71 26 M20 9.4
UCP313 65 90 335 260 90 25 38 33 176 75 30 M20 10
UCP314 70 95 360 280 90 27 40 35 187 78 33 M22 12
UCP315 75 100 380 290 100 27 40 35 198 82 32 M22 14
UCP316 80 106 400 300 110 27 40 40 210 86 34 M22 18
UCP317 85 112 420 320 110 33 45 40 220 96 40 M27 20
UCP318 90 118 430 330 110 33 45 45 235 96 40 M27 24
UCP319 95 125 470 360 120 36 50 46 250 103 41 M30 26.5
UCP320 100 140 490 380 120 36 50 50 275 108 42 M30 34.3
UCP321 105 140 490 380 120 36 50 50 280 112 44 M30 36.6
UCP322 110 150 520 400 140 40 55 55 300 117 46 M33 42.5
UCP324 120 160 570 450 140 40 55 65 320 126 51 M33 53.5
UCP326 130 180 600 480 140 40 55 75 355 135 54 M33 72.1
UCP328 140 200 620 500 140 40 55 75 390 145 59 M33 89.1

Recommended Products

Engineering the Future of Motion
About UKL
Founded in 2020, UKL Bearing Manufacturing Co., Ltd. (Wuxi) is China Pillow Block Bearings suppliers and OEM/ODM Pillow Block Bearings company, an integrated industrial and trading enterprise that focuses on precision manufacturing, combining R&D, production, and sales.
The company specializes in high-performance bearing solutions, providing technical support for global industries with exceptionally high demands for precision and reliability.

With more than 200 skilled professionals and a fully modernized production base, UKL’s facilities cover the entire manufacturing process — forging, annealing, turning, heat treatment, grinding, and automated assembly.
Leveraging over 15 years of OEM/ODM export experience, UKL responds quickly to customer needs, offering flexible and customized services for clients across Europe, Asia, Africa, and the Middle East.

Ukl Bearing Manufacturing Co.,Ltd More About Us Ukl Bearing Manufacturing Co.,Ltd
  • Ukl Bearing Manufacturing Co.,Ltd

    0+

    years

    Industry Experience

  • Ukl Bearing Manufacturing Co.,Ltd

    0+

    Model diversity

  • Ukl Bearing Manufacturing Co.,Ltd

    0+

    Number of Employees

  • Ukl Bearing Manufacturing Co.,Ltd

    0

    $

    Annual export value

Ukl Bearing Manufacturing Co.,Ltd
Certificate Of Honor
News
Mounted Bearings Industry knowledge

UCP214 Pillow Block Bearing: The Ultimate Guide to Specifications, Installation, and Cross-Reference

The UCP214 bearing represents a standardized mounted bearing unit that combines a robust cast iron housing with a precision-engineered radial insert ball bearing. This unit is designed to provide reliable support for rotating shafts across a wide spectrum of industrial machinery, from agricultural equipment to material handling systems and conveyor applications. Understanding its technical specifications, material composition, and proper selection criteria is essential for both engineering professionals and procurement specialists seeking optimal performance and longevity.

Technical Architecture and Design Features

The UCP214 pillow block bearing unit consists of two primary components: the housing and the bearing insert. The housing, manufactured from high-grade grey cast iron, provides a rigid mounting base with two bolt holes for secure attachment to supporting structures. The bearing insert features a wide inner ring with extended shoulders on both sides, incorporating set screws for positive shaft locking. This design ensures reliable torque transmission and prevents axial displacement during operation.

The self-aligning capability of the UCP214 bearing deserves particular attention. The spherical outside diameter of the bearing insert mates with a matching spherical surface within the housing, allowing angular misalignment compensation of up to several degrees. This feature proves invaluable in applications where shaft deflection or mounting inaccuracies might otherwise lead to premature bearing failure.

Material Specifications and Performance Parameters

Feature Specification Functional Significance
Housing Material Grey Cast Iron (GG) Provides rigidity, vibration damping, and corrosion resistance suitable for industrial environments
Bearing Insert Material Chrome Steel (Grade 52100) Offers high hardness, wear resistance, and fatigue strength for extended service life
Locking Mechanism Set Screws (2) Ensures positive shaft fixation; accommodates both metric and inch shaft dimensions
Sealing System Double Contact Seals with Slinger Protects against contaminant ingress while retaining lubricant; suitable for wet or dusty environments
Lubrication Grease (Nlgi #2 equivalent) with fitting Provides initial and relubrication capability; extends maintenance intervals
Temperature Range -20°C to +120°C Enables operation across diverse environmental conditions
Finish Painted Provides additional corrosion protection for the housing

The Two Variants: UCP214 and UCP214-44

Two primary variants of this pillow block bearing exist, distinguished by shaft diameter specification:

UCP214 bearing: Features a 70mm bore diameter, designed for metric shaft applications. This version conforms to international standards and is widely used in European, Asian, and global markets where metric dimensions are standard.

UCP214-44 bearing: Features a 69.85mm bore diameter, corresponding to 2-3/4 inches. This variant serves inch-based systems, particularly prevalent in North American markets and equipment manufactured to imperial standards.

Both variants share identical housing dimensions, bolt hole spacing, center height, and load ratings. The interchangeability of housings between variants simplifies inventory management for maintenance departments and distributors. For procurement professionals seeking UCP214 bearing suppliers or UCP214-44 bearing suppliers, understanding this compatibility can reduce inventory costs while maintaining flexibility.

Applications and Industry Use Cases

The UCP214 pillow block bearing finds application across numerous industries due to its versatility and robust construction:

Conveyor Systems: The self-aligning feature accommodates shaft deflection common in long conveyor runs, while the cast iron housing withstands the continuous loads and vibrations characteristic of bulk material handling.

Agricultural Machinery: Dust, debris, and varying operating conditions demand bearings with effective sealing and durability. The UCP214 design meets these challenges in equipment such as harvesters, balers, and material handling implements.

Industrial Fans and Blowers: The unit’s ability to accommodate misalignment and its reliable sealing make it suitable for air handling applications where maintenance access may be limited.

Packaging Equipment: The pillow block bearing provides consistent performance in high-speed, intermittent-duty applications common in packaging lines.

Textile Machinery: The smooth, quiet operation of the UCP214 bearing contributes to textile processing equipment where vibration control is essential.

The related UCP212-39 bearing, featuring a 61.913mm bore (2-7/16 inches), represents another popular variant within this series, serving applications requiring intermediate shaft diameters. Many UCP212-39 users select this unit for its compatibility with specific equipment designs and its availability from established pillow block bearing suppliers.

Selection Criteria for Procurement Professionals

When evaluating UCP214 bearing suppliers, procurement specialists should consider several critical factors:

Load Requirements: The UCP214 bearing delivers a dynamic load rating of approximately 62,000 N and a static load rating of 44,000 N, making it suitable for moderate to heavy-duty applications.

Shaft Diameter Compatibility: Confirming whether the application requires the metric 70mm (UCP214) or inch 2-3/4" (UCP214-44) variant is essential for proper fit and performance.

Environmental Conditions: Temperature extremes, moisture exposure, and contaminant levels influence seal selection and lubrication requirements. The standard configuration accommodates most industrial environments, but specialized options may be available.

Housing Configuration: The two-bolt base design of the pillow block bearing provides straightforward installation, but verifying mounting hole spacing and center height dimensions ensures compatibility with existing equipment.

UKL Bearing Manufacturing Co., Ltd. (Wuxi) is an integrated industrial and trading enterprise that focuses on precision manufacturing, combining R&D, production, and sales. As a professional bearing factory and bearing manufacturing company in China, the company specializes in high-performance bearing solutions, providing technical support for global industries with exceptionally high demands for precision and reliability.

With more than 200 skilled professionals and a fully modernized production base, UKL’s facilities cover the entire manufacturing process — forging, annealing, turning, heat treatment, grinding, and automated assembly. This vertically integrated approach ensures quality control at every stage and enables responsive service to customers worldwide.

Technology & Innovation at the Core: The dedicated R&D team continuously develops high-precision cross roller bearings, dual-direction thrust angular contact ball bearings, and other products used in CNC machines, robotics, and intelligent automation systems. Through precision design and digital production control, UKL ensures that every product meets international standards for accuracy and performance.

Sustainability & Responsibility: Environmentally responsible processes, material recycling initiatives, and optimized energy usage reduce the environmental footprint. Beyond production, UKL also supports educational and technical training initiatives to foster future engineering talent.

FAQ

What is the difference between UCP214 and UCP214-44 bearings?

The primary difference lies in the bore diameter: UCP214 features a 70mm bore for metric shafts, while UCP214-44 features a 69.85mm (2-3/4 inch) bore for inch-based shafts. Housing dimensions, bolt hole spacing, and load ratings are identical for both variants.

How does the self-aligning feature of the UCP214 pillow block bearing work?

The bearing insert has a spherical outside diameter that fits into a matching spherical surface inside the housing. This allows angular misalignment between the shaft and housing of up to several degrees, compensating for shaft deflection or mounting inaccuracies.

What locking mechanism does the UCP214 bearing use?

The UCP214 bearing uses two set screws on the inner ring to lock the bearing to the shaft. This provides positive shaft fixation and facilitates easy installation and removal.

What industries commonly use the UCP214 bearing?

UCP214 bearings are widely used in conveyor systems, agricultural machinery, industrial fans and blowers, packaging equipment, and textile machinery, among other industrial applications requiring reliable shaft support.

What is the recommended temperature range for the UCP214 bearing?

The UCP214 bearing operates effectively within a temperature range of -20°C to +120°C, making it suitable for diverse industrial environments.
