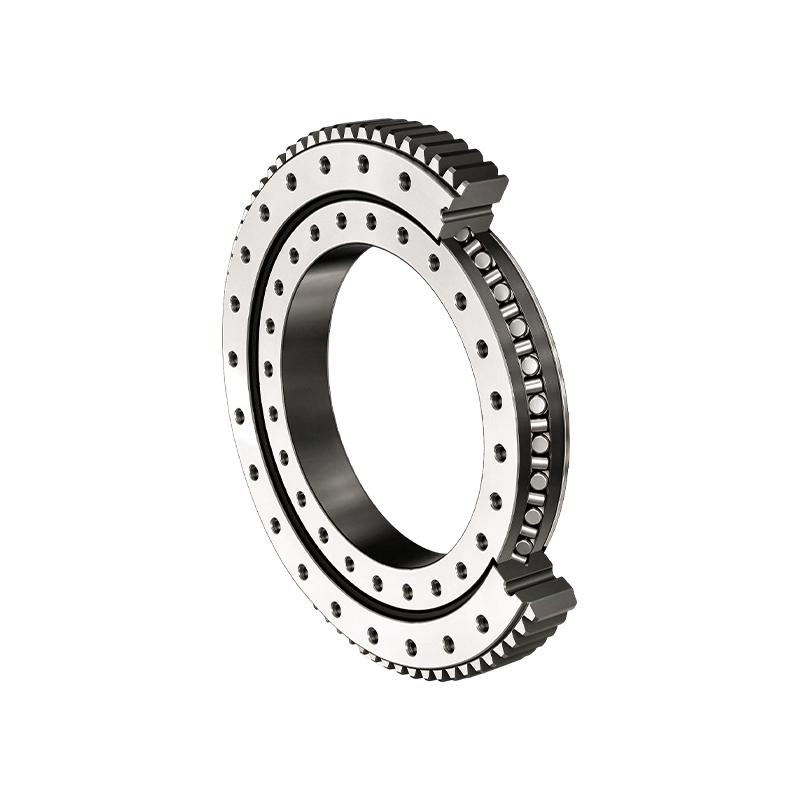

JXR637050 is a crossed tapered roller thrust bearing featuring a 90° crossed tapered roller arrangement, distinguishing it from conventional RB series crossed cylindrical roller bearings. It can simultaneously accommodate radial loads, axial loads, and overturning moments, while offering high rigidity, high-speed capability, and low friction torque. These characteristics make it suitable for precision rotary applications.
90° Crossed Tapered Roller Arrangement: The bearing consists of two rows of mutually perpendicular raceways with tapered rollers arranged alternately at 90°. Nylon spacers are positioned between the rollers to prevent roller tilting and mutual friction, ensuring smooth and stable operation.
Large Taper Angle Design: The tapered roller geometry provides an effective bearing span significantly greater than the bearing width, enabling the bearing to withstand larger overturning moments and maintain excellent rotational stability.
Combined Load-Carrying Capacity: A single bearing can simultaneously accommodate combined radial loads, axial loads, and overturning moments. This design simplifies the overall machine structure and reduces installation space requirements.
Excellent High-Speed Performance: Benefiting from the geometric characteristics of tapered rollers, the bearing offers a higher limiting speed than RB series crossed cylindrical roller bearings, while generating lower friction torque. It is suitable for precision, high-speed rotary applications.
Nominal Dimensions & Main Performance Parameters
| Parameter Item | Value |
| Model | JXR637050 |
| Bearing Type | Crossed tapered roller bearing / Thrust bearing |
| Bore Diameter (d) | 300 mm |
| Outer Diameter (D) | 400 mm |
| Height / Thickness (T) | 37 mm |
| Chamfer (R) | 1.5 mm |
| Weight | Approx. 13 kg |
Load Capacity & Performance
| Load Type | Value |
| Radial Dynamic Load Rating | 63 kN |
| Axial Dynamic Load Rating | 80.1 kN |
Other Performance Parameters
| Parameter | Value |
| Limiting Speed (Oil Lubrication) | 720 r/min |
| Tolerance Class / Precision Grade | Commonly P5 / P4 |
| K-Factor | 0.45 |
| Preload | 0.025 ~ 0.040 mm |
| Rolling Element Material | GCr15 Bearing Steel |
| Cage / Separator | TN Engineering Plastics / Nylon Separators |
| Seal | Non-sealed (Open type) |
| Operating Temperature | -20℃ ~ 80℃ |
