2 Bolt Flange Bearing

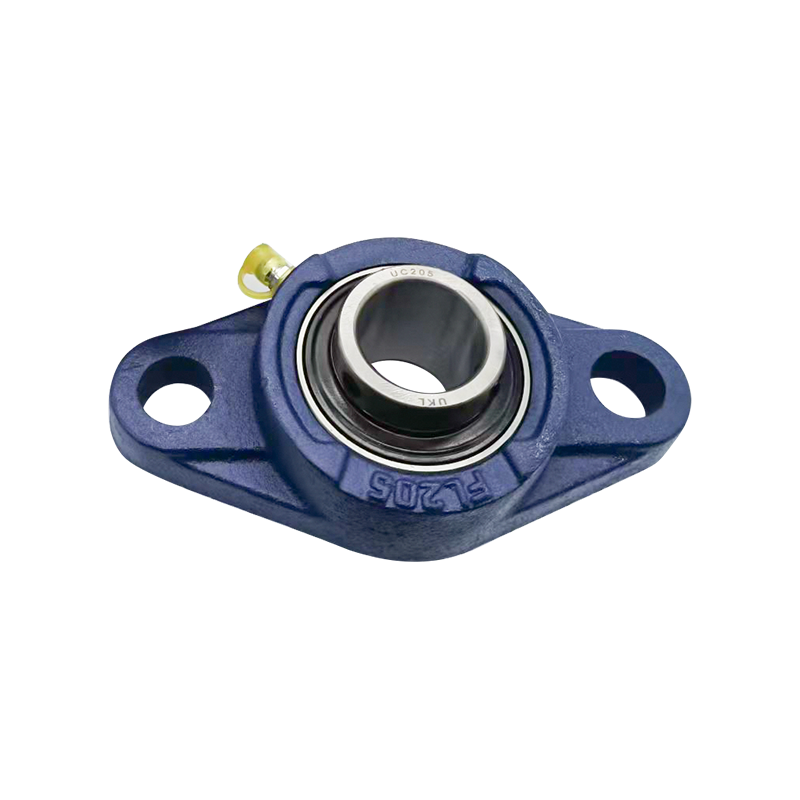

UCFL series 2-bolts flange bearing unit is one kind of design of mounted ball bearing unit, it consist of UCFL housing and UC, NA, UE, UK, SB type pillow block bearing, Setscrew and Eccentric locking. the material of the FL housing can be cast iron, cast steel, plastic and stainless Steel design, each of the housing and insert bearing can be interchange each other.

Contact Us Contact Us
PREV：4 Bolt Flange Bearing NEXT：Take Up Bearing Units
  • Specifications
  • Contact Us

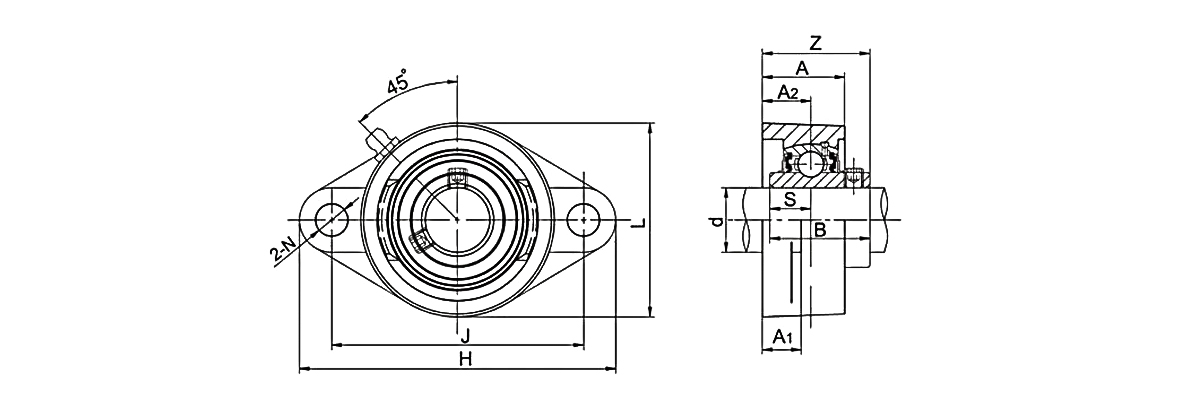

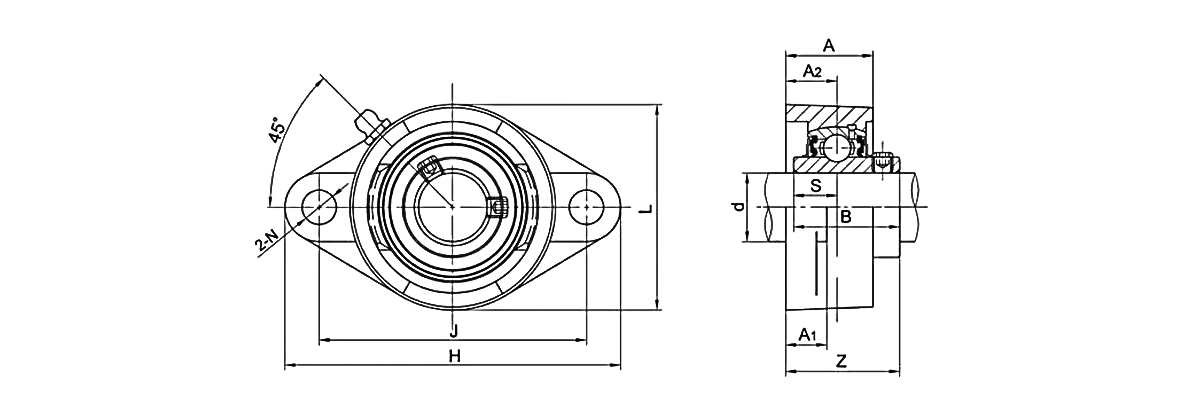

Unit No. Shaft Dia Dimensions(mm) Bolt Size (mm) Weight (kg)
d H J A2 A1 A N L B s z A3
(in) (mm)
UCWFL201 12 97 76.5 15 11 25.5 11.5 55 27.4 11.5 30.9 - M10 0.52
UCWFL202 15 97 76.5 15 11 25.5 11.5 55 27.4 11.5 30.9 - M10 0.48
UCWFL203 17 97 76.5 15 11 25.5 11.5 55 27.4 11.5 30.9 - M10 0.37
UCFL201 12 113 90 15 11 25.5 12 60 31 12.7 33.3 - M10 0.51
UCFL201-8 1/2 113 90 15 11 25.5 12 60 31 12.7 33.3 - M10 0.51
UCFL202 15 113 90 15 11 25.5 12 60 31 12.7 33.3 - M10 0.51
UCFL202-9 9/16 113 90 15 11 25.5 12 60 31 12.7 33.3 - M10 0.51
UCFL202-10 5/8 113 90 15 11 25.5 12 60 31 12.7 33.3 - M10 0.51
UCFL203 17 113 90 15 11 25.5 12 60 31 12.7 33.3 - M10 0.51
UCFL203-11 11/16 113 90 15 11 25.5 12 60 31 12.7 33.3 - M10 0.51
UCFL204 20 113 90 15 11 25.5 12 60 31 12.7 33.3 38.2 M10 0.51
UCFL204-12 3/4 113 90 15 11 25.5 12 60 31 12.7 33.3 38.2 M10 0.51
UCFL205 25 130 99 16 13 27 16 68 34.1 14.3 35.8 40 M14 0.6
UCFL205-14 7/8 130 99 16 13 27 16 68 34.1 14.3 35.8 40 M14 0.6
UCFL205-15 15/16 130 99 16 13 27 16 68 34.1 14.3 35.8 40 M14 0.6
UCFL205-16 1 130 99 16 13 27 16 68 34.1 14.3 35.8 40 M14 0.6
UCFL206 30 148 117 18 13 31 16 80 38.1 15.9 40.2 44 M14 0.9
UCFL206-17 1-1/16 148 117 18 13 31 16 80 38.1 15.9 40.2 44 M14 0.9
UCFL206-18 1-1/8 148 117 18 13 31 16 80 38.1 15.9 40.2 44 M14 0.9
UCFL206-19 1-3/16 148 117 18 13 31 16 80 38.1 15.9 40.2 44 M14 0.9
UCFL206-20 1-1/4 148 117 18 13 31 16 80 38.1 15.9 40.2 44 M14 0.9
UCFL207 35 160 130 19 15 34 16 90 42.9 17.5 44.4 48.5 M14 1.2
UCFL207-20 1-1/4 160 130 19 15 34 16 90 42.9 17.5 44.4 48.5 M14 1.2
UCFL207-21 1-5/16 160 130 19 15 34 16 90 42.9 17.5 44.4 48.5 M14 1.2
UCFL207-22 1-3/8 160 130 19 15 34 16 90 42.9 17.5 44.4 48.5 M14 1.2
UCFL207-23 1-7/16 160 130 19 15 34 16 90 42.9 17.5 44.4 48.5 M14 1.2
UCFL208 40 175 144 21 15 36 16 100 49.2 19 51.2 55.1 M14 1.5
UCFL208-24 1-1/2 175 144 21 15 36 16 100 49.2 19 51.2 55.1 M14 1.5
UCFL208-25 1-9/16 175 144 21 15 36 16 100 49.2 19 51.2 55.1 M14 1.5
UCFL209 45 188 148 22 16 38 19 108 49.2 19 52.2 57 M16 1.9
UCFL209-26 1-5/8 188 148 22 16 38 19 108 49.2 19 52.2 57 M16 1.9
UCFL209-27 1-11/16 188 148 22 16 38 19 108 49.2 19 52.2 57 M16 1.9
UCFL209-28 1-3/4 188 148 22 16 38 19 108 49.2 19 52.2 57 M16 1.9
UCFL210 50 197 157 22 16 40 19 115 51.6 19 54.6 60 M16 2.2
UCFL210-30 1-7/8 197 157 22 16 40 19 115 51.6 19 54.6 60 M16 2.2
UCFL210-31 1-15/16 197 157 22 16 40 19 115 51.6 19 54.6 60 M16 2.2
UCFL210-32 2 197 157 22 16 40 19 115 51.6 19 54.6 60 M16 2.2
UCFL211 55 224 184 25 18 43 19 125 55.6 22.2 58.4 63 M16 3
UCFL211-32 2 224 184 25 18 43 19 125 55.6 22.2 58.4 63 M16 3
UCFL211-34 2-1/8 224 184 25 18 43 19 125 55.6 22.2 58.4 63 M16 3
UCFL211-35 2-3/16 224 184 25 18 43 19 125 55.6 22.2 58.4 63 M16 3
UCFL212 60 250 202 29 18 48 23 140 65.1 25.4 68.7 73.5 M20 4
UCFL212-36 2-1/4 250 202 29 18 48 23

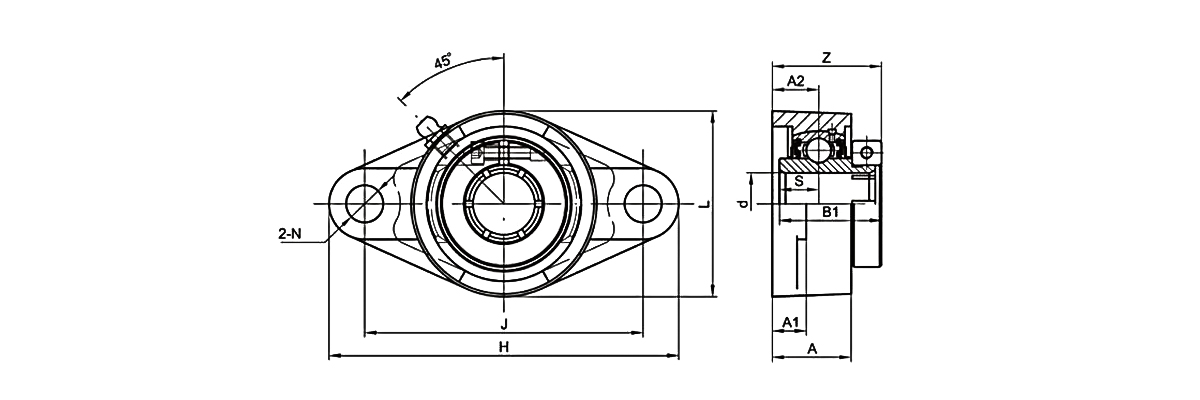

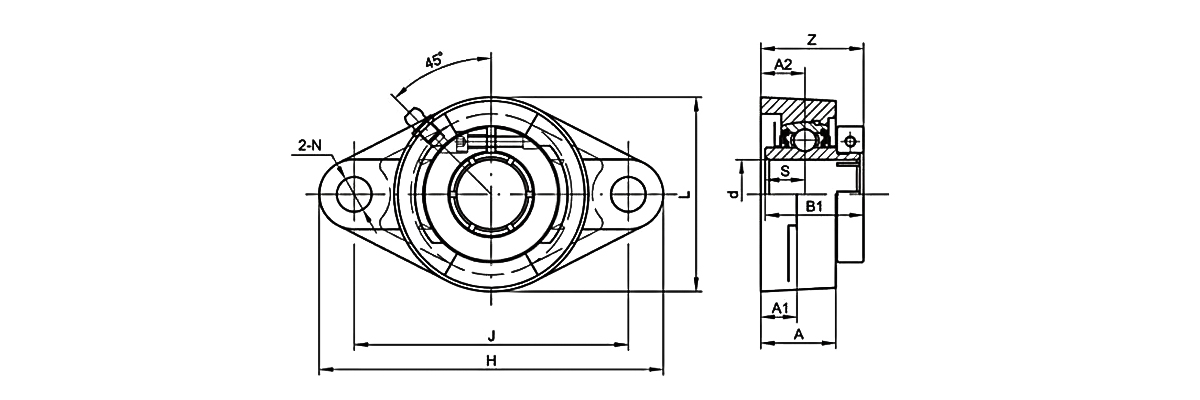

Unit No. Shaft Dia Dimensions (mm) Bolt Size Weight
d H J A2 A1 A N L B1 s z F
(in) (mm) (mm) (kg)
NAFL201S 12 97 76.5 15 11 25.5 11.5 55 37.3 13.9 38.2 - M10 0.48
NAFL201-8S 1/2 97 76.5 15 11 25.5 11.5 55 37.3 13.9 38.2 - M10 0.48
NAFL202S 15 97 76.5 15 11 25.5 11.5 55 37.3 13.9 38.2 - M10 0.48
NAFL202-10S 5/8 97 76.5 15 11 25.5 11.5 55 37.3 13.9 38.2 - M10 0.48
NAFL203S 17 97 76.5 15 11 25.5 11.5 55 37.3 13.9 38.2 - M10 0.48
NAFL203-11S 11/16 97 76.5 15 11 25.5 11.5 55 37.3 13.9 38.2 - M10 0.48
NAFL201 12 113 90 15 11 25.5 12 60 43.7 17.1 41.6 32 M10 0.73
NAFL201-8 1/2 113 90 15 11 25.5 12 60 43.7 17.1 41.6 32 M10 0.73
NAFL202 15 113 90 15 11 25.5 12 60 43.7 17.1 41.6 32 M10 0.73
NAFL202-10 5/8 113 90 15 11 25.5 12 60 43.7 17.1 41.6 32 M10 0.73
NAFL203 17 113 90 15 11 25.5 12 60 43.7 17.1 41.6 32 M10 0.73
NAFL203-11 11/16 113 90 15 11 25.5 12 60 43.7 17.1 41.6 32 M10 0.73
NAFL204 20 113 90 15 11 25.5 12 60 43.7 17.1 41.6 32 M10 0.73
NAFL204-12 3/4 113 90 15 11 25.5 12 60 43.7 17.1 41.6 32 M10 0.73
NAFL205 25 130 99 16 13 27 16 68 44.4 17.5 42.9 36 M14 0.8
NAFL205-14 7/8 130 99 16 13 27 16 68 44.4 17.5 42.9 36 M14 0.8
NAFL205-15 15/16 130 99 16 13 27 16 68 44.4 17.5 42.9 36 M14 0.8
NAFL205-16 1 130 99 16 13 27 16 68 44.4 17.5 42.9 36 M14 0.8
NAFL206 30 148 117 18 13 31 16 80 48.4 18.3 48.1 42 M14 1.2
NAFL206-17 1-1/16 148 117 18 13 31 16 80 48.4 18.3 48.1 42 M14 1.2
NAFL206-18 1-1/8 148 117 18 13 31 16 80 48.4 18.3 48.1 42 M14 1.2
NAFL206-19 1-3/16 148 117 18 13 31 16 80 48.4 18.3 48.1 42 M14 1.2
NAFL206-20 1-1/4 148 117 18 13 31 16 80 48.4 18.3 48.1 42 M14 1.2
NAFL207 35 160 130 19 15 34 16 90 51.1 18.8 51.3 50 M14 1.6
NAFL207-20 1-1/4 160 130 19 15 34 16 90 51.1 18.8 51.3 50 M14 1.6
NAFL207-21 1-5/16 160 130 19 15 34 16 90 51.1 18.8 51.3 50 M14 1.6
NAFL207-22 1-3/8 160 130 19 15 34 16 90 51.1 18.8 51.3 50 M14 1.6
NAFL207-23 1-7/16 160 130 19 15 34 16 90 51.1 18.8 51.3 50 M14 1.6
NAFL208 40 175 144 21 15 36 16 100 56.3 21.4 55.9 55 M14 1.9
NAFL208-24 1-1/2 175 144 21 15 36 16 100 56.3 21.4 55.9 55 M14 1.9
NAFL208-25 1-9/16 175 144 21 15 36 16 100 56.3 21.4 55.9 55 M14 1.9
NAFL209 45 188 148 22 16 38 19 108 56.3 21.4 56.9 60 M16 2.3
NAFL209-26 1-5/8 188 148 22 16 38 19 108 56.3 21.4 56.9 60 M16 2.3
NAFL209-27 1-11/16 188 148 22 16 38 19 108 56.3 21.4 56.9 60 M16 2.3
NAFL209-28 1-3/4 188 148 22 16 38 19 108 56.3 21.4 56.9 60 M16 2.3
NAFL210 50 197 157 22 16 40 19 115 62.7 24.6 60.1 64 M16 2.6
NAFL210-30 1-7/8 197 157 22 16 40 19 115 62.7 24.6 60.1 64 M16 2.6
NAFL210-31 1-15/16 197 157 22 16 40 19 115 62.7 24.6 60.1 64 M16 2.6
NAFL211 55 224 184 25 18 43 19 125 71.4 27.8 68.6 71 M16 3.8
NAFL211-32 2 224 184 25 18 43 19 125 71.4 27.8 68.6 71 M16 3.8
NAFL211-34 2-1/8 224 184 25 18 43 19 125 71.4 27.8 68.6 71 M16 3.8
NAFL211-35 2-3/16 224 184 25 18 43 19 125 71.4 27.8 68.6 71 M16 3.8
NAFL212 60 250 202 29 18 48 23 140 77.8 31 75.8 78 M20 4.8
NAFL212-36 2-1/4 250 202 29 18 48 23 140 77.8 31 75.8 78 M20 4.8
NAFL212-38 2-3/8 250 202 29 18 48 23 140 77.8 31 75.8 78 M20 4.8
NAFL212-39 2-7/16 250 202 29 18 48 23 140 77.8 31 75.8 78 M20 4.8
NAFL213 65 258 210 30 22 50 23 153 85.7 34.1 81.6 85 M20 6
NAFL213-40 2-1/2 258 210 30 22 50 23 153 85.7 34.1 81.6 85 M20 6
NAFL214 70 265 216 31 22 54 23 160 85.7 34.1 82.6 91 M20 6.3
NAFL214-44 2-3/4 265 216 31 22 54 23 160 85.7 34.1 82.6 91 M20 6.3
NAFL215 75 275 225 34 22 56 23 165 92.1 37.3 88.8 96 M20 7.2
NAFL215-48 3 275 225 34 22 56 23 165 92.1 37.3 88.8 96 M20 7.2

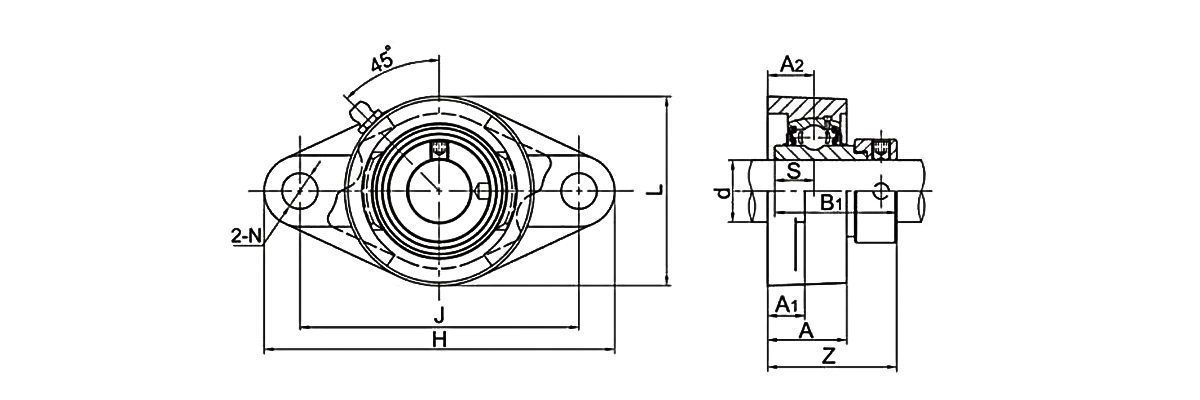

Unit No. Shaft Dia Dimensions(mm) Bolt Size (mm) Weight (kg)
d H J A2 A1 A N L B1 S Z
(in) (mm)
UEFL204 20 113 90 15 11 25.5 12 60 33 12.7 35.3 M10 0.47
UEFL204-12 3/4 113 90 15 11 25.5 12 60 33 12.7 35.3 M10 0.47
UEFL205 25 130 99 16 13 27 16 68 35.4 14.3 37.1 M14 0.64
UEFL205-14 7/8 130 99 16 13 27 16 68 35.4 14.3 37.1 M14 0.64
UEFL205-15 15/16 130 99 16 13 27 16 68 35.4 14.3 37.1 M14 0.64
UEFL205-16 1 130 99 16 13 27 16 68 35.4 14.3 37.1 M14 0.64
UEFL206 30 148 117 18 13 31 16 80 39.8 15.9 41.9 M14 0.95
UEFL206-17 1-1/16 148 117 18 13 31 16 80 39.8 15.9 41.9 M14 0.95
UEFL206-18 1-1/8 148 117 18 13 31 16 80 39.8 15.9 41.9 M14 0.95
UEFL206-19 1-3/16 148 117 18 13 31 16 80 39.8 15.9 41.9 M14 0.95
UEFL206-20 1-1/4 148 117 18 13 31 16 80 39.8 15.9 41.9 M14 0.95
UEFL207 35 160 130 19 15 34 16 90 43.9 17.5 45.4 M14 1.27
UEFL207-20 1-1/4 160 130 19 15 34 16 90 43.9 17.5 45.4 M14 1.27
UEFL207-21 1-5/16 160 130 19 15 34 16 90 43.9 17.5 45.4 M14 1.27
UEFL207-22 1-3/8 160 130 19 15 34 16 90 43.9 17.5 45.4 M14 1.27
UEFL207-23 1-7/16 160 130 19 15 34 16 90 43.9 17.5 45.4 M14 1.27
UEFL208 40 175 144 21 15 36 16 100 50.2 19 52.2 M14 1.62
UEFL208-24 1-1/2 175 144 21 15 36 16 100 50.2 19 52.2 M14 1.62
UEFL208-25 1-9/16 175 144 21 15 36 16 100 50.2 19 52.2 M14 1.62
UEFL209 45 188 148 22 16 38 19 108 50.2 19 53.2 M16 2.02
UEFL209-26 1-5/8 188 148 22 16 38 19 108 50.2 19 53.2 M16 2.02
UEFL209-27 1-11/16 188 148 22 16 38 19 108 50.2 19 53.2 M16 2.02
UEFL209-28 1-3/4 188 148 22 16 38 19 108 50.2 19 53.2 M16 2.02
UEFL210 50 197 157 22 16 40 19 115 52.6 19 55.6 M16 2.27
UEFL210-30 1-7/8 197 157 22 16 40 19 115 52.6 19 55.6 M16 2.27
UEFL210-31 1-15/16 197 157 22 16 40 19 115 52.6 19 55.6 M16 2.27
UEFL210-32 2 197 157 22 16 40 19 115 52.6 19 55.6 M16 2.27
UEFL211 55 224 184 25 18 43 19 125 56.6 22.2 59.4 M16 3.34
UEFL211-32 2 224 184 25 18 43 19 125 56.6 22.2 59.4 M16 3.34
UEFL211-34 2-1/8 224 184 25 18 43 19 125 56.6 22.2 59.4 M16 3.34
UEFL211-35 2-3/16 224 184 25 18 43 19 125 56.6 22.2 59.4 M16 3.34
UEFL212 60 250 202 29 18 48 23 140 66.6 25.4 70.2 M20 4.3
UEFL212-36 2-1/4 250 202 29 18 48 23 140 66.6 25.4 70.2 M20 4.3
UEFL212-38 2-3/8 250 202 29 18 48 23 140 66.6 25.4 70.2 M20 4.3
UEFL212-39 2-7/16 250 202 29 18 48 23 140 66.6 25.4 70.2 M20 4.3

Unit No. Shaft Dia Dimensions (mm) Bolt Size (mm) Weight
d H J A2 A1 A N L S1 z (kg)
(in) (mm)
UKFL205+H2305 20 130 99 16 13 27 16 68 18.5 34.5 M14 0.6
UKFL205+HE2305 3/4 130 99 16 13 27 16 68 18.5 34.5 M14 0.6
UKFL206+H2306 25 148 117 18 13 31 16 80 20.5 38.5 M14 0.96
UKFL206+HS2306 7/8 148 117 18 13 31 16 80 20.5 38.5 M14 0.96
UKFL206+HA2306 15/16 148 117 18 13 31 16 80 20.5 38.5 M14 0.96
UKFL206+HE2306 1 148 117 18 13 31 16 80 20.5 38.5 M14 0.96
UKFL207+H2307 30 160 130 19 15 34 16 90 22.5 41.5 M14 1.3
UKFL207+HS2307 1-1/8 160 130 19 15 34 16 90 22.5 41.5 M14 1.3
UKFL207+HA2307 1-3/16 160 130 19 15 34 16 90 22.5 41.5 M14 1.3
UKFL208+H2308 35 175 144 21 15 36 16 100 24.5 45.5 M14 1.6
UKFL208+HE2308 1-1/4 175 144 21 15 36 16 100 24.5 45.5 M14 1.6
UKFL208+HS2308 1-3/8 175 144 21 15 36 16 100 24.5 45.5 M14 1.6
UKFL209+H2309 40 188 148 22 16 38 19 108 26 48 M16 2
UKFL209+HA2309 1-7/16 188 148 22 16 38 19 108 26 48 M16 2
UKFL209+HE2309 1-1/2 188 148 22 16 38 19 108 26 48 M16 2
UKFL210+H2310 45 197 157 22 16 40 19 115 27.5 49.5 M16 2.3
UKFL210+HS2310 1-5/8 197 157 22 16 40 19 115 27.5 49.5 M16 2.3
UKFL210+HA2310 1-11/16 197 157 22 16 40 19 115 27.5 49.5 M16 2.3
UKFL210+HE2310 1-3/4 197 157 22 16 40 19 115 27.5 49.5 M16 2.3
UKFL211+H2311 50 224 184 25 18 43 19 125 28.5 53.5 M16 3.3
UKFL211+HS2311 1-7/8 224 184 25 18 43 19 125 28.5 53.5 M16 3.3
UKFL211+HA2311 1-15/16 224 184 25 18 43 19 125 28.5 53.5 M16 3.3
UKFL211+HE2311 2 224 184 25 18 43 19 125 28.5 53.5 M16 3.3
UKFL212+H2312 55 250 202 29 18 48 23 140 31 60 M20 4
UKFL212+HS2312 2-1/8 250 202 29 18 48 23 140 31 60 M20 4
UKFL213+H2313 60 258 210 30 22 50 23 155 32 62 M20 5.1
UKFL213+HA2313 2-3/16 258 210 30 22 50 23 155 32 62 M20 5.1
UKFL213+HE2313 2-1/4 258 210 30 22 50 23 155 32 62 M20 5.1
UKFL213+HS2313 2-3/8 258 210 30 22 50 23 155 32 62 M20 5.1
UKFL215+H2315 65 275 225 34 22 56 23 165 35.5 69.5 M20 6.4
UKFL215+HA2315 2-7/16 275 225 34 22 56 23 165 35.5 69.5 M20 6.4
UKFL215+HE2315 2-1/2 275 225 34 22 56 23 165 35.5 69.5 M20 6.4
UKFL216+H2316 70 290 233 34 22 58 25 180 39 73 M22 8
UKFL216+HA2316 2-11/16 290 233 34 22 58 25 180 39 73 M22 8
UKFL216+HE2316 2-3/4 290 233 34 22 58 25 180 39 73 M22 8

Unit No. Shaft Dia Dimensions (mm) Bolt Size Weight
d H J A2 A1 A N L B s z (mm) (in) (kg)
(in) (mm)
UCFLX05 25 141 117 18 13 30 12 83 38.1 15.9 40.2 M14 3/8 1
UCFLX05-13 13/16 141 117 18 13 30 12 83 38.1 15.9 40.2 M14 3/8 1
UCFLX05-14 7/8 141 117 18 13 30 12 83 38.1 15.9 40.2 M14 3/8 1
UCFLX05-15 15/16 141 117 18 13 30 12 83 38.1 15.9 40.2 M14 3/8 1
UCFLX05-16 1 141 117 18 13 30 12 83 38.1 15.9 40.2 M14 3/8 1
UCFLX06 30 156 130 19 15 34 16 95 42.9 17.5 44.4 M14 1/2 1.5
UCFLX06-17 1-1/16 156 130 19 15 34 16 95 42.9 17.5 44.4 M14 1/2 1.5
UCFLX06-18 1-1/8 156 130 19 15 34 16 95 42.9 17.5 44.4 M14 1/2 1.5
UCFLX06-19 1-3/16 156 130 19 15 34 16 95 42.9 17.5 44.4 M14 1/2 1.5
UCFLX06-20 1-1/4 156 130 19 15 34 16 95 42.9 17.5 44.4 M14 1/2 1.5
UCFLX07 35 171 144 21 16 38 16 105 49.2 19 51.2 M14 1/2 2
UCFLX07-21 1-5/16 171 144 21 16 38 16 105 49.2 19 51.2 M14 1/2 2
UCFLX07-22 1-3/8 171 144 21 16 38 16 105 49.2 19 51.2 M14 1/2 2
UCFLX07-23 1-7/16 171 144 21 16 38 16 105 49.2 19 51.2 M14 1/2 2
UCFLX08 40 179 148 22 16 40 16 111 49.2 19 52.2 M14 1/2 2.2
UCFLX08-24 1-1/2 179 148 22 16 40 16 111 49.2 19 52.2 M14 1/2 2.2
UCFLX08-25 1-9/16 179 148 22 16 40 16 111 49.2 19 52.2 M14 1/2 2.2
UCFLX09 45 189 157 23 16 40 16 116 51.6 19 55.6 M16 1/2 2.4
UCFLX09-26 1-5/8 189 157 23 16 40 16 116 51.6 19 55.6 M16 1/2 2.4
UCFLX09-27 1-11/16 189 157 23 16 40 16 116 51.6 19 55.6 M16 1/2 2.4
UCFLX09-28 1-3/4 189 157 23 16 40 16 116 51.6 19 55.6 M16 1/2 2.4
UCFLX09-29 1-13/16 189 157 23 16 40 16 116 51.6 19 55.6 M16 1/2 2.4
UCFLX10 50 216 184 26 18 44 19 133 55.6 22.2 59.4 M16 5/8 3.4
UCFLX10-30 1-7/8 216 184 26 18 44 19 133 55.6 22.2 59.4 M16 5/8 3.4
UCFLX10-31 1-15/16 216 184 26 18 44 19 133 55.6 22.2 59.4 M16 5/8 3.4
UCFLX10-32 2 216 184 26 18 44 19 133 55.6 22.2 59.4 M16 5/8 3.4

Unit No. Shaft Dia Dimensions(mm) Bolt size (mm) Weight (kg)
H J A2 A1 A N L B s Z
UCFL305 25 150 113 16 13 29 19 80 38 15 39 M16 1.1
UCFL306 30 180 134 18 15 32 23 90 43 17 44 M20 1.6
UCFL307 35 185 141 20 16 36 23 100 48 19 49 M20 2
UCFL308 40 200 158 23 17 40 23 112 52 19 56 M20 2.6
UCFL309 45 230 177 25 18 44 25 125 57 22 60 M22 3.63
UCFL310 50 240 187 28 19 48 25 140 61 22 67 M22 4.6
UCFL311 55 250 198 30 20 52 25 150 66 25 71 M22 5.3
UCFL312 60 270 212 33 22 56 31 160 71 26 78 M27 6.4
UCFL313 65 295 240 33 25 58 31 175 75 30 78 M27 8.2
UCFL314 70 315 250 36 28 61 35 185 78 33 81 M30 10
UCFL315 75 320 260 39 30 66 35 195 82 32 89 M30 11
UCFL316 80 355 285 38 32 68 38 210 86 34 90 M33 14.3
UCFL317 85 370 300 44 32 74 38 220 96 40 100 M33 16.2
UCFL318 90 385 315 44 36 76 38 235 96 40 100 M33 19.2
UCFL319 95 405 330 59 40 94 41 250 103 41 121 M36 21.8
UCFL320 100 440 360 59 40 94 44 270 108 42 125 M39 26.5
UCFL321 105 440 360 59 40 94 44 270 112 44 127 M39 28.2
UCFL322 110 470 390 60 42 96 44 300 117 46 131 M39 33.1
UCFL324 120 520 430 65 48 110 47 330 126 51 140 M42 45.7
UCFL326 130 550 460 65 50 115 47 360 135 54 146 M42 57.5
UCFL328 140 600 500 75 60 125 51 400 145 59 161 M45 79.7

Unit No. Shaft Dia Dimensions (mm) Bolt Size (mm) Weight
d H J L A2 A1 A N B1 S Z (kg)
(in) (mm)
NAFLU201S 12 99 76.5 57 15 11 24.5 11.5 37.3 13.9 38.4 M10 0.66
NAFLU201-8S 1/2 99 76.5 57 15 11 24.5 11.5 37.3 13.9 38.4 M10 0.66
NAFLU202S 15 99 76.5 57 15 11 24.5 11.5 37.3 13.9 38.4 M10 0.66
NAFLU202-10S 5/8 99 76.5 57 15 11 24.5 11.5 37.3 13.9 38.4 M10 0.66
NAFLU203S 17 99 76.5 57 15 11 24.5 11.5 37.3 13.9 38.4 M10 0.66
NAFLU203-11S 11/16 99 76.5 57 15 11 24.5 11.5 37.3 13.9 38.4 M10 0.66
NAFLU201 12 112.5 90 61 19 15 29.5 11.5 43.7 17 45.5 M10 0.73
NAFLU201-8 1/2 112.5 90 61 19 15 29.5 11.5 43.7 17 45.5 M10 0.73
NAFLU202 15 112.5 90 61 19 15 29.5 11.5 43.7 17 45.5 M10 0.73
NAFLU202-10 5/8 112.5 90 61 19 15 29.5 11.5 43.7 17 45.5 M10 0.73
NAFLU203 17 112.5 90 61 19 15 29.5 11.5 43.7 17 45.5 M10 0.73
NAFLU203-11 11/16 112.5 90 61 19 15 29.5 11.5 43.7 17 45.5 M10 0.73
NAFLU204 20 112.5 90 61 19 15 29.5 11.5 43.7 17 45.5 M10 0.73
NAFLU204-12 3/4 112.5 90 61 19 15 29.5 11.5 43.7 17 45.5 M10 0.73
NAFLU205 25 123 99 70 19 15 30 11.5 44.4 17.4 45.9 M10 0.8
NAFLU205-14 7/8 123 99 70 19 15 30 11.5 44.4 17.4 45.9 M10 0.8
NAFLU205-15 15/16 123 99 70 19 15 30 11.5 44.4 17.4 45.9 M10 0.8
NAFLU205-16 1 123 99 70 19 15 30 11.5 44.4 17.4 45.9 M10 0.8
NAFLU206 30 142 116.5 82 20 13 32.5 11.5 48.4 18.2 50.1 M10 1.2
NAFLU206-18 1-1/8 142 116.5 82 20 13 32.5 11.5 48.4 18.2 50.1 M10 1.2
NAFLU206-19 1-3/16 142 116.5 82 20 13 32.5 11.5 48.4 18.2 50.1 M10 1.2
NAFLU206-20 1-1/4 142 116.5 82 20 13 32.5 11.5 48.4 18.2 50.1 M10 1.2
NAFLU207 35 158 130 94 21 17 36 14 51.1 18.8 53.3 M12 1.6
NAFLU207-20 1-1/4 158 130 94 21 17 36 14 51.1 18.8 53.3 M12 1.6
NAFLU207-21 1-5/16 158 130 94 21 17 36 14 51.1 18.8 53.3 M12 1.6
NAFLU207-22 1-3/16 158 130 94 21 17 36 14 51.1 18.8 53.3 M12 1.6
NAFLU207-23 1-7/16 158 130 94 21 17 36 14 51.1 18.8 53.3 M12 1.6
NAFLU208 40 172 143.5 103 24 17 39 14 56.3 21.4 58.9 M12 1.9
NAFLU208-24 1-1/2 172 143.5 103 24 17 39 14 56.3 21.4 58.9 M12 1.9
NAFLU208-25 1-9/16 172 143.5 103 24 17 39 14 56.3 21.4 58.9 M12 1.9
NAFLU209 45 180 148.5 108 24 18 40 16 56.3 21.4 58.9 M14 2.3
NAFLU209-26 1-5/8 180 148.5 108 24 18 40 16 56.3 21.4 58.9 M14 2.3
NAFLU209-27 1-11/16 180 148.5 108 24 18 40 16 56.3 21.4 58.9 M14 2.3
NAFLU209-28 1-3/4 180 148.5 108 24 18 40 16 56.3 21.4 58.9 M14 2.3
NAFLU210 50 190 157 114 28 20 45 18 62.7 24.6 66.1 M16 2.6
NAFLU210-30 1-7/8 190 157 114 28 20 45 18 62.7 24.6 66.1 M16 2.6
NAFLU210-31 1-15/16 190 157 114 28 20 45 18 62.7 24.6 66.1 M16 2.6
NAFLU210-32 2 190 157 114 28 20 45 18 62.7 24.6 66.1 M16 2.6
NAFLU211 55 217 184 128 31 21 48 18 71.4 27.7 74.6 M16 3.8
NAFLU211-32 2 217 184 128 31 21 48 18 71.4 27.7 74.6 M16 3.8
NAFLU211-34 2-1/8 217 184 128 31 21 48 18 71.4 27.7 74.6 M16 3.8
NAFLU211-35 2-3/16 217 184 128 31 21 48 18 71.4 27.7 74.6 M16 3.8
NAFLU212 60 237 202 138 34 21 53 18 77.8 30.9 80.8 M16 4.8
NAFLU212-36 2-1/4 237 202 138 34 21 53 18 77.8 30.9 80.8 M16 4.8
NAFLU212-38 2-3/8 237 202 138 34 21 53 18 77.8 30.9 80.8 M16 4.8
NAFLU212-39 2-7/16 237 202 138 34 21 53 18 77.8 30.9 80.8 M16 4.8
NAFLU213 65 256 210 152 38 22 56 21 85.7 34.1 89.6 M18 6
NAFLU213-40 2-1/2 256 210 152 38 22 56 21 85.7 34.1 89.6 M18 6
NAFLU214 70 264 216 157 38 23 58 21 85.7 34.1 89.6 M18 6.3
NAFLU214-44 2-3/4 264 216 157 38 23 58 21 85.7 34.1 89.6 M18 6.3
NAFLU215 75 275 225 164 41 24 62 21 92.1 37.3 95.8 M18 7.2
NAFLU215-47 2-15/16 275 225 164 41 24 62 21 92.1 37.3 95.8 M18 7.2
NAFLU215-48 3 275 225 164 41 24 62 21 92.1 37.3 95.8 M18 7.2

Unit No. Shaft Dia Dimensions (mm) Boit Size (mm) Weight (kg)
d H J A2 A1 A N L B s z
(in) (mm)
UCFT201 12 99 76.2 15.1 11 25 10.5 54 27.4 11.5 31 M8 0.4
UCFT201-8 1/2 99 76.2 15.1 11 25 10.5 54 27.4 11.5 31 M8 0.4
UCFT202 15 99 76.2 15.1 11 25 10.5 54 27.4 11.5 31 M8 0.4
UCFT202-9 9/16 99 76.2 15.1 11 25 10.5 54 27.4 11.5 31 M8 0.4
UCFT202-10 5/8 99 76.2 15.1 11 25 10.5 54 27.4 11.5 31 M8 0.4
UCFT203 17 99 76.2 15.1 11 25 10.5 54 27.4 11.5 31 M8 0.4
UCFT203-11 11/16 99 76.2 15.1 11 25 10.5 54 27.4 11.5 31 M8 0.4
UCFT204 20 112 89.7 14.3 11 25 10.5 60 31 12.7 32.6 M8 0.45
UCFT204-12 3/4 112 89.7 14.3 11 25 10.5 60 31 12.7 32.6 M8 0.45
UCFT205 25 124 98.8 15.9 13 27 12.5 70 34.1 14.3 35.6 M10 0.66
UCFT205-13 13/16 124 98.8 15.9 13 27 12.5 70 34.1 14.3 35.6 M10 0.66
UCFT205-14 7/8 124 98.8 15.9 13 27 12.5 70 34.1 14.3 35.6 M10 0.66
UCFT205-15 15/16 124 98.8 15.9 13 27 12.5 70 34.1 14.3 35.6 M10 0.66
UCFT205-16 1 124 98.8 15.9 13 27 12.5 70 34.1 14.3 35.6 M10 0.66
UCFT206 30 141 116.7 17.9 13 30 12.5 83 38.1 15.9 40.1 M10 0.86
UCFT206-17 1-1/16 141 116.7 17.9 13 30 12.5 83 38.1 15.9 40.1 M10 0.86
UCFT206-18 1-1/8 141 116.7 17.9 13 30 12.5 83 38.1 15.9 40.1 M10 0.86
UCFT206-19 1-3/16 141 116.7 17.9 13 30 12.5 83 38.1 15.9 40.1 M10 0.86
UCFT206-20 1-1/4 141 116.7 17.9 13 30 12.5 83 38.1 15.9 40.1 M10 0.86
UCFT207 35 156 130.2 19.1 14 34 14 95 42.9 17.5 44.5 M12 1.31
UCFT207-20 1-1/4 156 130.2 19.1 14 34 14 95 42.9 17.5 44.5 M12 1.31
UCFT207-21 1-5/6 156 130.2 19.1 14 34 14 95 42.9 17.5 44.5 M12 1.31
UCFT207-22 1-3/8 156 130.2 19.1 14 34 14 95 42.9 17.5 44.5 M12 1.31
UCFT207-23 1-7/16 156 130.2 19.1 14 34 14 95 42.9 17.5 44.5 M12 1.31
UCFT208 40 171 143.7 21 14 38 14 105 49.2 19 51.2 M12 1.53
UCFT208-24 1-1/2 171 143.7 21 14 38 14 105 49.2 19 51.2 M12 1.53
UCFT208-25 1-9/16 171 143.7 21 14 38 14 105 49.2 19 51.2 M12 1.53
UCFT209 45 179 148.4 21.8 14 40 16 111 49.2 19 52 M14 1.73
UCFT209-26 1-5/8 179 148.4 21.8 14 40 16 111 49.2 19 52 M14 1.73
UCFT209-27 1-11/16 179 148.4 21.8 14 40 16 111 49.2 19 52 M14 1.73
UCFT209-28 1-3/4 179 148.4 21.8 14 40 16 111 49.2 19 52 M14 1.73
UCFT210 50 189 157.2 22.2 14 40 16 116 51.6 19 54.8 M14 2.28
UCFT210-29 1-13/16 189 157.2 22.2 14 40 16 116 51.6 19 54.8 M14 2.28
UCFT210-30 1-7/8 189 157.2 22.2 14 40 16 116 51.6 19 54.8 M14 2.28
UCFT210-31 1-15/16 189 157.2 22.2 14 40 16 116 51.6 19 54.8 M14 2.28
UCFT210-32 2 189 157.2 22.2 14 40 16 116 51.6 19 54.8 M14 2.28
UCFT211 55 216 184.2 25.4 21 44 18 133 55.6 22.2 58.8 M16 2.72
UCFT211-32 2 216 184.2 25.4 21 44 18 133 55.6 22.2 58.8 M16 2.72
UCFT211-33 2-1/16 216 184.2 25.4 21 44 18 133 55.6 22.2 58.8 M16 2.72
UCFT211-34 2-1/8 216 184.2 25.4 21 44 18 133 55.6 22.2 58.8 M16 2.72
UCFT211-35 2-3/16 216 184.2 25.4 21 44 18 133 55.6 22.2 58.8 M16 2.72

Unit No. Shaft Dia Dimensions (mm) Boit Size (mm) Weight (kg)
d H J A2 A1 A N L B1 S Z
(in) (mm)
UEFT204 20 112 89.7 14.3 11 25 10.5 60 33 12.7 34.6 M8 0.51
UEFT204-12 3/4 112 89.7 14.3 11 25 10.5 60 33 12.7 34.6 M8 0.51
UEFT205 25 124 98.8 15.9 13 27 12.5 70 35.4 14.3 36.9 M10 0.72
UEFT205-13 13/16 124 98.8 15.9 13 27 12.5 70 35.4 14.3 36.9 M10 0.72
UEFT205-14 7/8 124 98.8 15.9 13 27 12.5 70 35.4 14.3 36.9 M10 0.72
UEFT205-15 15/16 124 98.8 15.9 13 27 12.5 70 35.4 14.3 36.9 M10 0.72
UEFT205-16 1 124 98.8 15.9 13 27 12.5 70 35.4 14.3 36.9 M10 0.72
UEFT206 30 141 116.7 17.9 13 30 12.5 83 39.8 15.9 41.8 M10 1.04
UEFT206-17 1-1/16 141 116.7 17.9 13 30 12.5 83 39.8 15.9 41.8 M10 1.04
UEFT206-18 1-1/8 141 116.7 17.9 13 30 12.5 83 39.8 15.9 41.8 M10 1.04
UEFT206-19 1-3/16 141 116.7 17.9 13 30 12.5 83 39.8 15.9 41.8 M10 1.04
UEFT206-20 1-1/4 141 116.7 17.9 13 30 12.5 83 39.8 15.9 41.8 M10 1.04
UEFT207 35 156 130.2 19.1 14 34 14 95 43.9 17.5 45.5 M12 1.48
UEFT207-20 1-1/4 156 130.2 19.1 14 34 14 95 43.9 17.5 45.5 M12 1.48
UEFT207-21 1-5/6 156 130.2 19.1 14 34 14 95 43.9 17.5 45.5 M12 1.48
UEFT207-22 1-3/8 156 130.2 19.1 14 34 14 95 43.9 17.5 45.5 M12 1.48
UEFT207-23 1-7/16 156 130.2 19.1 14 34 14 95 43.9 17.5 45.5 M12 1.48
UEFT208 40 171 143.7 21 14 38 14 105 50.2 19 52.2 M12 1.86
UEFT208-24 1-1/2 171 143.7 21 14 38 14 105 50.2 19 52.2 M12 1.86
UEFT208-25 1-9/16 171 143.7 21 14 38 14 105 50.2 19 52.2 M12 1.86
UEFT209 45 179 148.4 21.8 14 40 16 111 50.2 19 53 M14 2.14
UEFT209-26 1-5/8 179 148.4 21.8 14 40 16 111 50.2 19 53 M14 2.14
UEFT209-27 1-11/16 179 148.4 21.8 14 40 16 111 50.2 19 53 M14 2.14
UEFT209-28 1-3/4 179 148.4 21.8 14 40 16 111 50.2 19 53 M14 2.14
UEFT210 50 189 157.2 22.2 14 40 16 116 52.6 19 55.8 M14 2.26
UEFT210-29 1-13/16 189 157.2 22.2 14 40 16 116 52.6 19 55.8 M14 2.26
UEFT210-30 1-7/8 189 157.2 22.2 14 40 16 116 52.6 19 55.8 M14 2.26
UEFT210-31 1-15/16 189 157.2 22.2 14 40 16 116 52.6 19 55.8 M14 2.26
UEFT210-32 2 189 157.2 22.2 14 40 16 116 52.6 19 55.8 M14 2.26
UEFT211 55 216 184.2 25.4 21 44 18 133 56.6 22.2 59.8 M16 3.31
UEFT211-32 2 216 184.2 25.4 21 44 18 133 56.6 22.2 59.8 M16 3.31
UEFT211-33 2-1/16 216 184.2 25.4 21 44 18 133 56.6 22.2 59.8 M16 3.31
UEFT211-34 2-1/8 216 184.2 25.4 21 44 18 133 56.6 22.2 59.8 M16 3.31
UEFT211-35 2-3/16 216 184.2 25.4 21 44 18 133 56.6 22.2 59.8 M16 3.31

Unit No. Shaft Dia Dimensions(mm) Bolt Size (mm) Weight

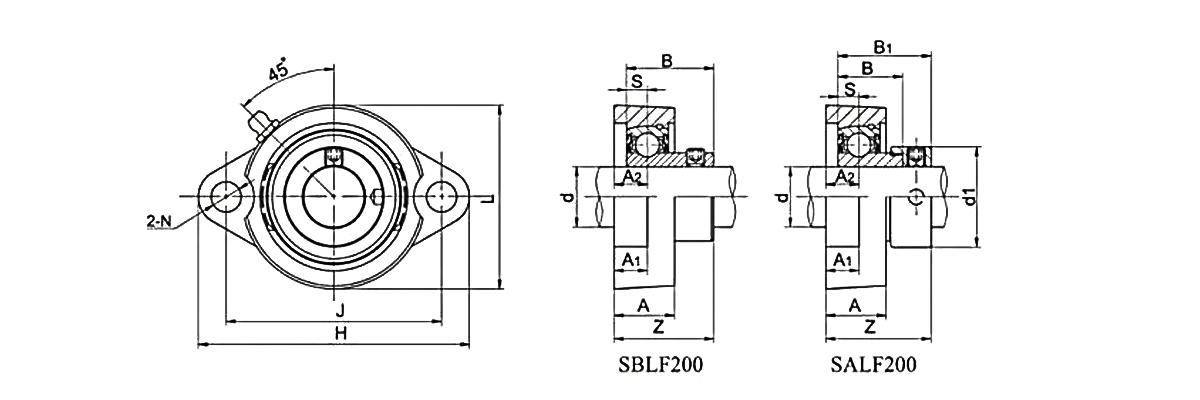

d H J A2 A1 A N L B s z (kg)
(in) (mm)
SBLF201 12 81 63.5 9.5 9.5 18 8 56 22 6 25.5 M6 0.27
SBLF201-8 1/2 81 63.5 9.5 9.5 18 8 56 22 6 25.5 M6 0.27
SBLF202 15 81 63.5 9.5 9.5 18 8 56 22 6 25.5 M6 0.25
SBLF202-9 9/16 81 63.5 9.5 9.5 18 8 56 22 6 25.5 M6 0.25
SBLF202-10 5/8 81 63.5 9.5 9.5 18 8 56 22 6 25.5 M6 0.25
SBLF203 17 81 63.5 9.5 9.5 18 8 56 22 6 25.5 M6 0.25
SBLF203-11 11/16 81 63.5 9.5 9.5 18 8 56 22 6 25.5 M6 0.25
SBLF204 20 90 71.5 11 11 20 10 61 25 7 29 M8 0.33
SBLF204-12 3/4 90 71.5 11 11 20 10 61 25 7 29 M8 0.33
SBLF205 25 95 76 11 11 20 10 64 27 7.5 30.5 M8 0.38
SBLF205-14 7/8 95 76 11 11 20 10 64 27 7.5 30.5 M8 0.38
SBLF205-15 15/16 95 76 11 11 20 10 64 27 7.5 30.5 M8 0.38
SBLF205-16 1 95 76 11 11 20 10 64 27 7.5 30.5 M8 0.38
SBLF206 30 113 90.5 12 12 22.5 12 76 30 8 34 M10 0.56
SBLF206-17 1-11/16 113 90.5 12 12 22.5 12 76 30 8 34 M10 0.56
SBLF206-18 1-1/8 113 90.5 12 12 22.5 12 76 30 8 34 M10 0.56
SBLF206-19 1-3/16 113 90.5 12 12 22.5 12 76 30 8 34 M10 0.56
SBLF206-20 1-1/4 113 90.5 12 12 22.5 12 76 30 8 34 M10 0.56
SBLF207 35 122 100 13 13 24 12 89 32 8.5 36.5 M10 0.8
SBLF207-20 1-1/4 122 100 13 13 24 12 89 32 8.5 36.5 M10 0.8
SBLF207-21 1-5/16 122 100 13 13 24 12 89 32 8.5 36.5 M10 0.8
SBLF207-22 1-3/8 122 100 13 13 24 12 89 32 8.5 36.5 M10 0.8
SBLF207-23 1-7/16 122 100 13 13 24 12 89 32 8.5 36.5 M10 0.8
SBLF208 40 150 119 13.5 13 25 14 106 34 9 38.5 M12 1.48
SBLF208-24 1-1/2 150 119 13.5 13 25 14 106 34 9 38.5 M12 1.48
SBLF208-25 1-9/16 150 119 13.5 13 25 14 106 34 9 38.5 M12 1.48

Unit No. Shaft Dia Dimensions(mm) Bolt Size (mm) Weight (kg)
d H J A2 A1 A N L B1 B s Z d1
(in) (mm)
SALF201 12 81 63.5 9.5 9.5 18 8 56 28.6 19.1 6 32.1 28.6 M6 0.28
SALF201-8 1/2 81 63.5 9.5 9.5 18 8 56 28.6 19.1 6 32.1 28.6 M6 0.28
SALF202 15 81 63.5 9.5 9.5 18 8 56 28.6 19.1 6 32.1 28.6 MS 0.28
SALF202-9 9/16 81 63.5 9.5 9.5 18 8 56 28.6 19.1 6 32.1 28.6 MS 0.28
SALF202-10 5/8 81 63.5 9.5 9.5 18 8 56 28.6 19.1 6 32.1 28.6 MS 0.28
SALF203 17 81 63.5 9.5 9.5 18 8 56 28.6 19.1 6 32.1 28.6 M6 0.28
SALF203-11 11/16 81 63.5 9.5 9.5 18 8 56 28.6 19.1 6 32.1 28.6 M6 0.28
SALF204 20 90 71.5 11 11 20 10 61 31 21.5 7 35 33.3 M8 0.33
SALF204-12 3/4 90 71.5 11 11 20 10 61 31 21.5 7 35 33.3 M8 0.33
SALF205 25 95 76 11 11 20 10 64 31.5 22 7.5 35 38.1 M8 0.42
SALF205-14 7/8 95 76 11 11 20 10 64 31.5 22 7.5 35 38.1 M8 0.42
SALF205-15 15/16 95 76 11 11 20 10 64 31.5 22 7.5 35 38.1 M8 0.42
SALF205-16 1 95 76 11 11 20 10 64 31.5 22 7.5 35 38.1 M8 0.42
SALF206 30 113 90.5 12 12 22.5 12 76 35.7 23.8 8 39.7 44.5 M10 0.6
SALF206-17 1-11/16 113 90.5 12 12 22.5 12 76 35.7 23.8 8 39.7 44.5 M10 0.6
SALF206-18 1-1/8 113 90.5 12 12 22.5 12 76 35.7 23.8 8 39.7 44.5 M10 0.6
SALF206-19 1-3/16 113 90.5 12 12 22.5 12 76 35.7 23.8 8 39.7 44.5 M10 0.6
SALF206-20 1-1/4 113 90.5 12 12 22.5 12 76 35.7 23.8 8 39.7 44.5 M10 0.6
SALF207 35 122 100 13 13 24 12 89 38.9 25.4 8.5 43.4 55.6 M10 0.85
SALF207-20 1-1/4 122 100 13 13 24 12 89 38.9 25.4 8.5 43.4 55.6 M10 0.85
SALF207-21 1-5/16 122 100 13 13 24 12 89 38.9 25.4 8.5 43.4 55.6 M10 0.85
SALF207-22 1-3/8 122 100 13 13 24 12 89 38.9 25.4 8.5 43.4 55.6 M10 0.85
SALF207-23 1-7/16 122 100 13 13 24 12 89 38.9 25.4 8.5 43.4 55.6 M10 0.85
SALF208 40 150 119 13.5 13 25 14 106 43.7 30.2 9 48.2 60.3 M12 1.48
SALF208-24 1-1/2 150 119 13.5 13 25 14 106 43.7 30.2 9 48.2 60.3 M12 1.48
SALF208-25 1-9/16 150 119 13.5 13 25 14 106 43.7 30.2 9 48.2 60.3 M12 1.48

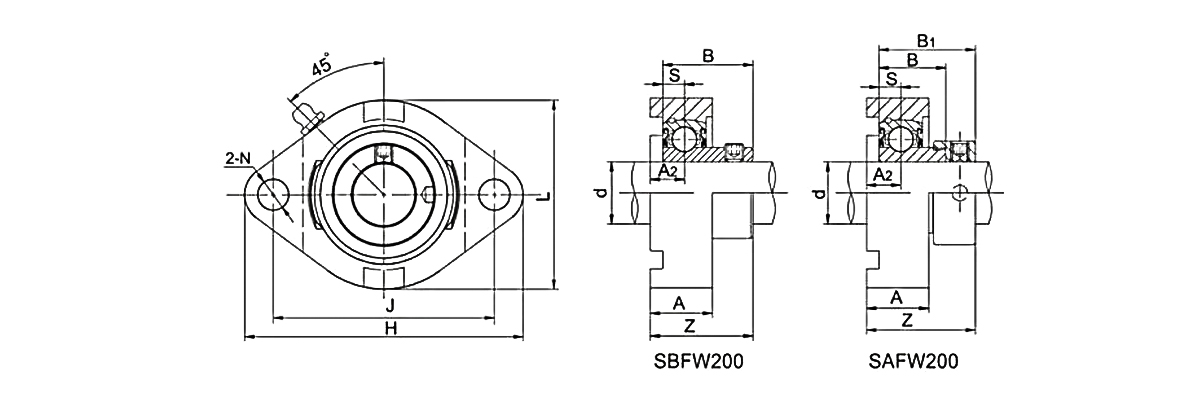

Unit No. Shaft Dia Dimensions) mm) Bolt Size (mm) Weight (kg)
d H J A2 A N L B S z
(in) (mm)
SBFW201 12 81 63.5 8.5 15 7 59 22 6 24.5 M6 0.28
SBFW201-8 1/2 81 63.5 8.5 15 7 59 22 6 24.5 M6 0.28
SBFW202 15 81 63.5 8.5 15 7 59 22 6 24.5 M6 0.27
SBFW202-9 9/16 81 63.5 8.5 15 7 59 22 6 24.5 M6 0.27
SBFW202-10 5/8 81 63.5 8.5 15 7 59 22 6 24.5 M6 0.27
SBFW203 17 81 63.5 8.5 15 7 59 22 6 24.5 M6 0.26
SBFW203-11 11/16 81 63.5 8.5 15 7 59 22 6 24.5 M6 0.26
SBFW204 20 90 71 9.5 17 9 67 25 7 27.5 M8 0.37
SBFW204-12 3/4 90 71 9.5 17 9 67 25 7 27.5 M8 0.37
SBFW205 25 95 76 9.5 17.5 9 71 27 7.5 29 M8 0.44
SBFW205-14 7/8 95 76 9.5 17.5 9 71 27 7.5 29 M8 0.44
SBFW205-15 15/16 95 76 9.5 17.5 9 71 27 7.5 29 M8 0.44
SBFW205-16 1 95 76 9.5 17.5 9 71 27 7.5 29 M8 0.44
SBFW206 30 113 90 12 20.5 12 84 30 8 34 M10 0.7
SBFW206-17 1-1/16 113 90 12 20.5 12 84 30 8 34 M10 0.7
SBFW206-18 1-1/8 113 90 12 20.5 12 84 30 8 34 M10 0.7
SBFW206-19 1-3/16 113 90 12 20.5 12 84 30 8 34 M10 0.7
SBFW206-20 1-1/4 113 90 12 20.5 12 84 30 8 34 M10 0.7
SBFW207 35 125 100 12.5 22 12 93 32 8.5 36 M10 0.91
SBFW207-20 1-1/4 125 100 12.5 22 12 93 32 8.5 36 M10 0.91
SBFW207-21 1-5/16 125 100 12.5 22 12 93 32 8.5 36 M10 0.91
SBFW207-22 1-3/8 125 100 12.5 22 12 93 32 8.5 36 M10 0.91
SBFW207-23 1-7/16 125 100 12.5 22 12 93 32 8.5 36 M10 0.91
SBFW208 40 148 119 14.5 25 13.5 104 34 9 39.9 M12 1.2
SBFW208-24 1-1/2 148 119 14.5 25 13.5 104 34 9 39.9 M12 1.2
SBFW208-25 1-9/16 148 119 14.5 25 13.5 104 34 9 39.9 M12 1.2

Unit No. Shaft Dia Dimensions(mm) Bolt Size (mm) Weight (kg)
d H J A2 A N L B1 B S Z
(in) (mm)
SAFW201 12 81 63.5 8.5 15 7 59 28.6 19.1 6 31.1 M6 0.28
SAFW201-8 1/2 81 63.5 8.5 15 7 59 28.6 19.1 6 31.1 M6 0.28
SAFW202 15 81 63.5 8.5 15 7 59 28.6 19.1 6 31.1 M6 0.27
SAFW202-9 9/16 81 63.5 8.5 15 7 59 28.6 19.1 6 31.1 M6 0.27
SAFW202-10 5/8 81 63.5 8.5 15 7 59 28.6 19.1 6 31.1 M6 0.27
SAFW203 17 81 63.5 8.5 15 7 59 28.6 22 6 31.1 M6 0.26
SAFW203-11 11/16 81 63.5 8.5 15 7 59 28.6 22 6 31.1 M6 0.26
SAFW204 20 90 71 9.5 17 9 67 31 21.5 7 33.5 M8 0.37
SAFW204-12 3/4 90 71 9.5 17 9 67 31 21.5 7 33.5 M8 0.37
SAFW205 25 95 76 9.5 17.5 9 71 31.5 22 7.5 33.5 M8 0.44
SAFW205-14 7/8 95 76 9.5 17.5 9 71 31.5 22 7.5 33.5 M8 0.44
SAFW205-15 15/16 95 76 9.5 17.5 9 71 31.5 22 7.5 33.5 M8 0.44
SAFW205-16 1 95 76 9.5 17.5 9 71 31.5 22 7.5 33.5 M8 0.44
SAFW206 30 113 90 12 20.5 12 84 35.7 23.8 8 39.7 M10 0.7
SAFW206-17 1-1/16 113 90 12 20.5 12 84 35.7 23.8 8 39.7 M10 0.7
SAFW206-18 1-1/8 113 90 12 20.5 12 84 35.7 23.8 8 39.7 M10 0.7
SAFW206-19 1-3/16 113 90 12 20.5 12 84 35.7 23.8 8 39.7 M10 0.7
SAFW206-20 1-1/4 113 90 12 20.5 12 84 35.7 23.8 8 39.7 M10 0.7
SAFW207 35 125 100 12.5 22 12 93 38.9 25.4 8.5 42.9 M10 0.91
SAFW207-20 1-1/4 125 100 12.5 22 12 93 38.9 25.4 8.5 42.9 M10 0.91
SAFW207-21 1-5/16 125 100 12.5 22 12 93 38.9 25.4 8.5 42.9 M10 0.91
SAFW207-22 1-3/8 125 100 12.5 22 12 93 38.9 25.4 8.5 42.9 M10 0.91
SAFW207-23 1-7/16 125 100 12.5 22 12 93 38.9 25.4 8.5 42.9 M10 0.91
SAFW208 40 148 119 14.5 25 13.5 104 43.7 30.2 9 49.2 M12 1.2
SAFW208-24 1-1/2 148 119 14.5 25 13.5 104 43.7 30.2 9 49.2 M12 1.2
SAFW208-25 1-9/16 148 119 14.5 25 13.5 104 43.7 30.2 9 49.2 M12 1.2

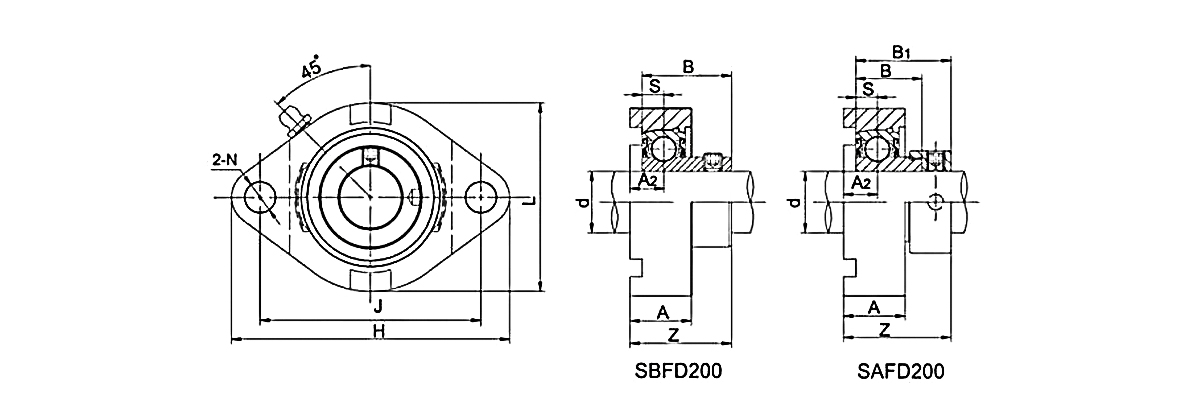

Unit No. Shaft Dia Dimensions(mm) Bolt Size (mm) Weight (kg)
d H J A2 A N L B S z
(in) (mm)
SBFD201 12 81 63.5 8.5 15 7 59 22 6 24.5 M6 0.28
SBFD201-8 1/2 81 63.5 8.5 15 7 59 22 6 24.5 M6 0.28
SBFD202 15 81 63.5 8.5 15 7 59 22 6 24.5 M6 0.27
SBFD202-9 9/16 81 63.5 8.5 15 7 59 22 6 24.5 M6 0.27
SBFD202-10 5/8 81 63.5 8.5 15 7 59 22 6 24.5 M6 0.27
SBFD203 17 81 63.5 8.5 15 7 59 22 6 24.5 M6 0.26
SBFD203-11 11/16 81 63.5 8.5 15 7 59 22 6 24.5 M6 0.26
SBFD204 20 90 71 9.5 17 9 67 25 7 27.5 M8 0.37
SBFD204-12 3/4 90 71 9.5 17 9 67 25 7 27.5 M8 0.37
SBFD205 25 95 76 9.5 17.5 9 71 27 7.5 29 M8 0.44
SBFD205-14 7/8 95 76 9.5 17.5 9 71 27 7.5 29 M8 0.44
SBFD205-15 15/16 95 76 9.5 17.5 9 71 27 7.5 29 M8 0.44
SBFD205-16 1 95 76 9.5 17.5 9 71 27 7.5 29 M8 0.44
SBFD206 30 113 90 12 20.5 12 84 30 8 34 M10 0.7
SBFD206-17 1-1/16 113 90 12 20.5 12 84 30 8 34 M10 0.7
SBFD206-18 1-1/8 113 90 12 20.5 12 84 30 8 34 M10 0.7
SBFD206-19 1-3/16 113 90 12 20.5 12 84 30 8 34 M10 0.7
SBFD206-20 1-1/4 113 90 12 20.5 12 84 30 8 34 M10 0.7
SBFD207 35 125 100 12.5 22 12 93 32 8.5 36 M10 0.91
SBFD207-20 1-1/4 125 100 12.5 22 12 93 32 8.5 36 M10 0.91
SBFD207-21 1-5/16 125 100 12.5 22 12 93 32 8.5 36 M10 0.91
SBFD207-22 1-3/8 125 100 12.5 22 12 93 32 8.5 36 M10 0.91
SBFD207-23 1-7/16 125 100 12.5 22 12 93 32 8.5 36 M10 0.91
SBFD208 40 148 119 14.5 25 13.5 104 34 9 39.5 M12 1.2
SBFD208-24 1-1/2 148 119 14.5 25 13.5 104 34 9 39.5 M12 1.2
SBFD208-25 1-9/16 148 119 14.5 25 13.5 104 34 9 39.5 M12 1.2

Unit No. Shaft Dia Dimensions(mm) Bolt Size (mm) Weight (kg)
d H J A2 A N L B1 B S Z
(in) (mm)
SAFD201 12 81 63.5 8.5 15 7 59 28.6 19.1 6 31.1 M6 0.28
SAFD201-8 1/2 81 63.5 8.5 15 7 59 28.6 19.1 6 31.1 M6 0.28
SAFD202 15 81 63.5 8.5 15 7 59 28.6 19.1 6 31.1 M6 0.27
SAFD202-9 9/16 81 63.5 8.5 15 7 59 28.6 19.1 6 31.1 M6 0.27
SAFD202-10 5/8 81 63.5 8.5 15 7 59 28.6 19.1 6 31.1 M6 0.27
SAFD203 17 81 63.5 8.5 15 7 59 28.6 19.1 6 31.1 M6 0.26
SAFD203-11 11/16 81 63.5 8.5 15 7 59 28.6 19.1 6 31.1 M6 0.26
SAFD204 20 90 71 9.5 17 9 67 31 21.5 7 33.5 M8 0.37
SAFD204-12 3/4 90 71 9.5 17 9 67 31 21.5 7 33.5 M8 0.37
SAFD205 25 95 76 9.5 17.5 9 71 31.5 22 7.5 33.5 M8 0.44
SAFD205-14 7/8 95 76 9.5 17.5 9 71 31.5 22 7.5 33.5 M8 0.44
SAFD205-15 15/16 95 76 9.5 17.5 9 71 31.5 22 7.5 33.5 M8 0.44
SAFD205-16 1 95 76 9.5 17.5 9 71 31.5 22 7.5 33.5 M8 0.44
SAFD206 30 113 90 12 20.5 12 84 35.7 23.8 8 39.7 M10 0.7
SAFD206-17 1-1/16 113 90 12 20.5 12 84 35.7 23.8 8 39.7 M10 0.7
SAFD206-18 1-1/8 113 90 12 20.5 12 84 35.7 23.8 8 39.7 M10 0.7
SAFD206-19 1-3/16 113 90 12 20.5 12 84 35.7 23.8 8 39.7 M10 0.7
SAFD206-20 1-1/4 113 90 12 20.5 12 84 35.7 23.8 8 39.7 M10 0.7
SAFD207 35 125 100 12.5 22 12 93 38.9 25.4 8.5 42.9 M10 0.91
SAFD207-20 1-1/4 125 100 12.5 22 12 93 38.9 25.4 8.5 42.9 M10 0.91
SAFD207-21 1-5/16 125 100 12.5 22 12 93 38.9 25.4 8.5 42.9 M10 0.91
SAFD207-22 1-3/8 125 100 12.5 22 12 93 38.9 25.4 8.5 42.9 M10 0.91
SAFD207-23 1-7/16 125 100 12.5 22 12 93 38.9 25.4 8.5 42.9 M10 0.91
SAFD208 40 148 119 14.5 25 13.5 104 43.7 30.2 9 49.2 M12 1.2
SAFD208-24 1-1/2 148 119 14.5 25 13.5 104 43.7 30.2 9 49.2 M12 1.2
SAFD208-25 1-9/16 148 119 14.5 25 13.5 104 43.7 30.2 9 49.2 M12 1.2

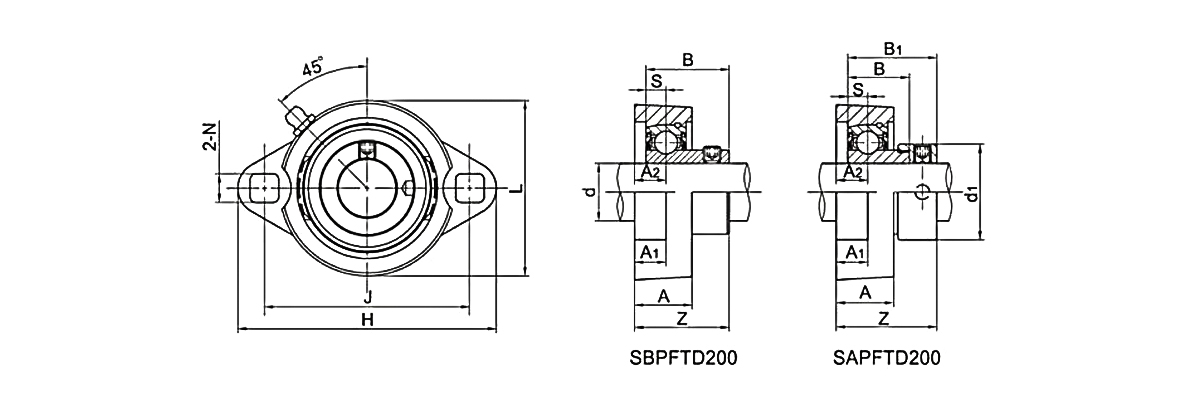

Unit No. Shaft Dia Dimensions (mm) Bolt Size Weight
d H J L A2 A A1 N s B z (mm) (in) (kg)
(in) (mm)
SBPFTD201 12 81 63.5 56 9 18 9 8.7 6 22 25 M8 5/16 0.23
SBPFTD201-8 1/2 81 63.5 56 9 18 9 8.7 6 22 25 M8 5/16 0.23
SBPFTD202 15 81 63.5 56 9 18 9 8.7 6 22 25 M8 5/16 0.23
SBPFTD202-10 5/8 81 63.5 56 9 18 9 8.7 6 22 25 M8 5/16 0.23
SBPFTD203 17 81 63.5 56 9 18 9 8.7 6 22 25 M8 5/16 0.23
SBPFTD203-11 11/16 81 63.5 56 9 18 9 8.7 6 22 25 M8 5/16 0.23
SBPFTD204-12 20 91 71.5 63 10.2 20 10.2 8.7 7 25 28.2 M8 5/16 0.27
SBPFTD204 3/4 91 71.5 63 10.2 20 10.2 8.7 7 25 28.2 M8 5/16 0.27
SBPFTD205-14 7/8 96 76.2 69 10.5 19 8.7 8.7 7.5 27 28.2 M8 5/16 0.38
SBPFTD205-15 15/16 96 76.2 69 10.5 19 8.7 8.7 7.5 27 28.2 M8 5/16 0.38
SBPFTD205 25 96 76.2 69 10.5 19 8.7 8.7 7.5 27 28.2 M8 5/16 0.38
SBPFTD205-16 1 96 76.2 69 10.5 19 8.7 8.7 7.5 27 28.2 M8 5/16 0.38
SBPFTD206-18 1-1/8 113 90.5 79 11.5 22 11.5 10.3 8 30 33.5 M10 3/8 0.54
SBPFTD206 30 113 90.5 79 11.5 22 11.5 10.3 8 30 33.5 M10 3/8 0.54
SBPFTD206-19 1-3/16 113 90.5 79 11.5 22 11.5 10.3 8 30 33.5 M10 3/8 0.54
SBPFTD206-20 1-1/4 113 90.5 79 11.5 22 11.5 10.3 8 30 33.5 M10 3/8 0.54
SBPFTD207-20 1-1/4 122.5 100 89 12.7 23.8 11.8 10.3 8.5 32 35.3 M10 3/8 0.71
SBPFTD207-21 1-5/16 122.5 100 89 12.7 23.8 11.8 10.3 8.5 32 35.3 M10 3/8 0.71
SBPFTD207-22 1-3/8 122.5 100 89 12.7 23.8 11.8 10.3 8.5 32 35.3 M10 3/8 0.71
SBPFTD207 35 122.5 100 89 12.7 23.8 11.8 10.3 8.5 32 35.3 M10 3/8 0.71
SBPFTD207-23 1-7/16 122.5 100 89 12.7 23.8 11.8 10.3 8.5 32 35.3 M10 3/8 0.71

Unit No. Shaft Dia Dimensions (mm) Bolt Size Weight (kg)
d H J L A2 A A1 N s B B1 Z (mm) (in)
(in) (mm)
SAPFTD201 12 81 63.5 56 9 18 9 8.7 6.5 19.1 28.6 31.1 M8 5/16 0.26
SAPFTD201-8 1/2 81 63.5 56 9 18 9 8.7 6.5 19.1 28.6 31.1 M8 5/16 0.26
SAPFTD202 15 81 63.5 56 9 18 9 8.7 6.5 19.1 28.6 31.1 M8 5/16 0.26
SAPFTD202-10 5/8 81 63.5 56 9 18 9 8.7 6.5 19.1 28.6 31.1 M8 5/16 0.26
SAPFTD203 17 81 63.5 56 9 18 9 8.7 6.5 19.1 28.6 31.1 M8 5/16 0.26
SAPFTD203-11 11/16 81 63.5 56 9 18 9 8.7 6.5 19.1 28.6 31.1 M8 5/16 0.26
SAPFTD204-12 3/4 91 71.5 63 10.2 20 10.2 8.7 7.5 21.5 31 33.6 M8 5/16 0.29
SAPFTD204 20 91 71.5 63 10.2 20 10.2 8.7 7.5 21.5 31 33.6 M8 5/16 0.29
SAPFTD205-14 7/8 96 76.2 69 10.5 19 8.7 8.7 7.5 22 31.5 32.1 M8 5/16 0.4
SAPFTD205-15 15/16 96 76.2 69 10.5 19 8.7 8.7 7.5 22 31.5 32.1 M8 5/16 0.4
SAPFTD205 25 96 76.2 69 10.5 19 8.7 8.7 7.5 22 31.5 32.1 M8 5/16 0.4
SAPFTD205-16 1 96 76.2 69 10.5 19 8.7 8.7 7.5 22 31.5 32.1 M8 5/16 0.4
SAPFTD206-18 1-1/8 113 90.5 79 11.5 22 11.5 10.3 9 23.8 35.7 38.2 M10 3/8 0.6
SAPFTD206 30 113 90.5 79 11.5 22 11.5 10.3 9 23.8 35.7 38.2 M10 3/8 0.6
SAPFTD206-19 1-3/16 113 90.5 79 11.5 22 11.5 10.3 9 23.8 35.7 38.2 M10 3/8 0.6
SAPFTD206-20 1-1/4 113 90.5 79 11.5 22 11.5 10.3 9 23.8 35.7 38.2 M10 3/8 0.6
SAPFTD207-20 1-1/4 122.5 100 89 12.7 23.8 11.8 10.3 9.5 25.4 38.9 41.2 M10 3/8 0.84
SAPFTD207-21 1-5/16 122.5 100 89 12.7 23.8 11.8 10.3 9.5 25.4 38.9 41.2 M10 3/8 0.84
SAPFTD207-22 1-3/8 122.5 100 89 12.7 23.8 11.8 10.3 9.5 25.4 38.9 41.2 M10 3/8 0.84
SAPFTD207 35 122.5 100 89 12.7 23.8 11.8 10.3 9.5 25.4 38.9 41.2 M10 3/8 0.84
SAPFTD207-23 1-7/16 122.5 100 89 12.7 23.8 11.8 10.3 9.5 25.4 38.9 41.2 M10 3/8 0.84

Recommended Products

Engineering the Future of Motion
About UKL
Founded in 2020, UKL Bearing Manufacturing Co., Ltd. (Wuxi) is China 2 Bolt Flange Bearing suppliers and OEM/ODM 2 Bolt Flange Bearing company, an integrated industrial and trading enterprise that focuses on precision manufacturing, combining R&D, production, and sales.
The company specializes in high-performance bearing solutions, providing technical support for global industries with exceptionally high demands for precision and reliability.

With more than 200 skilled professionals and a fully modernized production base, UKL’s facilities cover the entire manufacturing process — forging, annealing, turning, heat treatment, grinding, and automated assembly.
Leveraging over 15 years of OEM/ODM export experience, UKL responds quickly to customer needs, offering flexible and customized services for clients across Europe, Asia, Africa, and the Middle East.

Ukl Bearing Manufacturing Co.,Ltd More About Us Ukl Bearing Manufacturing Co.,Ltd
  • Ukl Bearing Manufacturing Co.,Ltd

    0+

    years

    Industry Experience

  • Ukl Bearing Manufacturing Co.,Ltd

    0+

    Model diversity

  • Ukl Bearing Manufacturing Co.,Ltd

    0+

    Number of Employees

  • Ukl Bearing Manufacturing Co.,Ltd

    0

    $

    Annual export value

Ukl Bearing Manufacturing Co.,Ltd
Certificate Of Honor
News
