Take Up Bearing Units

TAKE UP bearing models include: T200 (standard load), TX (medium load), T300 (heavy load), and ST200 (wide groove type). Standard Load
This product is a mounted bearing unit consisting of a T-type housing and an insert bearing. The housing is available in cast iron, ductile iron, plastic, and stainless steel designs. UC housing units may utilize chrome steel or stainless steel materials. Specific material selection depends on the bearing unit's application scenario, with cast iron housings paired with chrome steel internal bearings being the mainstream market configuration. Stainless steel and plastic TAKE UP Bearings are typically used in chemical and food industries.

PREV：2 Bolt Flange Bearing NEXT：Flange Cartridge Bearing Units

Specifications
Contact Us

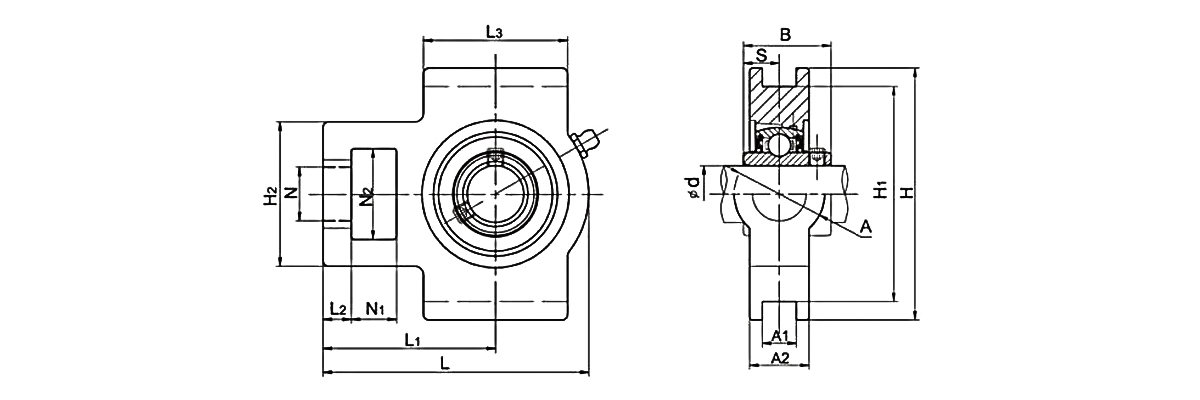

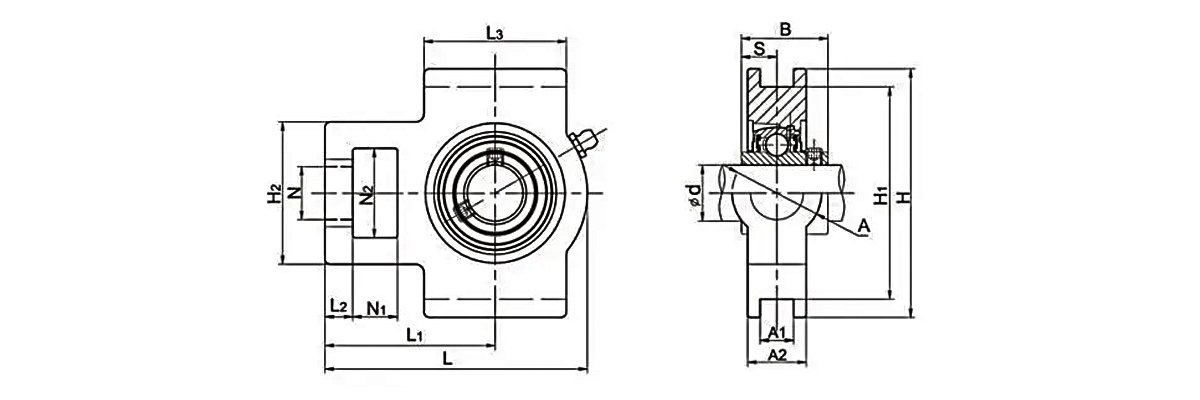

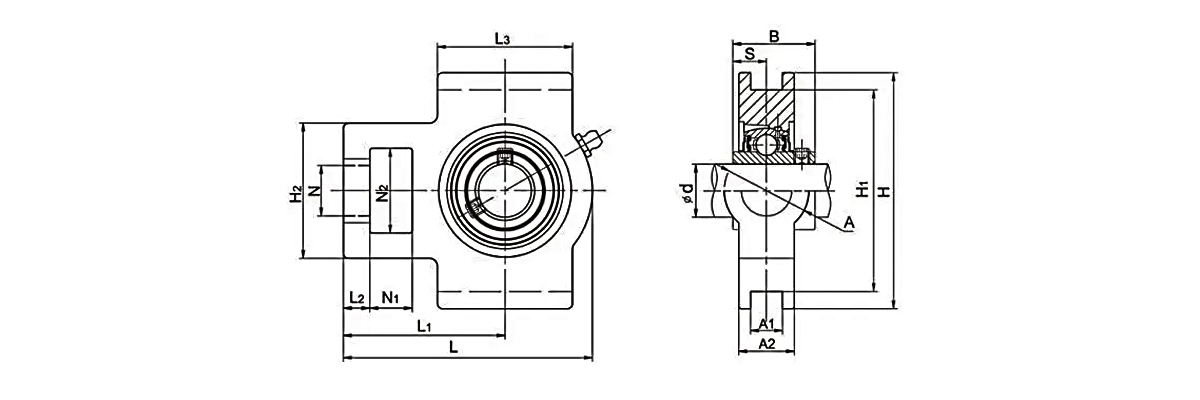

Unit No.	Shaft Dia		Dimensions(mm)																Weight
	d		N1	L2	H2	N2	N	L3	A1	H1	H	L	A	A2	L1	B	S	A3	(kg)
	(in)	(mm)	N1	L2	H2	N2	N	L3	A1	H1	H	L	A	A2	L1	B	S	A3	(kg)
UCWT201		12	15	9	46	31	18	46	12	70	82	88	30	21	58	27.4	11.5	-	0.52
UCWT202		15	15	9	46	31	18	46	12	70	82	88	30	21	58	27.4	11.5	-	0.52
UCWT203		17	15	9	46	31	18	46	12	70	82	88	30	21	58	27.4	11.5	-	0.52
UCT201		12	16	10	51	32	19	51	12	76	89	94	32	21	61	31	12.7	-	0.8
UCT201-8	1/2		16	10	51	32	19	51	12	76	89	94	32	21	61	31	12.7	-	0.8
UCT202		15	16	10	51	32	19	51	12	76	89	94	32	21	61	31	12.7	-	0.79
UCT202-9	9/16		16	10	51	32	19	51	12	76	89	94	32	21	61	31	12.7	-	0.79
UCT202-10	5/8		16	10	51	32	19	51	12	76	89	94	32	21	61	31	12.7	-	0.79
UCT203		17	16	10	51	32	19	51	12	76	89	94	32	21	61	31	12.7	-	0.78
UCT203-11	11/16		16	10	51	32	19	51	12	76	89	94	32	21	61	31	12.7	-	0.78
UCT204		20	16	10	51	32	19	51	12	76	89	94	32	21	61	31	12.7	46.4	0.72
UCT204-12	3/4		16	10	51	32	19	51	12	76	89	94	32	21	61	31	12.7	46.4	0.72
UCT205		25	16	10	51	32	19	51	12	76	89	97	32	24	62	34.1	14.3	48	0.8
UCT205-14	7/8		16	10	51	32	19	51	12	76	89	97	32	24	62	34.1	14.3	48	0.8
UCT205-15	15/16		16	10	51	32	19	51	12	76	89	97	32	24	62	34.1	14.3	48	0.8
UCT205-16	1/1		16	10	51	32	19	51	12	76	89	97	32	24	62	34.1	14.3	48	0.8
UCT206		30	16	10	56	37	22	57	12	89	102	113	37	28	70	38.1	15.9	23	1.26
UCT206-17	1/16		16	10	56	37	22	57	12	89	102	113	37	28	70	38.1	15.9	23	1.26
UCT206-18	1/8		16	10	56	37	22	57	12	89	102	113	37	28	70	38.1	15.9	23	1.26
UCT206-19	3/16		16	10	56	37	22	57	12	89	102	113	37	28	70	38.1	15.9	23	1.26
UCT206-20	1/4		16	10	56	37	22	57	12	89	102	113	37	28	70	38.1	15.9	23	1.26
UCT207		35	16	13	64	37	22	64	12	89	102	129	37	30	78	42.9	17.5	59	1.68
UCT207-20	1/4		16	13	64	37	22	64	12	89	102	129	37	30	78	42.9	17.5	59	1.68
UCT207-21	5/16		16	13	64	37	22	64	12	89	102	129	37	30	78	42.9	17.5	59	1.68
UCT207-22	3/8		16	13	64	37	22	64	12	89	102	129	37	30	78	42.9	17.5	59	1.68
UCT207-23	7/16		16	13	64	37	22	64	12	89	102	129	37	30	78	42.9	17.5	59	1.68
UCT208		40	19	16	83	49	29	83	16	102	114	144	49	33	88	49.2	19	68.2	2.28
UCT208-24	1/2		19	16	83	49	29	83	16	102	114	144	49	33	88	49.2	19	68.2	2.28
UCT208-25	9/16		19	16	83	49	29	83	16	102	114	144	49	33	88	49.2	19	68.2	2.28
UCT209		45	19	16	83	49	29	83	16	102	117	144	49	35	87	49.2	19	70	2.52
UCT209-26	5/8		19	16	83	49	29	83	16	102	117	144	49	35	87	49.2	19	70	2.52
UCT209-27	11/16		19	16	83	49	29	83	16	102	117	144	49	35	87	49.2	19	70	2.52
UCT209-28	3/4		19	16	83	49	29	83	16	102	117	144	49	35	87	49.2	19	70	2.52
UCT210		50	19	16	83	49	29	86	16	102	117	149	49	37	90	51.6	19	76	2.75
UCT210-30	7/8		19	16	83	49	29	86	16	102	117	149	49	37	90	51.6	19	76	2.75
UCT210-31	1-15/16		19	16	83	49	29	86	16	102	117	149	49	37	90	51.6	19	76	2.75
UCT210-32	1/2		19	16	83	49	29	86	16	102	117	149	49	37	90	51.6	19	76	2.75
UCT211		55	25	19	102	64	35	95	22	130	146	171	64	38	106	55.6	22.2	76	4.1
UCT211-32	1/2		25	19	102	64	35	95	22	130	146	171	64	38	106	55.6	22.2	76	4.1
UCT211-34	1/8		25	19	102	64	35	95	22	130	146	171	64	38	106	55.6	22.2	76	4.1
UCT211-35	3/16		25	19	102	64	35	95	22	130	146	171	64	38	106	55.6	22.2	76	4.1
UCT212		60	32	19	102	64	35	102	22	130	146	194	64	42	119	65.1	25.4	89	4.9
UCT212-36	1/4		32	19	102	64	35	102	22	130	146	194	64	42	119	65.1	25.4	89	4.9
UCT212-38	3/8		32	19	102	64	35	102	22	130	146	194	64	42	119	65.1	25.4	89	4.9
UCT212-39	7/16		32	19	102	64	35	102	22	130	146	194	64	42	119	65.1	25.4	89	4.9
UCT213		65	32	21	111	70	41	121	26	151	167	224	70	44	137	65.1	25.4	89	6.7
UCT213-40	1/2		32	21	111	70	41	121	26	151	167	224	70	44	137	65.1	25.4	89	6.7
UCT214		70	32	21	111	70	41	121	26	151	167	224	70	46	137	74.6	30.2	98	6.9
UCT214-44	3/4		32	21	111	70	41	121	26	151	167	224	70	46	137	74.6	30.2	98	6.9
UCT215		75	32	21	111	70	41	121	26	151	167	232	70	48	140	77.8	33.3	97	7.4
UCT215-47	2-15/16		32	21	111	70	41	121	26	151	167	232	70	48	140	77.8	33.3	97	7.4
UCT215-48	1/3		32	21	111	70	41	121	26	151	167	232	70	48	140	77.8	33.3	97	7.4
UCT216		80	32	21	111	70	41	121	26	165	184	235	70	51	140	82.6	33.3	110	8.1
UCT217		85	38	29	124	73	48	157	30	173	198	260	73	54	162	85.7	34.1	114.2	11
UCT217-52	1/4		38	29	124	73	48	157	30	173	198	260	73	54	162	85.7	34.1	114.2	11
UCT218		90	40	30	130	80	48	140	30	190	215	275	80	55	170	96	39.7	-	12.2
UCT218-56	1/4		40	30	130	80	48	140	30	190	215	275	80	55	170	96	39.7	-	12.2

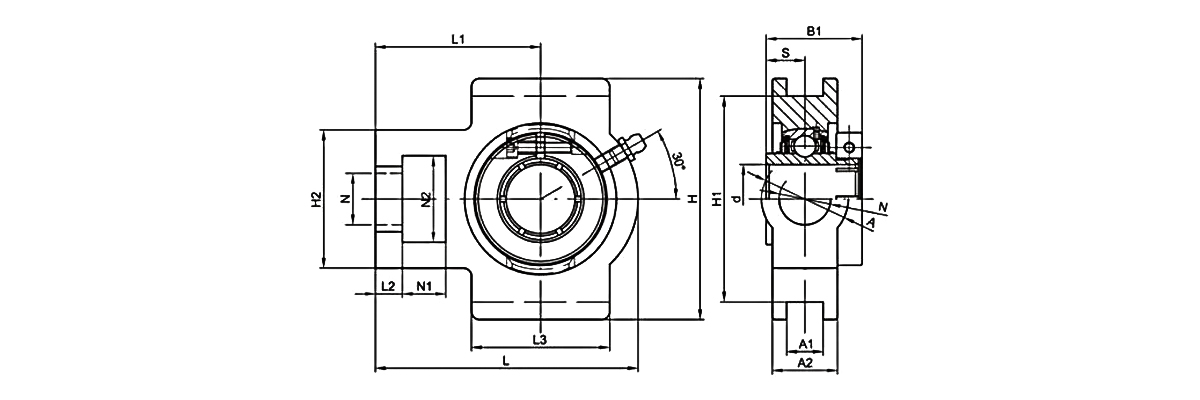

Unit No.	Shaft Dia		Dimensions (mm)															Weight (kg)
	d		N1	L2	H2	N2	N	L3	A1	H1	H	L	A	A2	L1	B1	s
	(in)	(mm)	N1	L2	H2	N2	N	L3	A1	H1	H	L	A	A2	L1	B1	s
NAT201S		12	15	9	46	31	18	46	12	70	82	88	30	21	58	37.3	13.9	0.78
NAT201-8S	1/2		15	9	46	31	18	46	12	70	82	88	30	21	58	37.3	13.9	0.78
NAT202S		15	15	9	46	31	18	46	12	70	82	88	30	21	58	37.3	13.9	0.78
NAT202-10S	5/8		15	9	46	31	18	46	12	70	82	88	30	21	58	37.3	13.9	0.78
NAT203S		17	15	9	46	31	18	46	12	70	82	88	30	21	58	37.3	13.9	0.78
NAT203-11S	11/16		15	9	46	31	18	46	12	70	82	88	30	21	58	37.3	13.9	0.78
NAT201		12	16	10	51	32	19	51	12	76	89	94	32	21	61	43.5	17	0.87
NAT201-8	1/2		16	10	51	32	19	51	12	76	89	94	32	21	61	43.5	17	0.87
NAT202		15	16	10	51	32	19	51	12	76	89	94	32	21	61	43.5	17	0.87
NAT202-10	5/8		16	10	51	32	19	51	12	76	89	94	32	21	61	43.5	17	0.87
NAT203		17	16	10	51	32	19	51	12	76	89	94	32	21	61	43.5	17	0.87
NAT203-11	11/16		16	10	51	32	19	51	12	76	89	94	32	21	61	43.5	17	0.87
NAT204		20	16	10	51	32	19	51	12	76	89	94	32	21	61	43.5	17	0.87
NAT204-12	3/4		16	10	51	32	19	51	12	76	89	94	32	21	61	43.5	17	0.87
NAT205		25	16	10	51	32	19	51	12	76	89	97	32	24	62	44.3	17.4	0.92
NAT205-14	7/8		16	10	51	32	19	51	12	76	89	97	32	24	62	44.3	17.4	0.92
NAT205-15	15/16		16	10	51	32	19	51	12	76	89	97	32	24	62	44.3	17.4	0.92
NAT205-16	1/1		16	10	51	32	19	51	12	76	89	97	32	24	62	44.3	17.4	0.92
NAT206		30	16	10	56	37	22	57	12	89	102	113	37	28	70	48.3	18.2	1.39
NAT206-18	1/8		16	10	56	37	22	57	12	89	102	113	37	28	70	48.3	18.2	1.39
NAT206-19	3/16		16	10	56	37	22	57	12	89	102	113	37	28	70	48.3	18.2	1.39
NAT206-20	1/4		16	10	56	37	22	57	12	89	102	113	37	28	70	48.3	18.2	1.39
NAT207		35	16	13	64	37	22	64	12	89	102	129	37	30	78	51.1	18.8	1.83
NAT207-20	1/4		16	13	64	37	22	64	12	89	102	129	37	30	78	51.1	18.8	1.83
NAT207-21	5/16		16	13	64	37	22	64	12	89	102	129	37	30	78	51.1	18.8	1.83
NAT207-22	3/8		16	13	64	37	22	64	12	89	102	129	37	30	78	51.1	18.8	1.83
NAT207-23	7/16		16	13	64	37	22	64	12	89	102	129	37	30	78	51.1	18.8	1.83
NAT208		40	19	16	83	49	29	83	16	102	114	144	49	33	88	56.3	21.4	2.64
NAT208-24	1/2		19	16	83	49	29	83	16	102	114	144	49	33	88	56.3	21.4	2.64
NAT208-25	9/16		19	16	83	49	29	83	16	102	114	144	49	33	88	56.3	21.4	2.64
NAT209		45	19	16	83	49	29	83	16	102	117	144	49	35	87	56.3	21.4	2.67
NAT209-26	5/8		19	16	83	49	29	83	16	102	117	144	49	35	87	56.3	21.4	2.67
NAT209-27	1/16		19	16	83	49	29	83	16	102	117	144	49	35	87	56.3	21.4	2.67
NAT209-28	3/4		19	16	83	49	29	83	16	102	117	144	49	35	87	56.3	21.4	2.67
NAT210		50	19	16	83	49	29	86	16	102	117	149	49	37	90	62.7	24.6	2.81
NAT210-30	7/8		19	16	83	49	29	86	16	102	117	149	49	37	90	62.7	24.6	2.81
NAT210-31	1-15/16		19	16	83	49	29	86	16	102	117	149	49	37	90	62.7	24.6	2.81
NAT211		55	25	19	102	64	35	95	22	130	146	171	64	38	106	71.3	27.7	4.27
NAT211-32	1/2	55	25	19	102	64	35	95	22	130	146	171	64	38	106	71.3	27.7	4.27
NAT211-34	1/8	55	25	19	102	64	35	95	22	130	146	171	64	38	106	71.3	27.7	4.27
NAT211-35	3/16	55	25	19	102	64	35	95	22	130	146	171	64	38	106	71.3	27.7	4.27
NAT212		60	32	19	102	64	35	102	22	130	146	194	64	42	119	77.7	30.9	5.26
NAT212-36	1/4		32	19	102	64	35	102	22	130	146	194	64	42	119	77.7	30.9	5.26
NAT212-38	3/8		32	19	102	64	35	102	22	130	146	194	64	42	119	77.7	30.9	5.26
NAT212-39	7/16		32	19	102	64	35	102	22	130	146	194	64	42	119	77.7	30.9	5.26
NAT213		65	32	21	111	70	41	121	26	151	167	224	70	44	137	85.7	34.1	7.55
NAT213-40	1/2		32	21	111	70	41	121	26	151	167	224	70	44	137	85.7	34.1	7.55
NAT214		70	32	21	111	70	41	121	26	151	167	224	70	46	137	85.7	34.1	7.62
NAT214-44	3/4		32	21	111	70	41	121	26	151	167	224	70	46	137	85.7	34.1	7.62
NAT215		75	32	21	111	70	41	121	26	151	167	232	70	48	140	92.1	37.3	8.13
NAT215-47	2-15/16		32	21	111	70	41	121	26	151	167	232	70	48	140	92.1	37.3	8.13
NAT215-48	1/3		32	21	111	70	41	121	26	151	167	232	70	48	140	92.1	37.3	8.13
NAT216		80	32	21	111	70	41	121	26	165	184	235	70	51	140	95.2	37.3	8.53
NAT217		85	38	29	124	73	48	157	30	173	198	260	73	54	162	73.2	23.4	12.03
NAT217-52	1/4		38	29	124	73	48	157	30	173	198	260	73	54	162	73.2	23.4	12.03

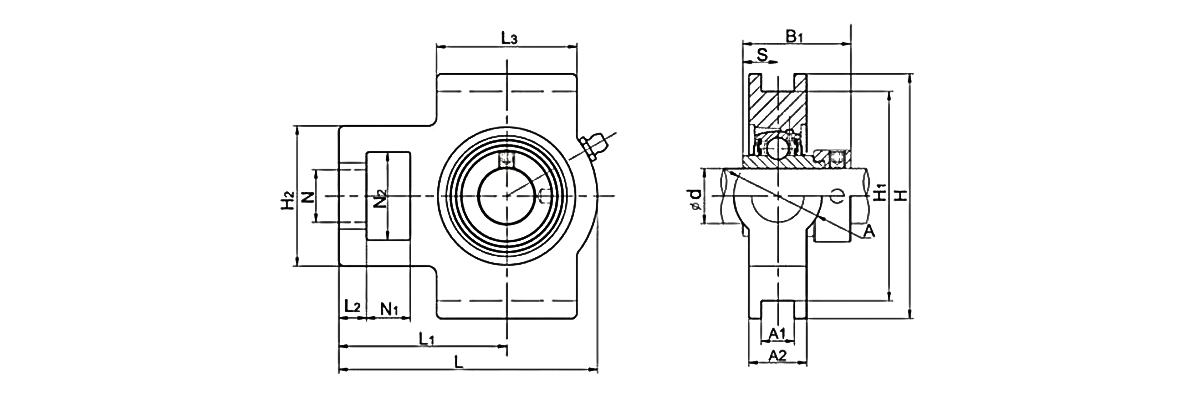

Unit No.	Shaft Dia		Dimensions(mm)															Weight
	d		N1	L2	H2	N2	N	L3	A1	H1	H	L	A	A2	L1	B1	S	(kg)
	(in)	(mm)	N1	L2	H2	N2	N	L3	A1	H1	H	L	A	A2	L1	B1	S	(kg)
UET204		20	16	10	51	32	19	51	12	76	89	94	32	21	61	33	12.7	0.93
UET204-12	3/4		16	10	51	32	19	51	12	76	89	94	32	21	61	33	12.7	0.93
UET205		25	16	10	51	32	19	51	12	76	89	97	32	24	62	35.4	14.3	0.96
UET205-14	7/8		16	10	51	32	19	51	12	76	89	97	32	24	62	35.4	14.3	0.96
UET205-15	15/16		16	10	51	32	19	51	12	76	89	97	32	24	62	35.4	14.3	0.96
UET205-16	1/1		16	10	51	32	19	51	12	76	89	97	32	24	62	35.4	14.3	0.96
UET206		30	16	10	56	37	22	57	12	89	102	113	37	28	70	39.8	15.9	1.4
UET206-17	1/16		16	10	56	37	22	57	12	89	102	113	37	28	70	39.8	15.9	1.4
UET206-18	1/8		16	10	56	37	22	57	12	89	102	113	37	28	70	39.8	15.9	1.4
UET206-19	3/16		16	10	56	37	22	57	12	89	102	113	37	28	70	39.8	15.9	1.4
UET206-20	1/4		16	10	56	37	22	57	12	89	102	113	37	28	70	39.8	15.9	1.4
UET207		35	16	13	64	37	22	64	12	89	102	129	37	30	78	43.9	17.5	1.79
UET207-20	1/4		16	13	64	37	22	64	12	89	102	129	37	30	78	43.9	17.5	1.79
UET207-21	5/16		16	13	64	37	22	64	12	89	102	129	37	30	78	43.9	17.5	1.79
UET207-22	3/8		16	13	64	37	22	64	12	89	102	129	37	30	78	43.9	17.5	1.79
UET207-23	7/16		16	13	64	37	22	64	12	89	102	129	37	30	78	43.9	17.5	1.79
UET208		40	19	16	83	49	29	83	16	102	114	144	49	33	88	50.2	19	2.76
UET208-24	1/2		19	16	83	49	29	83	16	102	114	144	49	33	88	50.2	19	2.76
UET208-25	9/16		19	16	83	49	29	83	16	102	114	144	49	33	88	50.2	19	2.76
UET209		45	19	16	83	49	29	83	16	102	117	144	49	35	87	50.2	19	2.88
UET209-26	5/8		19	16	83	49	29	83	16	102	117	144	49	35	87	50.2	19	2.88
UET209-27	11/16		19	16	83	49	29	83	16	102	117	144	49	35	87	50.2	19	2.88
UET209-28	3/4		19	16	83	49	29	83	16	102	117	144	49	35	87	50.2	19	2.88
UET210		50	19	16	83	49	29	86	16	102	117	149	49	37	90	52.6	19	2.86
UET210-30	7/8		19	16	83	49	29	86	16	102	117	149	49	37	90	52.6	19	2.86
UET210-31	1-15/16		19	16	83	49	29	86	16	102	117	149	49	37	90	52.6	19	2.86
UET210-32	1/2		19	16	83	49	29	86	16	102	117	149	49	37	90	52.6	19	2.86
UET211		55	25	19	102	64	35	95	22	130	146	171	64	38	106	56.6	22.2	4.52
UET211-32	1/2		25	19	102	64	35	95	22	130	146	171	64	38	106	56.6	22.2	4.52
UET211-34	1/8		25	19	102	64	35	95	22	130	146	171	64	38	106	56.6	22.2	4.52
UET211-35	3/16		25	19	102	64	35	95	22	130	146	171	64	38	106	56.6	22.2	4.52
UET212		60	32	19	102	64	35	102	22	130	146	194	64	42	119	66.6	25.4	5.41
UET212-36	1/4		32	19	102	64	35	102	22	130	146	194	64	42	119	66.6	25.4	5.41
UET212-38	3/8		32	19	102	64	35	102	22	130	146	194	64	42	119	66.6	25.4	5.41
UET212-39	7/16		32	19	102	64	35	102	22	130	146	194	64	42	119	66.6	25.4	5.41

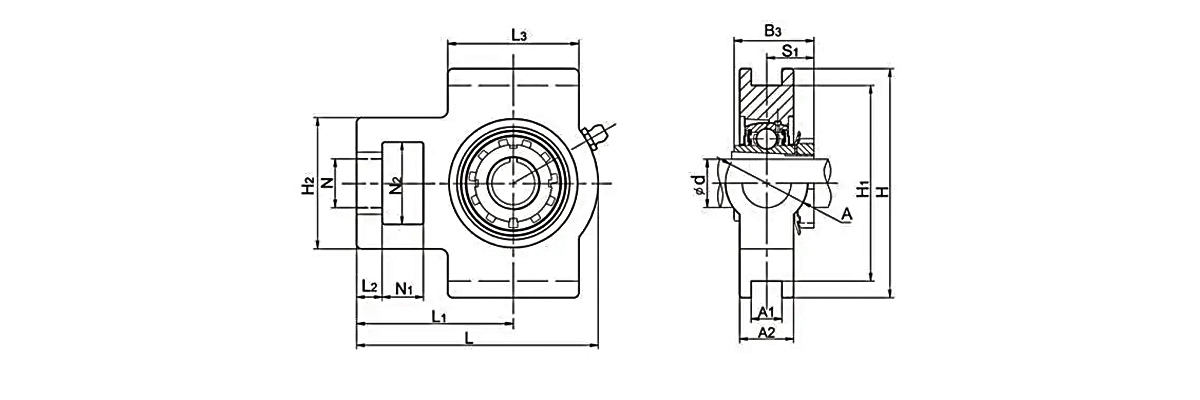

Unit No.	Shaft Dia		Dimensions (mm)															Weight (kg)
	d		N1	L2	H2	N2	N	L3	A1	H1	H	L	A	A2	L1	B3	S1
	(in)	(mm)	N1	L2	H2	N2	N	L3	A1	H1	H	L	A	A2	L1	B3	S1
UKT205+H2305		20	16	10	51	32	19	51	12	76	89	97	32	24	62	35	18.5	0.8
UKT205+HE2305	3/4		16	10	51	32	19	51	12	76	89	97	32	24	62	35	18.5	0.8
UKT206+H2306		25	16	10	56	37	22	57	12	89	102	113	37	28	70	38	20.5	1.26
UKT206+HS2306	7/8		16	10	56	37	22	57	12	89	102	113	37	28	70	38	20.5	1.26
UKT206+HE2306	1/1		16	10	56	37	22	57	12	89	102	113	37	28	70	38	20.5	1.26
UKT207+H2307		30	16	13	64	37	22	64	12	89	102	129	37	30	78	43	22.5	1.68
UKT207+HS2307	1/8		16	13	64	37	22	64	12	89	102	129	37	30	78	43	22.5	1.68
UKT208+H2308		35	19	16	83	49	29	83	16	102	114	144	49	33	88	46	24.5	2.28
UKT208+HE2308	1/4		19	16	83	49	29	83	16	102	114	144	49	33	88	46	24.5	2.28
UKT208+HS2308	3/8		19	16	83	49	29	83	16	102	114	144	49	33	88	46	24.5	2.28
UKT209+H2309		40	19	16	83	49	29	83	16	102	117	144	49	35	87	50	26	2.52
UKT209+HA2309	7/16		19	16	83	49	29	83	16	102	117	144	49	35	87	50	26	2.52
UKT209+HE2309	1/2		19	16	83	49	29	83	16	102	117	144	49	35	87	50	26	2.52
UKT209+HS2309	5/8		19	16	83	49	29	83	16	102	117	144	49	35	87	50	26	2.52
UKT210+H2310		45	19	16	83	49	29	86	16	102	117	149	49	37	90	55	27.5	2.75
UKT210+HS2310	5/8		19	16	83	49	29	86	16	102	117	149	49	37	90	55	27.5	2.75
UKT210+HA2310	11/16		19	16	83	49	29	86	16	102	117	149	49	37	90	55	27.5	2.75
UKT210+HE2310	3/4		19	16	83	49	29	86	16	102	117	149	49	37	90	55	27.5	2.75
UKT211+H2311		50	25	19	102	64	35	95	22	130	146	171	64	38	106	59	28.5	4.1
UKT211+HS2311	7/8		25	19	102	64	35	95	22	130	146	171	64	38	106	59	28.5	4.1
UKT211+HA2311	1-15/16		25	19	102	64	35	95	22	130	146	171	64	38	106	59	28.5	4.1
UKT211+HE2311	1/2		25	19	102	64	35	95	22	130	146	171	64	38	106	59	28.5	4.1
UKT212+H2312		55	32	19	102	64	35	102	22	130	146	194	64	42	119	62	31	4.9
UKT212+HS2312	1/8		32	19	102	64	35	102	22	130	146	194	64	42	119	62	31	4.9
UKT213+H2313		60	32	21	111	70	41	121	26	151	167	224	70	44	137	65	32	6.7
UKT213+HA2313	3/16		32	21	111	70	41	121	26	151	167	224	70	44	137	65	32	6.7
UKT213+HE2313	1/4		32	21	111	70	41	121	26	151	167	224	70	44	137	65	32	6.7
UKT213+HS2313	3/8		32	21	111	70	41	121	26	151	167	224	70	44	137	65	32	6.7
UKT215+H2315		65	32	21	111	70	41	121	26	151	167	232	70	48	140	73	35.5	7.4
UKT215+HA2315	7/16		32	21	111	70	41	121	26	151	167	232	70	48	140	73	35.5	7.4
UKT215+HE2315	1/2		32	21	111	70	41	121	26	151	167	232	70	48	140	73	35.5	7.4
UKT216+H2316		70	32	21	111	70	41	121	26	165	184	235	70	51	140	78	39	8.1
UKT216+HA2316	11/16		32	21	111	70	41	121	26	165	184	235	70	51	140	78	39	8.1
UKT216+HE2316	3/4		32	21	111	70	41	121	26	165	184	235	70	51	140	78	39	8.1
UKT217+H2317		75	38	29	124	73	48	157	30	173	198	260	73	54	162	82	40	11
UKT217+HA2317	2-15/16		38	29	124	73	48	157	30	173	198	260	73	54	162	82	40	11
UKT217+HE2317	1/3		38	29	124	73	48	157	30	173	198	260	73	54	162	82	40	11

Unit No.	Shaft Dia		Dimensions (mm)															Weight (kg)
	d		N1	L2	H2	N2	N	L3	A1	H1	H	L	A	A2	L1	B	s
	(in)	(mm)	N1	L2	H2	N2	N	L3	A1	H1	H	L	A	A2	L1	B	s
UCTX05		25	16	12	56	37	22	57	12	89	102	113	37	28	70	38.1	15.9	1.4
UCTX05-13	13/16		16	12	56	37	22	57	12	89	102	113	37	28	70	38.1	15.9	1.4
UCTX05-14	7/8		16	12	56	37	22	57	12	89	102	113	37	28	70	38.1	15.9	1.4
UCTX05-15	15/16		16	12	56	37	22	57	12	89	102	113	37	28	70	38.1	15.9	1.4
UCTX05-16	1/1		16	12	56	37	22	57	12	89	102	113	37	28	70	38.1	15.9	1.4
UCTX06		30	16	15	64	37	22	64	12	89	102	129	37	30	78	42.9	17.5	1.8
UCTX06-17	1/16		16	15	64	37	22	64	12	89	102	129	37	30	78	42.9	17.5	1.8
UCTX06-18	1/8		16	15	64	37	22	64	12	89	102	129	37	30	78	42.9	17.5	1.8
UCTX06-19	3/16		16	15	64	37	22	64	12	89	102	129	37	30	78	42.9	17.5	1.8
UCTX06-20	1/4		16	15	64	37	22	64	12	89	102	129	37	30	78	42.9	17.5	1.8
UCTX07		35	19	17	83	49	29	83	16	102	114	144	49	36	88	49.2	19	2.6
UCTX07-21	5/16		19	17	83	49	29	83	16	102	114	144	49	36	88	49.2	19	2.6
UCTX07-22	3/8		19	17	83	49	29	83	16	102	114	144	49	36	88	49.2	19	2.6
UCTX07-23	7/16		19	17	83	49	29	83	16	102	114	144	49	36	88	49.2	19	2.6
UCTX08		40	19	17	83	49	29	83	16	102	117	144	49	36	87	49.2	19	2.6
UCTX08-24	1/2		19	17	83	49	29	83	16	102	117	144	49	36	87	49.2	19	2.6
UCTX08-25	9/16		19	17	83	49	29	83	16	102	117	144	49	36	87	49.2	19	2.6
UCTX09		45	19	18	83	49	29	86	16	102	117	151	49	38	92	51.6	19	2.8
UCTX09-26	5/8		19	18	83	49	29	86	16	102	117	151	49	38	92	51.6	19	2.8
UCTX09-27	11/16		19	18	83	49	29	86	16	102	117	151	49	38	92	51.6	19	2.8
UCTX09-28	3/4		19	18	83	49	29	86	16	102	117	151	49	38	92	51.6	19	2.8
UCTX09-29	1-13/16		19	18	83	49	29	86	16	102	117	151	49	38	92	51.6	19	2.8
UCTX10		50	25	21	102	64	35	95	22	130	146	171	64	42	106	55.6	22.2	4.3
UCTX10-30	7/8		25	21	102	64	35	95	22	130	146	171	64	42	106	55.6	22.2	4.3
UCTX10-31	1-15/16		25	21	102	64	35	95	22	130	146	171	64	42	106	55.6	22.2	4.3
UCTX10-32	1/2		25	21	102	64	35	95	22	130	146	171	64	42	106	55.6	22.2	4.3
UCTX11		55	32	21	102	64	35	102	22	130	146	194	64	44	119	65.1	25.4	5.2
UCTX11-33	1/16		32	21	102	64	35	102	22	130	146	194	64	44	119	65.1	25.4	5.2
UCTX11-34	1/8		32	21	102	64	35	102	22	130	146	194	64	44	119	65.1	25.4	5.2
UCTX11-35	3/16		32	21	102	64	35	102	22	130	146	194	64	44	119	65.1	25.4	5.2
UCTX11-36	1/4		32	21	102	64	35	102	22	130	146	194	64	44	119	65.1	25.4	5.2
UCTX11-37	5/16		32	21	102	64	35	102	22	130	146	194	64	44	119	65.1	25.4	5.2
UCTX12		60	32	23	111	70	41	121	26	151	167	224	70	48	137	65	25.4	7.6
UCTX12-38	3/8		32	23	111	70	41	121	26	151	167	224	70	48	137	65	25.4	7.6
UCTX12-39	7/16		32	23	111	70	41	121	26	151	167	224	70	48	137	65	25.4	7.6
UCTX13		65	32	23	111	70	41	121	26	151	167	224	70	48	137	74.6	30.2	7.6
UCTX13-40	1/2		32	23	111	70	41	121	26	151	167	224	70	48	137	74.6	30.2	7.6
UCTX13-41	9/16		32	23	111	70	41	121	26	151	167	224	70	48	137	74.6	30.2	7.6
UCTX14		70	32	23	111	70	41	121	26	151	167	232	70	48	140	77.8	33.3	7.7
UCTX14-42	5/8		32	23	111	70	41	121	26	151	167	232	70	48	140	77.8	33.3	7.7
UCTX14-43	11/16		32	23	111	70	41	121	26	151	167	232	70	48	140	77.8	33.3	7.7
UCTX14-44	3/4		32	23	111	70	41	121	26	151	167	232	70	48	140	77.8	33.3	7.7
UCTX15		75	32	23	111	70	41	121	28	165	184	235	70	48	140	82.6	33.3	7.55
UCTX15-45	2-13/16		32	23	111	70	41	121	28	165	184	235	70	48	140	82.6	33.3	7.55
UCTX15-46	7/8		32	23	111	70	41	121	28	165	184	235	70	48	140	82.6	33.3	7.55
UCTX15-47	2-15/16		32	23	111	70	41	121	28	165	184	235	70	48	140	82.6	33.3	7.55
UCTX15-48	1/3		32	23	111	70	41	121	28	165	184	235	70	48	140	82.6	33.3	7.55
UCTX16		80	38	30	124	73	48	157	28	173	198	260	73	54	162	85.7	34.1	11
UCTX16-49	1/16		38	30	124	73	48	157	28	173	198	260	73	54	162	85.7	34.1	11
UCTX16-50	1/8		38	30	124	73	48	157	28	173	198	260	73	54	162	85.7	34.1	11
UCTX16-51	3/16		38	30	124	73	48	157	28	173	198	260	73	54	162	85.7	34.1	11
UCTX16-52	1/4		38	30	124	73	48	157	28	173	198	260	73	54	162	85.7	34.1	11
UCTX17		85	38	30	124	73	48	157	28	173	198	260	73	54	162	96	39.7	12
UCTX17-53	5/16		38	30	124	73	48	157	28	173	198	260	73	54	162	96	39.7	12
UCTX17-55	7/16		38	30	124	73	48	157	28	173	198	260	73	54	162	96	39.7	12

Unit No	Shaft Dia	Dimensions(mm)															Weight (kg)
	d	Dimensions(mm)
	(mm)	N1	L2	H2	N2	N	L3	A1	H1	H	L	A	A2	L1	B	S
UCT305	1/25	16	12	62	36	26	65	12	80	90	122	36	26	76	38	15	1.41
UCT306	1/30	18	14	70	41	28	74	16	90	100	137	41	28	85	43	17	1.85
UCT307	2/4	20	15	75	45	30	80	16	100	111	150	45	32	94	48	19	2.45
UCT308	2/9	22	17	83	50	32	89	18	112	124	162	50	34	100	52	19	3.09
UCT309	2/14	24	18	90	55	34	97	18	125	138	178	55	38	110	57	22	4.08
UCT310	2/19	27	20	98	61	37	106	20	140	151	191	61	40	117	61	22	5.25
UCT311	2/24	29	21	105	66	39	115	22	150	163	207	66	44	127	66	25	6.41
UCT312	2/29	31	23	115	71	41	123	22	160	179	220	72	46	135	71	26	7.61
UCT313	3/5	32	25	116	70	43	134	26	170	190	238	80	50	146	75	30	9.22
UCT314	3/10	36	25	130	85	46	140	26	180	202	252	90	52	155	78	33	11.4
UCT315	3/15	36	25	134	85	46	150	26	192	216	262	90	55	160	82	32	12.9
UCT316	3/20	42	28	150	98	53	160	30	204	230	282	102	60	174	86	34	15.65
UCT317	3/25	42	30	152	98	53	170	32	214	240	298	102	64	183	96	40	19.34
UCT318	3/30	46	30	160	106	57	175	32	228	255	312	110	66	192	96	40	21.25
UCT319	4/4	46	31	165	106	57	180	35	240	270	322	110	72	197	103	41	24.4
UCT320	4/9	48	32	175	115	59	200	35	260	290	345	120	75	210	108	42	30.6
UCT321	4/14	48	32	175	115	59	200	35	260	290	345	120	75	210	112	44	30.2
UCT322	4/19	52	38	185	125	65	215	38	285	320	385	130	80	235	117	46	38.8
UCT324	4/29	60	42	210	140	70	230	45	320	355	432	140	90	267	126	51	54.6
UCT326	5/9	65	45	220	150	75	240	50	350	385	465	150	100	285	135	54	68.4
UCT328	5/19	70	50	230	160	80	255	50	380	415	515	155	100	315	145	59	83.2

Unit No.	Shaft Dia		Dimensions (mm)															Weight (kg)
	d		N1	L2	H2	N2	N	L3	A1	H1	H	L	A	A2	L1	B	S
	(in)	(mm)	N1	L2	H2	N2	N	L3	A1	H1	H	L	A	A2	L1	B	S
UCST201		12	16	10	51	32	19	51	13.5	76	89	94	32	21	61	31	12.7	0.8
UCST201-8	1/2		16	10	51	32	19	51	13.5	76	89	94	32	21	61	31	12.7	0.8
UCST202		15	16	10	51	32	19	51	13.5	76	89	94	32	21	61	31	12.7	0.8
UCST202-10	5/8		16	10	51	32	19	51	13.5	76	89	94	32	21	61	31	12.7	0.8
UCST203		17	16	10	51	32	19	51	13.5	76	89	94	32	21	61	31	12.7	0.8
UCST203-11	11/16		16	10	51	32	19	51	13.5	76	89	94	32	21	61	31	12.7	0.8
UCST204		20	16	10	51	32	19	51	13.5	76	89	94	32	21	61	31	12.7	0.8
UCST204-12	3/4		16	10	51	32	19	51	13.5	76	89	94	32	21	61	31	12.7	0.8
UCST205		25	16	10	51	32	19	51	13.5	76	89	97	32	24	62	34	14.3	0.8
UCST205-14	7/8		16	10	51	32	19	51	13.5	76	89	97	32	24	62	34	14.3	0.8
UCST205-15	15/16		16	10	51	32	19	51	13.5	76	89	97	32	24	62	34	14.3	0.8
UCST205-16	1/1		16	10	51	32	19	51	13.5	76	89	97	32	24	62	34	14.3	0.8
UCST206		30	16	10	56	37	22	57	13.5	89	102	113	37	28	70	38.1	15.9	1.26
UCST206-17	1/16		16	10	56	37	22	57	13.5	89	102	113	37	28	70	38.1	15.9	1.26
UCST206-18	1/8		16	10	56	37	22	57	13.5	89	102	113	37	28	70	38.1	15.9	1.26
UCST206-19	3/16		16	10	56	37	22	57	13.5	89	102	113	37	28	70	38.1	15.9	1.26
UCST206-20	1/4		16	10	56	37	22	57	13.5	89	102	113	37	28	70	38.1	15.9	1.26
UCST207		35	16	13	64	37	22	64	13.5	89	102	129	37	30	78	42.9	17.5	1.68
UCST207-20	1/4		16	13	64	37	22	64	13.5	89	102	129	37	30	78	42.9	17.5	1.68
UCST207-21	5/16		16	13	64	37	22	64	13.5	89	102	129	37	30	78	42.9	17.5	1.68
UCST207-22	3/8		16	13	64	37	22	64	13.5	89	102	129	37	30	78	42.9	17.5	1.68
UCST207-23	7/16		16	13	64	37	22	64	13.5	89	102	129	37	30	78	42.9	17.5	1.68
UCST208		40	19	16	83	49	29	83	17.5	102	114	144	49	33	88	49.2	19	2.28
UCST208-24	1/2		19	16	83	49	29	83	17.5	102	114	144	49	33	88	49.2	19	2.28
UCST208-25	9/16		19	16	83	49	29	83	17.5	102	114	144	49	33	88	49.2	19	2.28
UCST209		45	19	16	83	49	29	83	17.5	102	117	144	49	35	87	49.2	19	2.52
UCST209-26	5/8		19	16	83	49	29	83	17.5	102	117	144	49	35	87	49.2	19	2.52
UCST209-27	11/16		19	16	83	49	29	83	17.5	102	117	144	49	35	87	49.2	19	2.52
UCST209-28	3/4		19	16	83	49	29	83	17.5	102	117	144	49	35	87	49.2	19	2.52
UCST210		50	19	16	83	49	29	86	17.5	102	117	149	49	37	90	51.6	19	2.75
UCST210-30	7/8		19	16	83	49	29	86	17.5	102	117	149	49	37	90	51.6	19	2.75
UCST210-31	1-15/16		19	16	83	49	29	86	17.5	102	117	149	49	37	90	51.6	19	2.75
UCST210-32	1/2		19	16	83	49	29	86	17.5	102	117	149	49	37	90	51.6	19	2.75
UCST211		55	25	19	102	64	35	95	27	130	146	171	64	38	106	55.6	22.2	4.1
UCST211-32	1/2		25	19	102	64	35	95	27	130	146	171	64	38	106	55.6	22.2	4.1
UCST211-34	1/8		25	19	102	64	35	95	27	130	146	171	64	38	106	55.6	22.2	4.1
UCST211-35	3/16		25	19	102	64	35	95	27	130	146	171	64	38	106	55.6	22.2	4.1
UCST212		60	32	19	102	64	35	102	27	130	146	194	64	42	119	65.1	25.4	4.9
UCST212-36	1/4		32	19	102	64	35	102	27	130	146	194	64	42	119	65.1	25.4	4.9
UCST212-38	3/8		32	19	102	64	35	102	27	130	146	194	64	42	119	65.1	25.4	4.9
UCST212-39	7/16		32	19	102	64	35	102	27	130	146	194	64	42	119	65.1	25.4	4.9

Engineering the Future of Motion

About UKL

Founded in 2020, UKL Bearing Manufacturing Co., Ltd. (Wuxi) is China Take Up Bearing Units suppliers and OEM/ODM Take Up Bearing Units company, an integrated industrial and trading enterprise that focuses on precision manufacturing, combining R&D, production, and sales.
The company specializes in high-performance bearing solutions, providing technical support for global industries with exceptionally high demands for precision and reliability.

With more than 200 skilled professionals and a fully modernized production base, UKL’s facilities cover the entire manufacturing process — forging, annealing, turning, heat treatment, grinding, and automated assembly.
Leveraging over 15 years of OEM/ODM export experience, UKL responds quickly to customer needs, offering flexible and customized services for clients across Europe, Asia, Africa, and the Middle East.

More About Us Ukl Bearing Manufacturing Co.,Ltd

0+

years

Industry Experience
0+

Model diversity
0+

Number of Employees
0

$

Annual export value

Certificate Of Honor

News

What are the different types of ball bearings?
10 Feb, 2026
1. Primary Classifications and Mechanical Design Principles In the field of mechanical power transmission, the primary goal is to manage forces while facilitating movement. Ball bearings are the most...

READ MORE
What are the common causes of bearing failure?
10 Feb, 2026
1. Introduction: The Heart of the Machine In the world of mechanical engineering, bearings are often referred to as the “unseen heroes.” They are the critical interface between stationary and moving p...

READ MORE
Why use bearings for robotics and automation?
10 Feb, 2026
I. Introduction 1.1 The Dawn of the Autonomous Era We are living in a transformative period where automation is no longer a futuristic concept but a global industrial reality. From “lights-out” smart ...

READ MORE
What is the difference between cross roller bearing and ball bearing?
09 Feb, 2026
1. Introduction to the Precision Revolution in Modern Engineering The landscape of global industrial manufacturing is currently undergoing a profound transformation. As we move further into 2026, the ...

READ MORE

Take Up Bearing Units

Take Up Bearing Units

Recommended Products

Hanger Bearing Units

Flange Cartridge Bearing Units

Single Row Cylindrical Roller Bearings

SIZP Zinc Coated Precision Rod End Bearing

SAZP Rod End Joint Bearing

SI Maintenance-Free Rod End Bearing

Submit feedback
