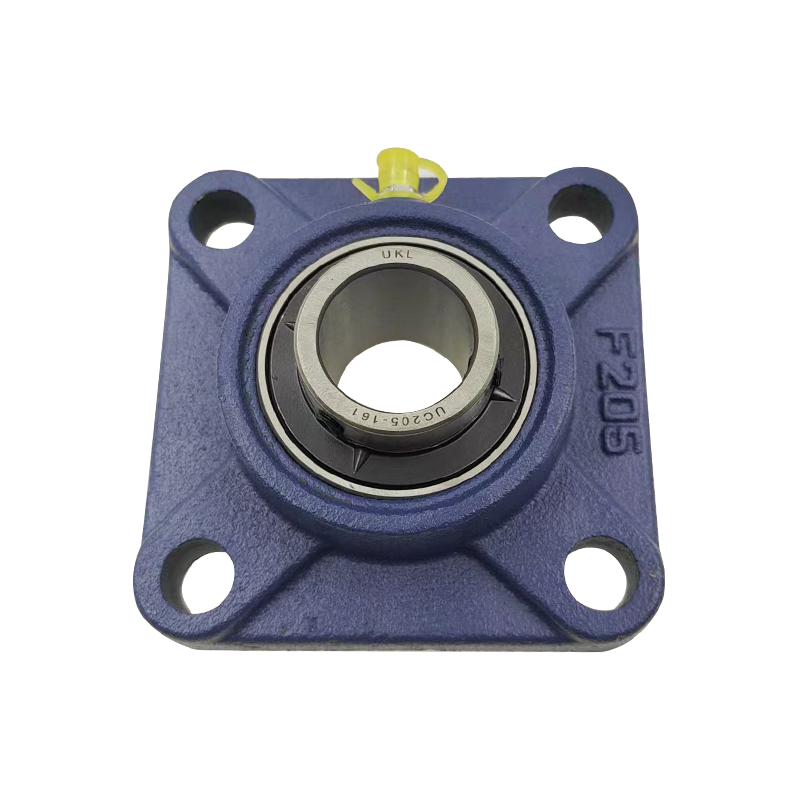

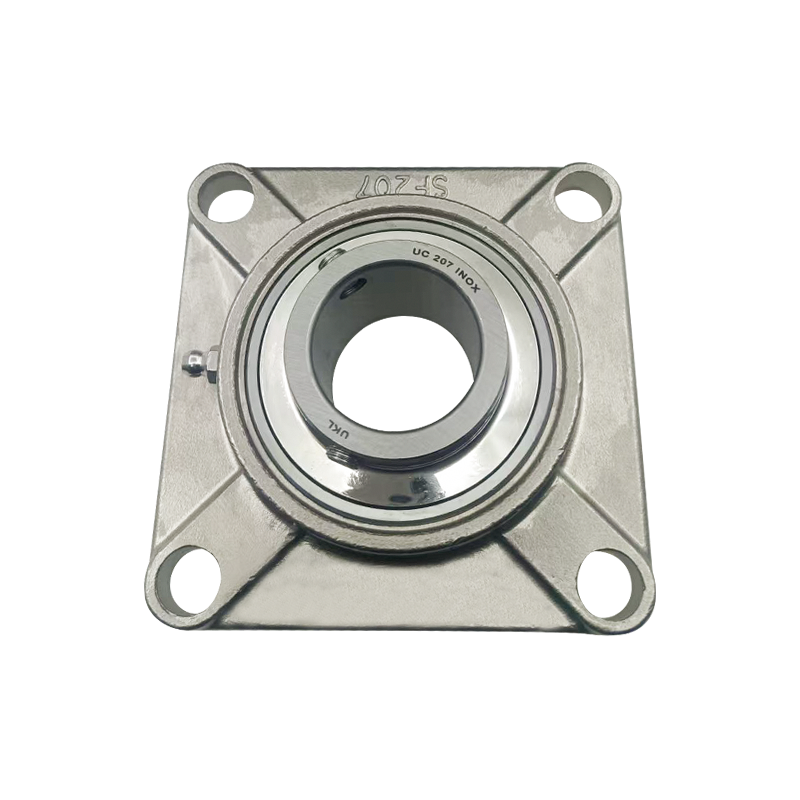

4 Bolt Flange Bearing

4-bolt flange bearing units is one kind of mounted ball bearing units, this design have 4 bolt in the housing and its suffix is UCF series, The UCF Ball bearing unit are also the most widely used on the market.
flange bearing units have the special ability to self-align inside the housing because of the spherical shape of the outer diameter of the bearing insert and the concave shape of the inner diameter of the housing into which it fits.
The housings are made primarily of gray cast iron, and stamped steel. Plastic and cast steel, Gray cast iron is the most popular choice for bearing units because of its optimal characteristics of vibration absorption, high strength, and excellent heat dissipation.

PREV：Tapped Base Pillow Block Bearings NEXT：2 Bolt Flange Bearing

Specifications
Contact Us

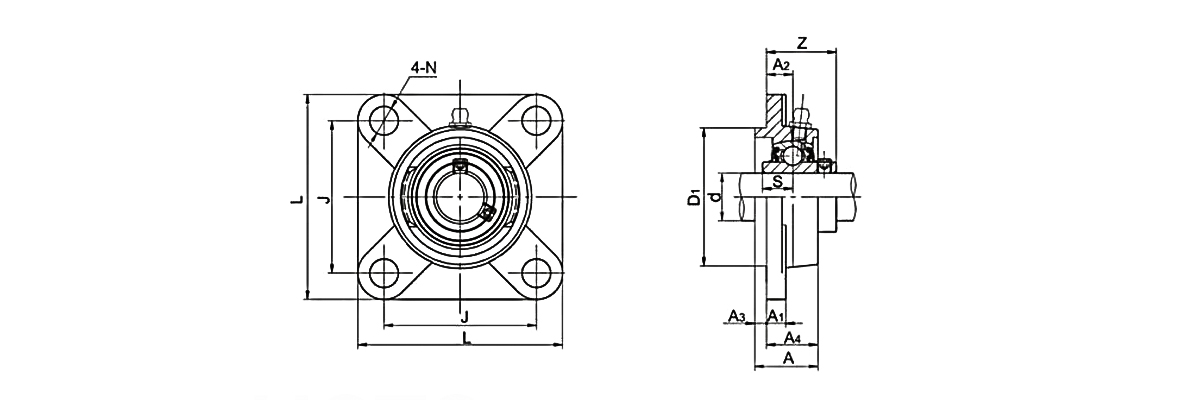

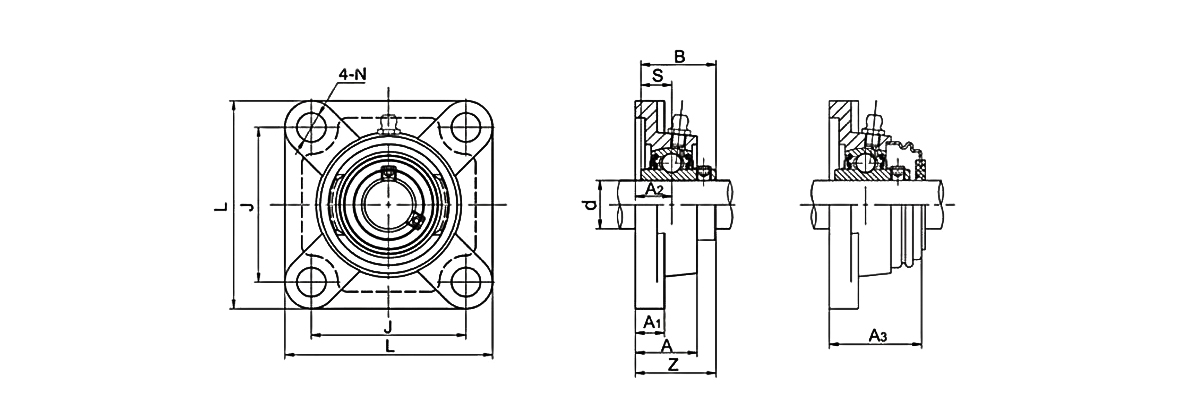

Unit No.	Shaft Dia		Dimensions (mm)										Bolt Size	Weight
	d		L	J	A2	A1	A	N	B	S	BZ	A3	(mm)	(kg)
	(in)	(mm)	L	J	A2	A1	A	N	B	S	BZ	A3	(mm)	(kg)
UCWF201		12	76	54	15	11	25.5	12	27.4	11.5	30.9		M10	0.72
UCWF202		15	76	54	15	11	25.5	12	27.4	11.5	30.9		M10	0.62
UCWF203		17	76	54	15	11	25.5	12	27.4	11.5	30.9		M10	0.61
UCF201		12	86	64	15	12	25.5	12	31	12.7	33.3		M10	0.61
UCF201-8	1/2		86	64	15	12	25.5	12	31	12.7	33.3		M10	0.61
UCF202		15	86	64	15	12	25.5	12	31	12.7	33.3		M10	0.61
UCF202-9	9/16		86	64	15	12	25.5	12	31	12.7	33.3		M10	0.61
UCF202-10	5/8		86	64	15	12	25.5	12	31	12.7	33.3		M10	0.61
UCF203		17	86	64	15	12	25.5	12	31	12.7	33.3		M10	0.61
UCF203-11	11/16		86	64	15	12	25.5	12	31	12.7	33.3		M10	0.61
UCF204		20	86	64	15	12	25.5	12	31	12.7	33.3	38.2	M10	0.61
UCF204-12	3/4		86	64	15	12	25.5	12	31	12.7	33.3	38.2	M10	0.61
UCF205		25	95	70	16	14	27	12	34.1	14.3	35.8	40	M10	0.8
UCF205-14	7/8		95	70	16	14	27	12	34.1	14.3	35.8	40	M10	0.8
UCF205-15	15/16		95	70	16	14	27	12	34.1	14.3	35.8	40	M10	0.8
UCF205-16	1		95	70	16	14	27	12	34.1	14.3	35.8	40	M10	0.8
UCF206		30	108	83	18	14	31	12	38	15.9	40.2	44	M10	1
UCF206-17	1-1/16		108	83	18	14	31	12	38	15.9	40.2	44	M10	1
UCF206-18	1-1/8		108	83	18	14	31	12	38	15.9	40.2	44	M10	1
UCF206-19	1-3/16		108	83	18	14	31	12	38	15.9	40.2	44	M10	1
UCF206-20	1-1/4		108	83	18	14	31	12	38	15.9	40.2	44	M10	1
UCF207		35	117	92	19	16	34	14	42.9	17.5	44.4	48.5	M12	1.4
UCF207-20	1-1/4		117	92	19	16	34	14	42.9	17.5	44.4	48.5	M12	1.4
UCF207-21	1-5/16		117	92	19	16	34	14	42.9	17.5	44.4	48.5	M12	1.4
UCF207-22	1-3/8		117	92	19	16	34	14	42.9	17.5	44.4	48.5	M12	1.4
UCF207-23	1-7/16		117	92	19	16	34	14	42.9	17.5	44.4	48.5	M12	1.4
UCF208		40	130	102	21	16	36	16	49.2	19	51.2	55.1	M14	1.8
UCF208-24	1-1/2		130	102	21	16	36	16	49.2	19	51.2	55.1	M14	1.8
UCF208-25	1-9/16		130	102	21	16	36	16	49.2	19	51.2	55.1	M14	1.8
UCF209		45	137	105	22	18	38	16	49.2	19	52.2	57	M14	2.2
UCF209-26	1-5/8		137	105	22	18	38	16	49.2	19	52.2	57	M14	2.2
UCF209-27	1-11/16		137	105	22	18	38	16	49.2	19	52.2	57	M14	2.2
UCF209-28	1-3/4		137	105	22	18	38	16	49.2	19	52.2	57	M14	2.2
UCF210		50	143	111	22	18	40	16	51.6	19	54.6	60	M14	2.4
UCF210-30	1-7/8		143	111	22	18	40	16	51.6	19	54.6	60	M14	2.4
UCF210-31	1-15/16		143	111	22	18	40	16	51.6	19	54.6	60	M14	2.4
UCF210-32	2		143	111	22	18	40	16	51.6	19	54.6	60	M14	2.4
UCF211		55	162	130	25	20	43	19	55.6	22.2	58.4	63	M16	3.5
UCF211-32	2		162	130	25	20	43	19	55.6	22.2	58.4	63	M16	3.5
UCF211-34	2-1/8		162	130	25	20	43	19	55.6	22.2	58.4	63	M16	3.5
UCF211-35	2-3/16		162	130	25	20	43	19	55.6	22.2	58.4	63	M16	3.5
UCF212		60	175	143	29	20	48	19	65.1	25.4	68.7	73.5	M16	4.2
UCF212-36	2-1/4		175	143	29	20	48	19	65.1	25.4	68.7	73.5	M16	4.2
UCF212-38	2-3/8		175	143	29	20	48	19	65.1	25.4	68.7	73.5	M16	4.2
UCF212-39	2-7/16		175	143	29	20	48	19	65.1	25.4	68.7	73.5	M16	4.2
UCF213		65	187	149	30	22	50	19	65.1	25.4	69.7	74.5	M16	5.3
UCF213-40	2-1/2		187	149	30	22	50	19	65.1	25.4	69.7	74.5	M16	5.3
UCF214		70	193	152	31	22	54	19	74.6	30.2	75.4	80	M16	5.9
UCF214-44	2-3/4		193	152	31	22	54	19	74.6	30.2	75.4	80	M16	5.9
UCF215		75	200	159	34	22	56	19	77.8	33.3	78.5	82.5	M16	6.3
UCF215-47	2-15/16		200	159	34	22	56	19	77.8	33.3	78.5	82.5	M16	6.3
UCF215-48	3		200	159	34	22	56	19	77.8	33.3	78.5	82.5	M16	6.3
UCF216		80	208	165	34	22	58	23	82.6	33.3	83.3	89	M20	7.3
UCF217		85	220	175	36	24	63	23	85.7	34.1	87.6	92.1	M20	8.9
UCF217-52	3-1/4		220	175	36	24	63	23	85.7	34.1	87.6	92.1	M20	8.9
UCF218		90	235	187	40	25	68	23	96	39.7	96.3	102	M20	11.6
UCF218-56	3-1/2		235	187	40	25	68	23	96	39.7	96.3	102	M20	11.6

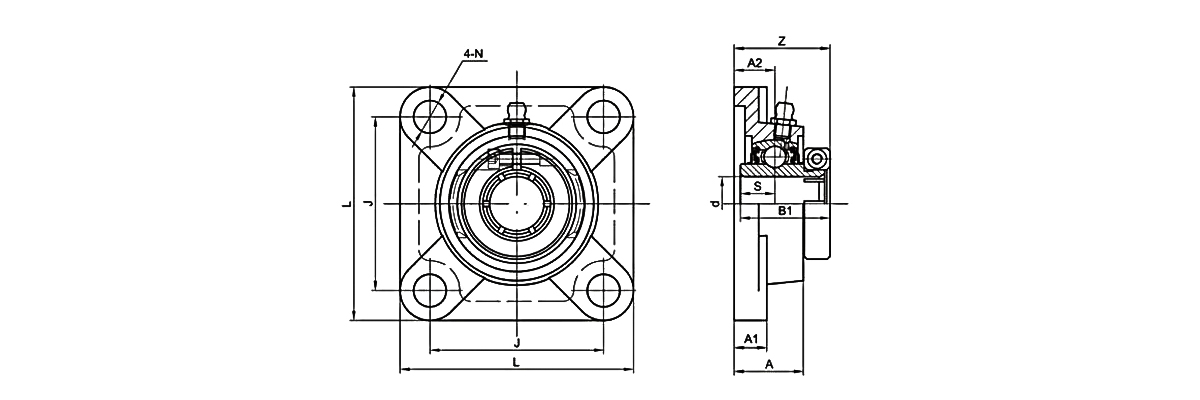

Unit No.	Shaft Dia		Dimensions (mm)									Bolt Size (mm)	Weight (kg)
	d		L	J	kz	A1	A	N	S	Z	F
	(in)	(mm)	L	J	kz	A1	A	N	S	Z	F
NAF201S		12	76	54	15	11	25.5	12	13.9	38.4	—	M10	0.5
NAF201-8S	1/2		76	54	15	11	25.5	12	13.9	38.4	—	M10	0.5
NAF202S		15	76	54	15	11	25.5	12	13.9	38.4	—	M10	0.5
NAF202-10S	5/8		76	54	15	11	25.5	12	13.9	38.4	—	M10	0.5
NAF203S		17	76	54	15	11	25.5	12	13.9	38.4	—	M10	0.5
NAF203-11S	11/16		76	54	15	11	25.5	12	13.9	38.4	—	M10	0.5
NAF201		12	86	64	15	12	25.5	12	17.1	41.6	32	M10	0.66
NAF201-8	1/2		86	64	15	12	25.5	12	17.1	41.6	32	M10	0.66
NAF202		15	86	64	15	12	25.5	12	17.1	41.6	32	M10	0.66
NAF202-10	5/8		86	64	15	12	25.5	12	17.1	41.6	32	M10	0.66
NAF203		17	86	64	15	12	25.5	12	17.1	41.6	32	M10	0.66
NAF203-11	11/16		86	64	15	12	25.5	12	17.1	41.6	32	M10	0.66
NAF204		20	86	64	15	12	25.5	12	17.1	41.6	32	M10	0.66
NAF204-12	3/4		86	64	15	12	25.5	12	17.1	41.6	32	M10	0.66
NAF205		25	95	70	16	14	27	12	17.5	42.9	36	M10	0.8
NAF205-14	7/8		95	70	16	14	27	12	17.5	42.9	36	M10	0.8
NAF205-15	15/16		95	70	16	14	27	12	17.5	42.9	36	M10	0.8
NAF205-16	1		95	70	16	14	27	12	17.5	42.9	36	M10	0.8
NAF206		30	108	83	18	14	31	12	18.3	48.1	42	M10	1.2
NAF206-18	1-1/8		108	83	18	14	31	12	18.3	48.1	42	M10	1.2
NAF206-19	1-3/16		108	83	18	14	31	12	18.3	48.1	42	M10	1.2
NAF206-20	1-1/4		108	83	18	14	31	12	18.3	48.1	42	M10	1.2
NAF207		35	117	92	19	16	34	14	18.8	51.3	49	M12	1.6
NAF207-20	1-1/4		117	92	19	16	34	14	18.8	51.3	49	M12	1.6
NAF207-21	1-5/16		117	92	19	16	34	14	18.8	51.3	49	M12	1.6
NAF207-22	1-3/8		117	92	19	16	34	14	18.8	51.3	49	M12	1.6
NAF207-23	1-7/16		117	92	19	16	34	14	18.8	51.3	49	M12	1.6
NAF208		40	130	102	21	16	36	16	21.4	55.9	55	M14	1.9
NAF208-24	1-1/2		130	102	21	16	36	16	21.4	55.9	55	M14	1.9
NAF208-25	1-9/16		130	102	21	16	36	16	21.4	55.9	55	M14	1.9
NAF209		45	137	105	22	18	38	16	21.4	56.9	—	M14	2.3
NAF209-26	1-5/8		137	105	22	18	38	16	21.4	56.9	—	M14	2.3
NAF209-27	1-11/16		137	105	22	18	38	16	21.4	56.9	—	M14	2.3
NAF209-28	1-3/4		137	105	22	18	38	16	21.4	56.9	—	M14	2.3
NAF210		50	143	111	22	18	40	16	24.6	60.1	64	M14	2.6
NAF210-30	1-7/8		143	111	22	18	40	16	24.6	60.1	64	M14	2.6
NAF210-31	1-15/16		143	111	22	18	40	16	24.6	60.1	64	M14	2.6
NAF211		55	162	130	25	20	43	19	27.8	68.6	71	M16	3.8
NAF211-32	2		162	130	25	20	43	19	27.8	68.6	71	M16	3.8
NAF211-34	2-1/8		162	130	25	20	43	19	27.8	68.6	71	M16	3.8
NAF211-35	2-3/16		162	130	25	20	43	19	27.8	68.6	71	M16	3.8
NAF212		60	175	143	29	20	48	19	31	75.8	78	M16	4.8
NAF212-36	2-1/4		175	143	29	20	48	19	31	75.8	78	M16	4.8
NAF212-38	2-3/8		175	143	29	20	48	19	31	75.8	78	M16	4.8
NAF212-39	2-7/16		175	143	29	20	48	19	31	75.8	78	M16	4.8
NAF213		65	187	149	30	22	50	19	34.3	81.4	85	M16	6
NAF213-40	2-1/2		187	149	30	22	50	19	34.3	81.4	85	M16	6
NAF214		70	193	152	31	22	54	19	34.3	82.4	91	M16	6.3
NAF214-44	2-3/4		193	152	31	22	54	19	34.3	82.4	91	M16	6.3
NAF215		75	200	159	34	22	56	19	37.3	88.8	96	M16	7.2
NAF215-48	3		200	159	34	22	56	19	37.3	88.8	96	M16	7.2

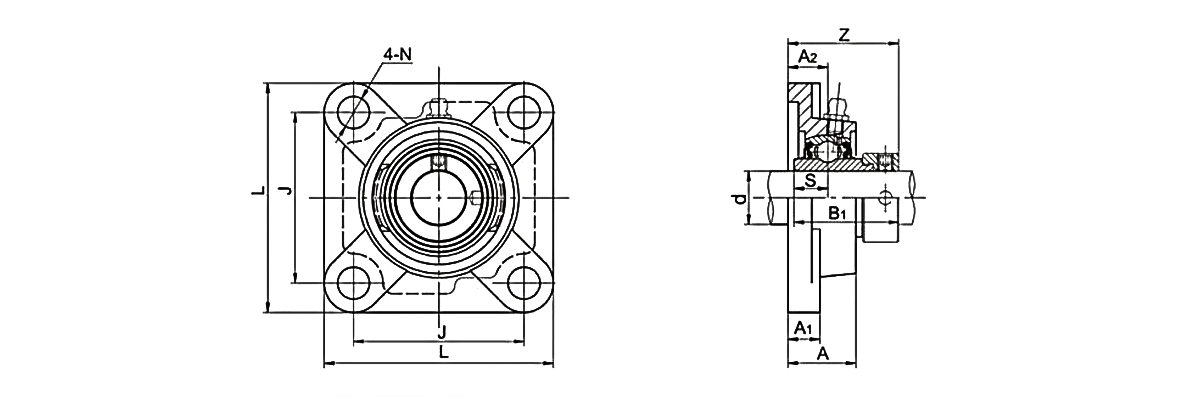

Unit No.	Shaft Dia		Dimensions(mm)									Bolt Size (mm)	Weight (kg)
	d		L	J	A2	A1	A	N	B1	S	Z
	(in)	(mm)	L	J	A2	A1	A	N	B1	S	Z
UEF204		20	86	64	15	12	25.5	12	33	12.7	35.3	M10	0.63
UEF204-12	3/4		86	64	15	12	25.5	12	33	12.7	35.3	M10	0.63
UEF205		25	95	70	16	14	27	12	35.4	14.3	37.1	M10	0.83
UEF205-14	7/8		95	70	16	14	27	12	35.4	14.3	37.1	M10	0.83
UEF205-15	15/16		95	70	16	14	27	12	35.4	14.3	37.1	M10	0.83
UEF205-16	1		95	70	16	14	27	12	35.4	14.3	37.1	M10	0.83
UEF206		30	108	83	18	14	31	12	39.8	15.9	41.9	M10	1.18
UEF206-17	1-1/16		108	83	18	14	31	12	39.8	15.9	41.9	M10	1.18
UEF206-18	1-1/8		108	83	18	14	31	12	39.8	15.9	41.9	M10	1.18
UEF206-19	1-3/16		108	83	18	14	31	12	39.8	15.9	41.9	M10	1.18
UEF206-20	1-1/4		108	83	18	14	31	12	39.8	15.9	41.9	M10	1.18
UEF207		35	117	92	19	16	34	14	43.9	17.5	45.4	M12	1.52
UEF207-20	1-1/4		117	92	19	16	34	14	43.9	17.5	45.4	M12	1.52
UEF207-21	1-5/16		117	92	19	16	34	14	43.9	17.5	45.4	M12	1.52
UEF207-22	1-3/8		117	92	19	16	34	14	43.9	17.5	45.4	M12	1.52
UEF207-23	1-7/16		117	92	19	16	34	14	43.9	17.5	45.4	M12	1.52
UEF208		40	130	102	21	16	36	16	50.2	19	52.2	M14	1.94
UEF208-24	1-1/2		130	102	21	16	36	16	50.2	19	52.2	M14	1.94
UEF208-25	1-9/16		130	102	21	16	36	16	50.2	19	52.2	M14	1.94
UEF209		45	137	105	22	18	38	16	50.2	19	53.2	M14	2.41
UEF209-26	1-5/8		137	105	22	18	38	16	50.2	19	53.2	M14	2.41
UEF209-27	1-11/16		137	105	22	18	38	16	50.2	19	53.2	M14	2.41
UEF209-28	1-3/4		137	105	22	18	38	16	50.2	19	53.2	M14	2.41
UEF210		50	143	111	22	18	40	16	52.6	19	55.6	M14	2.66
UEF210-30	1-7/8		143	111	22	18	40	16	52.6	19	55.6	M14	2.66
UEF210-31	1-15/16		143	111	22	18	40	16	52.6	19	55.6	M14	2.66
UEF210-32	2		143	111	22	18	40	16	52.6	19	55.6	M14	2.66
UEF211		55	162	130	25	20	43	19	56.6	22.2	59.4	M16	3.73
UEF211-32	2		162	130	25	20	43	19	56.6	22.2	59.4	M16	3.73
UEF211-34	2-1/8		162	130	25	20	43	19	56.6	22.2	59.4	M16	3.73
UEF211-35	2-3/16		162	130	25	20	43	19	56.6	22.2	59.4	M16	3.73
UEF212		60	175	143	29	20	48	19	66.6	25.4	70.2	M16	4.69
UEF212-36	2-1/4		175	143	29	20	48	19	66.6	25.4	70.2	M16	4.69
UEF212-38	2-3/8		175	143	29	20	48	19	66.6	25.4	70.2	M16	4.69
UEF212-39	2-7/16		175	143	29	20	48	19	66.6	25.4	70.2	M16	4.69

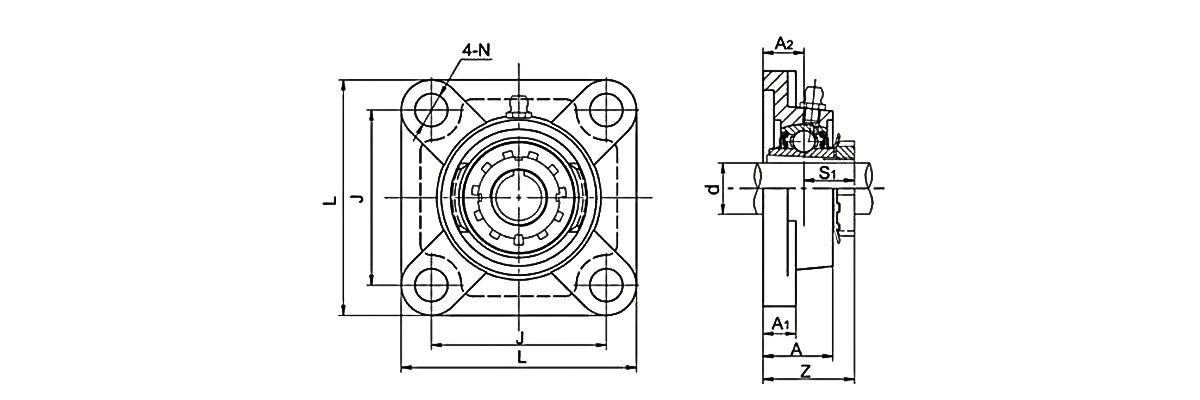

Unit No.	Shaft Dia		Dimensions (mm)								Bolt Size (mm)	Weight
	d		L	J	A2	A1	A	N	S1	z		(kg)
	(in)	(mm)	L	J	A2	A1	A	N	S1	z		(kg)
UKF205+H2305		20	95	70	16	14	27	12	18.5	34.5	M10	0.84
UKF205+HE2305	3/4		95	70	16	14	27	12	18.5	34.5	M10	0.84
UKF206+H2306		25	108	83	18	14	31	12	20.5	38.5	M10	1.1
UKF206+HS2306	7/8		108	83	18	14	31	12	20.5	38.5	M10	1.1
UKF206+HA2306	15/16		108	83	18	14	31	12	20.5	38.5	M10	1.1
UKF206+HE2306	1		108	83	18	14	31	12	20.5	38.5	M10	1.1
UKF207+H2307		30	117	92	19	16	34	14	22.5	41.5	M12	1.6
UKF207+HS2307	1-1/8		117	92	19	16	34	14	22.5	41.5	M12	1.6
UKF207+HA2307	1-3/16		117	92	19	16	34	14	22.5	41.5	M12	1.6
UKF208+H2308		35	130	102	21	16	36	16	24.5	45.5	M14	1.9
UKF208+HE2308	1-1/4		130	102	21	16	36	16	24.5	45.5	M14	1.9
UKF208+HS2308	1-3/8		130	102	21	16	36	16	24.5	45.5	M14	1.9
UKF209+H2309		40	137	105	22	18	38	16	26	48	M14	2.3
UKF209+HA2309	1-7/16		137	105	22	18	38	16	26	48	M14	2.3
UKF209+HE2309	1-1/2		137	105	22	18	38	16	26	48	M14	2.3
UKF210+H2310		45	143	111	22	18	40	16	27.5	49.5	M14	2.6
UKF210+HS2310	1-5/8		143	111	22	18	40	16	27.5	49.5	M14	2.6
UKF210+HA2310	1-11/16		143	111	22	18	40	16	27.5	49.5	M14	2.6
UKF210+HE2310	1-3/4		143	111	22	18	40	16	27.5	49.5	M14	2.6
UKF211+H2311		50	162	130	25	20	43	19	28.5	53.5	M16	3.4
UKF211+HS2311	1-7/8		162	130	25	20	43	19	28.5	53.5	M16	3.4
UKF211+HA2311	1-15/16		162	130	25	20	43	19	28.5	53.5	M16	3.4
UKF211+HE2311	2		162	130	25	20	43	19	28.5	53.5	M16	3.4
UKF212+H2312		55	175	143	29	20	48	19	31	60	M16	4.1
UKF212+HS2312	2-1/8		175	143	29	20	48	19	31	60	M16	4.1
UKF213+H2313		60	187	149	30	22	50	19	32	62	M16	5.5
UKF213+HA2313	2-3/16		187	149	30	22	50	19	32	62	M16	5.5
UKF213+HE2313	2-1/4		187	149	30	22	50	19	32	62	M16	5.5
UKF213+HS2313	2-3/8		187	149	30	22	50	19	32	62	M16	5.5
UKF215+H2315		65	200	159	34	22	56	19	35.5	69.5	M16	6.7
UKF215+HA2315	2-7/16		200	159	34	22	56	19	35.5	69.5	M16	6.7
UKF215+HE2315	2-1/2		200	159	34	22	56	19	35.5	69.5	M16	6.7
UKF216+H2316		70	208	165	34	22	58	23	39	73	M20	7.5
UKF216+HA2316	2-11/16		208	165	34	22	58	23	39	73	M20	7.5
UKF216+HE2316	2-3/4		208	165	34	22	58	23	39	73	M20	7.5
UKF217+H2317		75	220	175	36	24	63	23	40	76	M20	9.1
UKF217+HA2317	2-15/16		220	175	36	24	63	23	40	76	M20	9.1
UKF217+HE2317	3		220	175	36	24	63	23	40	76	M20	9.1
UKF218+H2318		80	235	187	40	25	68	23	42	82	M20	11.8

Unit No.	Shaft Dia		Dimensions (mm)									Bolt Size (mm)	Weight (kg)

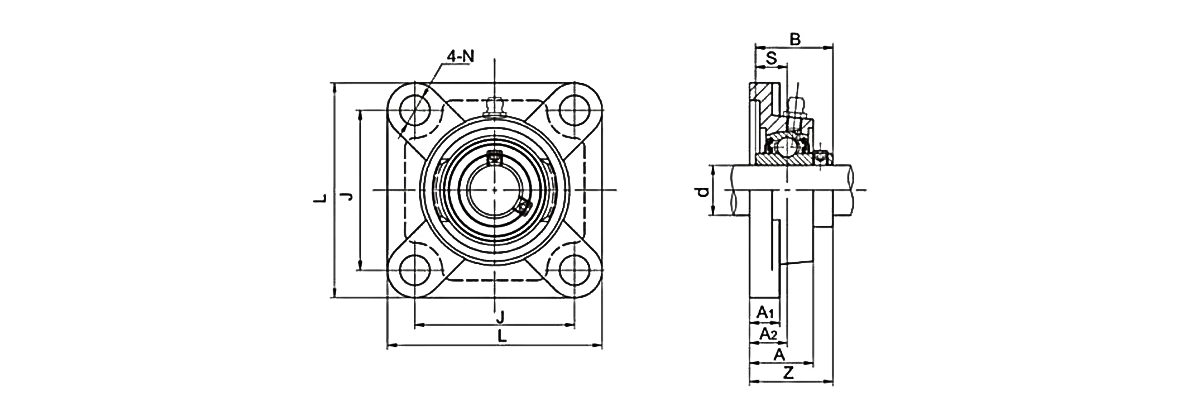

	d		L	J	A2	A1	A	N	B	s	z
	(in)	(mm)	L	J	A2	A1	A	N	B	s	z
UCFX05		25	108	83	18	13	30	12	38.1	15.9	40.2	M10	1
UCFX05-13	13/16		108	83	18	13	30	12	38.1	15.9	40.2	M10	1
UCFX05-14	7/8		108	83	18	13	30	12	38.1	15.9	40.2	M10	1
UCFX05-15	15/16		108	83	18	13	30	12	38.1	15.9	40.2	M10	1
UCFX05-16	1		108	83	18	13	30	12	38.1	15.9	40.2	M10	1
UCFX06		30	117	92	19	14	34	16	42.9	17.5	44.4	M14	1.7
UCFX06-17	1-1/16		117	92	19	14	34	16	42.9	17.5	44.4	M14	1.7
UCFX06-18	1-1/8		117	92	19	14	34	16	42.9	17.5	44.4	M14	1.7
UCFX06-19	1-3/16		117	92	19	14	34	16	42.9	17.5	44.4	M14	1.7
UCFX06-20	1-1/4		117	92	19	14	34	16	42.9	17.5	44.4	M14	1.7
UCFX07		35	130	101.5	21	14	38	16	49.2	19	51.2	M14	2.1
UCFX07-21	1-5/16		130	101.5	21	14	38	16	49.2	19	51.2	M14	2.1
UCFX07-22	1-3/8		130	101.5	21	14	38	16	49.2	19	51.2	M14	2.1
UCFX07-23	1-7/16		130	101.5	21	14	38	16	49.2	19	51.2	M14	2.1
UCFX08		40	137	105	22	14	40	19	49.2	19	52.2	M16	2.4
UCFX08-24	1-1/2		137	105	22	14	40	19	49.2	19	52.2	M16	2.4
UCFX08-25	1-9/16		137	105	22	14	40	19	49.2	19	52.2	M16	2.4
UCFX09		45	143	111	23	14	40	19	51.6	19	55.6	M16	2.5
UCFX09-26	1-5/8		143	111	23	14	40	19	51.6	19	55.6	M16	2.5
UCFX09-27	1-11/16		143	111	23	14	40	19	51.6	19	55.6	M16	2.5
UCFX09-28	1-3/4		143	111	23	14	40	19	51.6	19	55.6	M16	2.5
UCFX09-29	1-13/16		143	111	23	14	40	19	51.6	19	55.6	M16	2.5
UCFX10		50	162	130	26	20	44	19	55.6	22.2	59.4	M16	3.9
UCFX10-30	1-7/8		162	130	26	20	44	19	55.6	22.2	59.4	M16	3.9
UCFX10-31	1-15/16		162	130	26	20	44	19	55.6	22.2	59.4	M16	3.9
UCFX10-32	2		162	130	26	20	44	19	55.6	22.2	59.4	M16	3.9
UCFX11		55	175	143	29	20	49	19	65.1	25.4	68.7	M16	4.9
UCFX11-33	2-1/16		175	143	29	20	49	19	65.1	25.4	68.7	M16	4.9
UCFX11-34	2-1/8		175	143	29	20	49	19	65.1	25.4	68.7	M16	4.9
UCFX11-35	2-3/16		175	143	29	20	49	19	65.1	25.4	68.7	M16	4.9
UCFX11-36	2-1/4		175	143	29	20	49	19	65.1	25.4	68.7	M16	4.9
UCFX11-37	2-5/16		175	143	29	20	49	19	65.1	25.4	68.7	M16	4.9
UCFX12		60	187	149	34	21	59	19	65.1	25.4	73.7	M16	5.2
UCFX12-38	2-3/8		187	149	34	21	59	19	65.1	25.4	73.7	M16	5.2
UCFX12-39	2-7/16		187	149	34	21	59	19	65.1	25.4	73.7	M16	5.2
UCFX13		65	187	149	34	21	59	19	74.6	30.2	78.4	M16	5.3
UCFX13-40	2-1/2		187	149	34	21	59	19	74.6	30.2	78.4	M16	5.3
UCFX13-41	2-9/16		187	149	34	21	59	19	74.6	30.2	78.4	M16	5.3
UCFX14		70	197	152	37	24	60	23	77.8	33.3	81.5	M20	7.3
UCFX14-42	2-5/8		197	152	37	24	60	23	77.8	33.3	81.5	M20	7.3
UCFX14-43	2-11/16		197	152	37	24	60	23	77.8	33.3	81.5	M20	7.3
UCFX14-44	2-3/4		197	152	37	24	60	23	77.8	33.3	81.5	M20	7.3
UCFX15		75	197	152	40	24	68	23	82.6	33.3	89,3	M20	8,1
UCFX15-45	2-13/16		197	152	40	24	68	23	82.6	33.3	89,3	M20	8,1
UCFX15-46	2-7/8		197	152	40	24	68	23	82.6	33.3	89,3	M20	8,1
UCFX15-47	2-15/16		197	152	40	24	68	23	82.6	33.3	89,3	M20	8,1
UCFX15-48	3		197	152	40	24	68	23	82.6	33.3	89,3	M20	8,1
UCFX16		80	214	171	40	24	70	23	85.7	34.1	91.6	M20	9.9
UCFX16-49	3-1/16		214	171	40	24	70	23	85.7	34.1	91.6	M20	9.9
UCFX16-50	3-1/8		214	171	40	24	70	23	85.7	34.1	91.6	M20	9.9
UCFX16-51	3-3/16		214	171	40	24	70	23	85.7	34.1	91.6	M20	9.9
UCFX16-52	3-1/4		214	171	40	24	70	23	85.7	34.1	91.6	M20	9.9
UCFX17		85	214	171	40	24	70	23	96	39.7	96.3	M20	11
UCFX17-53	3-5/16		214	171	40	24	70	23	96	39.7	96.3	M20	11
UCFX17-55	3-7/16		214	171	40	24	70	23	96	39.7	96.3	M20	11

Unit No.	Shaft Dia	Dimensions(mm)									Bolt size (mm)	Weight (kg)
Unit No.	d (mm)	L	J	A2	A1	A	N	B	s	z	Bolt size (mm)	Weight (kg)
UCF305	25	110	80	16	13	29	16	38	15	39	M14	1.2
UCF306	30	125	95	18	15	32	16	43	17	44	M14	1.8
UCF307	35	135	100	20	16	36	19	48	19	49	M16	2.2
UCF308	40	150	112	23	17	40	19	52	19	56	M16	2.9
UCF309	45	160	125	25	18	44	19	57	22	61	M16	3.5
UCF310	50	175	132	28	19	48	23	61	22	67	M20	4.8
UCF311	55	185	140	30	20	52	23	66	25	71	M20	5.6
UCF312	60	193	150	33	22	56	23	71	26	78	M20	6.7
UCF313	65	208	166	33	22	58	23	75	30	78	M20	7.8
UCF314	70	226	178	36	25	61	25	78	33	81	M22	10.1
UCF315	75	236	184	39	25	66	25	82	32	89	M22	11.1
UCF316	80	250	196	38	27	68	31	86	34	90	M27	12.8
UCF317	85	260	204	44	27	74	31	96	40	100	M27	15.4
UCF318	90	280	216	44	30	76	35	96	40	100	M30	19
UCF319	95	290	228	59	30	94	35	103	41	121	M30	20.6
UCF320	100	310	242	59	32	94	38	108	42	125	M33	25.7
UCF321	105	310	242	59	32	94	38	112	44	128	M33	25.6
UCF322	110	340	266	60	35	96	41	117	46	131	M36	38
UCF324	120	370	290	65	40	110	41	126	51	140	M36	50
UCF326	130	410	320	65	45	115	41	135	54	146	M36	66
UCF328	140	450	350	75	55	125	41	145	59	141	M36	90

Unit No.	Shaft Dia		Dimensions (mm)											Bolt Size (mm)	Weight (kg)
	d		L	J	A2	A1	A	H	H1	N	D1	S	Z
	(in)	(mm)	L	J	A2	A1	A	H	H1	N	D1	S	Z
UCFS305		25	110	80	9	22	29	7	13	16	80	15	32	M14	1.3
UCFS305-14	7/8		110	80	9	22	29	7	13	16	80	15	32	M14	1.3
UCFS305-15	15/16		110	80	9	22	29	7	13	16	80	15	32	M14	1.3
UCFS305-16	1		110	80	9	22	29	7	13	16	80	15	32	M14	1.3
UCFS306		30	125	95	10	24	32	8	15	16	90	17	36	M14	1.9
UCFS306-18	1-1/8		125	95	10	24	32	8	15	16	90	17	36	M14	1.9
UCFS306-19	1-3/16		125	95	10	24	32	8	15	16	90	17	36	M14	1.9
UCFS307		35	135	100	11	27	36	9	16	19	100	19	40	M16	2.4
UCFS307-20	1-1/4		135	100	11	27	36	9	16	19	100	19	40	M16	2.4
UCFS307-21	1-5/16		135	100	11	27	36	9	16	19	100	19	40	M16	2.4
UCFS307-22	1-3/8		135	100	11	27	36	9	16	19	100	19	40	M16	2.4
UCFS308		40	150	112	13	30	40	10	17	19	115	19	46	M16	3.3
UCFS308-24	1-7/8		150	112	13	30	40	10	17	19	115	19	46	M16	3.3
UCFS308-25	1-15/16		150	112	13	30	40	10	17	19	115	19	46	M16	3.3
UCFS309		45	160	125	14	33	44	11	18	19	125	22	49	M16	4
UCFS309-26	2		160	125	14	33	44	11	18	19	125	22	49	M16	4
UCFS309-27	2-1/8		160	125	14	33	44	11	18	19	125	22	49	M16	4
UCFS309-28	2-3/16		160	125	14	33	44	11	18	19	125	22	49	M16	4
UCFS310		50	175	132	16	36	48	12	19	23	140	22	55	M20	5.3
UCFS310-30	1-7/8		175	132	16	36	48	12	19	23	140	22	55	M20	5.3
UCFS310-31	1-15/16		175	132	16	36	48	12	19	23	140	22	55	M20	5.3
UCFS311		55	185	140	17	39	52	13	20	23	150	25	58	M20	6.2
UCFS311-32	2		185	140	17	39	52	13	20	23	150	25	58	M20	6.2
UCFS311-34	2-1/8		185	140	17	39	52	13	20	23	150	25	58	M20	6.2
UCFS311-36	2-3/16		185	140	17	39	52	13	20	23	150	25	58	M20	6.2
UCFS312		60	195	150	19	42	56	14	22	23	160	26	64	M20	7.2
UCFS312-36	2-1/4		195	150	19	42	56	14	22	23	160	26	64	M20	7.2
UCFS312-38	2-3/8		195	150	19	42	56	14	22	23	160	26	64	M20	7.2
UCFS312-39	2-7/16		195	150	19	42	56	14	22	23	160	26	64	M20	7.2
UCFS313		65	208	166	15	40	58	18	22	23	175	30	60	M20	8.9
UCFS313-40	2-1/2		208	166	15	40	58	18	22	23	175	30	60	M20	8.9
UCFS314		70	226	178	18	43	61	18	25	25	185	31	65	M22	11
UCFS314-44	2-3/4		226	178	18	43	61	18	25	25	185	31	65	M22	11
UCFS315		75	236	184	21	48	66	18	25	25	200	32	71	M22	13
UCFS315-48	3		236	184	21	48	66	18	25	25	200	32	71	M22	13
UCFS316		80	250	196	18	48	68	20	27	31	210	34	70	M27	15
UCFS317		85	260	204	24	54	74	20	27	31	220	40	80	M27	17
UCFS317-52	3-1/4		260	204	24	54	74	20	27	31	220	40	80	M27	17
UCFS318		90	280	216	24	56	76	20	30	35	240	40	80	M30	21
UCFS318-56	3-1/2		280	216	24	56	76	20	30	35	240	40	80	M30	21
UCFS319		95	290	228	39	74	94	20	30	35	250	41	101	M30	25
UCFS319-60	3-3/4		290	228	39	74	94	20	30	35	250	41	101	M30	25
UCFS320		100	310	242	39	74	94	20	32	38	260	42	105	M33	30
UCFS320-64	4		310	242	39	74	94	20	32	38	260	42	105	M33	30
UCFS322		100	340	266	35	71	96	25	35	41	300	46	106	M36	39
UCFS324		120	370	290	35	80	110	30	40	41	330	51	110	M36	54
UCFS326		130	410	320	35	85	115	30	45	41	360	54	116	M36	71
UCFS328		140	450	350	45	95	125	30	55	41	400	59	131	M36	100

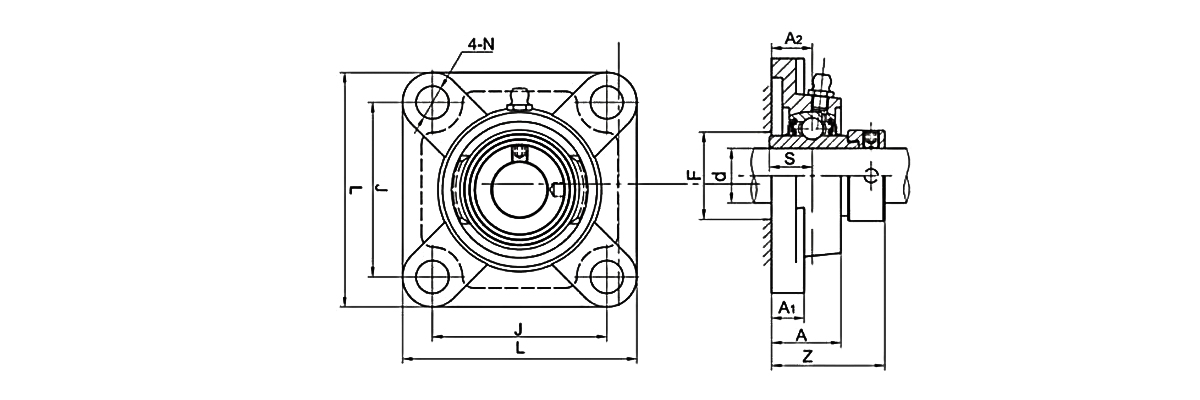

Unit No.	Shaft Dia		Dimensions (mm)									Bolt Size (mm)	Weight
	d		L	J	A2	A1	A	N	B1	S	Z		(kg)
	(in)	(mm)	L	J	A2	A1	A	N	B1	S	Z		(kg)
NAFS201S		12	76	54	15	11	24.5	11.5	37.3	13.9	38.4	M10	0.66
NAFS201-8S	1/2		76	54	15	11	24.5	11.5	37.3	13.9	38.4	M10	0.66
NAFS202S		15	76	54	15	11	24.5	11.5	37.3	13.9	38.4	M10	0.66
NAFS202-1OS	5/8		76	54	15	11	24.5	11.5	37.3	13.9	38.4	M10	0.66
NAFS203S		17	76	54	15	11	24.5	11.5	37.3	13.9	38.4	M10	0.66
NAFS203-11S	11/16		76	54	15	11	24.5	11.5	37.3	13.9	38.4	M10	0.66
NAFS201		12	86	63.5	19	15	29.5	11.5	43.7	17	45.5	M10	0.8
NAFS201-8	1/2		86	63.5	19	15	29.5	11.5	43.7	17	45.5	M10	0.8
NAFS202		15	86	63.5	19	15	29.5	11.5	43.7	17	45.5	M10	0.8
NAFS202-10	5/8		86	63.5	19	15	29.5	11.5	43.7	17	45.5	M10	0.8
NAFS203		17	86	63.5	19	15	29.5	11.5	43.7	17	45.5	M10	0.8
NAFS203-11	11/16		86	63.5	19	15	29.5	11.5	43.7	17	45.5	M10	0.8
NAFS204		20	86	63.5	19	15	29.5	11.5	43.7	17	45.5	M10	0.8
NAFS204-12	3/4		86	63.5	19	15	29.5	11.5	43.7	17	45.5	M10	0.8
NAFS205		25	93	70	19	15	30	11.5	44.4	17.4	45.9	M10	0.95
NAFS205-11	7/8		93	70	19	15	30	11.5	44.4	17.4	45.9	M10	0.95
NAFS205-15	15/16		93	70	19	15	30	11.5	44.4	17.4	45.9	M10	0.95
NAFS205-16	1		93	70	19	15	30	11.5	44.4	17.4	45.9	M10	0.95
NAFS206		30	106	82.5	20	16	32.5	11.5	48.4	18.2	50.1	M10	1.32
NAFS206-18	1-1/8		106	82.5	20	16	32.5	11.5	48.4	18.2	50.1	M10	1.32
NAFS206-19	1-3/16		106	82.5	20	16	32.5	11.5	48.4	18.2	50.1	M10	1.32
NAFS206-20	1-1/4		106	82.5	20	16	32.5	11.5	48.4	18.2	50.1	M10	1.32
NAFS207		35	116	92	21	17	35	14	51.1	18.8	53.3	M12	1.77
NAFS207-20	1-1/4		116	92	21	17	35	14	51.1	18.8	53.3	M12	1.77
NAFS207-21	1-5/16		116	92	21	17	35	14	51.1	18.8	53.3	M12	1.77
NAFS207-22	1-3/16		116	92	21	17	35	14	51.1	18.8	53.3	M12	1.77
NAFS207-23	1-7/16		116	92	21	17	35	14	51.1	18.8	53.3	M12	1.77
NAFS208		40	129	101.5	24	17	39	14	56.3	21.4	58.9	M12	2.22
NAFS208-24	1-1/2		129	101.5	24	17	39	14	56.3	21.4	58.9	M12	2.22
NAFS208-25	1-9/16		129	101.5	24	17	39	14	56.3	21.4	58.9	M12	2.22
NAFS209		45	135	105	24	18	40	16	56.3	21.4	58.9	M14	2.63
NAFS209-26	1-5/8		135	105	24	18	40	16	56.3	21.4	58.9	M14	2.63
NAFS209-27	1-11/16		135	105	24	18	40	16	56.3	21.4	58.9	M14	2.63
NAFS209-28	1-3/4		135	105	24	18	40	16	56.3	21.4	58.9	M14	2.63
NAFS210		50	143	111	28	20	45	18	62.7	24.6	66.1	M16	2.95
NAFS210-30	1-7/8		143	111	28	20	45	18	62.7	24.6	66.1	M16	2.95
NAFS210-31	1-15/16		143	111	28	20	45	18	62.7	24.6	66.1	M16	2.95
NAFS210-32	2		143	111	28	20	45	18	62.7	24.6	66.1	M16	2.95
NAFS211		55	162	130	31	21	49	18	71.4	27.7	74.6	M16	4.1
NAFS211-32	2		162	130	31	21	49	18	71.4	27.7	74.6	M16	4.1
NAFS211-34	2-1/8		162	130	31	21	49	18	71.4	27.7	74.6	M16	4.1
NAFS211-35	2-3/16		162	130	31	21	49	18	71.4	27.7	74.6	M16	4.1
NAFS212		60	175	143	34	22	53.5	18	77.8	30.9	80.8	M16	4.86
NAFS212-36	2-1/4		175	143	34	22	53.5	18	77.8	30.9	80.8	M16	4.86
NAFS212-38	2-3/8		175	143	34	22	53.5	18	77.8	30.9	80.8	M16	4.86
NAFS212-39	2-7/16		175	143	34	22	53.5	18	77.8	30.9	80.8	M16	4.86
NAFS213		65	184	149	38	22	58	18	85.7	34.1	89.6	M16	5.9
NAFS213-40	2-1/2		184	149	38	22	58	18	85.7	34.1	89.6	M16	5.9
NAFS214		70	188	152	38	23	60	18	85.7	34.1	89.6	M16	6.45
NAFS214-44	2-3/4		188	152	38	23	60	18	85.7	34.1	89.6	M16	6.45
NAFS215		75	200	159	41	24	62	18	92.1	37.3	95.8	M16	7.55
NAFS215-47	2-15/16		200	159	41	24	62	18	92.1	37.3	95.8	M16	7.55
NAFS215-48	3		200	159	41	24	62	18	92.1	37.3	95.8	M16	7.55
NAFS216		80	207	165	42	25	63	22	95.2	37.3	99.9	M20	8.65

Engineering the Future of Motion

About UKL

Founded in 2020, UKL Bearing Manufacturing Co., Ltd. (Wuxi) is China 4 Bolt Flange Bearing suppliers and OEM/ODM 4 Bolt Flange Bearing company, an integrated industrial and trading enterprise that focuses on precision manufacturing, combining R&D, production, and sales.
The company specializes in high-performance bearing solutions, providing technical support for global industries with exceptionally high demands for precision and reliability.

With more than 200 skilled professionals and a fully modernized production base, UKL’s facilities cover the entire manufacturing process — forging, annealing, turning, heat treatment, grinding, and automated assembly.
Leveraging over 15 years of OEM/ODM export experience, UKL responds quickly to customer needs, offering flexible and customized services for clients across Europe, Asia, Africa, and the Middle East.

More About Us Ukl Bearing Manufacturing Co.,Ltd

0+

years

Industry Experience
0+

Model diversity
0+

Number of Employees
0

$

Annual export value

Certificate Of Honor

News

What are the different types of ball bearings?
10 Feb, 2026
1. Primary Classifications and Mechanical Design Principles In the field of mechanical power transmission, the primary goal is to manage forces while facilitating movement. Ball bearings are the most...

READ MORE
What are the common causes of bearing failure?
10 Feb, 2026
1. Introduction: The Heart of the Machine In the world of mechanical engineering, bearings are often referred to as the “unseen heroes.” They are the critical interface between stationary and moving p...

READ MORE
Why use bearings for robotics and automation?
10 Feb, 2026
I. Introduction 1.1 The Dawn of the Autonomous Era We are living in a transformative period where automation is no longer a futuristic concept but a global industrial reality. From “lights-out” smart ...

READ MORE
What is the difference between cross roller bearing and ball bearing?
09 Feb, 2026
1. Introduction to the Precision Revolution in Modern Engineering The landscape of global industrial manufacturing is currently undergoing a profound transformation. As we move further into 2026, the ...

READ MORE

4 Bolt Flange Bearing

4 Bolt Flange Bearing

Recommended Products

3 Bolt Flange Mounted Bearings

Flange Cartridge Bearing Units

2 Bolt Flange Bearing

BT2B 332504/HA2 -Double Row Tapered Roller Bearings

YRT Precision Turntable Bearing

SAZP High-Performance Threaded Rod End Bearing

Submit feedback
