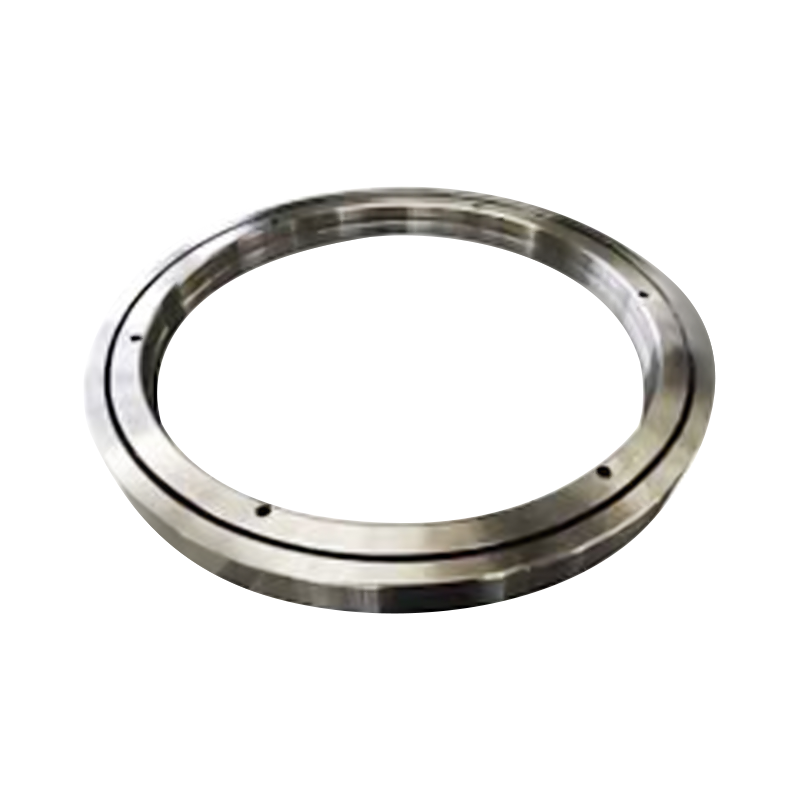

RE3010 Robot Crossed Roller Bearing

The RE series is a new type developed based on the design concept of the XRB type. Its main dimensions are the same as those of the XRB type. Structurally, the inner ring is split, while the outer ring is designed as an integrated (one-piece) structure. It is suitable for applications that require high rotational accuracy of the outer ring.

Contact Us Contact Us
PREV：CSD Robot Harmonic Reducers Bearing NEXT：RU66 Integrated Crossed Roller Bearing
  • Description
  • Specifications
  • Contact Us

Common Problems:
·Lubrication Issues:
Lubrication problems are one of the main causes of bearing failure, including:
Use of an inappropriate lubricant type
Insufficient or excessive lubricant quantity
Unreasonable lubrication intervals

·Contamination:
External contaminants such as dust, water, or metal chips entering the bearing can cause wear and damage. This is usually the result of seal failure or improper sealing.

·Installation Errors:
Incorrect installation methods can apply additional stress to the bearing, such as:
Excessive hammering or improper force during installation
Incorrect fit between the shaft and the bearing housing (too tight or too loose)

·Fatigue:
During long-term operation, bearings are subjected to repeated stresses that can lead to fatigue and eventual failure. This represents the end of the normal service life but may be accelerated by overload conditions.

·Overload:
Operating beyond the bearing’s designed load capacity accelerates fatigue and may result in permanent damage.

Bearing Type Dimension Shoulder Size Basic Load rating(radial) Weight
Inner Diameter Outside Diameter Roller Pitch Diameter Height Chamfer Cr Cor
d D Dpw B  B1 Rmin ds Dh KN KN kg
RE 2008 20  36  29  8  0.5  23.5  30.5  3.23  3.1  0.04
RE 2508 25  41  34  8  0.5  28.5  35.5  3.63  3.83  0.05
RE 3010 30  55  43.5  10  0.6  37  47  7.35  8.36  0.12
RE 3510 35  60  48.5  10  0.6  41  51.5  7.64  9.12  0.13
RE 4010 40  65  53.5  10  0.6  47.5  58  8.33  10.6  0.16
RE 4510 45  70  58.5  10  0.6  51  61.5  8.62  11.3  0.17
RE 5013 50  80  66  13  0.6  57.5  72  16.7  20.9  0.27
RE 6013 60  90  76  13  0.6  68  82  18  24.3  0.3
RE 7013 70  100  86  13  0.6  78  92  19.4  27.7  0.35
RE 8016 80  120  101.4  16  0.6  91  111  30.1  42.1  0.7
RE 9016 90  130  112  16  1  98  118  31.4  45.3  0.75
RE 10016 100  140  121.1  16  1  109  129  31.7  48.6  0.83
RE 10020 100  150  127  20  1  113  133  33.1  50.9  1.45
RE 11012 110  135  123.3  12  0.6  117  127  12.5  24.1  0.4
RE 11015 110  145  129  15  0.6  122  136  23.7  41.5  0.75
RE 11020 110  160  137  20  1  120  140  34  54  1.56
RE 12016 120  150  136  16  0.6  127  141  24.2  43.2  0.72
RE 12025 120  180  152  25  1.5  133  164  66.9  100  2.62
RE 13015 130  160  146  15  0.6  137  152  25  46.7  0.72
RE 13025 130  190  162  25  1.5  143  174  69.5  107  2.82
