SAZP Rod End Joint Bearing

Name: SAZP Rod End Joint Bearing
Rating: 5 (99 reviews)

The rod end bearing body is made of carbon steel with a galvanized surface, and the sliding surface is inlaid with bronze gaskets. The inner ring is made of bearing steel, hardened, and spherically hard chrome plated. Except for bore diameters less than 6.35 mm, all others can be lubricated by an oil cup.

PREV：SIZP Zinc Coated Precision Rod End Bearing NEXT：SI Maintenance-Free Rod End Bearing

Description
Specifications
Contact Us

·Product Number: SAZP…S 4.83～25.4
·Sliding Friction Pair: Steel/Bronze
·Operating Temperature Range：50℃～＋150℃

Rod end bearings with different thread precision requirements are available.
For left-hand threads, the bearing model and thread marking should be followed by "L" and "LH", for example: SALZP12S 1/2 20UNF 2ALH.
The rod end body and inner ring of the above products can be made of stainless steel. The bearing model will be marked with "X", i.e., SAZP…S/X.

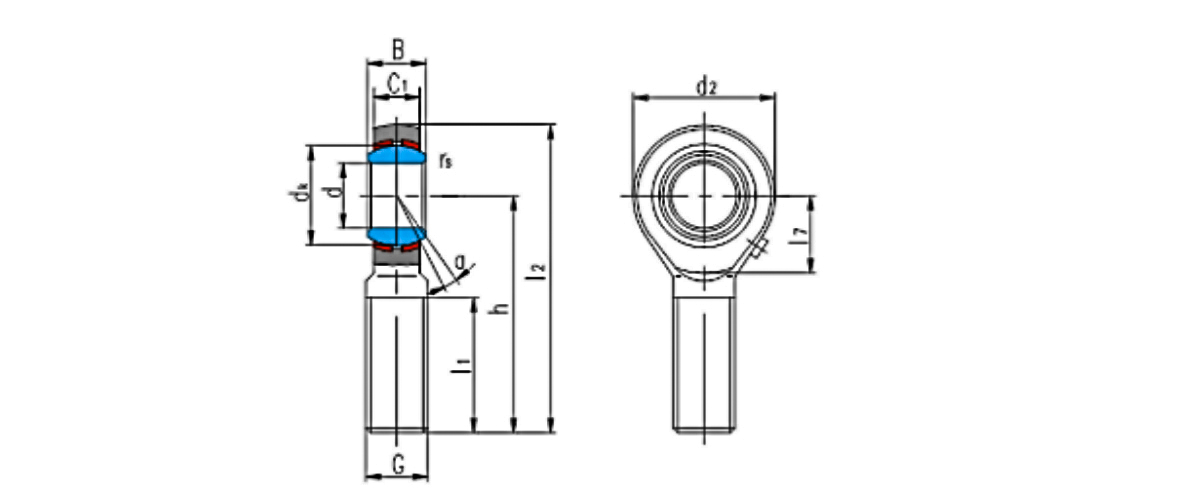

Bearing number	Dimensions mm/inch												Load ratings kN		Weight ≈kg
Bearing number	d	B	dₖ	C₁ max	d₂	G UNF-2A	h	I₁ min	I₂	I₇	rₛ min	α° ≈	Dynamic	Static	Weight ≈kg
SAZP4S 1)	4.83	7.92	11.1	6.35	15.88	10-32	31.75	19.05	39.70	-	0.3	10	3.4	3.8	0.013
SAZP4S 1)	0.19	0.312	0.437	0.25	0.625	10-32	1.25	0.75	1.563	-	0.012	10	3.4	3.8	0.013
SAZP8S 1)	6.35	9.53	12.7	7.14	19.05	1/4-28	39.87	25.40	49.20	-	0.3	13	4.5	6.6	0.022
SAZP8S 1)	0.25	0.375	0.5	0.281	0.75	1/4-28	1.582	1	1.937	-	0.012	13	4.5	6.6	0.022
SAZP7S	7.94	11.10	15.88	8.74	22.23	5/16-24	47.83	31.75	58.72	-	0.3	10	6.9	8.4	0.037
SAZP7S	0.3125	0.437	0.625	0.344	0.875	5/16-24	1.875	1.25	2.312	-	0.012	10	6.9	8.4	0.037
SAZP9S	9.53	12.70	18.26	10.31	25.40	3/8-24	49.23	31.75	61.93	-	0.6	9	9.4	10	0.055
SAZP9S	0.375	0.5	0.719	0.406	1	3/8-24	1.938	1.25	2.438	-	0.024	9	9.4	10	0.055
SAZP11S	11.11	14.27	20.62	11.1	28.58	7/16-20	53.98	34.93	68.28	-	0.6	11	11	13	0.078
SAZP11S	0.4375	0.562	0.812	0.437	1.125	7/16-20	2.125	1.375	2.688	-	0.024	11	11	13	0.078
SAZP12S	12.7	15.88	23.81	12.7	33.32	1/2-20	61.93	38.10	78.59	-	0.6	9	15	19	0.12
SAZP12S	0.5	0.625	0.937	0.5	1.312	1/2-20	2.438	1.5	3.094	-	0.024	9	15	19	0.12
SAZP15S	15.88	19.05	28.58	14.27	38.10	5/8-18	66.68	41.28	85.73	18.2	0.6	11	20	21	0.18
SAZP15S	0.625	0.75	1.125	0.562	1.5	5/8-18	2.625	1.625	3.375	0.717	0.024	11	20	21	0.18
SAZP19S	19.05	22.23	33.32	17.45	44.45	3/4-16	73.03	44.45	95.25	20.9	0.6	10	29	29	0.29
SAZP19S	0.75	0.875	1.312	0.687	1.75	3/4-16	2.875	1.75	3.75	0.823	0.024	10	29	29	0.29
SAZP25S	25.40	34.93	47.63	25.40	89.85	5/4-12	104.78	53.98	139.70	33.9	0.6	14	60	101	1.1
SAZP25S	1	1.375	1.875	1	2.75	5/4-12	4.125	2.125	5.5	1.335	0.024	14	60	101	1.1
