ZKLDF Thrust Angular Contact Ball Series

Name: ZKLDF Thrust Angular Contact Ball Series
Rating: 5 (99 reviews)

The ZKLDF bidirectional thrust angular contact ball bearing series offers high precision, low friction, high speed, high axial and radial load capacity, and high tilting rigidity. It is particularly well-suited for applications involving combined loads, such as high-speed rotary tables, milling, grinding, honing heads, as well as precision measurement and testing equipment.

PREV：Crossed Cylindrical Roller Bearings NEXT：RB 2008 Integral Inner Ring Crossed Roller Bearing

Description
Specifications
Contact Us

Bearing Advantages:
The ZKLDF bidirectional thrust angular contact ball bearing series features high precision, low friction, high speed, high axial and radial load capacity, and high tilting rigidity. It is ideal for applications with combined loads, such as high-speed rotary tables, milling, grinding, honing heads, and precision measurement and testing equipment.

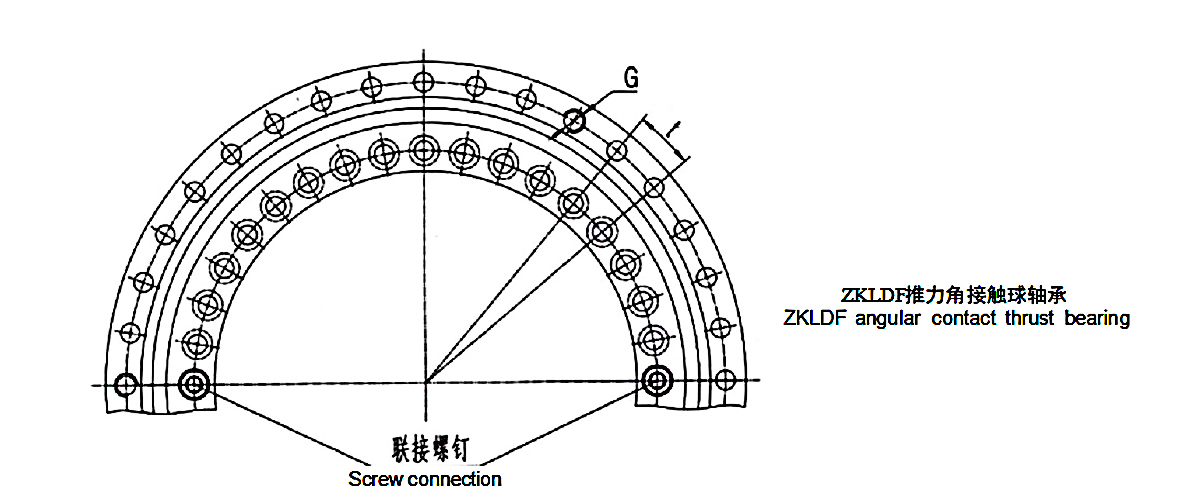

Screw connection QTY	Connect screws holes		Pitch t	Tightening torque of screw	Basic rated load		Limited speed	Bearing Friction Torque	Weight	Bearing type




					Axial
					Dynamic	Static
				Ma	Ca	Coa	Grease Lubrication
				Ma	Ca	Coa	Grease Lubrication
	G	QTY	QTY Xt	Nm	KN		r/min	Nm	≈Kg
2	M5	3	18×20°	8.5	67	251	2800	1.6	4.5	ZKLDF100
2	M8	3	24×15°	14	72	315	2400	2	6	ZKLDF120
2	M8	3	36×10°	14	76	365	2000	3	7.5	ZKLDF150
2	M8	3	48×7.5°	14	85	440	1700	3	8	ZKLDF180
2	M8	3	48×7.5°	14	112	550	1600	4.5	11	ZKLDF200
2	M12	3	36×10°	34	155	920	1200	7.5	22	ZKLDF260
2	M12	3	36×10°	34	165	1110	1000	11	28	ZKLDF325
2	M12	3	48×7.5°	34	214	1470	800	16	39	ZKLDF395
2	M12	3	48×7.5°	34	255	1860	700	21	50	ZKLDF460
3	M12	6	48×7.5°	68	282	2150	500	40	82	ZKLDF580
3	M12	6	48×7.5°	116	388	2350	440	63	168	ZKLDF650

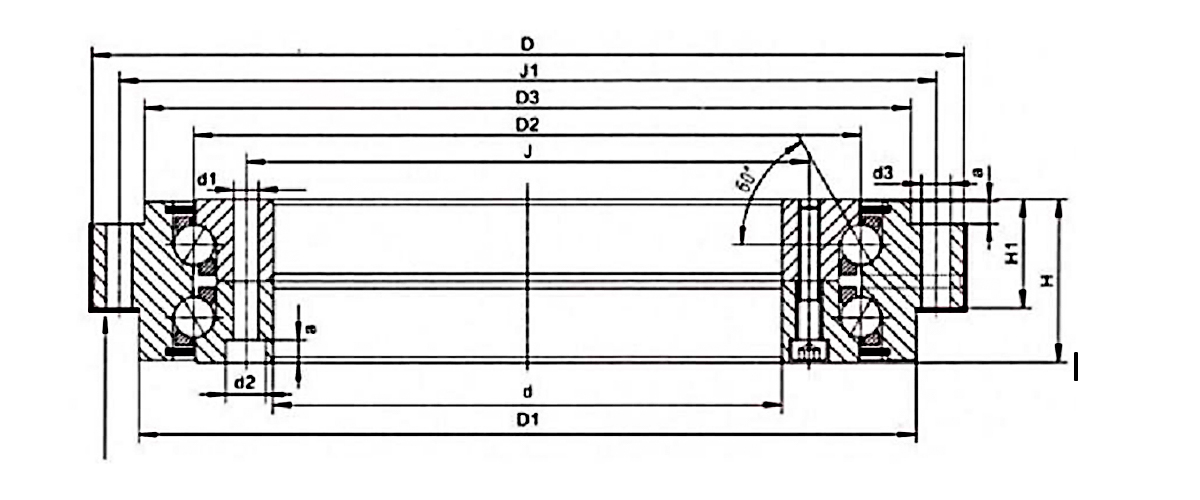

Bearing type	Overal Dimension										The fixing holes



	d	D	H	H1	D1	D2	D3	J	J1	a	Inner ring			Outer ring
	Unit: mm										d1	d2		d3
											d1	d2		d3
											mm			mm
ZKLDF100	100	185	38	25	160	136	158	112	170	5.4	5.6	10	16	5.6	15
ZKLDF120	120	210	40	26	184	159	181	135	195	6.2	7	11	22	7	21
ZKLDF150	150	240	40	26	214	188	211	165	225	6.2	7	11	34	7	33
ZKLDF180	180	280	43	29	244	221	241	194	260	6.2	7	11	46	7	45
ZKLDF200	200	300	45	30	274	243	271	215	285	6.2	7	11	46	7	45
ZKLDF260	260	385	55	36.5	345	313	348	280	365	8.2	9.3	15	34	9.3	33
ZKLDF325	325	450	60	40	415	380	413	342	430	8.2	9.3	15	34	9.3	33
ZKLDF395	395	525	65	42.5	486	450	488	415	505	8.2	9.3	15	46	9.3	45
ZKLDF460	460	600	70	46	560	520	563	482	580	8.2	9.3	15	46	9.3	45
ZKLDF580	580	750	90	60	702	656	700	610	720	11	11.4	18	45	11.4	42
ZKLDF650	650	870	122	78	800	739	802	680	830	13	14	20	45	14	42
