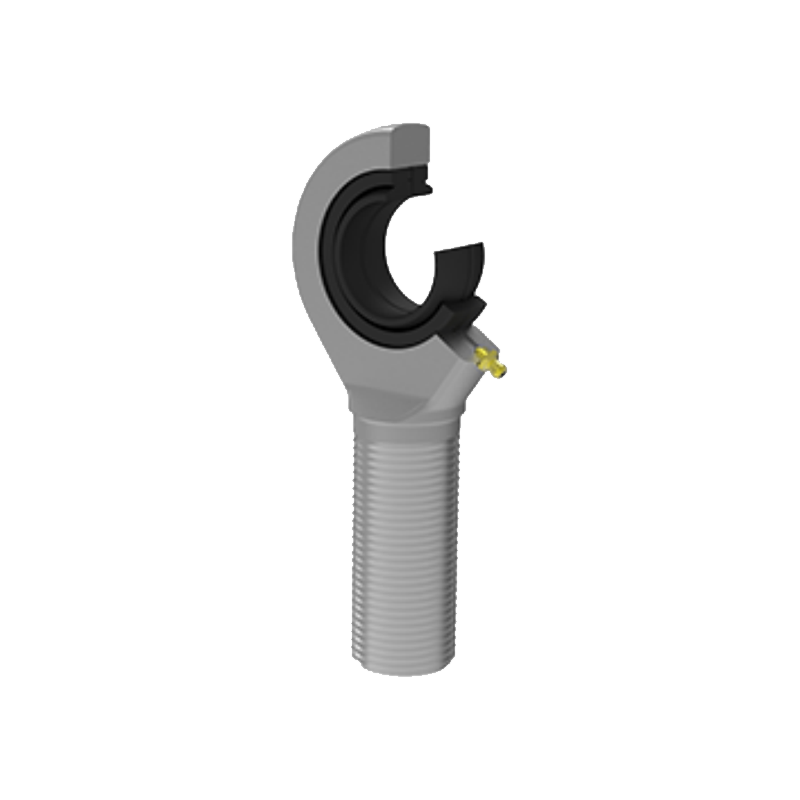

SA Zinc Coated Steel Rod End Bearing

Name: SA Zinc Coated Steel Rod End Bearing
Rating: 5 (99 reviews)

This series consists of externally threaded, assembled rod end bearings. The rod end body is made of carbon steel with a galvanized finish, and is combined with standard radial spherical plain bearings (GE…E / GE…ES).

PREV：SI Steel On Steel Rod End Bearing NEXT：SIZJ High Precision Carbon Steel Rod End Bearing

Description
Specifications
Contact Us

·Product Number
SA…E 5～12 SA…ES 15～80
·Sliding Friction Pair
Steel/Steel
·Operating Temperature Range:
50℃ ～ +150℃
·Lubrication Method:
Suffix “E”: Lubrication-free models.
Suffix “ES”: Offers either oil cup or rod end eyelet lubrication paths.
·Customization Options
Thread Customization: Non-standard pitch or thread precision can be provided upon request.
Left-hand Thread: Left-hand threads require “L” and “left” to be added after the model number and thread marking. Example: SAL20ES M20×1.5 left 6g.

Bearing number	Dimensions mm												Load ratings kN		Weight ≈kg
	Dimensions mm												Load ratings kN
	d	B	dₖ	C₁ max	d₂	G 6g	h	I₁ min	I₂	I₇	rₛ min	α°	Dynamic	Static
SA5E 1)	5	6	10	4.5	21	M5	36	16	46.5	11.5	0.3	13	3.4	3.9	0.015
SABE 1)	6	6	10	4.5	21	M6	36	16	46.5	11.5	0.3	13	3.4	5.5	0.016
SA8E 1)	8	8	13	6.5	24	M8	42	21	54	13	0.3	15	5.5	10	0.028
SA10E 1)	10	9	16	7.5	29	M10	48	26	62.5	15.5	0.3	12	8.1	16	0.050
SA12E 1)	12	10	18	8.5	34	M12	54	28	71	18	0.3	10	10	23	0.088
SA15ES 2)	15	12	22	10.5	40	M14	63	34	83	21	0.3	8	16	32	0.120
SA17ES 2)	17	14	25	11.5	46	M16	69	36	92	24	0.3	10	21	44	0.190
SA20ES 2)	20	16	29	13.5	53	M20×1.5	78	43	104.5	25.5	0.3	9	30	60	0.300
SA25ES	25	20	35.5	18	64	M24×2	94	53	126	31	0.8	7	48	83	0.555
SA30ES	30	22	40.7	20	73	M30×2	110	65	148.5	35.5	0.8	6	62	110	0.875
SA35ES	35	25	47	22	82	M38×3	140	82	181	41	0.8	6	79	148	1.42
SA40ES	40	28	53	24	92	M39×3	150	86	196	47	0.8	7	99	180	1.85
SAS40ES	40	28	53	23	92	M42×3	145	86	191	47	0.8	7	99	180	2.04
SA45ES	45	32	60	28	102	M42×3	163	92	214	52	0.8	7	127	240	2.49
SAS45ES	45	32	60	27	102	M45×3	165	95	216	52	0.8	7	127	240	2.74
SA50ES	50	35	66	31	112	M45×3	185	104	241	60	0.8	6	156	290	3.58
SAS50ES	50	35	66	30	112	M52×3	195	110	251	60	0.8	6	156	290	4.07
SAB0ES	80	44	80	39	135	M52×3	210	115	277.5	75.5	1.0	6	245	450	5.89
SAS80ES	60	44	80	38	135	M80×4	225	120	292.5	75.5	1.0	6	245	450	8.79
SA70ES	70	49	92	43	160	M58×4	235	125	315	95	1.0	6	313	610	8.51
SAS70ES	70	59	92	42	160	M72×4	265	132	345	95	1.0	6	313	610	11.2
SA80ES	80	55	105	48	180	M64×4	270	140	360	105.5	1.0	6	400	750	12.3
SAS80ES	80	55	105	47	180	M80×4	295	147	385	105.5	1.0	6	400	750	15.3
