Flange Cartridge Bearing Units

Flange Cartridge Bearing Units are units of rigid cast iron housings with piloted flange cartridge and wider inner ring bearing inserts.
Flange Cartridge Bearing Units, UCFC Standard duty, Wider inner ring bearing,Setscrew locking, Cast gray iron housing Flange Cartridge Bearing Units
They are units of rigid cast iron housings with piloted flange cartridge and wider inner ring bearing inserts.

Standard painting in green (other colors are available for choices).

Standard duty (FC200) and medium duty (FCX) are available for this series.

End caps by pressed steel are capable of protecting against external polution and dusts.

The self-aligning ability of the ball bearings can compensate for slight static mis-alignemnt of the shaft. The bearing inserts are locked onto the shaft by means of set screws, eccentric locking collars, adapter sleeves and concentric locking collars etc.

Lubricants filled inside the spherical ball bearing inserts can be standard grease, low/hight temperature grease and food grade grease.

PREV：Take Up Bearing Units NEXT：3 Bolt Flange Mounted Bearings

Specifications
Contact Us

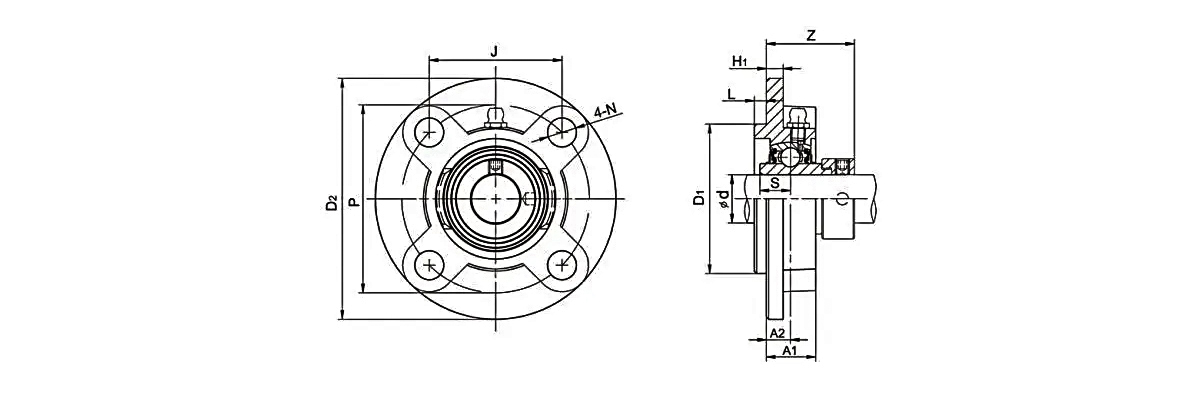

Unit No.	Shaft Dia		Dimensions(mm)												Bolt Size (mm)	Weight (kg)
	d		D2	P	J	A2	N	L	H1	A1	D1	B	S	Z
	(in)	(mm)	D2	P	J	A2	N	L	H1	A1	D1	B	S	Z
UCWFC201		12	90	70	49.5	10	10	4	5	19	55	27.4	11.5	25.9	M8	0.64
UCWFC201-8	1/2		90	70	49.5	10	10	4	5	19	55	27.4	11.5	25.9	M8	0.64
UCWFC202		15	90	70	49.5	10	10	4	5	19	55	27.4	11.5	25.9	M8	0.6
UCWFC202-9	9/16		90	70	49.5	10	10	4	5	19	55	27.4	11.5	25.9	M8	0.6
UCWFC202-10	5/8		90	70	49.5	10	10	4	5	19	55	27.4	11.5	25.9	M8	0.6
UCWFC203		17	90	70	49.5	10	10	4	5	19	55	27.4	11.5	25.9	M8	0.58
UCWFC203-11	11/16		90	70	49.5	10	10	4	5	19	55	27.4	11.5	25.9	M8	0.58
UCFC204		20	100	78	55.1	10	12	5	7	20.5	62	31	12.7	28.3	M10	0.75
UCFC204-12	3/4		100	78	55.1	10	12	5	7	20.5	62	31	12.7	28.3	M10	0.75
UCFC205		25	115	90	63.6	10	12	6	7	21	70	34.1	14.3	29.8	M10	1
UCFC205-14	7/8		115	90	63.6	10	12	6	7	21	70	34.1	14.3	29.8	M10	1
UCFC205-15	15/16		115	90	63.6	10	12	6	7	21	70	34.1	14.3	29.8	M10	1
UCFC205-16	1/1		115	90	63.6	10	12	6	7	21	70	34.1	14.3	29.8	M10	1
UCFC206		30	125	100	70.7	10	12	8	8	23	80	38.1	15.9	32.2	M10	1.3
UCFC206-17	1/16		125	100	70.7	10	12	8	8	23	80	38.1	15.9	32.2	M10	1.3
UCFC206-18	1/8		125	100	70.7	10	12	8	8	23	80	38.1	15.9	32.2	M10	1.3
UCFC206-19	3/16		125	100	70.7	10	12	8	8	23	80	38.1	15.9	32.2	M10	1.3
UCFC206-20	1/4		125	100	70.7	10	12	8	8	23	80	38.1	15.9	32.2	M10	1.3
UCFC207		35	135	110	77.8	11	14	8	9	26	90	42.9	17.5	36.4	M12	1.75
UCFC207-20	1/4		135	110	77.8	11	14	8	9	26	90	42.9	17.5	36.4	M12	1.75
UCFC207-21	5/16		135	110	77.8	11	14	8	9	26	90	42.9	17.5	36.4	M12	1.75
UCFC207-22	3/8		135	110	77.8	11	14	8	9	26	90	42.9	17.5	36.4	M12	1.75
UCFC207-23	7/16		135	110	77.8	11	14	8	9	26	90	42.9	17.5	36.4	M12	1.75
UCFC208		40	145	120	84.8	11	14	10	9	26	100	49.2	19	41.2	M12	2
UCFC208-24	1/2		145	120	84.8	11	14	10	9	26	100	49.2	19	41.2	M12	2
UCFC208-25	9/16		145	120	84.8	11	14	10	9	26	100	49.2	19	41.2	M12	2
UCFC209		45	160	132	93.3	10	16	12	14	26	105	49.2	19	40.2	M14	2.5
UCFC209-26	5/8		160	132	93.3	10	16	12	14	26	105	49.2	19	40.2	M14	2.5
UCFC209-27	11/16		160	132	93.3	10	16	12	14	26	105	49.2	19	40.2	M14	2.5
UCFC209-28	3/4		160	132	93.3	10	16	12	14	26	105	49.2	19	40.2	M14	2.5
UCFC210		50	165	138	97.6	10	16	12	14	28	110	51.6	19	42.6	M14	2.95
UCFC210-30	7/8		165	138	97.6	10	16	12	14	28	110	51.6	19	42.6	M14	2.95
UCFC210-31	1-15/16		165	138	97.6	10	16	12	14	28	110	51.6	19	42.6	M14	2.95
UCFC210-32	1/2		165	138	97.6	10	16	12	14	28	110	51.6	19	42.6	M14	2.95
UCFC211		55	185	150	106.1	13	19	12	15	30	125	55.6	22.2	46.4	M16	4
UCFC211-32	1/2		185	150	106.1	13	19	12	15	30	125	55.6	22.2	46.4	M16	4
UCFC211-34	1/8		185	150	106.1	13	19	12	15	30	125	55.6	22.2	46.4	M16	4
UCFC211-35	3/16		185	150	106.1	13	19	12	15	30	125	55.6	22.2	46.4	M16	4
UCFC212		60	195	160	113.1	17	19	12	15	35	135	65.1	25.4	56.7	M16	4.9
UCFC212-36	1/4		195	160	113.1	17	19	12	15	35	135	65.1	25.4	56.7	M16	4.9
UCFC212-38	3/8		195	160	113.1	17	19	12	15	35	135	65.1	25.4	56.7	M16	4.9
UCFC212-39	7/16		195	160	113.1	17	19	12	15	35	135	65.1	25.4	56.7	M16	4.9
UCFC213		65	205	170	120.2	16	19	14	15	36	145	65.1	25.4	55.7	M16	5.35
UCFC213-40	1/2		205	170	120.2	16	19	14	15	36	145	65.1	25.4	55.7	M16	5.35
UCFC214		70	215	177	125.1	17	19	14	18	38	150	74.6	30.2	61.4	M16	6.9
UCFC214-44	3/4		215	177	125.1	17	19	14	18	38	150	74.6	30.2	61.4	M16	6.9
UCFC215		75	220	184	130.1	18	19	16	18	39	160	77.8	33.3	62.5	M16	7.5
UCFC215-47	2-15/16		220	184	130.1	18	19	16	18	39	160	77.8	33.3	62.5	M16	7.5
UCFC215-48	1/3		220	184	130.1	18	19	16	18	39	160	77.8	33.3	62.5	M16	7.5
UCFC216		80	240	200	141.4	18	23	16	18	42	170	82.6	33.3	67.3	M20	8.7
UCFC217		85	250	208	147.1	18	23	18	20	45	180	85.7	34.1	69.6	M20	10.3
UCFC217-52	1/4		250	208	147.1	18	23	18	20	45	180	85.7	34.1	69.6	M20	10.3
UCFC218		90	265	220	155.5	22	23	18	20	50	190	96	39.7	78.3	M20	13.5
UCFC218-56	1/2		265	220	155.5	22	23	18	20	50	190	96	39.7	78.3	M20	13.5

Unit No.	Shaft Dia		Dimensions (mm)											Bolt Size (mm)	Weight (kg)
	d		D2	P	J	A2	N	L	H1	A1	D1	S	z
	(in)	(mm)	D2	P	J	A2	N	L	H1	A1	D1	S	z
NAFC201S		12	90	70	49.5	10	10	4	5	19	55	13.9	33.4	M8	0.6
NAFC201-8S	1/2		90	70	49.5	10	10	4	5	19	55	13.9	33.4	M8	0.6
NAFC202S		15	90	70	49.5	10	10	4	5	19	55	13.9	33.4	M8	0.6
NAFC202-10S	5/8		90	70	49.5	10	10	4	5	19	55	13.9	33.4	M8	0.6
NAFC203S		17	90	70	49.5	10	10	4	5	19	55	13.9	33.4	M8	0.6
NAFC203-11S	11/16		90	70	49.5	10	10	4	5	19	55	13.9	33.4	M8	0.6
NAFC201		12	100	78	55.1	10	12	5	7	20.5	62	17.1	36.5	M10	0.83
NAFC201-8	1/2		100	78	55.1	10	12	5	7	20.5	62	17.1	36.5	M10	0.83
NAFC202		15	100	78	55.1	10	12	5	7	20.5	62	17.1	36.5	M10	0.83
NAFC202-10	5/8		100	78	55.1	10	12	5	7	20.5	62	17.1	36.5	M10	0.83
NAFC203		17	100	78	55.1	10	12	5	7	20.5	62	17.1	36.5	M10	0.83
NAFC203-11	11/16		100	78	55.1	10	12	5	7	20.5	62	17.1	36.5	M10	0.83
NAFC204		20	100	78	55.1	10	12	5	7	20.5	62	17.1	36.5	M10	0.83
NAFC204-12	3/4		100	78	55.1	10	12	5	7	20.5	62	17.1	36.5	M10	0.83
NAFC205		25	115	90	63.6	10	12	6	7	21	70	17.5	36.9	M10	1
NAFC205-14	7/8		115	90	63.6	10	12	6	7	21	70	17.5	36.9	M10	1
NAFC205-15	15/16		115	90	63.6	10	12	6	7	21	70	17.5	36.9	M10	1
NAFC205-16	1/1		115	90	63.6	10	12	6	7	21	70	17.5	36.9	M10	1
NAFC206		30	125	100	70.7	10	12	8	8	23	80	18.3	40.1	M10	1.5
NAFC206-18	1/8		125	100	70.7	10	12	8	8	23	80	18.3	40.1	M10	1.5
NAFC206-19	3/16		125	100	70.7	10	12	8	8	23	80	18.3	40.1	M10	1.5
NAFC206-20	1/4		125	100	70.7	10	12	8	8	23	80	18.3	40.1	M10	1.5
NAFC207		35	135	110	77.8	11	14	8	9	26	90	18.8	43.3	M12	1.8
NAFC207-20	1/4		135	110	77.8	11	14	8	9	26	90	18.8	43.3	M12	1.8
NAFC207-21	5/16		135	110	77.8	11	14	8	9	26	90	18.8	43.3	M12	1.8
NAFC207-22	3/8		135	110	77.8	11	14	8	9	26	90	18.8	43.3	M12	1.8
NAFC207-23	7/16		135	110	77.8	11	14	8	9	26	90	18.8	43.3	M12	1.8
NAFC208		40	145	120	84.8	11	14	10	9	26	100	21.4	45.9	M12	2.2
NAFC208-24	1/2		145	120	84.8	11	14	10	9	26	100	21.4	45.9	M12	2.2
NAFC208-25	9/16		145	120	84.8	11	14	10	9	26	100	21.4	45.9	M12	2.2
NAFC209		45	160	132	93.3	10	16	12	14	26	105	21.4	44.9	M14	2.8
NAFC209-26	5/8		160	132	93.3	10	16	12	14	26	105	21.4	44.9	M14	2.8
NAFC209-27	11/16		160	132	93.3	10	16	12	14	26	105	21.4	44.9	M14	2.8
NAFC209-28	3/4		160	132	93.3	10	16	12	14	26	105	21.4	44.9	M14	2.8
NAFC210		50	165	138	97.6	10	16	12	14	28	110	24.6	48.1	M14	3.3
NAFC210-30	7/8		165	138	97.6	10	16	12	14	28	110	24.6	48.1	M14	3.3
NAFC210-31	1-15/16		165	138	97.6	10	16	12	14	28	110	24.6	48.1	M14	3.3
NAFC211		55	185	150	106.1	13	19	12	15	30	125	27.8	56.6	M16	4.5
NAFC211-32	1/2		185	150	106.1	13	19	12	15	30	125	27.8	56.6	M16	4.5
NAFC211-34	1/8		185	150	106.1	13	19	12	15	30	125	27.8	56.6	M16	4.5
NAFC211-35	3/16		185	150	106.1	13	19	12	15	30	125	27.8	56.6	M16	4.5
NAFC212		60	195	160	113.1	17	19	12	15	35	135	31	63.8	M16	5.7
NAFC212-36	1/4		195	160	113.1	17	19	12	15	35	135	31	63.8	M16	5.7
NAFC212-38	3/8		195	160	113.1	17	19	12	15	35	135	31	63.8	M16	5.7
NAFC212-39	7/16		195	160	113.1	17	19	12	15	35	135	31	63.8	M16	5.7
NAFC213		65	205	170	120.2	16	19	14	15	36	145	34.3	67.6	M16	6.5
NAFC213-40	1/2		205	170	120.2	16	19	14	15	36	145	34.3	67.6	M16	6.5
NAFC214		70	215	177	125.1	17	19	14	18	38	150	34.3	68.6	M16	7.2
NAFC214-44	3/4		215	177	125.1	17	19	14	18	38	150	34.3	68.6	M16	7.2
NAFC215		75	220	184	130.1	18	19	16	18	39	160	37.3	72.8	M16	8
NAFC215-48	1/3		220	184	130.1	18	19	16	18	39	160	37.3	72.8	M16	8

Unit No.	Shaft Dia		Dimensions(mm)												Bolt Size (mm)	Weight (kg)
	d		D2	P	J	A2	N	L	H1	A1	D1	B1	S	Z
	(in)	(mm)	D2	P	J	A2	N	L	H1	A1	D1	B1	S	Z
UEFC204		20	100	78	55.1	10	12	5	7	20.5	62	33	12.7	30.3	M10	0.75
UEFC204-12	3/4		100	78	55.1	10	12	5	7	20.5	62	33	12.7	30.3	M10	0.75
UEFC205		25	115	90	63.6	10	12	6	7	21	70	35.4	14.3	31.1	M10	1.06
UEFC205-14	7/8		115	90	63.6	10	12	6	7	21	70	35.4	14.3	31.1	M10	1.06
UEFC205-15	15/16		115	90	63.6	10	12	6	7	21	70	35.4	14.3	31.1	M10	1.06
UEFC205-16	1/1		115	90	63.6	10	12	6	7	21	70	35.4	14.3	31.1	M10	1.06
UEFC206		30	125	100	70.7	10	12	8	8	23	80	39.8	15.9	33.9	M10	1.54
UEFC206-17	1/16		125	100	70.7	10	12	8	8	23	80	39.8	15.9	33.9	M10	1.54
UEFC206-18	1/8		125	100	70.7	10	12	8	8	23	80	39.8	15.9	33.9	M10	1.54
UEFC206-19	3/16		125	100	70.7	10	12	8	8	23	80	39.8	15.9	33.9	M10	1.54
UEFC206-20	1/4		125	100	70.7	10	12	8	8	23	80	39.8	15.9	33.9	M10	1.54
UEFC207		35	135	110	77.8	11	14	8	9	26	90	43.9	17.5	37.4	M12	1.82
UEFC207-20	1/4		135	110	77.8	11	14	8	9	26	90	43.9	17.5	37.4	M12	1.82
UEFC207-21	5/16		135	110	77.8	11	14	8	9	26	90	43.9	17.5	37.4	M12	1.82
UEFC207-22	3/8		135	110	77.8	11	14	8	9	26	90	43.9	17.5	37.4	M12	1.82
UEFC207-23	7/16		135	110	77.8	11	14	8	9	26	90	43.9	17.5	37.4	M12	1.82
UEFC208		40	145	120	84.8	11	14	10	9	26	100	50.2	19	42.2	M12	2.23
UEFC208-24	1/2		145	120	84.8	11	14	10	9	26	100	50.2	19	42.2	M12	2.23
UEFC208-25	9/16		145	120	84.8	11	14	10	9	26	100	50.2	19	42.2	M12	2.23
UEFC209		45	160	132	93.3	10	16	12	14	26	105	50.2	19	41.2	M14	2.72
UEFC209-26	5/8		160	132	93.3	10	16	12	14	26	105	50.2	19	41.2	M14	2.72
UEFC209-27	11/16		160	132	93.3	10	16	12	14	26	105	50.2	19	41.2	M14	2.72
UEFC209-28	3/4		160	132	93.3	10	16	12	14	26	105	50.2	19	41.2	M14	2.72
UEFC210		50	165	138	97.6	10	16	12	14	28	110	52.6	19	43.6	M14	3.24
UEFC210-30	7/8		165	138	97.6	10	16	12	14	28	110	52.6	19	43.6	M14	3.24
UEFC210-31	1-15/16		165	138	97.6	10	16	12	14	28	110	52.6	19	43.6	M14	3.24
UEFC210-32	1/2		165	138	97.6	10	16	12	14	28	110	52.6	19	43.6	M14	3.24
UEFC211		55	185	150	106.1	13	19	12	15	30	125	56.6	22.2	47.4	M16	4.32
UEFC211-32	1/2		185	150	106.1	13	19	12	15	30	125	56.6	22.2	47.4	M16	4.32
UEFC211-34	1/8		185	150	106.1	13	19	12	15	30	125	56.6	22.2	47.4	M16	4.32
UEFC211-35	3/16		185	150	106.1	13	19	12	15	30	125	56.6	22.2	47.4	M16	4.32
UEFC212		60	195	160	113.1	17	19	12	15	35	135	66.6	25.4	58.2	M16	5.33
UEFC212-36	1/4		195	160	113.1	17	19	12	15	35	135	66.6	25.4	58.2	M16	5.33
UEFC212-38	3/8		195	160	113.1	17	19	12	15	35	135	66.6	25.4	58.2	M16	5.33
UEFC212-39	7/16		195	160	113.1	17	19	12	15	35	135	66.6	25.4	58.2	M16	5.33

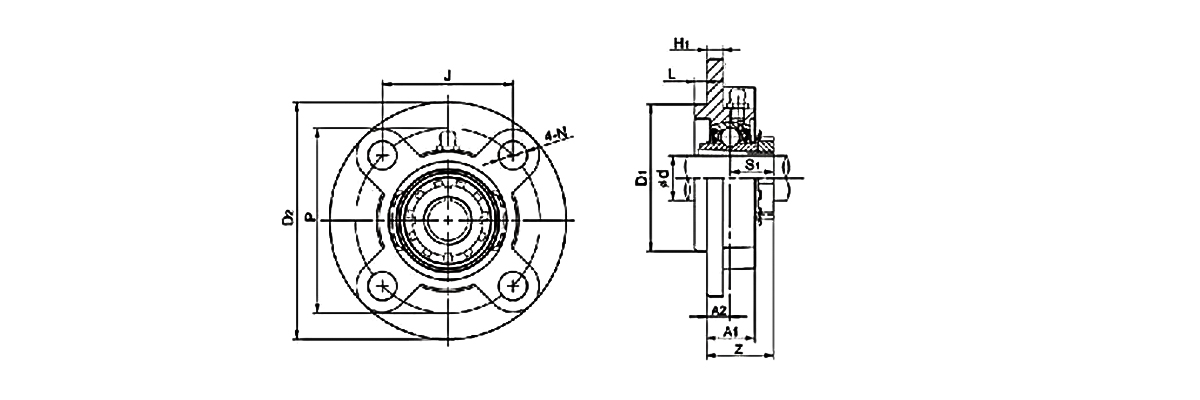

Unit No.	Shaft Dia		Dimensions (mm)											Bolt Size (mm)	Weight (kg)
	d		D2	P	J	A2	N	L	H1	A1	D1	S1	Z
	(in)	(mm)	D2	P	J	A2	N	L	H1	A1	D1	S1	Z
UKFC205+H2305		20	115	90	63.6	10	12	6	7	21	70	18.5	28.5	M10	0.98
UKFC205+HE2305	3/4		115	90	63.6	10	12	6	7	21	70	18.5	28.5	M10	0.98
UKFC206+H2306		25	125	100	70.7	10	12	8	8	23	80	20.5	30.5	M10	1.2
UKFC206+HS2306	7/8		125	100	70.7	10	12	8	8	23	80	20.5	30.5	M10	1.2
UKFC206+HA2306	15/16		125	100	70.7	10	12	8	8	23	80	20.5	30.5	M10	1.2
UKFC206+HE2306	1/1		125	100	70.7	10	12	8	8	23	80	20.5	30.5	M10	1.2
UKFC207+H2307		30	135	110	77.8	11	14	8	9	26	90	22.5	33.5	M12	1.7
UKFC207+HS2307	1/8		135	110	77.8	11	14	8	9	26	90	22.5	33.5	M12	1.7
UKFC207+HA2307	3/16		135	110	77.8	11	14	8	9	26	90	22.5	33.5	M12	1.7
UKFC208+H2308		35	145	120	84.8	11	14	10	9	26	100	24.5	35.5	M12	2
UKFC208+HE2308	1/4		145	120	84.8	11	14	10	9	26	100	24.5	35.5	M12	2
UKFC208+HS2308	3/8		145	120	84.8	11	14	10	9	26	100	24.5	35.5	M12	2
UKFC209+H2309		40	160	132	93.3	10	16	12	10	26	105	26	36	M14	2.7
UKFC209+HA2309	7/16		160	132	93.3	10	16	12	10	26	105	26	36	M14	2.7
UKFC209+HE2309	1/2		160	132	93.3	10	16	12	10	26	105	26	36	M14	2.7
UKFC210+H2310		45	165	138	97.6	10	16	12	14	28	110	27.5	37.5	M14	3
UKFC210+HS2310	5/8		165	138	97.6	10	16	12	14	28	110	27.5	37.5	M14	3
UKFC210+HA2310	11/16		165	138	97.6	10	16	12	14	28	110	27.5	37.5	M14	3
UKFC210+HE2310	3/4		165	138	97.6	10	16	12	14	28	110	27.5	37.5	M14	3
UKFC211+H2311		50	185	150	106.1	13	19	12	15	30	125	28.5	41.5	M16	4.2
UKFC211+HS2311	7/8		185	150	106.1	13	19	12	15	30	125	28.5	41.5	M16	4.2
UKFC211+HA2311	1-15/16		185	150	106.1	13	19	12	15	30	125	28.5	41.5	M16	4.2
UKFC211+HE2311	1/2		185	150	106.1	13	19	12	15	30	125	28.5	41.5	M16	4.2
UKFC212+H2312		55	195	160	113.1	17	19	12	15	35	135	31	48	M16	4.9
UKFC212+HS2312	1/8		195	160	113.1	17	19	12	15	35	135	31	48	M16	4.9
UKFC213+H2313		60	205	170	120.2	16	19	14	15	36	145	32	48	M16	5.6
UKFC213+HA2313	3/16		205	170	120.2	16	19	14	15	36	145	32	48	M16	5.6
UKFC213+HE2313	1/4		205	170	120.2	16	19	14	15	36	145	32	48	M16	5.6
UKFC213+HS2313	3/8		205	170	120.2	16	19	14	15	36	145	32	48	M16	5.6
UKFC215+H2315		65	220	184	130.1	18	19	16	17	39	160	35.5	53.5	M16	7.5
UKFC215+HA2315	7/16		220	184	130.1	18	19	16	17	39	160	35.5	53.5	M16	7.5
UKFC215+HE2315	1/2		220	184	130.1	18	19	16	17	39	160	35.5	53.5	M16	7.5
UKFC216+H2316		70	240	200	141.4	18	23	16	18	42	170	39	57	M20	8.9
UKFC216+HA2316	11/16		240	200	141.4	18	23	16	18	42	170	39	57	M20	8.9
UKFC216+HE2316	3/4		240	200	141.4	18	23	16	18	42	170	39	57	M20	8.9
UKFC217+H2317		75	250	208	147.1	18	23	18	20	45	180	40	58	M20	10.4
UKFC217+HA2317	2-15/16		250	208	147.1	18	23	18	20	45	180	40	58	M20	10.4
UKFC217+HE2317	1/3		250	208	147.1	18	23	18	20	45	180	40	58	M20	10.4
UKFC218+H2318		80	265	220	155.5	22	23	18	20	50	190	42	64	M20	13.3

Unit No.	Shaft Dia		Dimensions (mm)												Bolt Size		Weight (kg)
	d		D2	P	J	A2	N	L	H1	A1	D1	B	S	Z	(mm)	(in)
	(in)	(mm)	D2	P	J	A2	N	L	H1	A1	D1	B	S	Z	(mm)	(in)
UCFCX05		25	111	92	65	10	9.5	6	9.5	24	76	38.1	15.9	32.2	M8	5/16	1.2
UCFCX05-13	13/16		111	92	65	10	9.5	6	9.5	24	76	38.1	15.9	32.2	M8	5/16	1.2
UCFCX05-14	7/8		111	92	65	10	9.5	6	9.5	24	76	38.1	15.9	32.2	M8	5/16	1.2
UCFCX05-15	15/16		111	92	65	10	9.5	6	9.5	24	76	38.1	15.9	32.2	M8	5/16	1.2
UCFCX05-16	1/1		111	92	65	10	9.5	6	9.5	24	76	38.1	15.9	32.2	M8	5/16	1.2
UCFCX06		30	127	105	74.2	8	12	9.5	9.5	22.5	85	42.9	17.5	33.4	M10	3/8	1.5
UCFCX06-17	1/16		127	105	74.2	8	12	9.5	9.5	22.5	85	42.9	17.5	33.4	M10	3/8	1.5
UCFCX06-18	1/8		127	105	74.2	8	12	9.5	9.5	22.5	85	42.9	17.5	33.4	M10	3/8	1.5
UCFCX06-19	3/16		127	105	74.2	8	12	9.5	9.5	22.5	85	42.9	17.5	33.4	M10	3/8	1.5
UCFCX06-20	1/4		127	105	74.2	8	12	9.5	9.5	22.5	85	42.9	17.5	33.4	M10	3/8	1.5
UCFCX07		35	133	111	78.5	9	12	11	11	26	92	49.2	19	39.2	M10	3/8	1.9
UCFCX07-21	5/16		133	111	78.5	9	12	11	11	26	92	49.2	19	39.2	M10	3/8	1.9
UCFCX07-22	3/8		133	111	78.5	9	12	11	11	26	92	49.2	19	39.2	M10	3/8	1.9
UCFCX07-23	7/16		133	111	78.5	9	12	11	11	26	92	49.2	19	39.2	M10	3/8	1.9
UCFCX08		40	133	111	78.5	9	12	11	11	26	92	49.2	19	39.2	M10	3/8	2
UCFCX08-24	1/2		133	111	78.5	9	12	11	11	26	92	49.2	19	39.2	M10	3/8	2
UCFCX08-25	9/16		133	111	78.5	9	12	11	11	26	92	49.2	19	39.2	M10	3/8	2
UCFCX09		45	155	130	91.9	8	14	12	11	25	108	51.6	19	40.6	M12	7/16	2.6
UCFCX09-26	5/8		155	130	91.9	8	14	12	11	25	108	51.6	19	40.6	M12	7/16	2.6
UCFCX09-27	11/16		155	130	91.9	8	14	12	11	25	108	51.6	19	40.6	M12	7/16	2.6
UCFCX09-28	3/4		155	130	91.9	8	14	12	11	25	108	51.6	19	40.6	M12	7/16	2.6
UCFCX09-29	1-13/16		155	130	91.9	8	14	12	11	25	108	51.6	19	40.6	M12	7/16	2.6
UCFCX10		50	162	136	96.2	7	14	16	11	25	118	55.6	22.2	40.4	M12	7/16	3.2
UCFCX10-30	7/8		162	136	96.2	7	14	16	11	25	118	55.6	22.2	40.4	M12	7/16	3.2
UCFCX10-31	1-15/16		162	136	96.2	7	14	16	11	25	118	55.6	22.2	40.4	M12	7/16	3.2
UCFCX10-32	1/2		162	136	96.2	7	14	16	11	25	118	55.6	22.2	40.4	M12	7/16	3.2
UCFCX11		55	180	152	107.5	4	16	22	13	26	127	65.1	25.4	43.7	M14	1/2	4.3
UCFCX11-33	1/16		180	152	107.5	4	16	22	13	26	127	65.1	25.4	43.7	M14	1/2	4.3
UCFCX11-34	1/8		180	152	107.5	4	16	22	13	26	127	65.1	25.4	43.7	M14	1/2	4.3
UCFCX11-35	3/16		180	152	107.5	4	16	22	13	26	127	65.1	25.4	43.7	M14	1/2	4.3
UCFCX11-36	1/4		180	152	107.5	4	16	22	13	26	127	65.1	25.4	43.7	M14	1/2	4.3
UCFCX11-37	5/16		180	152	107.5	4	16	22	13	26	127	65.1	25.4	43.7	M14	1/2	4.3
UCFCX12		60	194	165	116.7	11	16	20	14	33	140	65.1	25.4	50.7	M14	1/2	5.3
UCFCX12-38	3/8		194	165	116.7	11	16	20	14	33	140	65.1	25.4	50.7	M14	1/2	5.3
UCFCX12-39	7/16		194	165	116.7	11	16	20	14	33	140	65.1	25.4	50.7	M14	1/2	5.3
UCFCX13		65	194	165	116.7	11	16	20	14	33	140	74.6	30.2	55.4	M14	1/2	5.7
UCFCX13-40	1/2		194	165	116.7	11	16	20	14	33	140	74.6	30.2	55.4	M14	1/2	5.7
UCFCX13-41	9/16		194	165	116.7	11	16	20	14	33	140	74.6	30.2	55.4	M14	1/2	5.7
UCFCX14		70	222	190	134.3	14	19	20	14	36	164	77.8	33.3	58.5	M16	5/8	7.3
UCFCX14-42	5/8		222	190	134.3	14	19	20	14	36	164	77.8	33.3	58.5	M16	5/8	7.3
UCFCX14-43	1/16		222	190	134.3	14	19	20	14	36	164	77.8	33.3	58.5	M16	5/8	7.3
UCFCX14-44	3/4		222	190	134.3	14	19	20	14	36	164	77.8	33.3	58.5	M16	5/8	7.3
UCFCX15		75	222	190	134.3	12	19	22	16	35	164	82.6	33.3	61.3	M16	5/8	8
UCFCX15-45	2-13/16		222	190	134.3	12	19	22	16	35	164	82.6	33.3	61.3	M16	5/8	8
UCFCX15-46	7/8		222	190	134.3	12	19	22	16	35	164	82.6	33.3	61.3	M16	5/8	8
UCFCX15-47	2-15/16		222	190	134.3	12	19	22	16	35	164	82.6	33.3	61.3	M16	5/8	8
UCFCX15-48	1/3		222	190	134.3	12	19	22	16	35	164	82.6	33.3	61.3	M16	5/8	8
UCFCX16		80	260	219	154.8	10	23	25	19	36	186	85.7	34.1	61.6	M20	5/8	11.3
UCFCX16-49	1/16		260	219	154.8	10	23	25	19	36	186	85.7	34.1	61.6	M20	5/8	11.3
UCFCX16-50	1/8		260	219	154.8	10	23	25	19	36	186	85.7	34.1	61.6	M20	5/8	11.3
UCFCX16-51	3/16		260	219	154.8	10	23	25	19	36	186	85.7	34.1	61.6	M20	5/8	11.3
UCFCX16-52	1/4		260	219	154.8	10	23	25	19	36	186	85.7	34.1	61.6	M20	5/8	11.3
UCFCX17		85	260	219	154.8	10	23	25	19	36	186	96	39.7	66.3	M20	3/4	12.9
UCFCX17-53	5/16		260	219	154.8	10	23	25	19	36	186	96	39.7	66.3	M20	3/4	12.9
UCFCX17-55	7/16		260	219	154.8	10	23	25	19	36	186	96	39.7	66.3	M20	3/4	12.9

Unit No.	Shaft Dia		Dimensions (mm)												Weight (kg)
	d		D2	P	J	A2	N	L	H1	A1	D1	S	B	Z
	(in)	(mm)
UCFCS206		30	111	92.08	65.11	9.9	12	6.1	9.4	23.9	76.2	15.9	38.1	32.1	1.26
UCFCS206-17	1/16
UCFCS206-18	1/8
UCFCS206-19	3/16
UCFCS206-20	1/4
UCFCS207		35	127	104.78	74.09	7.9	12	9.4	9.4	22.6	85.725	17.5	42.9	33.3	1.84
UCFCS207-20	1/4
UCFCS207-21	5/16
UCFCS207-22	3/8
UCFCS207-23	7/16
UCFCS208		40	133.1	111.1	78.56	8.9	12	10.9	10.9	25.9	92.075	19	49.2	39.1	2.02
UCFCS208-24	1/2
UCFCS208-25	9/16
UCFCS209		45	155.5	130.18	92.05	7.9	14	10.9	10.9	25.4	107.95	19	49.2	38.1	2.78
UCFCS209-26	5/8
UCFCS209-27	11/16
UCFCS209-28	3/4
UCFCS210		50	155.5	130.18	92.05	7.9	14	11.9	10.9	24.9	107.95	19	51.6	40.5	2.76
UCFCS210-30	7/8
UCFCS210-31	1-15/16
UCFCS210-32	1/2
UCFCS211		55	162	136.5	96.52	7.1	14	16	10.9	25.9	114.3	22.2	55.6	40.5	3.29
UCFCS211-32	1/2
UCFCS211-34	1/8
UCFCS211-35	3/16
UCFCS212		60	180.8	152.4	107.76	4	14	22.1	13	25.9	127	25.4	65.1	43.7	4.61
UCFCS212-36	1/4
UCFCS212-37	5/16
UCFCS212-38	3/8
UCFCS212-39	7/16
UCFCS213		65	193.8	165.1	116.74	10.9	14	20	14	33	139.7	25.4	65.1	50.6	5.91
UCFCS213-39	7/16
UCFCS213-40	1/2
UCFCS214		70	193.7	165.1	116.74	10.9	14	20	14	33.3	139.7	25.4	74.6	55.3	7.98
UCFCS214-43	11/16
UCFCS214-44	3/4
UCFCS215		75	222.2	190.5	134.7	14	17.5	20	16	36	161.925	25.4	77.8	58.5	8.34
UCFCS215-47	2-15/16
UCFCS215-48	1/3

Unit No.	Shaft Dia		Dimensions (mm)												Weight (kg)
	d		D2	P	J	A2	N	L	H1	A1	D1	S	B	Z
	(in)	(mm)	D2	P	J	A2	N	L	H1	A1	D1	S	B	Z
UCFCSX05		25	111	92.08	65.11	9.9	12	6.1	9.4	23.9	76.2	15.9	38.1	32.1	1.34
UCFCSX05-13	13/16		111	92.08	65.11	9.9	12	6.1	9.4	23.9	76.2	15.9	38.1	32.1	1.34
UCFCSX05-14	7/8		111	92.08	65.11	9.9	12	6.1	9.4	23.9	76.2	15.9	38.1	32.1	1.34
UCFCSX05-15	15/16		111	92.08	65.11	9.9	12	6.1	9.4	23.9	76.2	15.9	38.1	32.1	1.34
UCFCSX05-16	1/1		111	92.08	65.11	9.9	12	6.1	9.4	23.9	76.2	15.9	38.1	32.1	1.34
UCFCSX06		30	127	104.78	74.09	7.9	12	9.4	9.4	22.6	85.725	17.5	42.9	33.3	2.06
UCFCSX06-17	1/16		127	104.78	74.09	7.9	12	9.4	9.4	22.6	85.725	17.5	42.9	33.3	2.06
UCFCSX06-18	1/8		127	104.78	74.09	7.9	12	9.4	9.4	22.6	85.725	17.5	42.9	33.3	2.06
UCFCSX06-19	3/16		127	104.78	74.09	7.9	12	9.4	9.4	22.6	85.725	17.5	42.9	33.3	2.06
UCFCSX06-20	1/4		127	104.78	74.09	7.9	12	9.4	9.4	22.6	85.725	17.5	42.9	33.3	2.06
UCFCSX07		35	133.1	111.1	78.56	8.9	12	10.9	10.9	25.9	92.075	19	49.2	39.1	2.21
UCFCSX07-21	5/16		133.1	111.1	78.56	8.9	12	10.9	10.9	25.9	92.075	19	49.2	39.1	2.21
UCFCSX07-22	3/8		133.1	111.1	78.56	8.9	12	10.9	10.9	25.9	92.075	19	49.2	39.1	2.21
UCFCSX07-23	7/16		133.1	111.1	78.56	8.9	12	10.9	10.9	25.9	92.075	19	49.2	39.1	2.21
UCFCSX08		40	155.5	130.18	92.05	7.9	14	10.9	10.9	25.4	107.95	19	49.2	38.1	3.03
UCFCSX08-24	1/2		155.5	130.18	92.05	7.9	14	10.9	10.9	25.4	107.95	19	49.2	38.1	3.03
UCFCSX08-25	9/16		155.5	130.18	92.05	7.9	14	10.9	10.9	25.4	107.95	19	49.2	38.1	3.03
UCFCSX09		45	155.5	130.18	92.05	7.9	14	11.9	10.9	24.9	107.95	19	51.6	40.5	2.98
UCFCSX09-26	5/8		155.5	130.18	92.05	7.9	14	11.9	10.9	24.9	107.95	19	51.6	40.5	2.98
UCFCSX09-27	11/16		155.5	130.18	92.05	7.9	14	11.9	10.9	24.9	107.95	19	51.6	40.5	2.98
UCFCSX09-28	3/4		155.5	130.18	92.05	7.9	14	11.9	10.9	24.9	107.95	19	51.6	40.5	2.98
UCFCSX10		50	162	136.5	96.52	7.1	14	16	10.9	25.9	114.3	22.2	55.6	40.5	3.57
UCFCSX10-30	7/8		162	136.5	96.52	7.1	14	16	10.9	25.9	114.3	22.2	55.6	40.5	3.57
UCFCSX10-31	1-15/16		162	136.5	96.52	7.1	14	16	10.9	25.9	114.3	22.2	55.6	40.5	3.57
UCFCSX10-32	1/2		162	136.5	96.52	7.1	14	16	10.9	25.9	114.3	22.2	55.6	40.5	3.57
UCFCSX11		55	180.8	152.4	107.76	4	14	22.1	13	25.9	127	25.4	65.1	43.7	5
UCFCSX11-33	1/16		180.8	152.4	107.76	4	14	22.1	13	25.9	127	25.4	65.1	43.7	5
UCFCSX11-34	1/8		180.8	152.4	107.76	4	14	22.1	13	25.9	127	25.4	65.1	43.7	5
UCFCSX11-35	3/16		180.8	152.4	107.76	4	14	22.1	13	25.9	127	25.4	65.1	43.7	5
UCFCSX11-36	1/4		180.8	152.4	107.76	4	14	22.1	13	25.9	127	25.4	65.1	43.7	5
UCFCSX12		60	193.8	165.1	116.74	10.9	14	20	14	33	139.7	25.4	65.1	50.6	6.32
UCFCSX12-38	3/8		193.8	165.1	116.74	10.9	14	20	14	33	139.7	25.4	65.1	50.6	6.32
UCFCSX12-39	7/16		193.8	165.1	116.74	10.9	14	20	14	33	139.7	25.4	65.1	50.6	6.32
UCFCSX13		65	193.7	165.1	116.74	10.9	14	20	14	33.3	139.7	30.2	74.6	55.3	8.25
UCFCSX13-40	1/2		193.7	165.1	116.74	10.9	14	20	14	33.3	139.7	30.2	74.6	55.3	8.25
UCFCSX13-41	9/16		193.7	165.1	116.74	10.9	14	20	14	33.3	139.7	30.2	74.6	55.3	8.25
UCFCSX14		70	222.2	190.5	134.7	14	17.5	20	16	36	161.925	33.3	77.8	58.5	8.6
UCFCSX14-42	3/8		222.2	190.5	134.7	14	17.5	20	16	36	161.925	33.3	77.8	58.5	8.6
UCFCSX14-43	11/16		222.2	190.5	134.7	14	17.5	20	16	36	161.925	33.3	77.8	58.5	8.6
UCFCSX14-44	3/4		222.2	190.5	134.7	14	17.5	20	16	36	161.925	33.3	77.8	58.5	8.6
UCFCSX15		75	222.2	190.5	134.7	11.9	17.5	22.1	16	35	161.925	33.3	82.6	61.2	8.76
UCFCSX15-45	2-13/16		222.2	190.5	134.7	11.9	17.5	22.1	16	35	161.925	33.3	82.6	61.2	8.76
UCFCSX15-46	7/8		222.2	190.5	134.7	11.9	17.5	22.1	16	35	161.925	33.3	82.6	61.2	8.76
UCFCSX15-47	2-15/16		222.2	190.5	134.7	11.9	17.5	22.1	16	35	161.925	33.3	82.6	61.2	8.76
UCFCSX15-48	1/3		222.2	190.5	134.7	11.9	17.5	22.1	16	35	161.925	33.3	82.6	61.2	8.76
UCFCSX17		85	260	218.95	154.82	9.9	20.6	24.9	19	36	187.325	39.7	96	66.2	13.41
UCFCSX17-53	5/16		260	218.95	154.82	9.9	20.6	24.9	19	36	187.325	39.7	96	66.2	13.41
UCFCSX17-55	7/16		260	218.95	154.82	9.9	20.6	24.9	19	36	187.325	39.7	96	66.2	13.41
UCFCSX20		100	276	238	168.29	22	23	28	22	66	206.375	79.2	117.5	90.3	18.5
UCFCSX20-63	3-15/16		276	238	168.29	22	23	28	22	66	206.375	79.2	117.5	90.3	18.5
UCFCSX20-64	1/4		276	238	168.29	22	23	28	22	66	206.375	79.2	117.5	90.3	18.5

Engineering the Future of Motion

About UKL

Founded in 2020, UKL Bearing Manufacturing Co., Ltd. (Wuxi) is China Flange Cartridge Bearing Units suppliers and OEM/ODM Flange Cartridge Bearing Units company, an integrated industrial and trading enterprise that focuses on precision manufacturing, combining R&D, production, and sales.
The company specializes in high-performance bearing solutions, providing technical support for global industries with exceptionally high demands for precision and reliability.

With more than 200 skilled professionals and a fully modernized production base, UKL’s facilities cover the entire manufacturing process — forging, annealing, turning, heat treatment, grinding, and automated assembly.
Leveraging over 15 years of OEM/ODM export experience, UKL responds quickly to customer needs, offering flexible and customized services for clients across Europe, Asia, Africa, and the Middle East.

More About Us Ukl Bearing Manufacturing Co.,Ltd

0+

years

Industry Experience
0+

Model diversity
0+

Number of Employees
0

$

Annual export value

Certificate Of Honor

News

What are the different types of ball bearings?
10 Feb, 2026
1. Primary Classifications and Mechanical Design Principles In the field of mechanical power transmission, the primary goal is to manage forces while facilitating movement. Ball bearings are the most...

READ MORE
What are the common causes of bearing failure?
10 Feb, 2026
1. Introduction: The Heart of the Machine In the world of mechanical engineering, bearings are often referred to as the “unseen heroes.” They are the critical interface between stationary and moving p...

READ MORE
Why use bearings for robotics and automation?
10 Feb, 2026
I. Introduction 1.1 The Dawn of the Autonomous Era We are living in a transformative period where automation is no longer a futuristic concept but a global industrial reality. From “lights-out” smart ...

READ MORE
What is the difference between cross roller bearing and ball bearing?
09 Feb, 2026
1. Introduction to the Precision Revolution in Modern Engineering The landscape of global industrial manufacturing is currently undergoing a profound transformation. As we move further into 2026, the ...

READ MORE

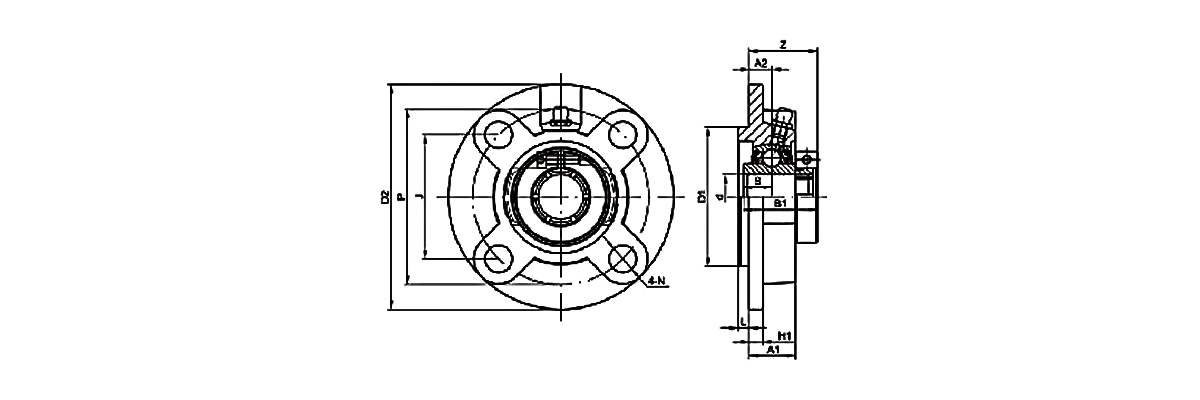

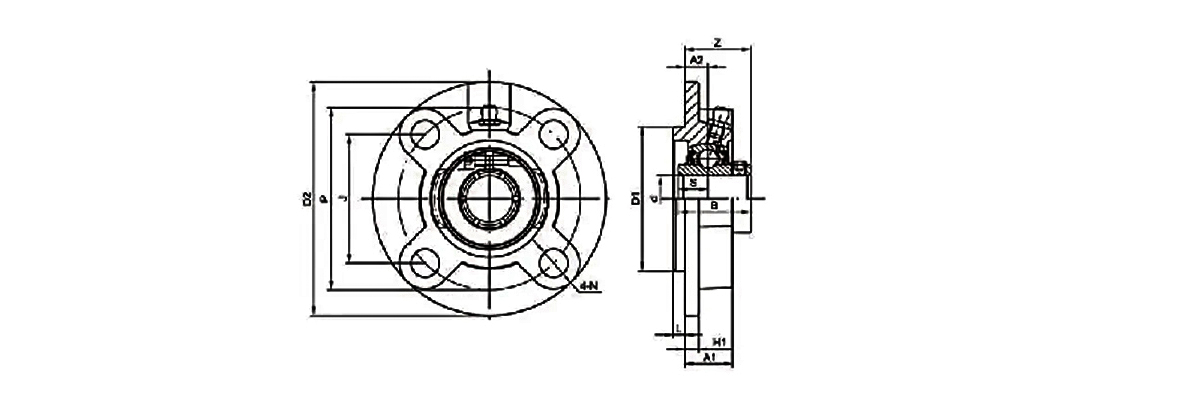

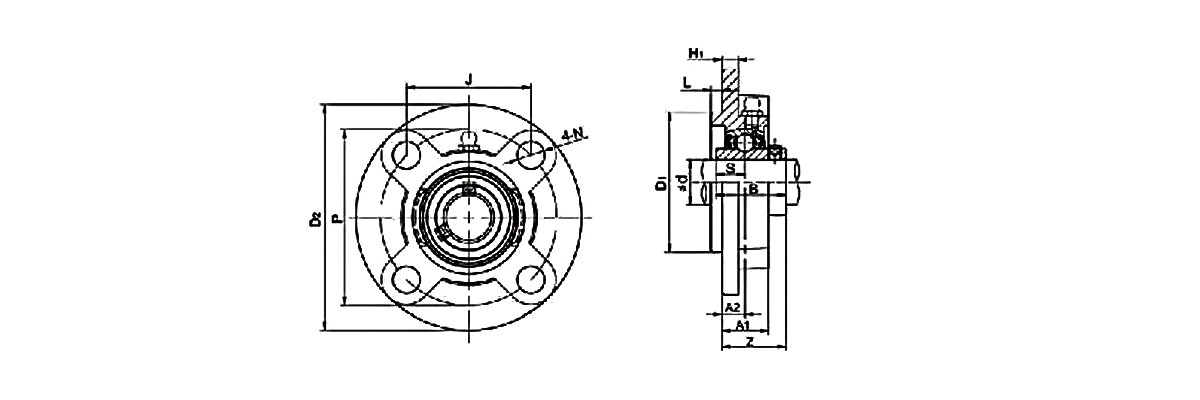

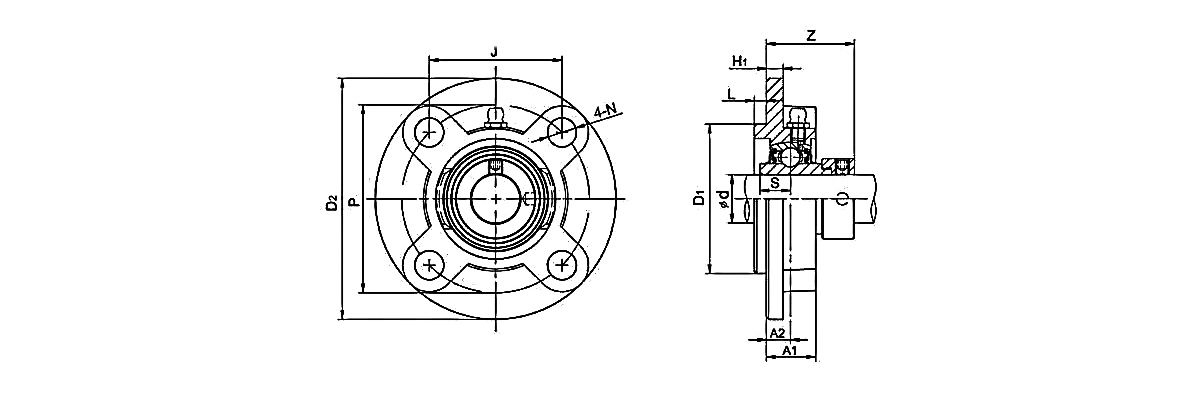

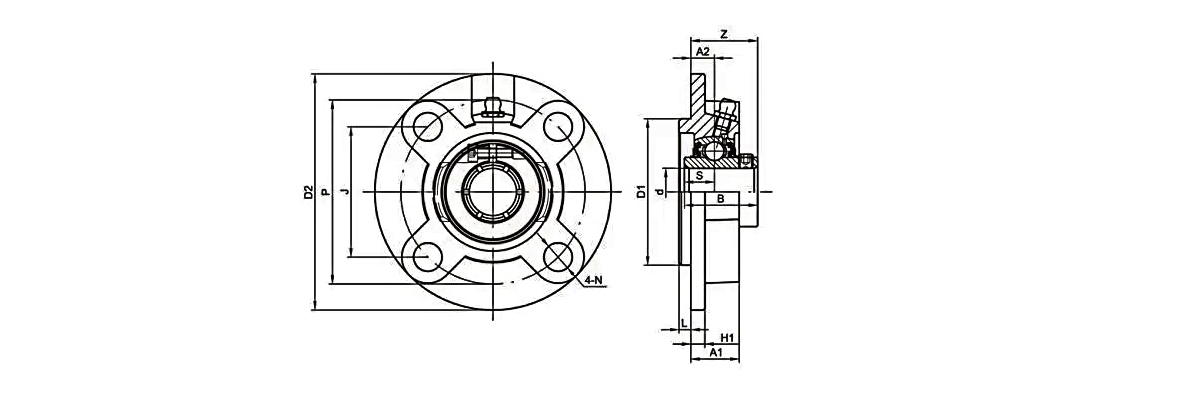

Flange Cartridge Bearing Units

Flange Cartridge Bearing Units

Recommended Products

Hanger Bearing Units

3 Bolt Flange Mounted Bearings

Take Up Bearing Units

2 Bolt Flange Bearing

4 Bolt Flange Bearing

SAZP High-Performance Threaded Rod End Bearing

Submit feedback
